2009 Citroen BERLINGO navigation

95
ACCESSORIES
5
Equipment
Audio equipment, hands-free kit,
speakers, CD changer, navigation, ...
Regardless of the audio and telematic
equipment offered on the market, the
technical constraints linked with the
fi tting of equipment of these families of
products mean that the special features
of the equipment and its compatibility
with the capacities of the your vehicle's
standard equipment must be taken into
account. Please contact a CITROËN
dealer for information before fi tting such
equipment.
To prevent the mat from becoming
caught under the pedals:
- ensure that the mat and its fi xings
are positioned correctly,
- never fi t one mat on top of another.
Maximum weights on bars
- Roof rack: 120 Kg.
- Transverse bars on roof: 100 Kg.
- Transverse bars on longitudinal bars: 75 Kg. Installation of radiocommunication
transmitters
Before installing accessory
radiocommunication transmitters with
an external aerial on your vehicle, you
are advised to contact a representative
of the CITROËN marque.
The CITROËN Network will inform you
of the specifi cations (frequency band,
maximum output power, aerial position,
specifi c installation conditions) of the
transmitters which can be fi tted, in
accordance with the Motor Vehicle
Electromagnetic Compatibility Directive
(2004/104/CE).
Front mud fl aps, rear mud fl aps,
15/17 inch alloy wheels, wheelarch
trim, leather steering wheel, ...
Screenwash, interior and exterior
cleaning and maintenance products,
replacement bulbs, ... The fi tting of electrical equipment
or accessories which are not
recommended by Automobiles
CITROËN may result in the failure
of your vehicle's electronic system.
Please note this specifi c warning. You
are advised to contact a representative
of the Marque to be shown the range
of recommended equipment and
accessories.
Depending on the country in which
the vehicle is sold or operated, it is
compulsory to have a high visibility
safety jacket, warning triangle and
replacement bulbs available in the
vehicle.
"Active Fleet Data" Telematic unit
Connected directly to the heart of the
vehicle (multiplexed network: "Full CAN"),
the telematic unit, by means of a "ready to
use" service, permits the sending in real
time of information such as:
- distance travelled,
- distance remaining before the next service,
- warnings and faults (oil level, coolant level, oil temperature,
coolant temperature, etc ...).
This enables "Fleet" managers
to optimise the monitoring and
management of their professional
vehicles.
According to country, contact
a CITROËN dealer for further
information.

9. 21
02 GENERAL OPERATION
For a detailed global view of the menus available, refer to section 10.
Press the MODE button several times in succession to gain access to the following menus:
For maintenance of the display, the use of a soft, non-abrasive cloth (spectacles cloth) is recommended, without any addi tional product.
RADIO/MUSIC MEDIA PLAYERS
TELEPHONE (If a conversation is in progress)
TRIP COMPUTER
FULL SCREEN MAP
NAVIGATION (If guidance is in progress)
SETUP: system language, date and time, display, vehicle parameters, units and system parameters, DEMONSTRATION MODE
TRAFFIC: TMC information and messages

9. 23
03
1
2
3
6
5
4

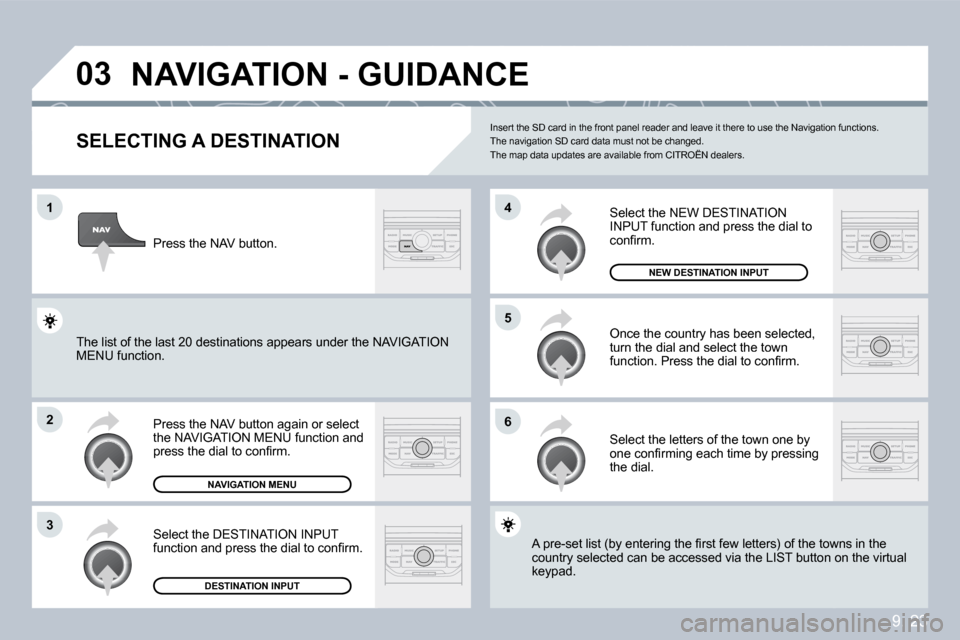

NAVIGATION - GUIDANCE
SELECTING A DESTINATION
Press the NAV button again or select the NAVIGATION MENU function and press the dial to confi rm.
Select the DESTINATION INPUT function and press the dial to confi rm.
Press the NAV button.
Select the letters of the town one by one confi rming each time by pressing the dial.
Once the country has been selected, turn the dial and select the town function. Press the dial to confi rm.
NAVIGATION MENU
DESTINATION INPUT
Insert the SD card in the front panel reader and leave it there to use the Navigation functions. The navigation SD card data must not be changed. The map data updates are available from CITROËN de alers.
A pre-set list (by entering the fi rst few letters) of the towns in the A pre-set list (by entering the fi rst few letters) of the towns in the country selected can be accessed via the LIST butto n ontton on the virtual keypad.
Select the NEW DESTINATION INPUT function and press the dial to confi rm.
NEW DESTINATION INPUT
The list of the last 20 destinations appears under the NAVIGATION The list of the last 20 destinations appears under the NAVIGATION MENU function.

9. 25
03
5
6
7
1
2
3
4
NAVIGATION - GUIDANCE
ROUTE OPTIONS
Select the ROUTE DYNAMICS function. This function provides access to the TRAFFIC INDEPENDENT or SEMI-DYNAMIC options.
Select the AVOIDANCE CRITERIA function. This function provides access to the AVOID options (motorways, toll roads, ferries).
Turn the dial and select the RECALCULATE function to take into account the route options selected. Press the dial to confi rm.
Press the NAV button.
Press the NAV button again or select the NAVIGATION MENU function and press the dial to confi rm.
Select the ROUTE TYPE function and press the dial to confi rm. This function allows you to change the route type.
Select the ROUTE OPTIONS function and press the dial to confi rm.
NAVIGATION MENU
ROUTE OPTIONS
ROUTE TYPE
ROUTE DYNAMICS
AVOIDANCE CRITERIA
RECALCULATE
The route selected by the MyWay audio/telephone depends directly on the route options. Changing these options may change the route comple tely.

9. 26
5
6
7
1
2
3
4
ADDING A STOPOVER
Enter a new address, for example.
Once the new address has been entered, select OK and press the dial to confi rm.
Select RECALCULATE and press the dial to confi rm.
Press the NAV button.
Press the NAV button again or select the NAVIGATION MENU function and press the dial to confi rm.
Select the ADD A STOPOVER function (5 stopovers maximum) and press the dial to confi rm.
Select the STOPOVERS function and press the dial to confi rm.
NAVIGATION MENU
STOPOVERS
ADD A STOPOVER
ENTER A NEW ADDRESS
OK
The stopover must be completed or deleted in order for the guidance The stopover must be completed or deleted in order for the guidance to continue to the next destination. Otherwise, the MyWa MyWay will always return you to the previous stopover.
Stopovers can be added to the route once the destination has been selected.
RECALCULATE

9. 27
03
1
2
3
4
7
85
6
NAVIGATION - GUIDANCE
SEARCHING FOR POINTS OF INTEREST
Press the NAV button.
Press the NAV button again or select the NAVIGATION MENU function and press the dial to confi rm.
Select the POI NEARBY function to search for POIs around the vehicle.
Select the SEARCH POINTS OF INTEREST function and press the dial to confi rm.
NAVIGATION MENU
SEARCH POINTS OF INTEREST
POI NEARBY
Select the POI IN CITY function to search for POIs in the city required. Select the country then enter the name of the city using the virtual keypad.
Select the POI NEAR ROUTE function to search for POIs near the route.
Select the POI IN COUNTRY function to search for POIs in the country required.
Select the POI NEAR DESTINATION function to search for POIs near the point of arrival of the route.
POI NEAR DESTINATION
POI IN COUNTRY
POI NEAR ROUTE
A list of cities present in the country selected can be accbe accessed via the LIST button on the virtual keypad.
POI IN CITY
The points of interest (POIs) indicate all of the service locations in the vicinity (hotels, various businesses, airports...).

9. 29
03
6
4
5
1
2
3
NAVIGATION SETTINGS
Select the NAVI VOLUME function and turn the dial to set the volume of each voice synthesiser (traffi c information, alert messages…).
Select HAZARDOUS LOCATION POIs to gain access to the DISPLAY ON MAP, VISUAL ALERT and SOUND ALERT functions.
Select the POI CATEGORIES ON MAP function to select the POIs to be displayed on the map by default.
NAVI VOLUME
Press the NAV button.
Press the NAV button again or select the NAVIGATION MENU function and press the dial to confi rm.
Select the SETTINGS function and press the dial to confi rm.
NAVIGATION MENU
SETTINGS
POI CATEGORIES ON MAP
HAZARDOUS LOCATION POIs
NAVIGATION - GUIDANCE
Contact a CITROËN dealer for details of the procedure for obtaining the HAZARDOUS LOCATION POIs. The updating of the HAZARDOUS LOCATION POIs requir es an SDHC (High Capacity) compatible reader.

9. 41
1
2
4
2
3
4
2
3
4
4
4
4
4
4
4
4
4
4
4
3
3
3
3
24
4
4
3
3
3
3
4
4
4
2
3
3
3
3
3
3
3
3
4
4
2
4
4
4
4
4
route type
fast route
short route
optimised route
STOPOVERS
add stopover
address input
navigate home
choose from address book
choose from last destinations
rearrange route
replace stopover
delete stopover
recalculate
fast route
short route
optimised route
"NAVIGATION" MENU
ABORT/RESUME GUIDANCE
DESTINATION INPUT
address input
country
city
street
number
start route guidance
post code
add to address book
intersection
city district
geo position
MAP
navigate home
choose from address book
choose from last destinations
POI SEARCH
POI nearby
POI near destination
POI in city
POI in country
POI near route
SETTINGS
route dynamics
traffi c independent
semi-dynamic
avoidance criteria
avoid motorways
avoid toll roads
avoid ferries
recalculate
