Child safety
ADVICE ON CHILD SEATS
The incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.
Remember to fasten the seat belts or
the child seat harnesses keeping the
slack in relation to the child's body to a
minimum , even for short journeys.
For optimum installation of the "forward
facing" child seat, ensure that the back
of the child seat is in contact with the
back of the vehicle's seat and that the
head restraint does not cause any
discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached
securely to prevent it from being
thrown around the vehicle in the event
of sharp braking.
Children under the age of 10 must not
travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied by
other children, cannot be used or are
absent.
Disarm the passenger air bag when a
"rear facing" child seat is installed on
the front seat.
Otherwise, the child would risk being
seriously injured or killed if the air bag
w e r e t o i n fl a t e .
A s a s a f e t y p r e c a u t i o n , d o n o t l e a v e :
- one or more children alone and unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children inside the vehicle. Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child's thighs.
CITROËN recommends the use of a
b o o s t e r s e a t w h i c h h a s a b a c k , fi t t e d
with a seat belt guide at shoulder level.
CHILD LOCK
This prevents opening of the side
doors from the inside. Manual mode
A label indicates the location of the
child lock.
- Open fully past the point of
resistance.
- Tilt the lever, located on the rear section of the door.
Electric mode With the ignition on, press
this button. The diode comes
on.
W a r n i n g : t h i s s y s t e m i s
independent of the central
locking control.
Always remove the ignition key when
leaving the vehicle, even for a short
time.
It is advisable to check the activation of
the child lock each time the ignition is
switched on.
In the event of a serious impact the
electric child lock is deactivated
automatically.
To prevent accidental opening of the
doors, use the "Child Lock".
Take care not to open the rear windows
by more than one third.
To protect young children from the rays
o f t h e s u n , fi t s i d e b l i n d s t o t h e r e a r
windows.
Page 104 of 196
112112
Child safety
Refer to chapter 4, "Air bags" section.
The child seats function and the
passenger air bag disarming
function are common to the entire
CITROËN range.
If the passenger air bag is not
disarmed, the installation of a
"rearwards-facing" child seat in the
front is strictly prohibited. UNIVERSAL CHILD SEATS RECOMMENDED BY CITROËN
CITROËN offers a complete range of recommended child seats which
are
secured using a three point seat belt :
Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
L1
"ROMER Baby-Safe Plus"
Installed in the rear-facing position
Groups 1, 2 and 3: from 9 to 36 kg
L2
"KIDDY Life"
Use of the restraining cushion is
compulsory for the transportation of y o u n g c h i l d r e n ( f r o m 9 t o 1 8 k g ) .
Groups 2 and 3: from 15 to 36 kg
L3
"RECARO Start''
L4
"KLIPPAN Optima" From the age of
6 y e a r s ( a p p r o x i m a t e l y 22 kg), the booster is used on its own.
L3: to install this seat in row 2, remove the head restraints.
Page 105 of 196
1 1 5
SAFETY
4
1 1 5
Child safety
This child seat can also be used on
s e a t s w h i c h a r e n o t fi t t e d w i t h I S O F I X
mountings.
In this case, it must be attached to the
vehicle seat using the three point seat
belt.
F o l l o w t h e i n s t r u c t i o n s f o r fi t t i n g
the child seat given in the seat
manufacturer's installation guide.
ISOFIX CHILD SEAT RECOMMENDED BY AND APPROVED FOR YOUR
VEHICLE
ISOFIX RÖMER Duo Plus ( s i z e c a t e g o r y B1 )
Group 1: from 9 to 18 kg
Installed in the forward facing position.
Fitted with an upper strap to be secured on the ISOFIX upp er ring,
referred to as the TOP TETHER.
T h r e e s e a t b o d y a n g l e s : s i t t i n g , r e c l i n i n g , l y i n g .
Page 107 of 196
114114
Child safety
Your vehicle has been approved in
accordance with the new ISOFIX
regulation.
The mountings comprise three rings for
e a c h s e a t : - two front rings
A and B , located
between the vehicle seat back and
cushion, - a rear ring
C , located on the back
of the vehicle's seat back, for
securing the upper strap referred to
as the TOP TETHER.
This ISOFIX mounting system
guarantees you fast, reliable and safe
fi t t i n g o f t h e c h i l d s e a t i n y o u r v e h i c l e
on the side seats.
T h e I S O F I X c h i l d s e a t s a r e fi t t e d w i t h
two locks which are secured easily on
the two front rings.
Some also have an upper strap which
is attached to the rear ring C .
To attach this strap, raise the
vehicle seat's head restraint then
pass the hook between its rods.
T h e n fi x t h e h o o k o n t h e r e a r r i n g a n d
tighten the upper strap.
I s o fi x s e a t w i t h s u p p o r t
I S O F I X c h i l d s e a t s fi t t e d w i t h a
s u p p o r t ( w h i c h r e s t s o n t h e fl o o r
of your vehicle) cannot be installed on
r e a r s e a t s e q u i p p e d w i t h fl o o r b o x e s
( u n d e r t h e f o o t w e l l s ) .
Page 108 of 196
117
4
117
Child safety
ADVICE ON CHILD SEATS
The incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.
Remember to fasten the seat belts or
the child seat harnesses keeping the
slack in relation to the child's body to a
minimum , even for short journeys.
For optimum installation of the "forward
facing" child seat, ensure that the back
of the child seat is in contact with the
back of the vehicle's seat and that the
head restraint does not cause any
discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached
securely to prevent it from being
thrown around the vehicle in the event
of sharp braking.
Children under the age of 10 must not
travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied by
other children, cannot be used or are
absent.
Disarm the passenger air bag when a
"rear facing" child seat is installed on
the front seat.
Otherwise, the child would risk being
seriously injured or killed if the air bag
w e r e t o i n fl a t e .
A s a s a f e t y p r e c a u t i o n , d o n o t l e a v e :
- one or more children alone and unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children inside the vehicle. Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child's thighs.
CITROËN recommends the use of a
b o o s t e r s e a t w h i c h h a s a b a c k , fi t t e d
with a seat belt guide at shoulder level.
CHILD LOCK
This prevents opening of the side
doors from the inside. Manual mode
A label indicates the location of the
child lock.
- Open fully past the point of
resistance.
- Tilt the lever, located on the rear section of the door.
Electric mode With the ignition on, press
this button. The diode comes
on.
W a r n i n g : t h i s s y s t e m i s
independent of the central
locking control.
Always remove the ignition key when
leaving the vehicle, even for a short
time.
It is advisable to check the activation of
the child lock each time the ignition is
switched on.
In the event of a serious impact the
electric child lock is deactivated
automatically.
To prevent accidental opening of the
doors, use the "Child Lock".
Take care not to open the rear windows
by more than one third.
To protect young children from the rays
o f t h e s u n , fi t s i d e b l i n d s t o t h e r e a r
windows.
Page 113 of 196
123
Opening the bonnet
CHECKS
6
OPENING THE BONNET

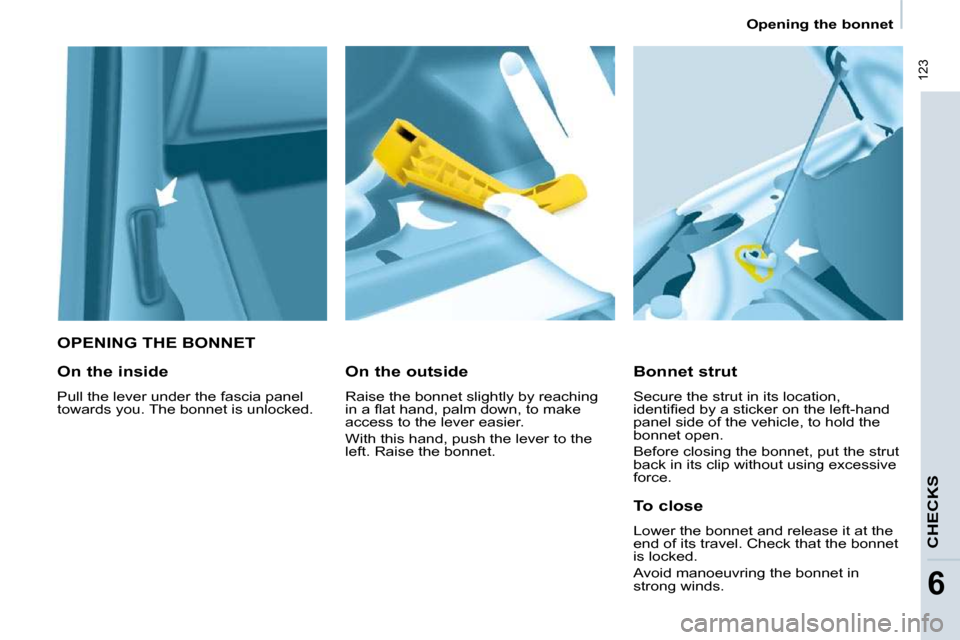

Bonnet strut
Secure the strut in its location,
i d e n t i fi e d b y a s t i c k e r o n t h e l e f t - h a n d
panel side of the vehicle, to hold the
bonnet open.
Before closing the bonnet, put the strut
b a c k i n i t s c l i p w i t h o u t u s i n g e x c e s s i v e
force.
On the outside
Raise the bonnet slightly by reaching
i n a fl a t h a n d , p a l m d o w n , t o m a k e
access to the lever easier.
With this hand, push the lever to the
left. Raise the bonnet.
On the inside
Pull the lever under the fascia panel
t o w a r d s y o u . T h e b o n n e t i s u n l o c k e d .
To close
Lower the bonnet and release it at the
e n d o f i t s t r a v e l . C h e c k t h a t t h e b o n n e t
i s l o c k e d .
Avoid manoeuvring the bonnet in
strong winds.
Page 129 of 196
138
Changing a bulb
CHANGING A BULB
Type A
E n t i r e l y g l a s s b u l b : p u l l
g e n t l y a s i t i s fi t t e d b y
p r e s s u r e .
High pressure washing
O p e n t h e b o n n e t . T o a c c e s s t h e b u l b s ,
r e a c h b e h i n d t h e h e a d l a m p u n i t .
C a r r y o u t t h e o p e r a t i o n s i n r e v e r s e
o r d e r t o r e fi t e a c h b u l b a n d c h e c k t h a t
the bonnet is closed securely.
Type C
Halogen bulb: release the
r e t a i n i n g s p r i n g f r o m i t s
housing.
Type B
B a y o n e t b u l b : p r e s s
on the bulb then turn it
a n t i c l o c k w i s e .
Halogen bulbs must be changed
w i t h t h e h e a d l a m p o f f . W a i t a f e w
m i n u t e s ( r i s k o f s e r i o u s b u r n s ) .
Do not touch the bulb directly with your
fi n g e r s , u s e l i n t - f r e e c l o t h s .
It is normal for condensation to form
i n s i d e t h e h e a d l a m p s . R e g u l a r u s e o f
the vehicle eliminates this misting. T h e b u l b s m u s t b e c h a n g e d w i t h
the ignition off or with the battery
d i s c o n n e c t e d . W a i t a p p r o x i m a t e l y
3 minutes after changing the bulb
before reconnecting the battery.
C h e c k t h a t t h e l i g h t s o p e r a t e c o r r e c t l y
a f t e r e a c h o p e r a t i o n .
W h e n u s i n g t h i s t y p e o f w a s h i n g
o n s t u b b o r n d i r t , d o n o t p e r s i s t
o n t h e h e a d l a m p s , t h e l i g h t s a n d
their surround to avoid damaging their
coating and their seal.
Types of bulb
V a r i o u s t y p e s o f b u l b a r e i n s t a l l e d o n
y o u r v e h i c l e . T o r e m o v e t h e m :
Page 131 of 196
1 4 0
Changing a bulb
4. Fog lamps
Type C , H 1 - 5 5 W
-
R e m o v e t h e f o g l a m p b y r e m o v i n g t h e
bolt, which can be accessed via the hole
p r o v i d e d f o r t h i s p u r p o s e i n t h e b u m p e r ,
u s i n g a T o r x ©
3 0 s c r e w d r i v e r .
- R e m o v e t h e t h r e e m u d g u a r d fi x i n g c l i p s , l o c a t e d b e l o w t h e b u m p e r .
- M o v e t h e m u d g u a r d u p w a r d s .
- U n c l i p t h e f o g l a m p b y s q u e e z i n g t h e c l i p to release it.
- R e m o v e t h e f o g l a m p f r o m t h e o u t s i d e .
- T u r n t h e y e l l o w c o v e r a 1 / 4 t u r n t o o p e n .
- S e p a r a t e t h e c l i p s w h i c h s e c u r e t h e b a s e of bulb on each side to release the bulb.
- R e m o v e t h e b u l b b y p u l l i n g , k e e p i n g i t straight.
- I n s e r t t h e n e w b u l b , r e - t i g h t e n t h e c l i p s around the base of the bulb and carry
o u t t h e o p e r a t i o n s i n r e v e r s e o r d e r t o
p u t t h e l i g h t u n i t a n d t h e b u m p e r b a c k i n
p o s i t i o n .
SIDE REPEATER
Type A , W Y 5 W ( a m b e r )
- P u s h t h e r e p e a t e r t o w a r d s t h e r e a r a n d d i s e n g a g e i t b y p u l l i n g t h e
front.
- C o n s u l t a C I T R O Ë N d e a l e r t o o b t a i n a n e w r e p e a t e r w h i c h i s a
f u l l y m o u l d e d p a r t .
- T o r e fi t , e n g a g e t h e r e p e a t e r towards the rear and bring it
towards the front. COURTESY LIGHTS
Type A , 1 2 V 5 W - 5 W
- U n c l i p t h e l e n s b y s l i d i n g a screwdriver in the slots on each
side of the courtesy light.
- Pull the bulb and change it.
- C l i p t h e l e n s i n i t s h o u s i n g a n d ensure that it is secured correctly.
Front/Rear
