²This device must accept any interference that may be
received, including interference that may cause undes-
ired operation.
SECURITY ALARM SYSTEM Ð IF EQUIPPED
This system monitors the vehicle doors, liftgate, and
ignition for unauthorized operation. When the Security
Alarm System is activated, the system provides both
audible and visual signals. The horn will sound repeat-
edly for three minutes and the headlights and security
light in the instrument cluster will flash for an additional
15 minutes. The engine will not run until the system is
disarmed.
To Set the Alarm:
The Security Alarm System will set when you use the
power door locks or use the Remote Keyless Entry
Transmitter to lock the doors. After all the doors are
closed and locked, the security light in the instrument
cluster will flash rapidly to signal that the system isarming. The security light in the instrument panel cluster
will flash rapidly for about 15 seconds to indicate that the
alarm is being set. After the alarm is set, the security light
will flash at a slower rate to indicate that the system is
armed.
NOTE:If the security light stays on continuously during
vehicle operation, have the system checked by your
authorized dealer.
To Disarm the System:
Use the Remote Keyless Entry Transmitter to unlock the
doors. If something has triggered the system in your
absence, the horn will sound three times when you
unlock the doors. Check the vehicle for tampering.
The Security Alarm System will also disarm if the vehicle
is started with a programmed Sentry Keyt. If an unpro-
grammed Sentry Keytis used to start a vehicle, the
engine will start and run for two seconds and then shut
down. After six unsuccessul attempts at starting the
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19
2

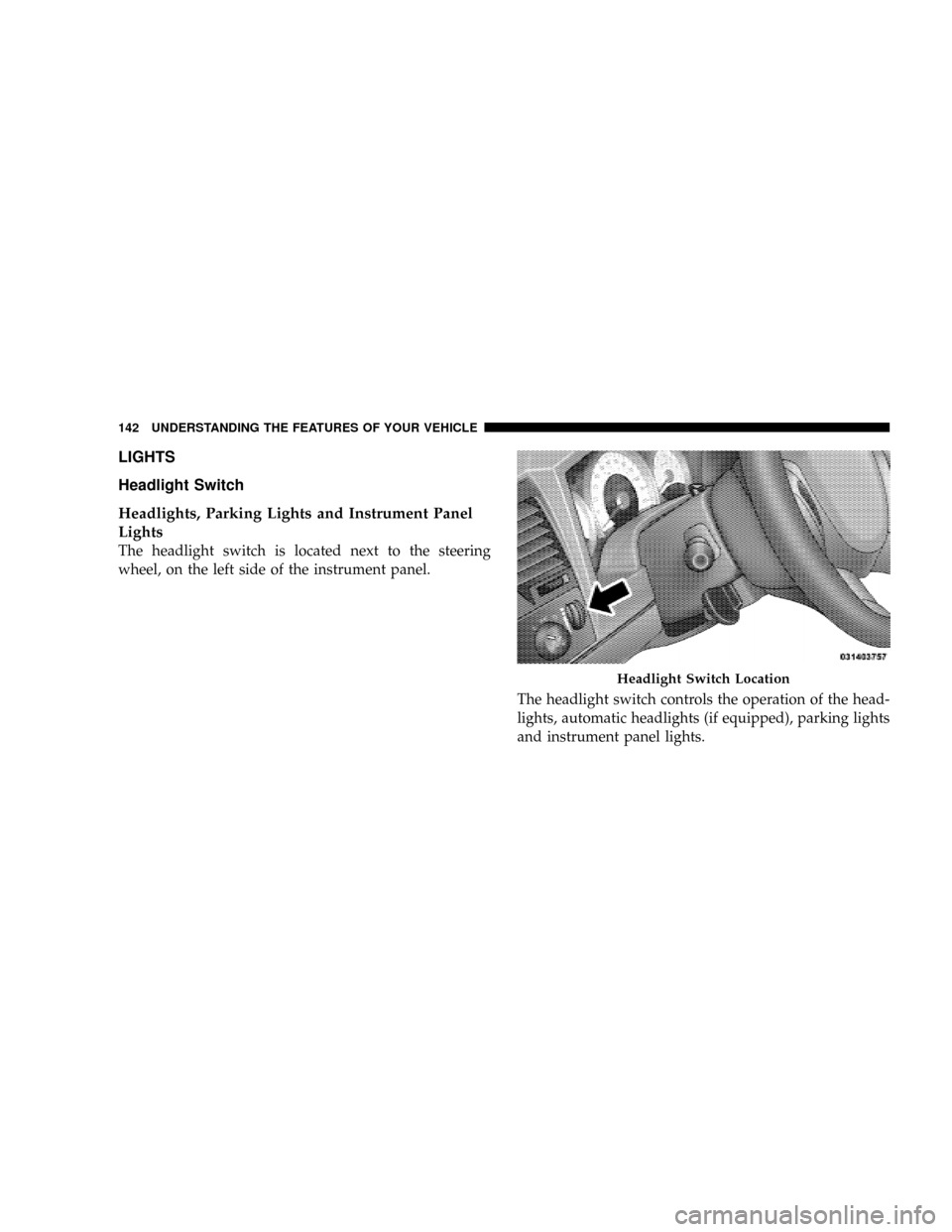

LIGHTS
Headlight Switch
Headlights, Parking Lights and Instrument Panel
Lights
The headlight switch is located next to the steering
wheel, on the left side of the instrument panel.
The headlight switch controls the operation of the head-
lights, automatic headlights (if equipped), parking lights
and instrument panel lights.
Headlight Switch Location
142 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Rotating the headlight switch clockwise to the first
position will turn on the parking lights, taillights, side
marker lights, license plate light and instrument panel
lights. To turn on the headlights, rotate the switch clock-
wise into the second position.NOTE:
²Your vehicle is equipped with plastic headlight lenses
that are lighter and less susceptible to stone breakage
than glass headlights.
²Plastic is not as scratch resistant as glass and therefore
different lens cleaning procedures must be followed.
²To minimize the possibility of scratching the lenses
and reducing light output, avoid wiping with a dry
cloth. To remove road dirt, wash with a mild soap
solution followed by rinsing.
²Do not use abrasive cleaning components, solvents,
steel wool or other abrasive materials to clean the
lenses.Headlight Switch
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 143
3

Automatic Headlights Ð If Equipped
Automatic headlights can be activated by rotating the
rotary headlight switch to the symbol ªA.º The head-
lights will turn on when the engine is running and the
ambient light sensor indicates that the headlights should
be activated. The headlights will turn off if the headlight
switch is rotated to the OFF position or 90 seconds after
the ignition is turned to OFF.
Headlight Delay
To aid in your exit, your vehicle is equipped with a
headlight delay that will leave the headlights on for 90
seconds. This delay is initiated when the ignition is
cycled off while the headlight switch is on, and then the
headlight switch is cycled off. The headlights will remain
on for 90 seconds. Headlight delay can be canceled by
either turning the headlight switch ON then OFF or by
turning the ignition ON.The headlight delay time is programmable on vehicles
equipped with the Electronic Vehicle Information Center
(EVIC). For details, refer to ªPersonal Settings (Customer
Programmable Features)º under ªOverhead Console
with Electronic Vehicle Information Center (EVIC) ± If
Equippedº in Section 3.
Interior Lights
The brightness of the instrument panel lighting can be
regulated by rotating the dimmer control up (brighter) or
down (dimmer). When the headlights are ON you can
supplement the brightness of the odometer, trip odom-
eter, radio and overhead console by rotating the control
up until you hear a click. This feature is termed the
9Parade9mode and is useful when headlights are re-
quired during the day.
144 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Courtesy and dome lights are turned on when the front
doors are opened, when the dimmer control is rotated to
the second upward detent position or when the UN-
LOCK button is pressed on the Remote Keyless Entry
(RKE) transmitter. When a door is open and the interior
lights are on, rotating the dimmer control all of the waydown to the OFF detent will cause all the interior lights to
go out. This allows the doors to stay open for extended
periods of time without discharging the vehicle's battery.
Battery Saver
To protect the life of your vehicle's battery, load shedding
is provided for both the interior and exterior lights.
If the ignition is off and any door is left ajar for eight
minutes or the dimmer control is rotated upwards for 15
minutes, the interior lights will automatically turn off.
If the headlights remain on while the ignition is cycled
off, the exterior lights will automatically turn off after
eight minutes. If the headlights are turned on and left on
for eight minutes while the ignition is off, the exterior
lights will automatically turn off.
NOTE:Battery Saver mode is cancelled if the ignition is
ON.
Dimmer Control
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 145
3

NOTE:While the engine is running, the system will
deactivate the fog lights and heated seats if a low battery
system voltage is detected.
Illuminated Entry
The headlights turn will turn on for 90 seconds when the
RKE transmitter UNLOCK button is pressed.
The illuminated entry time is programmable on vehicles
equipped with the Electronic Vehicle Information Center
(EVIC). For details, refer to ªPersonal Settings (Customer
Programmable Features)º under ªOverhead Console
with Electronic Vehicle Information Center (EVIC) ± If
Equippedº in Section 3.
Daytime Running Lights (Canada Only)
The headlights on your vehicle will illuminate when the
engine is started and the transmission is not in PARK.
This provides a constant ªLights ONº condition until the
ignition is turned OFF or the transmission returned to
PARK. The lights illuminate at reduced intensity. If the
parking brake is applied the Daytime Running Lights
(DRLs) will turn off. If the headlights are activated, the
DRL feature will transition to the normal headlight
operating mode.
Lights-On Reminder
If the headlights, parking lights or courtesy lights are left
on after the ignition is turned OFF, a continuous fast
chime will sound when the driver's door is opened.
146 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Fog Lights Ð If Equipped
The fog lights are turned on by placing the headlight
rotary control in the parking light, headlight or Auto
position and pressing the fog light button.The fog lights will operate only when the parking lights
are on or when the vehicle headlights are on low beam.
An indicator light located in the instrument cluster will
illuminate when the fog lights are on. The fog lights will
turn off when the switch is pressed in, when the head-
light switch is rotated to the OFF position or the high
beam is selected.
Fog Light Switch
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 147
3

Flash-To-Pass
You can signal another vehicle with your headlights by
partially pulling the multifunction lever toward the steer-
ing wheel. This will momentarily turn on the high beams
until the multifunction lever is released.
High Beam/Low Beam Select Switch
Pull the multifunction lever fully toward the steering
wheel to switch the headlights from high or low beam.
High Beam/Low Beam
