General Information
The Sentry Keysystem complies with FCC rules Part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
•This device may not cause harmful interference.
•This device must accept any interference that may be
received, including interference that may cause undes-
ired operation.
VEHICLE SECURITY ALARM SYSTEM — IF
EQUIPPED
The Vehicle Security Alarm system monitors the vehicle
doors for unauthorized entry and the ignition switch for
unauthorized operation. If something triggers the alarm,
the system will prevent the vehicle from starting and
provide the following audible and visible signals: the
horn will pulse; the headlights will flash; the park lights
will flash; and the Vehicle Security Light in the instru-
ment cluster will flash.
Rearming of the System
If something triggers the alarm, and no action is taken to
disarm it, the system will turn the horn off after three
minutes, turn all of the visual signals off after 15 minutes,
and then the system will rearm itself.
To Arm the System
Remove the key from the ignition switch and either press
a power door LOCK switch while the driver or passenger
door is open or press the LOCK button on the Remote
Keyless Entry (RKE) transmitter. After the last door is
closed, or if all doors are closed, the system will arm itself
in about 16 seconds. During that time, the Vehicle Secu-
rity Light will flash. If it does not illuminate, the system
is not arming. In addition, if you open a door during the
arming period, the system will cancel the arming process.
If you wish to rearm the system after closing the door,
you must repeat one of the previously-described arming
sequences.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

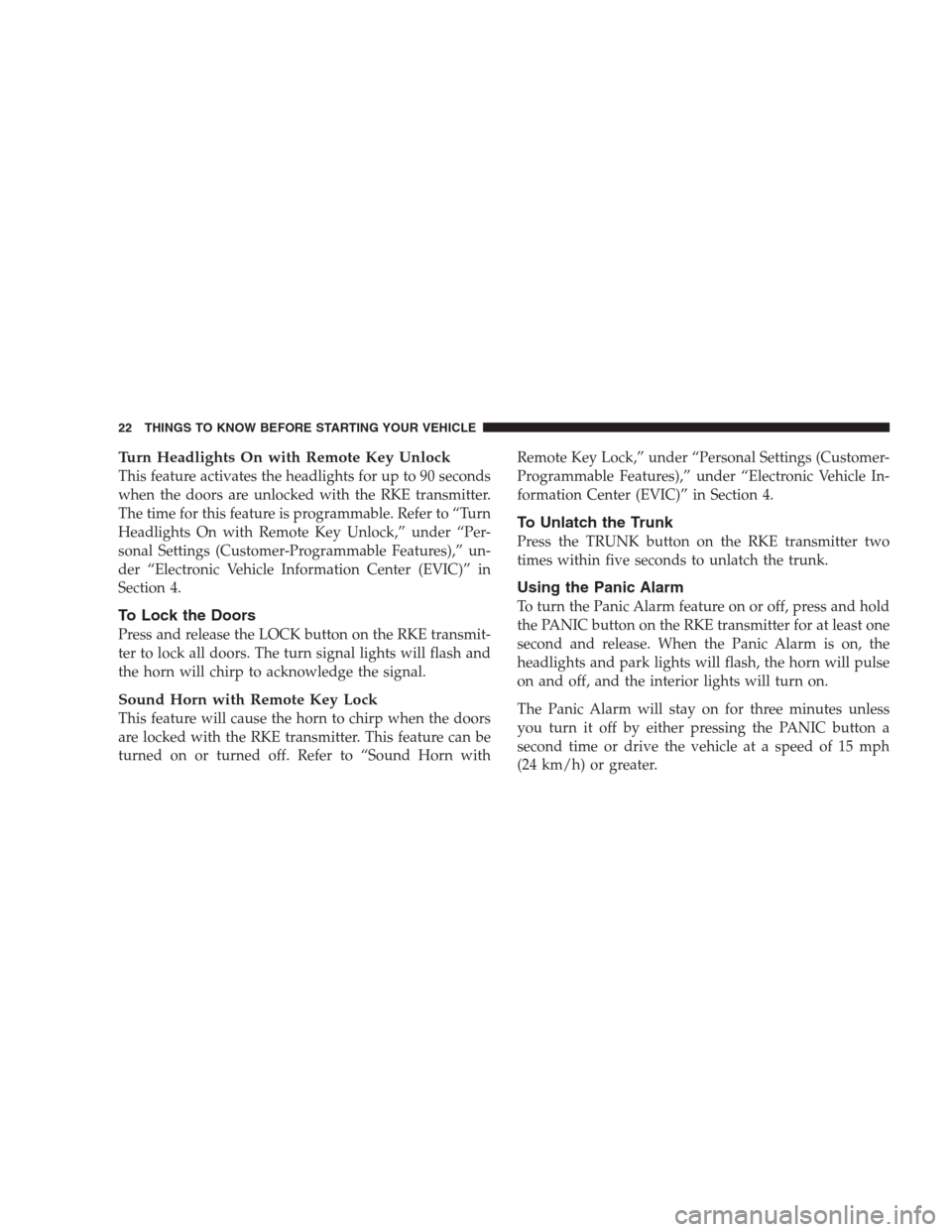

Turn Headlights On with Remote Key Unlock
This feature activates the headlights for up to 90 seconds
when the doors are unlocked with the RKE transmitter.
The time for this feature is programmable. Refer to “Turn
Headlights On with Remote Key Unlock,” under “Per-
sonal Settings (Customer-Programmable Features),” un-
der “Electronic Vehicle Information Center (EVIC)” in
Section 4.
To Lock the Doors
Press and release the LOCK button on the RKE transmit-
ter to lock all doors. The turn signal lights will flash and
the horn will chirp to acknowledge the signal.
Sound Horn with Remote Key Lock
This feature will cause the horn to chirp when the doors
are locked with the RKE transmitter. This feature can be
turned on or turned off. Refer to “Sound Horn withRemote Key Lock,” under “Personal Settings (Customer-
Programmable Features),” under “Electronic Vehicle In-
formation Center (EVIC)” in Section 4.
To Unlatch the Trunk
Press the TRUNK button on the RKE transmitter two
times within five seconds to unlatch the trunk.
Using the Panic Alarm
To turn the Panic Alarm feature on or off, press and hold
the PANIC button on the RKE transmitter for at least one
second and release. When the Panic Alarm is on, the
headlights and park lights will flash, the horn will pulse
on and off, and the interior lights will turn on.
The Panic Alarm will stay on for three minutes unless
you turn it off by either pressing the PANIC button a
second time or drive the vehicle at a speed of 15 mph
(24 km/h) or greater.
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

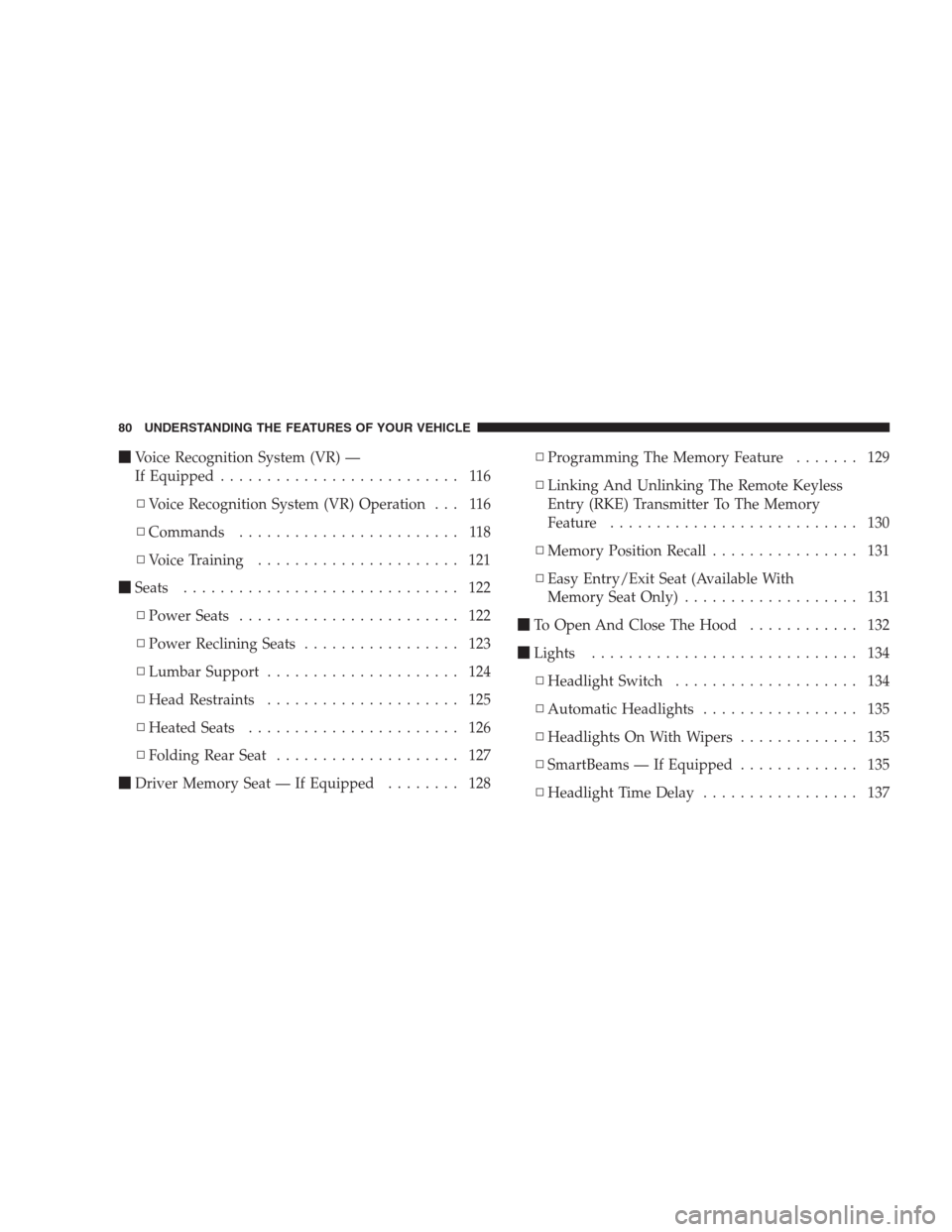

Voice Recognition System (VR) —
If Equipped.......................... 116
▫Voice Recognition System (VR) Operation . . . 116
▫Commands........................ 118
▫Voice Training...................... 121
Seats.............................. 122
▫Power Seats........................ 122
▫Power Reclining Seats................. 123
▫Lumbar Support..................... 124
▫Head Restraints..................... 125
▫Heated Seats....................... 126
▫Folding Rear Seat.................... 127
Driver Memory Seat — If Equipped........ 128▫Programming The Memory Feature....... 129
▫Linking And Unlinking The Remote Keyless
Entry (RKE) Transmitter To The Memory
Feature........................... 130
▫Memory Position Recall................ 131
▫Easy Entry/Exit Seat (Available With
Memory Seat Only)................... 131
To Open And Close The Hood............ 132
Lights............................. 134
▫Headlight Switch.................... 134
▫Automatic Headlights................. 135
▫Headlights On With Wipers............. 135
▫SmartBeams — If Equipped............. 135
▫Headlight Time Delay................. 137
80 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

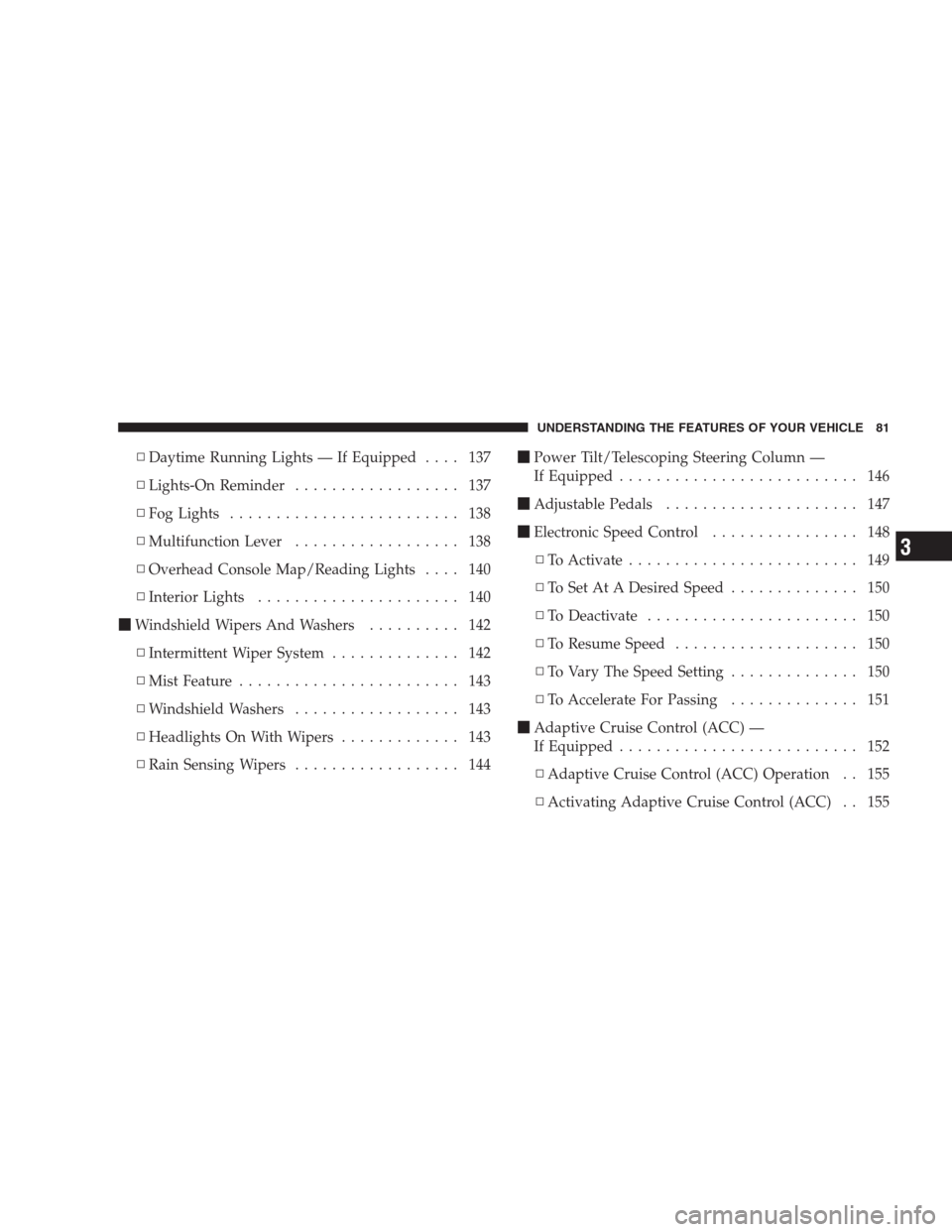

▫Daytime Running Lights — If Equipped.... 137
▫Lights-On Reminder.................. 137
▫Fog Lights......................... 138
▫Multifunction Lever.................. 138
▫Overhead Console Map/Reading Lights.... 140
▫Interior Lights...................... 140
Windshield Wipers And Washers.......... 142
▫Intermittent Wiper System.............. 142
▫Mist Feature........................ 143
▫Windshield Washers.................. 143
▫Headlights On With Wipers............. 143
▫Rain Sensing Wipers.................. 144Power Tilt/Telescoping Steering Column —
If Equipped.......................... 146
Adjustable Pedals..................... 147
Electronic Speed Control................ 148
▫To Activate......................... 149
▫To Set At A Desired Speed.............. 150
▫To Deactivate....................... 150
▫To Resume Speed.................... 150
▫To Vary The Speed Setting.............. 150
▫To Accelerate For Passing.............. 151
Adaptive Cruise Control (ACC) —
If Equipped.......................... 152
▫Adaptive Cruise Control (ACC) Operation . . 155
▫Activating Adaptive Cruise Control (ACC) . . 155
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 81
3

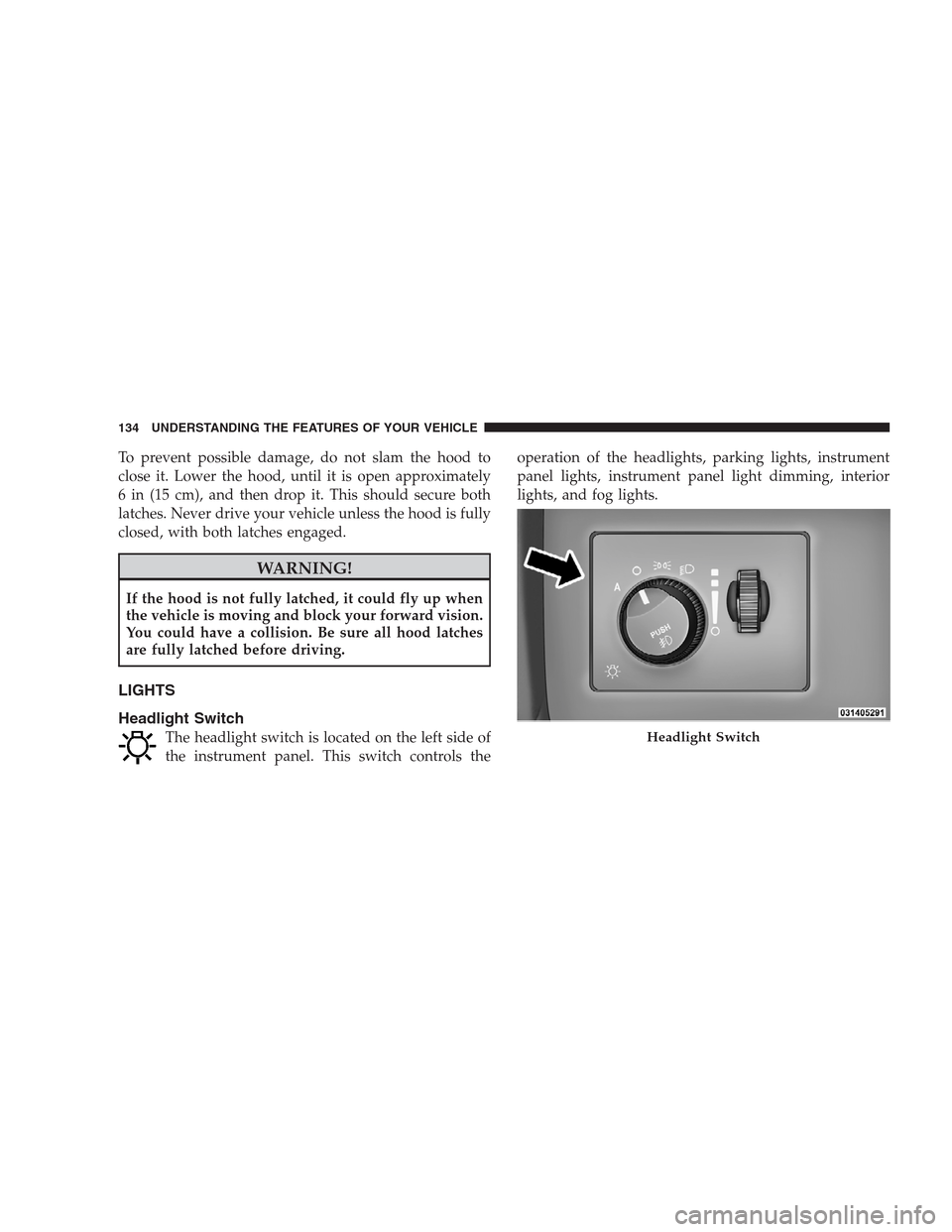

To prevent possible damage, do not slam the hood to
close it. Lower the hood, until it is open approximately
6 in (15 cm), and then drop it. This should secure both
latches. Never drive your vehicle unless the hood is fully
closed, with both latches engaged.
WARNING!
If the hood is not fully latched, it could fly up when
the vehicle is moving and block your forward vision.
You could have a collision. Be sure all hood latches
are fully latched before driving.
LIGHTS
Headlight Switch
The headlight switch is located on the left side of
the instrument panel. This switch controls theoperation of the headlights, parking lights, instrument
panel lights, instrument panel light dimming, interior
lights, and fog lights.Headlight Switch
134 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Rotate the headlight switch clockwise to the first detent
for parking light and instrument panel light operation.
Turn it to the second detent for headlight, parking light,
and instrument panel light operation.
Automatic Headlights
This system automatically turns the headlights on or off
according to ambient light levels. To turn the system on,
rotate the headlight switch counterclockwise to the
AUTO (A) position. When the system is on, the headlight
time delay feature is also on. This means the headlights
will stay on for up to 90 seconds after you turn the
ignition switch OFF. To turn the automatic system off,
move the headlight switch out of the AUTO (A) position.
NOTE:The engine must be running before the head-
lights will come on in the automatic mode.
Headlights On with Wipers
When this feature is active, the headlights will turn on
approximately 10 seconds after the wipers are turned on
if the headlight switch is placed in the AUTO position. In
addition, the headlights will turn off when the wipers are
turned off if they were turned on by this feature.
The Headlights On with Wipers feature can be enabled or
disabled. Refer to ”Headlights On with Wipers,” under
“Personal Settings (Customer-Programmable Features)”
under “Electronic Vehicle Information Center (EVIC)” in
Section 4.
SmartBeams — If Equipped
The SmartBeam system provides increased forward light-
ing at night by automating high beam control through
the use of a digital camera mounted on the inside
rearview mirror. This camera detects vehicle specific light
and automatically switches from high beams to low
beams until the approaching vehicle is out of view.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 135
3

To Activate
1. Select “Automatic High Beams — ON” through the
Electronic Vehicle Information Center (EVIC). Refer to
“Automatic High Beams,” under “Personal Settings
(Customer-Programmable Features)” under “Electronic
Vehicle Information Center (EVIC)” in Section 4.
2. Rotate the headlight switch counterclockwise to the
AUTO (A) position.
3. Push the multifunction lever away from you to switch
the headlights to the high beam position.
NOTE:This system will not activate until the vehicle is
at or above 25 mph (40 km/h).
To Deactivate
Perform either of the following steps to deactivate the
SmartBeam system.
1. Pull the multifunction lever toward you to switch the
headlights from the high beam to the low beam position.
2. Rotate the headlight switch clockwise from the AUTO
(A) to the on position.
NOTE:Broken, muddy, or obstructed headlights and
taillights of vehicles in the field of view will cause
headlights to remain on longer (closer to the vehicle).
Also, dirt, film, and other obstructions on the windshield
or camera lens will cause the system to function
improperly.
136 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

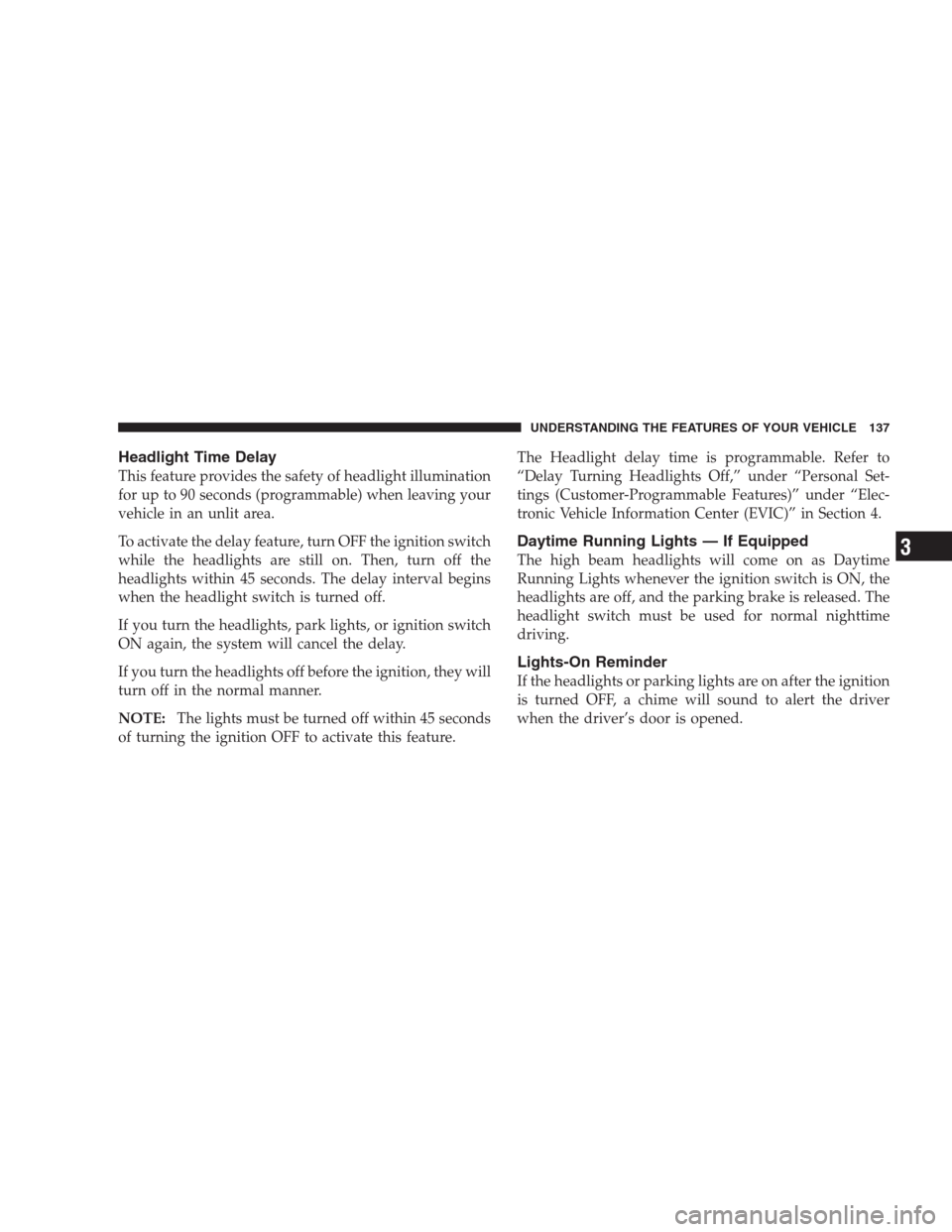

Headlight Time Delay
This feature provides the safety of headlight illumination
for up to 90 seconds (programmable) when leaving your
vehicle in an unlit area.
To activate the delay feature, turn OFF the ignition switch
while the headlights are still on. Then, turn off the
headlights within 45 seconds. The delay interval begins
when the headlight switch is turned off.
If you turn the headlights, park lights, or ignition switch
ON again, the system will cancel the delay.
If you turn the headlights off before the ignition, they will
turn off in the normal manner.
NOTE:The lights must be turned off within 45 seconds
of turning the ignition OFF to activate this feature.The Headlight delay time is programmable. Refer to
“Delay Turning Headlights Off,” under “Personal Set-
tings (Customer-Programmable Features)” under “Elec-
tronic Vehicle Information Center (EVIC)” in Section 4.
Daytime Running Lights — If Equipped
The high beam headlights will come on as Daytime
Running Lights whenever the ignition switch is ON, the
headlights are off, and the parking brake is released. The
headlight switch must be used for normal nighttime
driving.
Lights-On Reminder
If the headlights or parking lights are on after the ignition
is turned OFF, a chime will sound to alert the driver
when the driver’s door is opened.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 137
3
