2009 CHRYSLER 300 SRT checking oil

If you are required to drive with the trunk open, make
sure that all windows are closed and the climate control
BLOWER switch is set at high speed. DO NOT use the
recirculation mode.
The best protection against carbon monoxide entry into
the vehicle body is a properly maintained engine exhaust
system.
Whenever a change is noticed in the sound of the exhaust
system, when exhaust fumes can be detected inside the
vehicle, or when the underside or rear of the vehicle is
damaged, have a competent mechanic inspect the com-
plete exhaust system and adjacent body areas for broken,
damaged, deteriorated, or mispositioned parts. Open
seams or loose connections could permit exhaust fumes
to seep into the passenger compartment. In addition,
inspect the exhaust system each time the vehicle is raised
for lubrication or oil change. Replace as required.Safety Checks You Should Make Inside The
Vehicle
Seat Belts
Inspect the belt system periodically, checking for cuts,
frays, and loose parts. Damaged parts must be replaced
immediately. Do not disassemble or modify the system.
Front seat belt assemblies must be replaced after a
collision. Rear seat belt assemblies must be replaced after
a collision if they have been damaged (i.e., bent retractor,
torn webbing, etc.). If there is any question regarding belt
or retractor condition, replace the belt.
Airbag Warning Light
The light should come on and remain on for six to eight
seconds as a bulb check when the ignition switch is first
turned ON. If the light is not lit during starting, see your
authorized dealer. If the light stays on, flickers, or comes
on while driving, have the system checked by an autho-
rized dealer.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 77
2

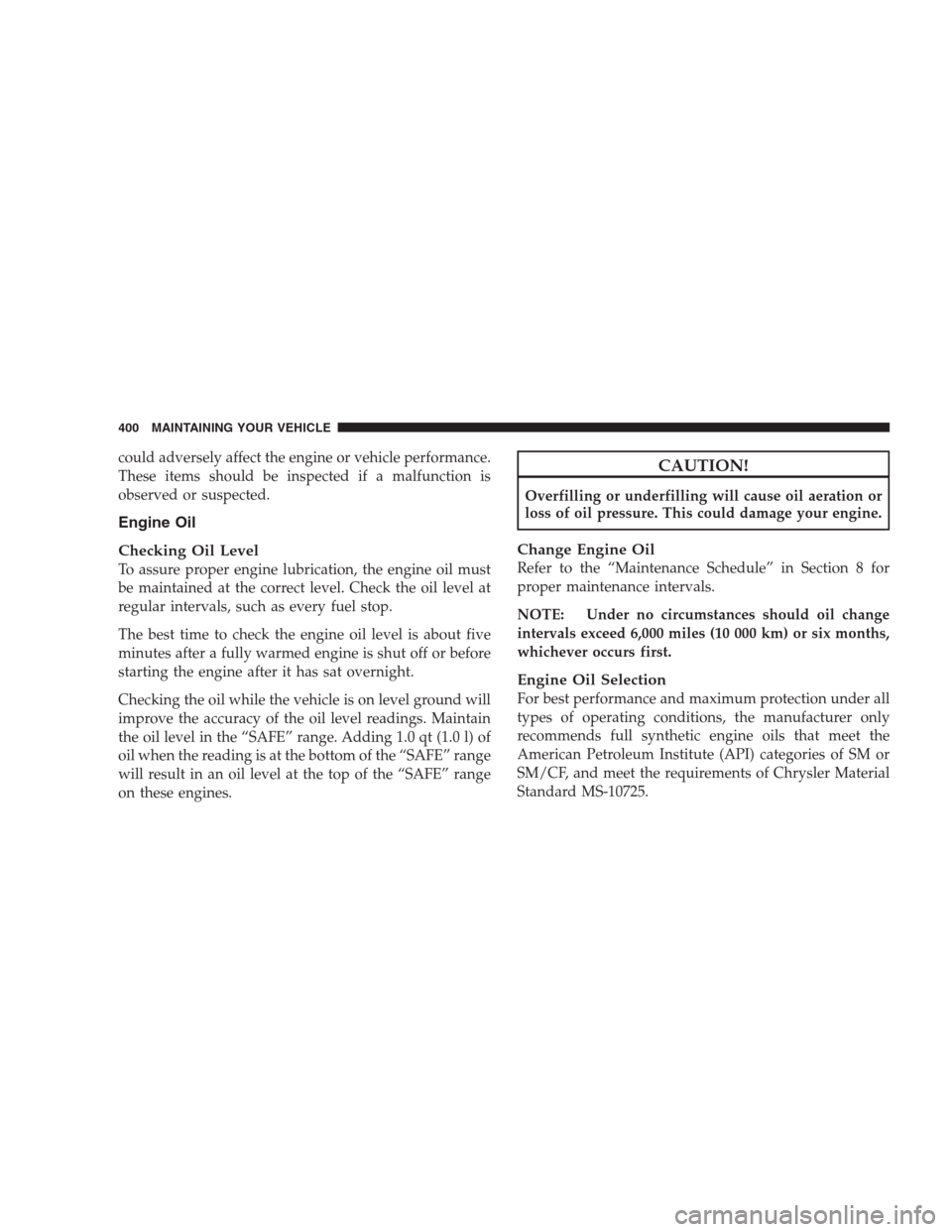

could adversely affect the engine or vehicle performance.
These items should be inspected if a malfunction is
observed or suspected.
Engine Oil
Checking Oil Level
To assure proper engine lubrication, the engine oil must
be maintained at the correct level. Check the oil level at
regular intervals, such as every fuel stop.
The best time to check the engine oil level is about five
minutes after a fully warmed engine is shut off or before
starting the engine after it has sat overnight.
Checking the oil while the vehicle is on level ground will
improve the accuracy of the oil level readings. Maintain
the oil level in the “SAFE” range. Adding 1.0 qt (1.0 l) of
oil when the reading is at the bottom of the “SAFE” range
will result in an oil level at the top of the “SAFE” range
on these engines.
CAUTION!
Overfilling or underfilling will cause oil aeration or
loss of oil pressure. This could damage your engine.
Change Engine Oil
Refer to the “Maintenance Schedule” in Section 8 for
proper maintenance intervals.
NOTE: Under no circumstances should oil change
intervals exceed 6,000 miles (10 000 km) or six months,
whichever occurs first.
Engine Oil Selection
For best performance and maximum protection under all
types of operating conditions, the manufacturer only
recommends full synthetic engine oils that meet the
American Petroleum Institute (API) categories of SM or
SM/CF, and meet the requirements of Chrysler Material
Standard MS-10725.
400 MAINTAINING YOUR VEHICLE

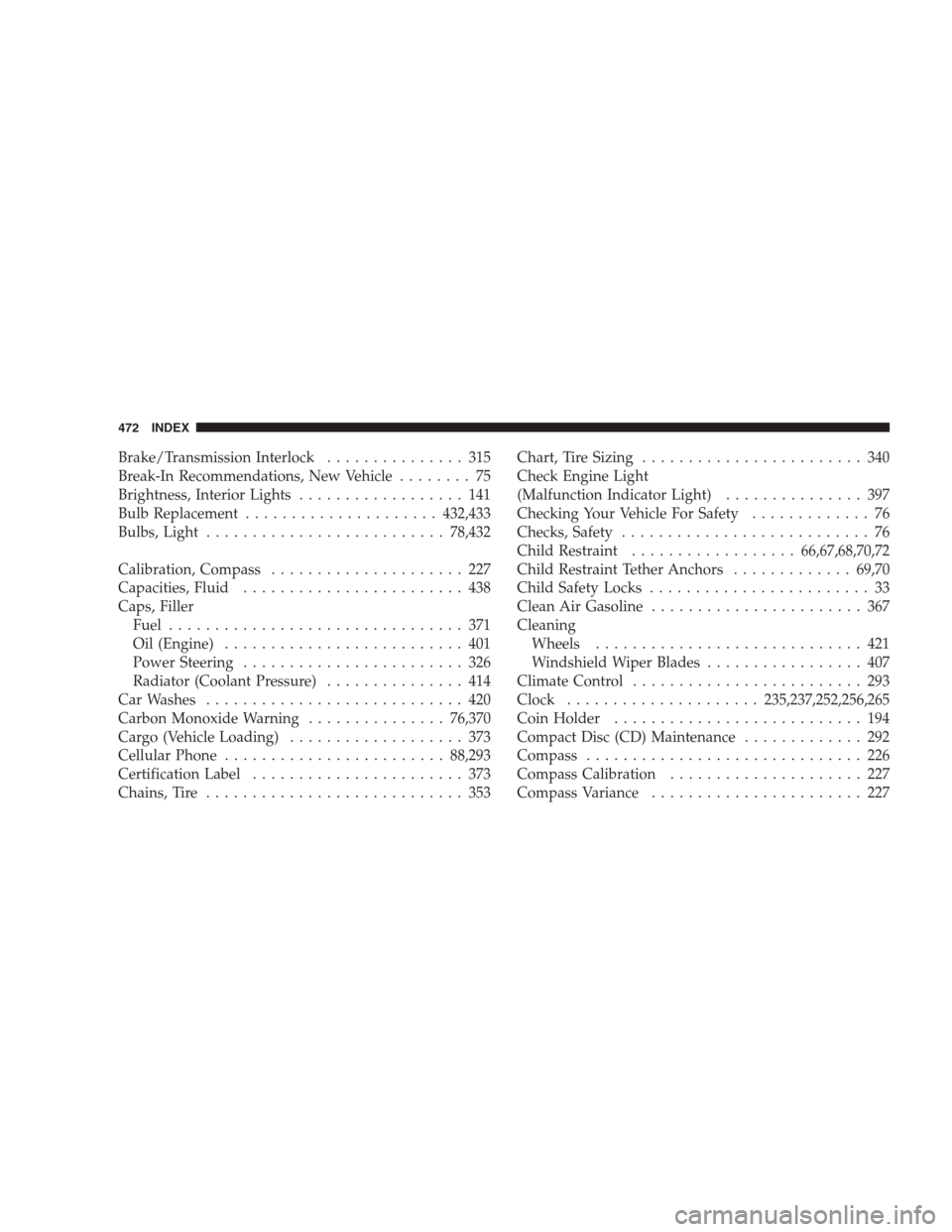

Brake/Transmission Interlock............... 315
Break-In Recommendations, New Vehicle........ 75
Brightness, Interior Lights.................. 141
Bulb Replacement.....................432,433
Bulbs, Light..........................78,432
Calibration, Compass..................... 227
Capacities, Fluid........................ 438
Caps, Filler
Fuel................................ 371
Oil (Engine).......................... 401
Power Steering........................ 326
Radiator (Coolant Pressure)............... 414
Car Washes............................ 420
Carbon Monoxide Warning...............76,370
Cargo (Vehicle Loading)................... 373
Cellular Phone........................88,293
Certification Label....................... 373
Chains, Tire............................ 353Chart, Tire Sizing........................ 340
Check Engine Light
(Malfunction Indicator Light)............... 397
Checking Your Vehicle For Safety............. 76
Checks, Safety........................... 76
Child Restraint..................66,67,68,70,72
Child Restraint Tether Anchors.............69,70
Child Safety Locks........................ 33
Clean Air Gasoline....................... 367
Cleaning
Wheels............................. 421
Windshield Wiper Blades................. 407
Climate Control......................... 293
Clock.....................235,237,252,256,265
Coin Holder........................... 194
Compact Disc (CD) Maintenance............. 292
Compass.............................. 226
Compass Calibration..................... 227
Compass Variance....................... 227
472 INDEX

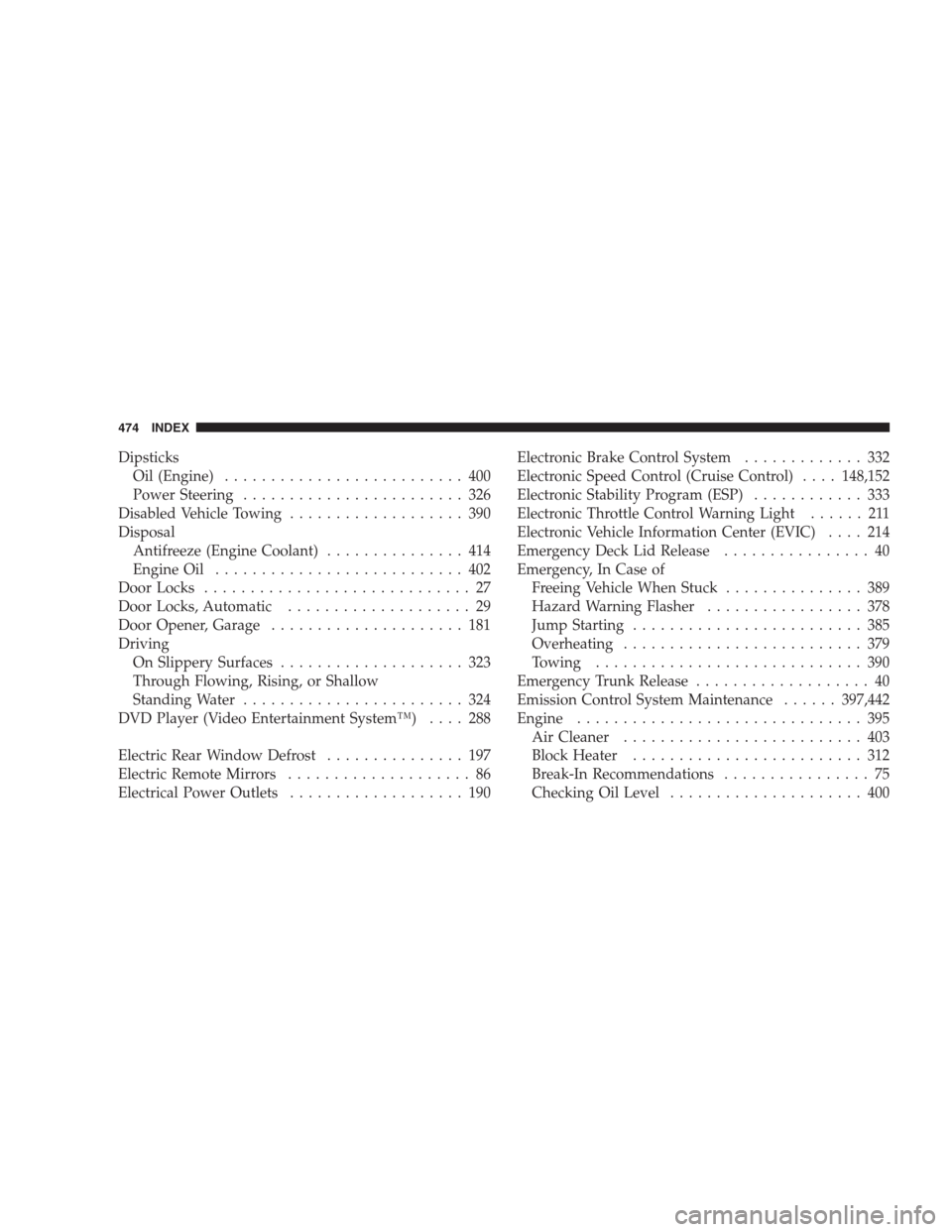

Dipsticks
Oil (Engine).......................... 400
Power Steering........................ 326
Disabled Vehicle Towing................... 390
Disposal
Antifreeze (Engine Coolant)............... 414
Engine Oil........................... 402
Door Locks............................. 27
Door Locks, Automatic.................... 29
Door Opener, Garage..................... 181
Driving
On Slippery Surfaces.................... 323
Through Flowing, Rising, or Shallow
Standing Water........................ 324
DVD Player (Video Entertainment System™).... 288
Electric Rear Window Defrost............... 197
Electric Remote Mirrors.................... 86
Electrical Power Outlets................... 190Electronic Brake Control System............. 332
Electronic Speed Control (Cruise Control)....148,152
Electronic Stability Program (ESP)............ 333
Electronic Throttle Control Warning Light...... 211
Electronic Vehicle Information Center (EVIC).... 214
Emergency Deck Lid Release................ 40
Emergency, In Case of
Freeing Vehicle When Stuck............... 389
Hazard Warning Flasher................. 378
Jump Starting......................... 385
Overheating.......................... 379
Towing............................. 390
Emergency Trunk Release................... 40
Emission Control System Maintenance......397,442
Engine............................... 395
Air Cleaner.......................... 403
Block Heater......................... 312
Break-In Recommendations................ 75
Checking Oil Level..................... 400
474 INDEX

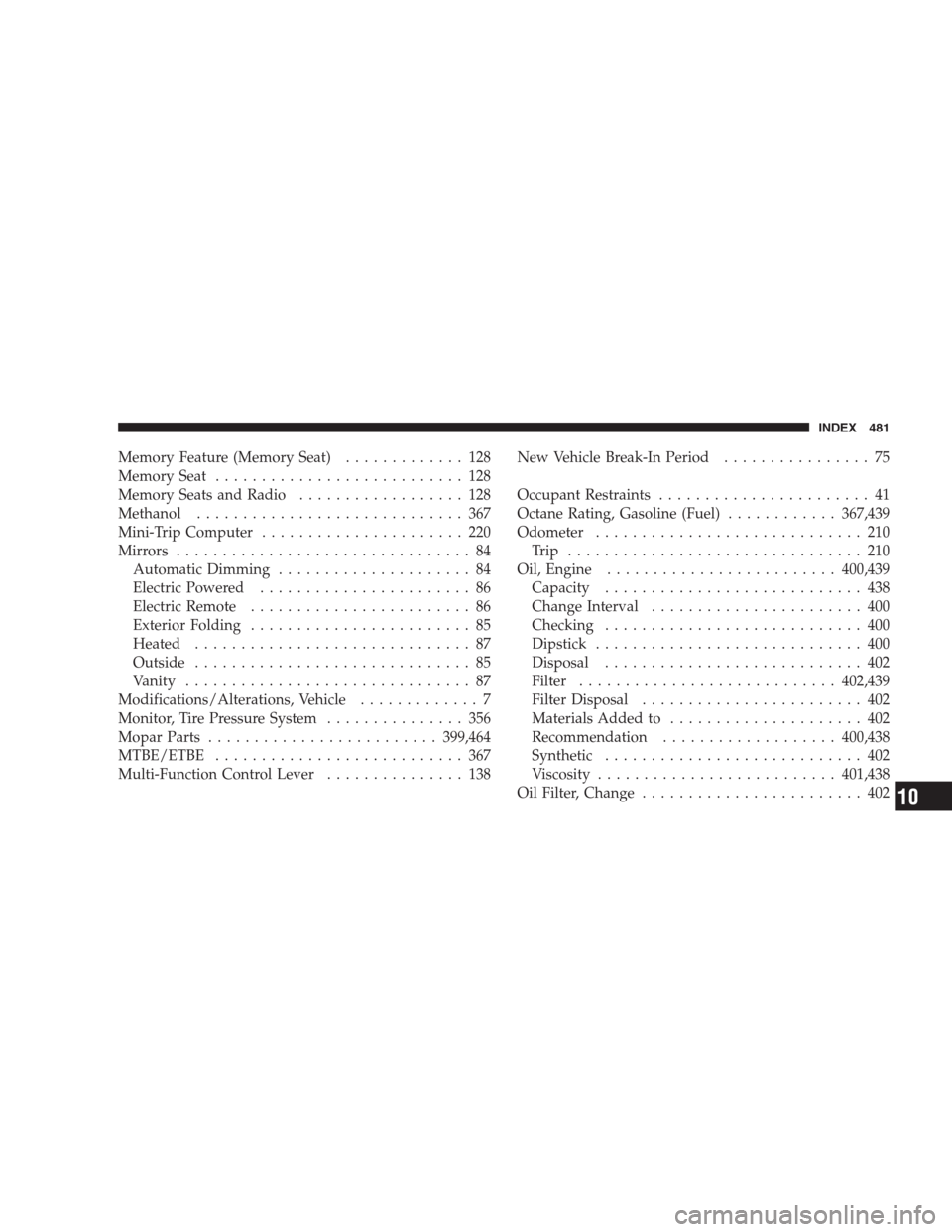

Memory Feature (Memory Seat)............. 128
Memory Seat........................... 128
Memory Seats and Radio.................. 128
Methanol............................. 367
Mini-Trip Computer...................... 220
Mirrors................................ 84
Automatic Dimming..................... 84
Electric Powered....................... 86
Electric Remote........................ 86
Exterior Folding........................ 85
Heated.............................. 87
Outside.............................. 85
Vanity............................... 87
Modifications/Alterations, Vehicle............. 7
Monitor, Tire Pressure System............... 356
Mopar Parts.........................399,464
MTBE/ETBE........................... 367
Multi-Function Control Lever............... 138New Vehicle Break-In Period................ 75
Occupant Restraints....................... 41
Octane Rating, Gasoline (Fuel)............367,439
Odometer............................. 210
Trip ................................ 210
Oil, Engine.........................400,439
Capacity............................ 438
Change Interval....................... 400
Checking............................ 400
Dipstick............................. 400
Disposal............................ 402
Filter............................402,439
Filter Disposal........................ 402
Materials Added to..................... 402
Recommendation...................400,438
Synthetic............................ 402
Viscosity..........................401,438
Oil Filter, Change........................ 402
INDEX 481
10
