2009 CHRYSLER 300 SRT check engine light

Have the transmission checked at your authorized dealer
as soon as possible.
If the problem has been momentary, the transmission can
be reset to regain all forward gears.
Permanent Transmission Limp Home Mode
Permanent Limp Home Mode will be activated if the
transmission enters temporary Limp Home Mode three
times. Follow the reset procedure described under “Tem-
porary Transmission Limp Home Mode” in this section.
In Permanent Limp Home Mode, PARK, REVERSE, and
NEUTRAL will continue to operate. Second gear will
operate in the DRIVE position. The Malfunction Indicator
Light (MIL) may illuminate.
AUTOSTICK
Autostickis a driver-interactive transmission that offers
manual gear shifting to provide you with more control of
the vehicle. Autostickallows you to maximize engine
braking, eliminate undesirable upshifts and downshifts,
and improve overall vehicle performance. This system
can also provide you with more control during passing,
city driving, cold slippery conditions, mountain driving,
trailer towing, and many other situations.
AutostickOperation
By placing the shift lever in the DRIVE position, it can be
moved from side to side. This allows the driver to select
a higher or lower range of gears. Moving the shift lever to
the left (-) triggers a downshift and to the right (+) an
upshift. The gear position will display in the instrument
cluster on the transmission range indicator.
STARTING AND OPERATING 321
5

WARNING!
With the ESP switched OFF, the enhanced vehicle
stability offered by ESP is unavailable. In an emer-
gency evasive maneuver, the ESP system will not
engage to assist in maintaining stability. The “Full
Off” ESP mode is intended for off-highway or off-
road only.
Synchronizing ESP
The Malfunction Indicator Light for the ESP is
combined with BAS indicator. If the power
supply is interrupted (battery disconnected or
discharged), the ESP/BAS Malfunction Indica-
tor Light may illuminate with the engine running. If this
should occur, turn the steering wheel completely to the
left and then to the right. The ESP/BAS Malfunction
Indicator Light should go out. However, if the light
remains on, have the ESP and BAS checked at your
authorized dealer as soon as possible.
ESP/BAS Malfunction Indicator Light and
ESP/TCS Indicator Light
The Malfunction Indicator Light for the ESP is
combined with the BAS indicator. The yellow
ESP/BAS Malfunction Indicator Light and the
yellow ESP/TCS Indicator Light in the instru-
ment cluster both come on when the ignition switch is
turned to the ON position. They should go out with the
engine running.
The system will turn the ESP/BAS Malfunction Indicator
Light on continuously while the engine is running if it
detects a malfunction in either the ESP or the BAS or
both. If the light remains on after several ignition cycles
and you have driven the vehicle several miles (kilome-
ters) at speeds greater than 30 mph (48 km/h), and the
ESP is synchronized (refer to Synchronizing ESP), see
your authorized dealer as soon as possible to have the
problem diagnosed and corrected.
STARTING AND OPERATING 337
5

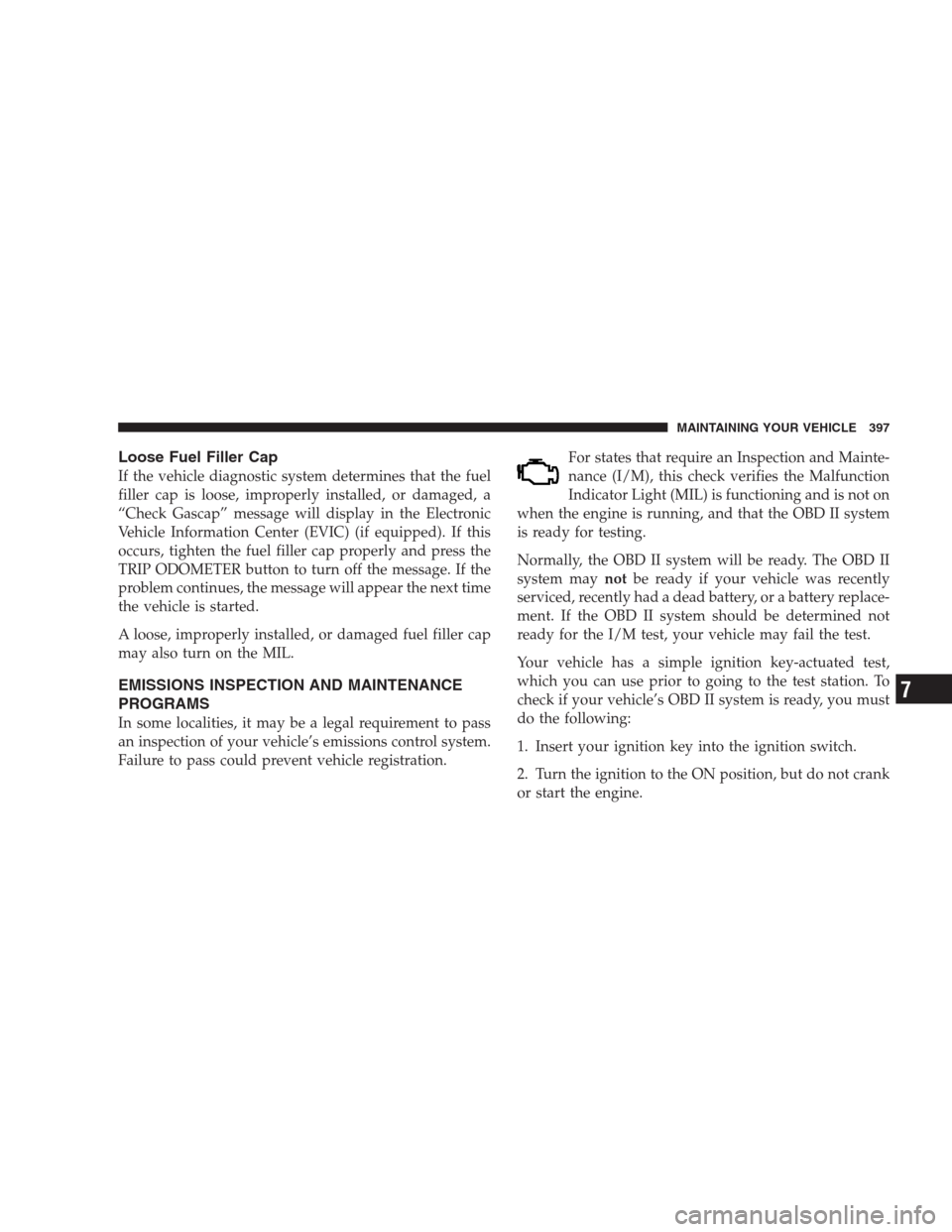

Loose Fuel Filler Cap
If the vehicle diagnostic system determines that the fuel
filler cap is loose, improperly installed, or damaged, a
“Check Gascap” message will display in the Electronic
Vehicle Information Center (EVIC) (if equipped). If this
occurs, tighten the fuel filler cap properly and press the
TRIP ODOMETER button to turn off the message. If the
problem continues, the message will appear the next time
the vehicle is started.
A loose, improperly installed, or damaged fuel filler cap
may also turn on the MIL.
EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS
In some localities, it may be a legal requirement to pass
an inspection of your vehicle’s emissions control system.
Failure to pass could prevent vehicle registration.For states that require an Inspection and Mainte-
nance (I/M), this check verifies the Malfunction
Indicator Light (MIL) is functioning and is not on
when the engine is running, and that the OBD II system
is ready for testing.
Normally, the OBD II system will be ready. The OBD II
system maynotbe ready if your vehicle was recently
serviced, recently had a dead battery, or a battery replace-
ment. If the OBD II system should be determined not
ready for the I/M test, your vehicle may fail the test.
Your vehicle has a simple ignition key-actuated test,
which you can use prior to going to the test station. To
check if your vehicle’s OBD II system is ready, you must
do the following:
1. Insert your ignition key into the ignition switch.
2. Turn the ignition to the ON position, but do not crank
or start the engine.
MAINTAINING YOUR VEHICLE 397
7

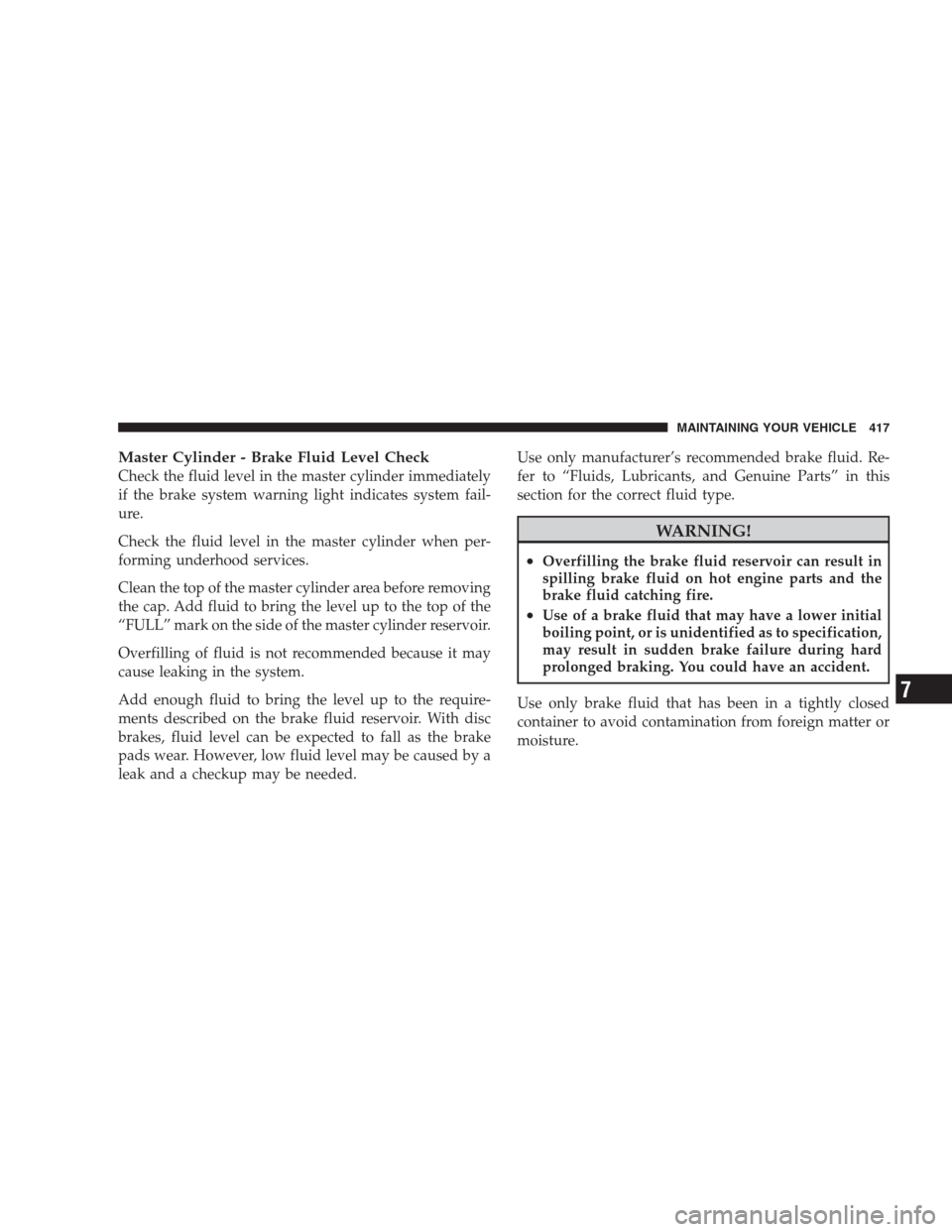

Master Cylinder - Brake Fluid Level Check
Check the fluid level in the master cylinder immediately
if the brake system warning light indicates system fail-
ure.
Check the fluid level in the master cylinder when per-
forming underhood services.
Clean the top of the master cylinder area before removing
the cap. Add fluid to bring the level up to the top of the
“FULL” mark on the side of the master cylinder reservoir.
Overfilling of fluid is not recommended because it may
cause leaking in the system.
Add enough fluid to bring the level up to the require-
ments described on the brake fluid reservoir. With disc
brakes, fluid level can be expected to fall as the brake
pads wear. However, low fluid level may be caused by a
leak and a checkup may be needed.Use only manufacturer’s recommended brake fluid. Re-
fer to “Fluids, Lubricants, and Genuine Parts” in this
section for the correct fluid type.
WARNING!
•Overfilling the brake fluid reservoir can result in
spilling brake fluid on hot engine parts and the
brake fluid catching fire.
•Use of a brake fluid that may have a lower initial
boiling point, or is unidentified as to specification,
may result in sudden brake failure during hard
prolonged braking. You could have an accident.
Use only brake fluid that has been in a tightly closed
container to avoid contamination from foreign matter or
moisture.
MAINTAINING YOUR VEHICLE 417
7

Once a Month
•Check tire pressure and look for unusual wear or
damage.
•Inspect the battery, and clean and tighten the terminals
as required.
•Check the fluid levels of coolant reservoir, brake
master cylinder, power steering, and transmission,
and add as needed.
•Check all lights and other electrical items for correct
operation.At Each Oil Change
•Change the engine oil filter.
•Inspect the brake hoses and lines.
CAUTION!
Failure to perform the required maintenance items
may result in damage to the vehicle.
Required Maintenance Intervals
Refer to the Maintenance Schedules on the following
pages for the required maintenance intervals.
444 MAINTENANCE SCHEDULES
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

Brake/Transmission Interlock............... 315
Break-In Recommendations, New Vehicle........ 75
Brightness, Interior Lights.................. 141
Bulb Replacement.....................432,433
Bulbs, Light..........................78,432
Calibration, Compass..................... 227
Capacities, Fluid........................ 438
Caps, Filler
Fuel................................ 371
Oil (Engine).......................... 401
Power Steering........................ 326
Radiator (Coolant Pressure)............... 414
Car Washes............................ 420
Carbon Monoxide Warning...............76,370
Cargo (Vehicle Loading)................... 373
Cellular Phone........................88,293
Certification Label....................... 373
Chains, Tire............................ 353Chart, Tire Sizing........................ 340
Check Engine Light
(Malfunction Indicator Light)............... 397
Checking Your Vehicle For Safety............. 76
Checks, Safety........................... 76
Child Restraint..................66,67,68,70,72
Child Restraint Tether Anchors.............69,70
Child Safety Locks........................ 33
Clean Air Gasoline....................... 367
Cleaning
Wheels............................. 421
Windshield Wiper Blades................. 407
Climate Control......................... 293
Clock.....................235,237,252,256,265
Coin Holder........................... 194
Compact Disc (CD) Maintenance............. 292
Compass.............................. 226
Compass Calibration..................... 227
Compass Variance....................... 227
472 INDEX

Dipsticks
Oil (Engine).......................... 400
Power Steering........................ 326
Disabled Vehicle Towing................... 390
Disposal
Antifreeze (Engine Coolant)............... 414
Engine Oil........................... 402
Door Locks............................. 27
Door Locks, Automatic.................... 29
Door Opener, Garage..................... 181
Driving
On Slippery Surfaces.................... 323
Through Flowing, Rising, or Shallow
Standing Water........................ 324
DVD Player (Video Entertainment System™).... 288
Electric Rear Window Defrost............... 197
Electric Remote Mirrors.................... 86
Electrical Power Outlets................... 190Electronic Brake Control System............. 332
Electronic Speed Control (Cruise Control)....148,152
Electronic Stability Program (ESP)............ 333
Electronic Throttle Control Warning Light...... 211
Electronic Vehicle Information Center (EVIC).... 214
Emergency Deck Lid Release................ 40
Emergency, In Case of
Freeing Vehicle When Stuck............... 389
Hazard Warning Flasher................. 378
Jump Starting......................... 385
Overheating.......................... 379
Towing............................. 390
Emergency Trunk Release................... 40
Emission Control System Maintenance......397,442
Engine............................... 395
Air Cleaner.......................... 403
Block Heater......................... 312
Break-In Recommendations................ 75
Checking Oil Level..................... 400
474 INDEX

Flash-To-Pass........................... 139
Flooded Engine Starting................... 311
Floor Console.......................... 194
Fluid, Brake........................... 440
Fluid Capacities......................... 438
Fluid Leaks............................. 78
Fluid Level Checks
Automatic Transmission................. 418
Brake............................... 417
Cooling System....................... 411
Engine Oil........................... 400
Power Steering........................ 326
Fluids................................ 439
Fluids, Lubricants and Genuine Parts.......... 439
Fog Lights..........................138,205
Folding Rear Seat........................ 127
Freeing A Stuck Vehicle................... 389
Fuel................................. 367
Adding............................. 371Additives............................ 369
Clean Air............................ 367
Ethanol............................. 367
Filler Cap (Gas Cap).................... 371
Gasoline............................ 367
Gauge.............................. 211
Materials Added....................... 369
Methanol............................ 367
Octane Rating......................367,439
Requirements......................... 367
Specifications......................... 439
Tank Capacity........................ 438
Fuel System Caution..................... 371
Fueling............................... 371
Fuses................................ 424
Garage Door Opener (HomeLink) ........... 181
Gas Cap (Fuel Filler Cap)...............371,397
Gasoline, Clean Air...................... 367
476 INDEX
