When the DRL are on, the regular
headlamps, taillamps, sidemarker,
and other lamps are not on.
The instrument panel and cluster
are also not on.
The headlamps automatically
change from DRL to the regular
headlamps depending on the
darkness of the surroundings.
The other lamps that come on with
the headlamps will also come on.
When it is bright enough outside,
the headlamps go off and the
DRL come on.
The regular headlamp system
should be turned on when needed.
Do not cover the light sensor on
top of the instrument panel because
it works with the DRL.Fog Lamps
#
(Fog Lamps):For vehicles
with fog lamps, the button is located
on the exterior lamps control.
The exterior lamps control is located
on the instrument panel to the left
of the steering column.
The ignition must be in the
ON/RUN position for the fog lamps
to come on.
Press
#to turn the fog lamps
on or off. A light will come on in
the instrument panel cluster.
When the headlamps are changed
to high-beam, the fog lamps also
go off.
Some localities have laws that
require the headlamps to be
on along with the fog lamps.
Instrument Panel
Brightness
D
(Instrument Panel Brightness):
The knob with this symbol on it is
located next to the exterior lamps
control to the left of the steering
wheel. Push the knob in all the way
until it extends out and then turn the
knob clockwise or counterclockwise
to brighten or dim the lights. Push the
knob back in when nished.
Instrument Panel 3-13

Dual Automatic Climate Control System
The heating, cooling, and ventilation in the vehicle can be controlled with this
system.
A. Fan Control
B. AUTO
C. Defrost
D. Recirculation
E. REAR (Rear Climate Control)
F. Air Delivery Mode Control
G. Driver Side Temperature ControlH. Display
I. Power (On/Off)
J. Rear Window Defogger
K. Air Conditioning
L. PASS (Passenger)
M. Passenger Side Temperature
Control Display Function
Each time the temperature, mode,
or fan control buttons are pressed,
the climate control display shows
that function along with the inside
temperature setting. The outside
temperature is displayed on the
instrument panel cluster.
O(On/Off):
Press to turn the
climate control system on or off.
While the system is off, outside air
still enters through the oor outlets,
but the air delivery mode can be
adjusted.
The climate control system will
also turn on if either the fan control,
defrost, AUTO, or air conditioning
buttons are pressed.
3-22 Instrument Panel

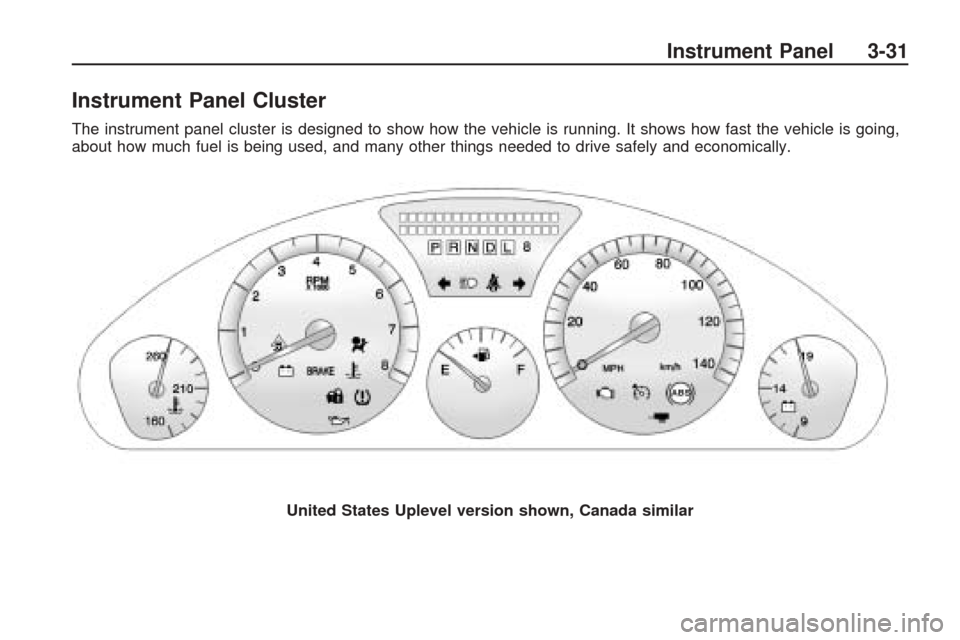

Instrument Panel Cluster
The instrument panel cluster is designed to show how the vehicle is running. It shows how fast the vehicle is going,
about how much fuel is being used, and many other things needed to drive safely and economically.United States Uplevel version shown, Canada similar
Instrument Panel 3-31

Speedometer and
Odometer
The speedometer shows the
vehicle’s speed in both miles
per hour (mph) and kilometers
per hour (km/h).
The odometer shows how far
the vehicle has been driven,
in either miles or kilometers.
This vehicle has a tamper-resistant
odometer. If the vehicle needs a new
odometer installed, the new one is
set to the mileage total of the old
odometer. If this is not possible, it is
set at zero and a label is put on the
driver’s door to show the old mileage
reading when the new odometer was
installed. If the mileage is unknown,
the label should then indicate
“previous mileage unknown”.
Tachometer
The tachometer displays the
engine speed in revolutions
per minute (rpm).
Safety Belt Reminders
Driver Safety Belt Reminder
Light
The driver safety belt reminder light
on the instrument panel cluster.
When the engine is started this light
and the chime come on and stay on
for several seconds to remind the
driver to fasten the safety belt.
The light also begins to ash.
This cycle repeats if the driver
remains unbuckled and the vehicle
is moving.
If the driver safety belt is already
buckled, neither the light nor chime
comes on.
Passenger Safety Belt
Reminder Light
When the engine is started this light
and the chime come on and stay on
for several seconds to remind the
passenger to fasten their safety belt.
The light also begins to ash.
This cycle repeats if the passenger
remains unbuckled and the vehicle is
moving.
If the passenger safety belt is
buckled, neither the chime nor
the light comes on.
The front passenger safety belt
warning light and chime may turn on
if an object is put on the seat such as
a briefcase, handbag, grocery bag,
laptop or other electronic device.
To turn off the warning light and or
chime, remove the object from the
seat or buckle the safety belt.
3-32 Instrument Panel

An arrow on the fuel gage indicates
the side of the vehicle the fuel
door is on.
Here are four things that some
owners ask about. None of these
show a problem with the fuel gage:
At the gas station, the gas
pump shuts off before the gage
reads full.
It takes a little more or less fuel
to ll up than the gage indicated.
For example, the gage might have
indicated the tank was half full,
but it actually took a little more or
less than half the tank’s capacity
to ll the tank.
The gage moves a little while
turning a corner or speeding up.
The gage does not go back to
empty when the ignition is
turned off.
Driver Information
Center (DIC)
Your vehicle has a Driver
Information Center (DIC).
The DIC displays information about
your vehicle. It also displays warning
messages if a system problem is
detected.
All messages will appear in the DIC
display located at the top of the
instrument panel cluster.
The DIC comes on when the
ignition is on. After a short delay,
the DIC will display the information
that was last displayed before
the engine was turned off.
The DIC also displays a shift lever
position indicator on the bottom
line of the display. SeeAutomatic
Transmission Operation on
page 2-24for more information.
The outside air temperature
and compass, if equipped, also
displays on the DIC when viewing
the trip and fuel information.The outside air temperature
automatically appears in the top
right corner of the DIC display.
If there is a problem with the system
that controls the temperature display,
the numbers will be replaced with
dashes. If this occurs, have the
vehicle serviced. The compass
will be shown in the bottom right
corner of the DIC display. SeeDIC
Compass on page 3-54for more
information.
If your vehicle has DIC buttons,
see “DIC Operation and Displays
(With DIC Buttons)” later in
this section andDIC Vehicle
Customization (With DIC Buttons) on
page 3-65for the displays available.
If your vehicle does not have
DIC buttons, see “DIC Operation
and Displays (Without DIC Buttons)”
later in this section for the displays
available.
3-44 Instrument Panel

DIC Operation and
Displays (Without DIC
Buttons)
If your vehicle does not have DIC
buttons, the information below
explains the operation of this system.
The DIC has different displays which
can be accessed by pressing the trip
odometer reset stem located on the
instrument panel cluster. Pressing
the trip odometer reset stem will
also turn off, or acknowledge,
DIC messages.
The DIC displays trip and vehicle
system information, and warning
messages if a system problem
is detected.
If your vehicle does not have
DIC buttons, you can use the trip
odometer reset stem to view the
following displays: odometer, tripodometers, oil life, park assist menu
for vehicles with the Ultrasonic
Rear Parking Assist (URPA) system,
Remote Keyless Entry (RKE)
transmitter programming, units,
and display language.
If your vehicle has DIC buttons,
you can use the trip odometer reset
stem to view the following displays:
odometer and trip odometers.
Trip Odometer Reset Stem
Menu Items
ODOMETER
Press the trip odometer reset
stem until ODOMETER displays.
This display shows the distance the
vehicle has been driven in either
miles (mi) or kilometers (km).
To switch between English and
metric measurements, see “UNITS”
later in this section.TRIP A or TRIP B
Press the trip odometer reset stem
until TRIP A or TRIP B displays.
This display shows the current
distance traveled in either miles (mi)
or kilometers (km) since the last
reset for each trip odometer. Both
trip odometers can be used at the
same time.
Each trip odometer can be reset to
zero separately by pressing and
holding the trip odometer reset stem
while the desired trip odometer is
displayed.
The trip odometer has a feature
called the retro-active reset. This can
be used to set the trip odometer to
the number of miles (kilometers)
driven since the ignition was last
turned on. This can be used if the
trip odometer is not reset at the
beginning of the trip.
Instrument Panel 3-51

DIC Warnings and
Messages
Messages are displayed on the DIC
to notify the driver that the status of
the vehicle has changed and that
some action may be needed by
the driver to correct the condition.
Multiple messages may appear
one after another.
Some messages may not require
immediate action, but you can
press any of the DIC buttons on the
instrument panel or the trip odometer
reset stem on the instrument panel
cluster to acknowledge that you
received the messages and to
clear them from the display.
Some messages cannot be cleared
from the DIC display because they
are more urgent. These messages
require action before they can becleared. You should take any
messages that appear on the display
seriously and remember that clearing
the messages will only make the
messages disappear, not correct
the problem.
The following are the possible
messages that can be displayed
and some information about them.
ALL WHEEL DRIVE OFF
If your vehicle has the All-Wheel
Drive (AWD) system, this message
displays when there is a compact
spare tire on the vehicle, when
the Antilock Brake System (ABS)
warning light comes on, or when the
rear differential uid is overheating.
This message turns off when
the differential uid cools.
The AWD system is disabled until
the compact spare tire is replaced
by a full-size tire. If the warningmessage is still on after putting on
the full-size tire, you need to reset
the warning message. To reset the
warning message, turn the ignition
off and then back on again after
30 seconds. If the message stays on,
see your dealer/retailer right away.
SeeAll-Wheel Drive (AWD) System
on page 4-7for more information.
AUTOMATIC LIGHT
CONTROL OFF
This message displays when the
automatic headlamps are turned off.
This message clears itself after
10 seconds.
AUTOMATIC LIGHT
CONTROL ON
This message displays when the
automatic headlamps are turned on.
This message clears itself after
10 seconds.
3-56 Instrument Panel

DRIVER DOOR OPEN
This message displays and a
chime sounds if the driver door
is not fully closed and the vehicle
is shifted out of P (Park). Stop and
turn off the vehicle, check the door
for obstructions, and close the door
again. Check to see if the message
still appears on the DIC.
ENGINE HOT A/C
(Air Conditioning) OFF
This message displays when the
engine coolant becomes hotter than
the normal operating temperature.
SeeEngine Coolant Temperature
Gage on page 3-38. To avoid
added strain on a hot engine,
the air conditioning compressor
automatically turns off. When the
coolant temperature returns to
normal, the air conditioning
compressor turns back on. You
can continue to drive your vehicle.
If this message continues to appear,
have the system repaired by your
dealer/retailer as soon as possible
to avoid damage to the engine.
ENGINE OVERHEATED IDLE
ENGINE
Notice:If you drive your vehicle
while the engine is overheating,
severe engine damage may occur.
If an overheat warning appears
on the instrument panel cluster
and/or DIC, stop the vehicle as
soon as possible. Do not increase
the engine speed above normal
idling speed. SeeEngine
Overheating on page 5-22for
more information.
This message displays when the
engine coolant temperature is too
hot. Stop and allow the vehicle to
idle until it cools down. SeeEngine
Coolant Temperature Gage on
page 3-38.
SeeOverheated Engine Protection
Operating Mode on page 5-23
for information on driving to a
safe place in an emergency.
ENGINE OVERHEATED STOP
ENGINE
Notice:If you drive your vehicle
while the engine is overheating,
severe engine damage may occur.
If an overheat warning appears
on the instrument panel cluster
and/or DIC, stop the vehicle
as soon as possible. SeeEngine
Overheating on page 5-22for
more information.
This message displays and a
continuous chime sounds if the
engine cooling system reaches
unsafe temperatures for operation.
Stop and turn off the vehicle as
soon as it is safe to do so to avoid
severe damage. This message
clears when the engine has cooled
to a safe operating temperature.
3-58 Instrument Panel
