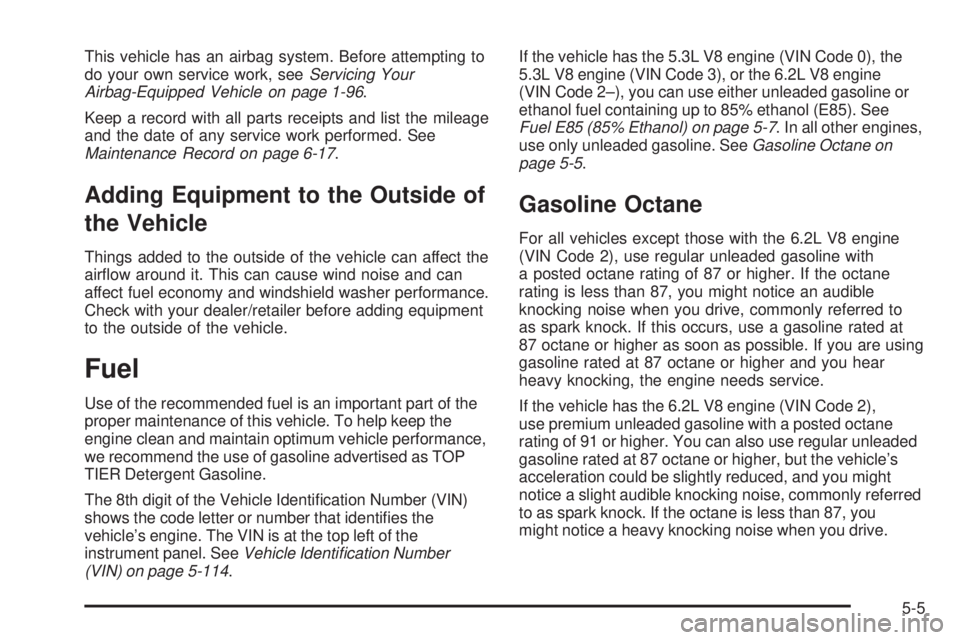

This vehicle has an airbag system. Before attempting to
do your own service work, seeServicing Your
Airbag-Equipped Vehicle on page 1-96.
Keep a record with all parts receipts and list the mileage
and the date of any service work performed. See
Maintenance Record on page 6-17.
Adding Equipment to the Outside of
the Vehicle
Things added to the outside of the vehicle can affect the
airow around it. This can cause wind noise and can
affect fuel economy and windshield washer performance.
Check with your dealer/retailer before adding equipment
to the outside of the vehicle.
Fuel
Use of the recommended fuel is an important part of the
proper maintenance of this vehicle. To help keep the
engine clean and maintain optimum vehicle performance,
we recommend the use of gasoline advertised as TOP
TIER Detergent Gasoline.
The 8th digit of the Vehicle Identication Number (VIN)
shows the code letter or number that identies the
vehicle’s engine. The VIN is at the top left of the
instrument panel. SeeVehicle Identification Number
(VIN) on page 5-114.If the vehicle has the 5.3L V8 engine (VIN Code 0), the
5.3L V8 engine (VIN Code 3), or the 6.2L V8 engine
(VIN Code 2–), you can use either unleaded gasoline or
ethanol fuel containing up to 85% ethanol (E85). See
Fuel E85 (85% Ethanol) on page 5-7. In all other engines,
use only unleaded gasoline. SeeGasoline Octane on
page 5-5.
Gasoline Octane
For all vehicles except those with the 6.2L V8 engine
(VIN Code 2), use regular unleaded gasoline with
a posted octane rating of 87 or higher. If the octane
rating is less than 87, you might notice an audible
knocking noise when you drive, commonly referred to
as spark knock. If this occurs, use a gasoline rated at
87 octane or higher as soon as possible. If you are using
gasoline rated at 87 octane or higher and you hear
heavy knocking, the engine needs service.
If the vehicle has the 6.2L V8 engine (VIN Code 2),
use premium unleaded gasoline with a posted octane
rating of 91 or higher. You can also use regular unleaded
gasoline rated at 87 octane or higher, but the vehicle’s
acceleration could be slightly reduced, and you might
notice a slight audible knocking noise, commonly referred
to as spark knock. If the octane is less than 87, you
might notice a heavy knocking noise when you drive.
5-5

Brakes
Brake Fluid
The brake master
cylinder reservoir is lled
with DOT 3 brake uid.
SeeEngine Compartment
Overview on page 5-14for
the location of the reservoir.
There are only two reasons why the brake uid level in
the reservoir might go down:
The brake uid level goes down because of normal
brake lining wear. When new linings are installed,
the uid level goes back up.
A uid leak in the brake hydraulic system can also
cause a low uid level. Have the brake hydraulic
system xed, since a leak means that sooner
or later the brakes will not work well.Do not top off the brake uid. Adding uid does not
correct a leak. If uid is added when the linings
are worn, there will be too much uid when new brake
linings are installed. Add or remove brake uid, as
necessary, only when work is done on the brake
hydraulic system.
{CAUTION:
If too much brake uid is added, it can spill on the
engine and burn, if the engine is hot enough. You
or others could be burned, and the vehicle could
be damaged. Add brake uid only when work is
done on the brake hydraulic system. See
“Checking Brake Fluid” in this section.
When the brake uid falls to a low level, the brake
warning light comes on. SeeBrake System Warning
Light on page 3-40.
Refer to the Maintenance Schedule to determine when
to check the brake uid. SeeScheduled Maintenance
on page 6-4.
5-40

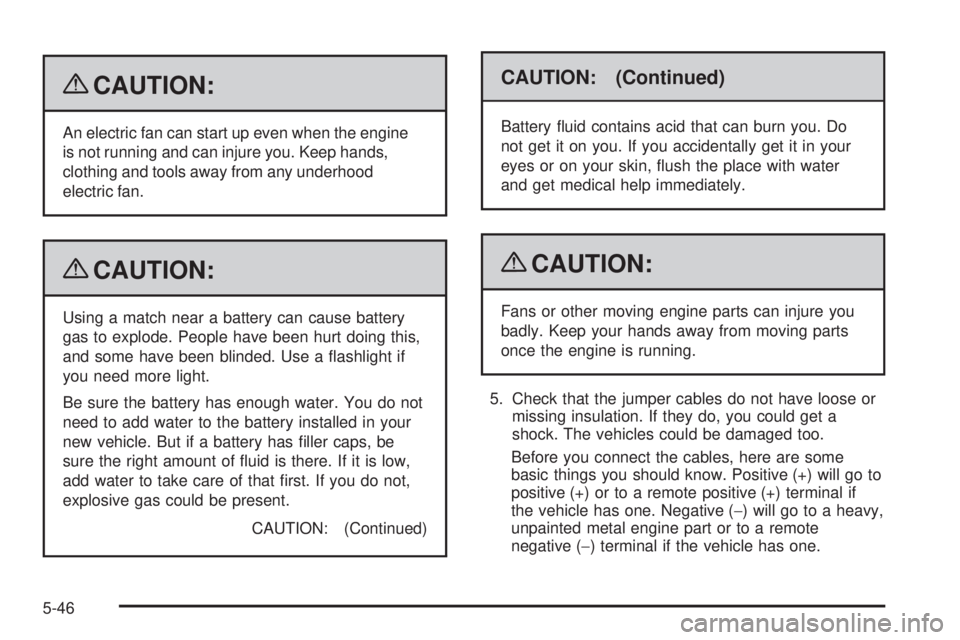

{CAUTION:
An electric fan can start up even when the engine
is not running and can injure you. Keep hands,
clothing and tools away from any underhood
electric fan.
{CAUTION:
Using a match near a battery can cause battery
gas to explode. People have been hurt doing this,
and some have been blinded. Use a ashlight if
you need more light.
Be sure the battery has enough water. You do not
need to add water to the battery installed in your
new vehicle. But if a battery has ller caps, be
sure the right amount of uid is there. If it is low,
add water to take care of that rst. If you do not,
explosive gas could be present.
CAUTION: (Continued)
CAUTION: (Continued)
Battery uid contains acid that can burn you. Do
not get it on you. If you accidentally get it in your
eyes or on your skin, ush the place with water
and get medical help immediately.
{CAUTION:
Fans or other moving engine parts can injure you
badly. Keep your hands away from moving parts
once the engine is running.
5. Check that the jumper cables do not have loose or
missing insulation. If they do, you could get a
shock. The vehicles could be damaged too.
Before you connect the cables, here are some
basic things you should know. Positive (+) will go to
positive (+) or to a remote positive (+) terminal if
the vehicle has one. Negative (−) will go to a heavy,
unpainted metal engine part or to a remote
negative (−) terminal if the vehicle has one.
5-46

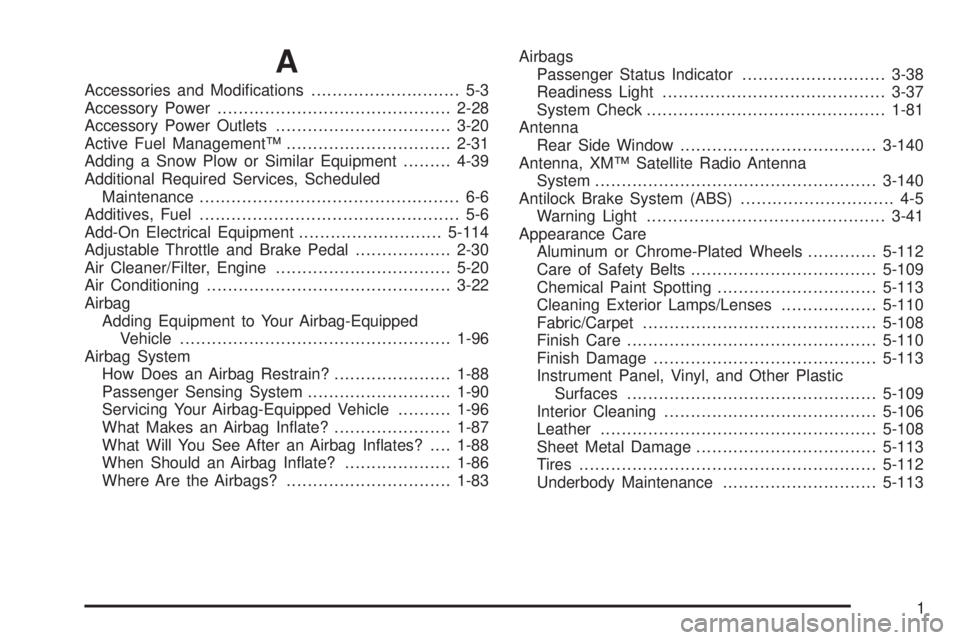

A
Accessories and Modications............................ 5-3
Accessory Power............................................2-28
Accessory Power Outlets.................................3-20
Active Fuel Management™...............................2-31
Adding a Snow Plow or Similar Equipment.........4-39
Additional Required Services, Scheduled
Maintenance................................................. 6-6
Additives, Fuel................................................. 5-6
Add-On Electrical Equipment...........................5-114
Adjustable Throttle and Brake Pedal..................2-30
Air Cleaner/Filter, Engine.................................5-20
Air Conditioning..............................................3-22
Airbag
Adding Equipment to Your Airbag-Equipped
Vehicle...................................................1-96
Airbag System
How Does an Airbag Restrain?......................1-88
Passenger Sensing System...........................1-90
Servicing Your Airbag-Equipped Vehicle..........1-96
What Makes an Airbag Inate?......................1-87
What Will You See After an Airbag Inates?....1-88
When Should an Airbag Inate?....................1-86
Where Are the Airbags?...............................1-83Airbags
Passenger Status Indicator...........................3-38
Readiness Light..........................................3-37
System Check.............................................1-81
Antenna
Rear Side Window.....................................3-140
Antenna, XM™ Satellite Radio Antenna
System.....................................................3-140
Antilock Brake System (ABS)............................. 4-5
Warning Light.............................................3-41
Appearance Care
Aluminum or Chrome-Plated Wheels.............5-112
Care of Safety Belts...................................5-109
Chemical Paint Spotting..............................5-113
Cleaning Exterior Lamps/Lenses..................5-110
Fabric/Carpet............................................5-108
Finish Care...............................................5-110
Finish Damage
..........................................5-113
Instrument Panel, Vinyl, and Other Plastic
Surfaces...............................................5-109
Interior Cleaning........................................5-106
Leather....................................................5-108
Sheet Metal Damage..................................5-113
Tires........................................................5-112
Underbody Maintenance.............................5-113
1

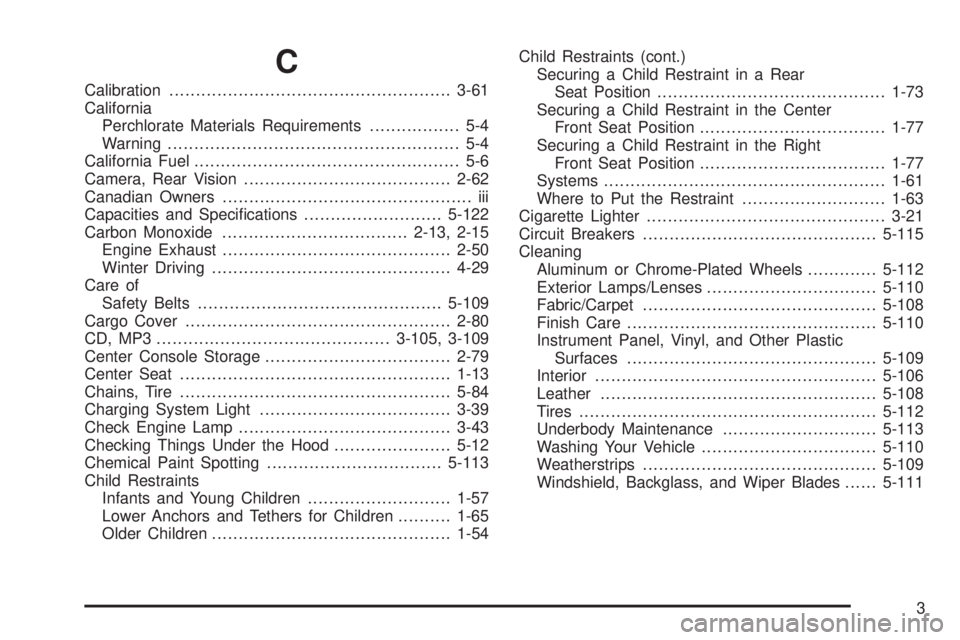

C
Calibration.....................................................3-61
California
Perchlorate Materials Requirements................. 5-4
Warning....................................................... 5-4
California Fuel.................................................. 5-6
Camera, Rear Vision.......................................2-62
Canadian Owners............................................... iii
Capacities and Specications..........................5-122
Carbon Monoxide...................................2-13, 2-15
Engine Exhaust...........................................2-50
Winter Driving.............................................4-29
Care of
Safety Belts..............................................5-109
Cargo Cover..................................................2-80
CD, MP3 ............................................3-105, 3-109
Center Console Storage...................................2-79
Center Seat...................................................1-13
Chains, Tire...................................................5-84
Charging System Light....................................3-39
Check Engine Lamp........................................3-43
Checking Things Under the Hood......................5-12
Chemical Paint Spotting.................................5-113
Child Restraints
Infants and Young Children...........................1-57
Lower Anchors and Tethers for Children..........1-65
Older Children.............................................1-54Child Restraints (cont.)
Securing a Child Restraint in a Rear
Seat Position...........................................1-73
Securing a Child Restraint in the Center
Front Seat Position...................................1-77
Securing a Child Restraint in the Right
Front Seat Position...................................1-77
Systems.....................................................1-61
Where to Put the Restraint...........................1-63
Cigarette Lighter.............................................3-21
Circuit Breakers............................................5-115
Cleaning
Aluminum or Chrome-Plated Wheels.............5-112
Exterior Lamps/Lenses................................5-110
Fabric/Carpet............................................
5-108
Finish Care...............................................5-110
Instrument Panel, Vinyl, and Other Plastic
Surfaces...............................................5-109
Interior.....................................................5-106
Leather....................................................5-108
Tires........................................................5-112
Underbody Maintenance.............................5-113
Washing Your Vehicle.................................5-110
Weatherstrips............................................5-109
Windshield, Backglass, and Wiper Blades......5-111
3

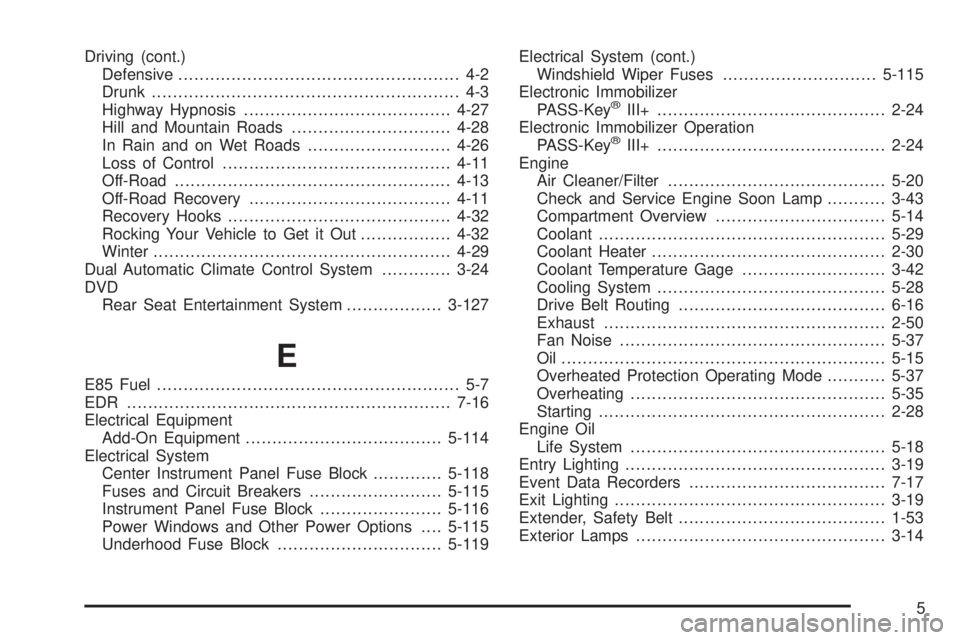

Driving (cont.)
Defensive..................................................... 4-2
Drunk.......................................................... 4-3
Highway Hypnosis.......................................4-27
Hill and Mountain Roads..............................4-28
In Rain and on Wet Roads...........................4-26
Loss of Control...........................................4-11
Off-Road ....................................................4-13
Off-Road Recovery......................................4-11
Recovery Hooks..........................................4-32
Rocking Your Vehicle to Get it Out.................4-32
Winter........................................................4-29
Dual Automatic Climate Control System.............3-24
DVD
Rear Seat Entertainment System..................3-127
E
E85 Fuel......................................................... 5-7
EDR .............................................................7-16
Electrical Equipment
Add-On Equipment.....................................5-114
Electrical System
Center Instrument Panel Fuse Block.............5-118
Fuses and Circuit Breakers.........................5-115
Instrument Panel Fuse Block.......................5-116
Power Windows and Other Power Options....5-115
Underhood Fuse Block...............................5-119Electrical System (cont.)
Windshield Wiper Fuses.............................5-115
Electronic Immobilizer
PASS-Key
®III+...........................................2-24
Electronic Immobilizer Operation
PASS-Key
®III+...........................................2-24
Engine
Air Cleaner/Filter.........................................5-20
Check and Service Engine Soon Lamp...........3-43
Compartment Overview................................5-14
Coolant......................................................5-29
Coolant Heater............................................2-30
Coolant Temperature Gage...........................3-42
Cooling System...........................................5-28
Drive Belt Routing.......................................6-16
Exhaust.....................................................2-50
Fan Noise..................................................5-37
Oil .............................................................5-15
Overheated Protection Operating Mode...........5-37
Overheating................................................5-35
Starting......................................................2-28
Engine Oil
Life System................................................5-18
Entry Lighting.................................................3-19
Event Data Recorders.....................................7-17
Exit Lighting...................................................3-19
Extender, Safety Belt.......................................1-53
Exterior Lamps...............................................3-14
5

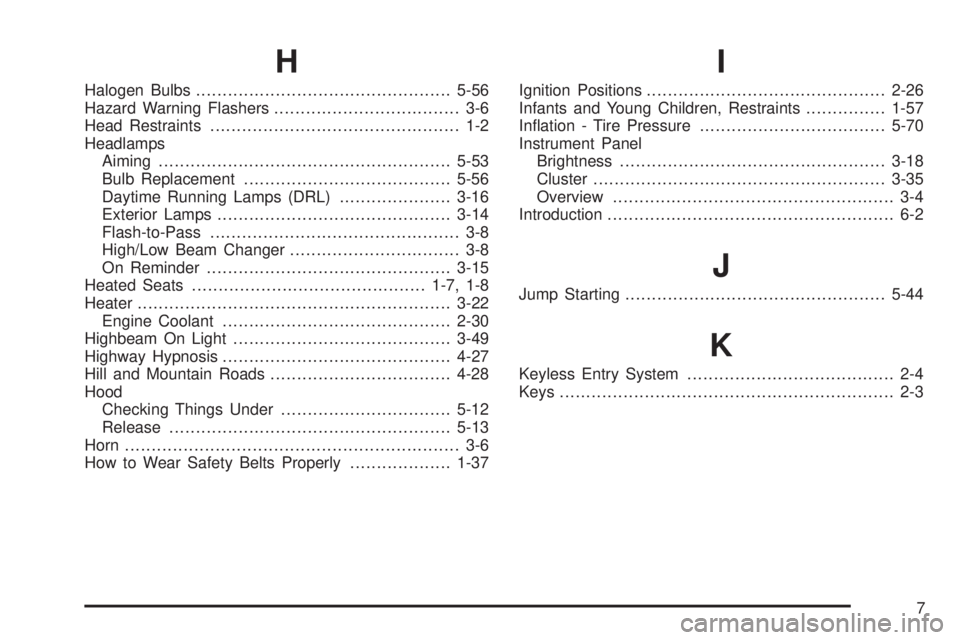

H
Halogen Bulbs................................................5-56
Hazard Warning Flashers................................... 3-6
Head Restraints............................................... 1-2
Headlamps
Aiming .......................................................5-53
Bulb Replacement.......................................5-56
Daytime Running Lamps (DRL).....................3-16
Exterior Lamps............................................3-14
Flash-to-Pass............................................... 3-8
High/Low Beam Changer................................ 3-8
On Reminder..............................................3-15
Heated Seats............................................1-7, 1-8
Heater...........................................................3-22
Engine Coolant...........................................2-30
Highbeam On Light.........................................3-49
Highway Hypnosis...........................................4-27
Hill and Mountain Roads..................................4-28
Hood
Checking Things Under................................5-12
Release.....................................................5-13
Horn ............................................................... 3-6
How to Wear Safety Belts Properly...................1-37
I
Ignition Positions.............................................2-26
Infants and Young Children, Restraints...............1-57
Ination - Tire Pressure...................................5-70
Instrument Panel
Brightness..................................................3-18
Cluster.......................................................3-35
Overview..................................................... 3-4
Introduction...................................................... 6-2
J
Jump Starting.................................................5-44
K
Keyless Entry System....................................... 2-4
Keys............................................................... 2-3
7

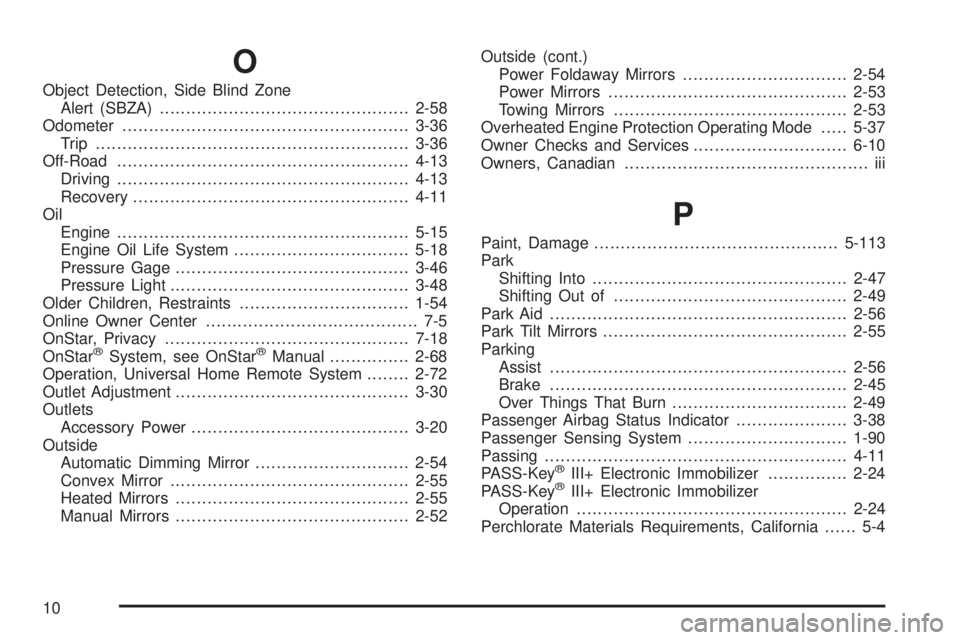

O
Object Detection, Side Blind Zone
Alert (SBZA)...............................................2-58
Odometer......................................................3-36
Trip ...........................................................3-36
Off-Road .......................................................4-13
Driving.......................................................4-13
Recovery....................................................4-11
Oil
Engine.......................................................5-15
Engine Oil Life System.................................5-18
Pressure Gage............................................3-46
Pressure Light.............................................3-48
Older Children, Restraints................................1-54
Online Owner Center........................................ 7-5
OnStar, Privacy..............................................7-18
OnStar
®System, see OnStar®Manual...............2-68
Operation, Universal Home Remote System........2-72
Outlet Adjustment............................................3-30
Outlets
Accessory Power.........................................3-20
Outside
Automatic Dimming Mirror.............................2-54
Convex Mirror.............................................2-55
Heated Mirrors............................................2-55
Manual Mirrors............................................2-52Outside (cont.)
Power Foldaway Mirrors...............................2-54
Power Mirrors.............................................2-53
Towing Mirrors............................................2-53
Overheated Engine Protection Operating Mode.....5-37
Owner Checks and Services.............................6-10
Owners, Canadian.............................................. iii
P
Paint, Damage..............................................5-113
Park
Shifting Into................................................2-47
Shifting Out of............................................2-49
Park Aid........................................................2-56
Park Tilt Mirrors..............................................2-55
Parking
Assist........................................................2-56
Brake........................................................2-45
Over Things That Burn.................................2-49
Passenger Airbag Status Indicator.....................3-38
Passenger Sensing System..............................1-90
Passing.........................................................4-11
PASS-Key
®III+ Electronic Immobilizer...............2-24
PASS-Key®III+ Electronic Immobilizer
Operation...................................................2-24
Perchlorate Materials Requirements, California...... 5-4
10
