O(Power):Press to turn the radio on or off. Turn
clockwise or counterclockwise to increase or decrease
the volume. Press and hold for more than two seconds
to turn off the radio and Rear Seat Entertainment (RSE)
system, and to start the parental control feature.
Parental control prevents the rear seat occupant from
operating the Rear Seat Audio (RSA) system or remote
control.
A lock symbol displays next to the clock display. The
parental control feature remains on until this knob
is pressed and held for more than two seconds again,
or until the driver turns the ignition off and exits the
vehicle.
f(Tune):Turn to change tracks on a CD or DVD, to
manually tune a radio station, or to change clock or date
settings, while in the clock or date setting mode. See
the information given earlier in this section specic to the
radio, CD, and the DVD. Also, see “Setting the Clock”
in the index, for setting the clock and date.
©SEEK (Previous Track/Chapter):Press the left
arrow to return to the start of the current track or
chapter. Press the left arrow again to go to the previous
track or chapter. This button might not work when the
DVD is playing the copyright information or the previews.SEEK
¨(Next Track/Chapter):Press the right arrow
to go to the next track or chapter. This button might
not work when the DVD is playing the copyright
information or the previews.
sREV (Fast Reverse):Press to quickly reverse the
CD or DVD at ve times the normal speed. The radio
displays the elapsed time while in fast reverse. To stop
fast reversing, press again. This button might not
work when the DVD is playing the copyright information
or the previews.
\FWD (Fast Forward):Press to fast forward the CD
or DVD. The radio displays the elapsed time and fast
forwards ve times the normal speed. To stop fast
forwarding, press again. This button might not work
when the DVD is playing the copyright information or the
previews.
Z(Eject):Press this button to eject a CD or DVD. If
a CD or DVD is ejected, but not removed, the player
automatically pulls it back in after 15 seconds.
If loading and reading of a CD cannot be completed,
because of an unknown format, etc., and the disc fails to
eject, press and hold this button for more than
ve seconds to force the disc to eject.
3-100

If the system fails to turn on or activate, the StabiliTrak
light along with one of the following messages will
be displayed on the Driver Information Center (DIC):
TRACTION CONTROL OFF, SERVICE TRACTION
CONTROL, STABILITRAK OFF, SERVICE
STABILITRAK. If these DIC messages appear, make
sure the StabiliTrak system has not been turned off
using the StabiliTrak on/off button. Then turn the steering
wheel clockwise from the nine o’clock position to the
three o’clock position. If this clears the message(s), the
vehicle does not need servicing. If this does not clear the
message(s), then turn the vehicle off, wait 15 seconds,
and then turn it back on again to reset the system. If any
of these messages still appear on the Driver Information
Center (DIC), the vehicle should be taken in for service.
For more information on the DIC messages, seeDriver
Information Center (DIC) on page 3-51.
The StabiliTrak light will
ash on the instrument
panel cluster when the
system is both on and
activated.
The system may be heard or felt while it is working; this
is normal.The traction control disable
button is located on the
instrument panel below
the climate controls.
The traction control part of StabiliTrak can be turned off
by pressing and releasing the StabiliTrak button if both
systems (traction control and StabiliTrak) were previously
on. To disable both traction control and StabiliTrak, press
and hold the button for ve seconds.
Traction control and StabiliTrak can be turned on by
pressing and releasing the StabiliTrak button if not
automatically shut off for any other reason.
When the TCS or StabiliTrak system is turned off,
the StabiliTrak light and the appropriate TCS off or
StabiliTrak off message will be displayed on the DIC to
warn the driver. The vehicle will still have brake-traction
control when traction control is off, but will not be able
to use the engine speed management system. See
“Traction Control Operation” next for more information.
When the traction control system has been turned off,
system noises may still be heard as a result of the
brake-traction control coming on.
4-7

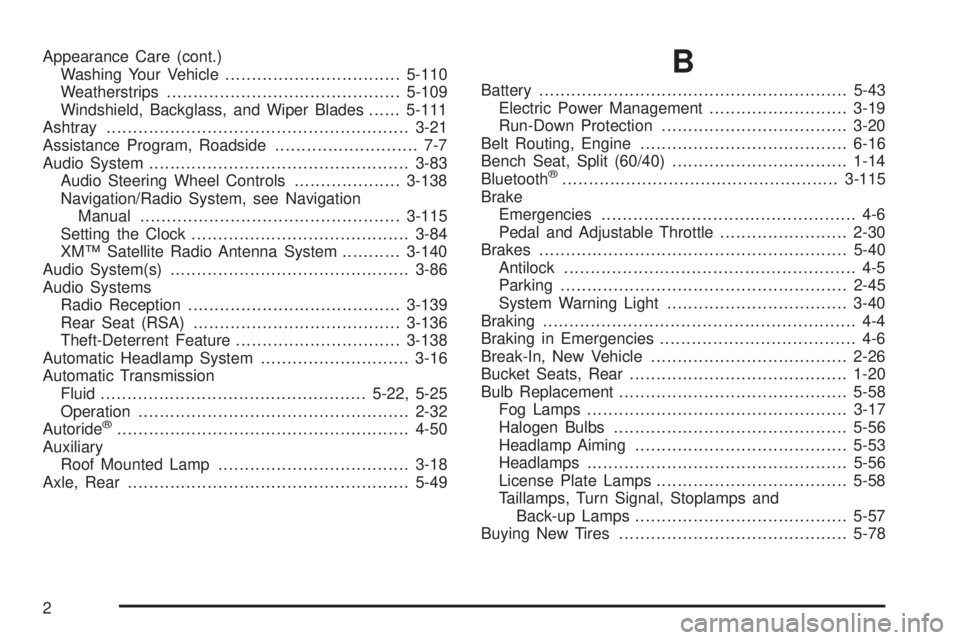

Appearance Care (cont.)
Washing Your Vehicle.................................5-110
Weatherstrips............................................5-109
Windshield, Backglass, and Wiper Blades......5-111
Ashtray.........................................................3-21
Assistance Program, Roadside........................... 7-7
Audio System.................................................3-83
Audio Steering Wheel Controls....................3-138
Navigation/Radio System, see Navigation
Manual.................................................3-115
Setting the Clock.........................................3-84
XM™ Satellite Radio Antenna System...........3-140
Audio System(s).............................................3-86
Audio Systems
Radio Reception........................................3-139
Rear Seat (RSA).......................................3-136
Theft-Deterrent Feature...............................3-138
Automatic Headlamp System............................3-16
Automatic Transmission
Fluid..................................................5-22, 5-25
Operation...................................................2-32
Autoride
®.......................................................4-50
Auxiliary
Roof Mounted Lamp....................................3-18
Axle, Rear.....................................................5-49
B
Battery..........................................................5-43
Electric Power Management..........................3-19
Run-Down Protection...................................3-20
Belt Routing, Engine.......................................6-16
Bench Seat, Split (60/40).................................1-14
Bluetooth
®....................................................3-115
Brake
Emergencies................................................ 4-6
Pedal and Adjustable Throttle........................2-30
Brakes..........................................................5-40
Antilock....................................................... 4-5
Parking......................................................2-45
System Warning Light..................................3-40
Braking........................................................... 4-4
Braking in Emergencies..................................... 4-6
Break-In, New Vehicle.....................................2-26
Bucket Seats, Rear.........................................1-20
Bulb Replacement...........................................5-58
Fog Lamps .................................................3-17
Halogen Bulbs............................................5-56
Headlamp Aiming........................................5-53
Headlamps.................................................5-56
License Plate Lamps....................................5-58
Taillamps, Turn Signal, Stoplamps and
Back-up Lamps........................................5-57
Buying New Tires...........................................5-78
2

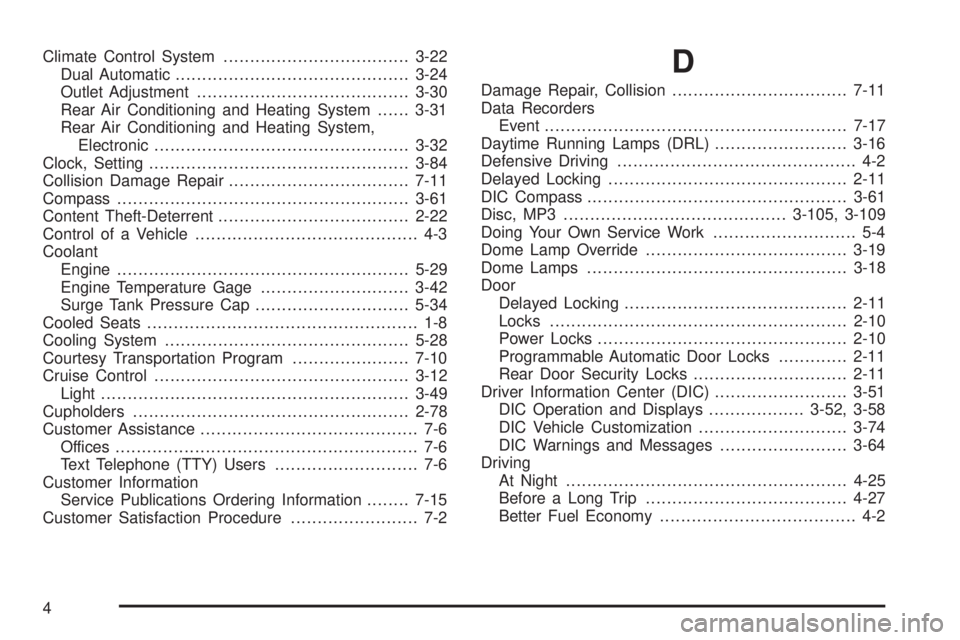

Climate Control System...................................3-22
Dual Automatic............................................3-24
Outlet Adjustment........................................3-30
Rear Air Conditioning and Heating System......3-31
Rear Air Conditioning and Heating System,
Electronic................................................3-32
Clock, Setting.................................................3-84
Collision Damage Repair..................................7-11
Compass.......................................................3-61
Content Theft-Deterrent....................................2-22
Control of a Vehicle.......................................... 4-3
Coolant
Engine.......................................................5-29
Engine Temperature Gage............................3-42
Surge Tank Pressure Cap.............................5-34
Cooled Seats................................................... 1-8
Cooling System..............................................5-28
Courtesy Transportation Program......................7-10
Cruise Control................................................3-12
Light..........................................................3-49
Cupholders....................................................2-78
Customer Assistance......................................... 7-6
Offices......................................................... 7-6
Text Telephone (TTY) Users........................... 7-6
Customer Information
Service Publications Ordering Information........7-15
Customer Satisfaction Procedure........................ 7-2D
Damage Repair, Collision.................................7-11
Data Recorders
Event.........................................................7-17
Daytime Running Lamps (DRL).........................3-16
Defensive Driving............................................. 4-2
Delayed Locking.............................................2-11
DIC Compass.................................................3-61
Disc, MP3..........................................3-105, 3-109
Doing Your Own Service Work........................... 5-4
Dome Lamp Override......................................3-19
Dome Lamps .................................................3-18
Door
Delayed Locking..........................................2-11
Locks........................................................2-10
Power Locks...............................................2-10
Programmable Automatic Door Locks.............2-11
Rear Door Security Locks.............................2-11
Driver Information Center (DIC).........................3-51
DIC Operation and Displays..................3-52, 3-58
DIC Vehicle Customization............................3-74
DIC Warnings and Messages........................3-64
Driving
At Night.....................................................4-25
Before a Long Trip......................................4-27
Better Fuel Economy..................................... 4-2
4

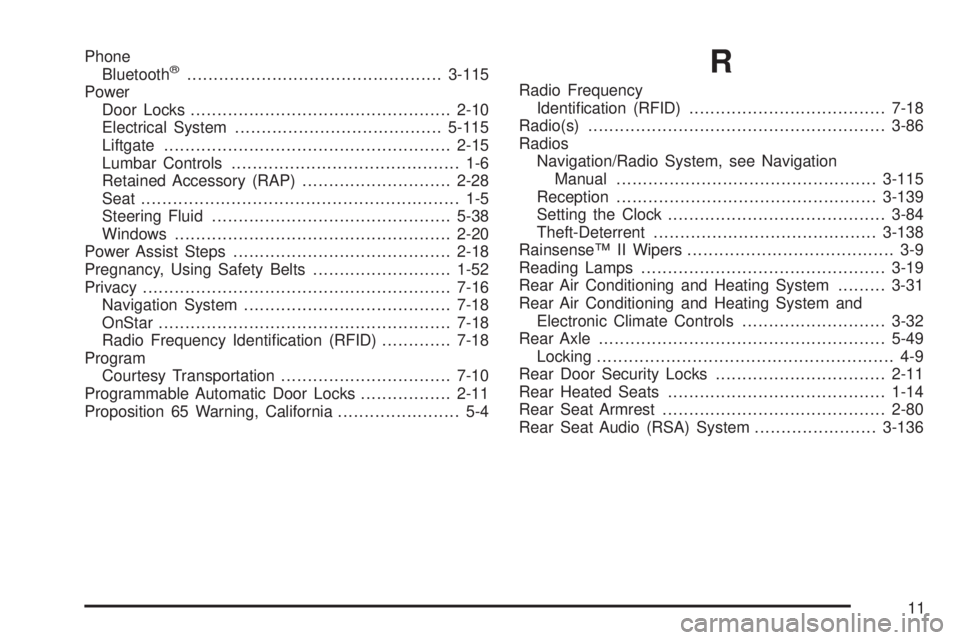

Phone
Bluetooth®................................................3-115
Power
Door Locks.................................................2-10
Electrical System.......................................5-115
Liftgate......................................................2-15
Lumbar Controls........................................... 1-6
Retained Accessory (RAP)............................2-28
Seat ............................................................ 1-5
Steering Fluid.............................................5-38
Windows....................................................2-20
Power Assist Steps.........................................2-18
Pregnancy, Using Safety Belts..........................1-52
Privacy..........................................................7-16
Navigation System.......................................7-18
OnStar.......................................................7-18
Radio Frequency Identication (RFID).............7-18
Program
Courtesy Transportation................................7-10
Programmable Automatic Door Locks.................2-11
Proposition 65 Warning, California....................... 5-4R
Radio Frequency
Identication (RFID).....................................7-18
Radio(s)........................................................3-86
Radios
Navigation/Radio System, see Navigation
Manual.................................................3-115
Reception.................................................3-139
Setting the Clock.........................................3-84
Theft-Deterrent..........................................3-138
Rainsense™ II Wipers....................................... 3-9
Reading Lamps..............................................3-19
Rear Air Conditioning and Heating System.........3-31
Rear Air Conditioning and Heating System and
Electronic Climate Controls...........................3-32
Rear Axle......................................................5-49
Locking........................................................ 4-9
Rear Door Security Locks................................2-11
Rear Heated Seats.........................................1-14
Rear Seat Armrest..........................................2-80
Rear Seat Audio (RSA) System.......................3-136
11

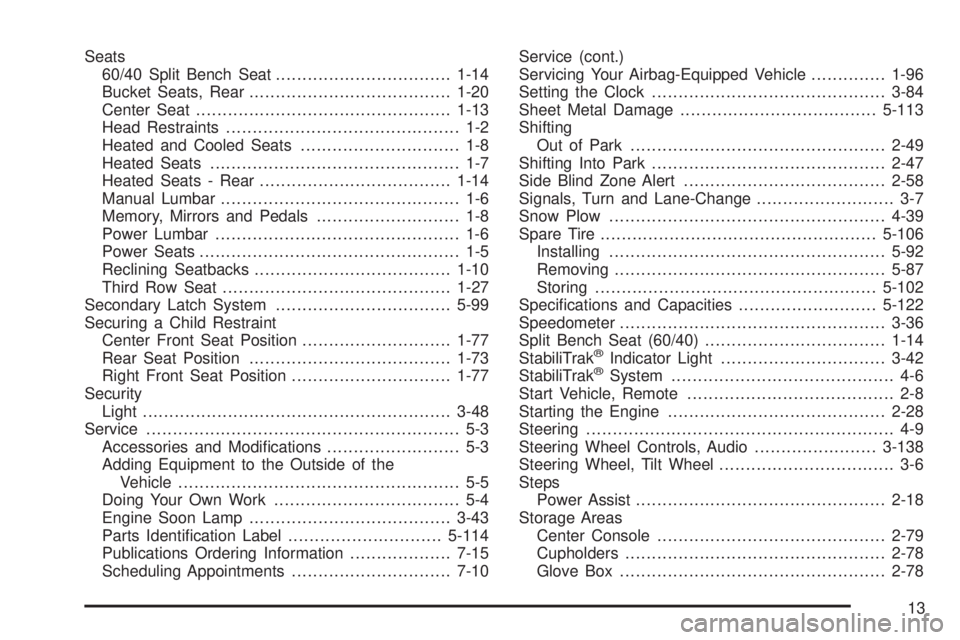

Seats
60/40 Split Bench Seat.................................1-14
Bucket Seats, Rear......................................1-20
Center Seat................................................1-13
Head Restraints............................................ 1-2
Heated and Cooled Seats.............................. 1-8
Heated Seats............................................... 1-7
Heated Seats - Rear....................................1-14
Manual Lumbar............................................. 1-6
Memory, Mirrors and Pedals........................... 1-8
Power Lumbar .............................................. 1-6
Power Seats................................................. 1-5
Reclining Seatbacks.....................................1-10
Third Row Seat...........................................1-27
Secondary Latch System.................................5-99
Securing a Child Restraint
Center Front Seat Position............................1-77
Rear Seat Position......................................1-73
Right Front Seat Position..............................1-77
Security
Light..........................................................3-48
Service........................................................... 5-3
Accessories and Modications......................... 5-3
Adding Equipment to the Outside of the
Vehicle..................................................... 5-5
Doing Your Own Work................................... 5-4
Engine Soon Lamp......................................3-43
Parts Identication Label.............................5-114
Publications Ordering Information...................7-15
Scheduling Appointments..............................7-10Service (cont.)
Servicing Your Airbag-Equipped Vehicle..............1-96
Setting the Clock............................................3-84
Sheet Metal Damage.....................................5-113
Shifting
Out of Park................................................2-49
Shifting Into Park............................................2-47
Side Blind Zone Alert......................................2-58
Signals, Turn and Lane-Change.......................... 3-7
Snow Plow....................................................4-39
Spare Tire....................................................5-106
Installing....................................................5-92
Removing
...................................................5-87
Storing.....................................................5-102
Specications and Capacities..........................5-122
Speedometer..................................................3-36
Split Bench Seat (60/40)..................................1-14
StabiliTrak
®Indicator Light...............................3-42
StabiliTrak®System.......................................... 4-6
Start Vehicle, Remote....................................... 2-8
Starting the Engine.........................................2-28
Steering.......................................................... 4-9
Steering Wheel Controls, Audio.......................3-138
Steering Wheel, Tilt Wheel................................. 3-6
Steps
Power Assist...............................................2-18
Storage Areas
Center Console...........................................2-79
Cupholders.................................................2-78
Glove Box..................................................2-78
13
