To access the spare tire:
A. Spare Tire
(Valve Stem
Pointed Down)
B. Hoist Assembly
C. Hoist Cable
D. Tire/Wheel
Retainer
E. Hoist ShaftF. Hoist End of
Extension Tool
G. Hoist Shaft
Access Hole
H. Wheel Wrench
I. Jack Handle
Extension(s)
J. Spare Tire Lock1. Open the hoist shaft access cover on the bumper to
access the spare tire lock (J).
2. To remove the spare tire lock, insert the ignition
key, turn it clockwise and pull it straight out.
3. Assemble the two jack handle extensions (I) and
wheel wrench (H) as shown.
5-83

4. Insert the open end of
the extension (F)
through the hole in the
rear bumper (G) (hoist
shaft access hole).
Be sure the hoist end (F) of the extension connects
to the hoist shaft (E). The ribbed square end of
the extension is used to lower the spare tire.
Do not use the chiseled end of the wheel wrench.
5. Turn the wheel wrench counterclockwise to lower
the spare tire to the ground. Continue to turn the
wheel wrench until the spare tire can be pulled out
from under the vehicle.
If the spare tire does not lower to the ground, the
secondary latch is engaged causing the tire
not to lower. SeeSecondary Latch System on
page 5-92for more information.6. Use the wheel wrench
hook that allows you to
pull the hoist cable
towards you, to assist
in reaching the
spare tire.
5-84

Removing the Flat Tire and
Installing the Spare Tire
Use the following pictures and instructions to remove
the at tire and raise the vehicle.
The tools needed are the jack (A), the wheel blocks (B),
the jack handle (C), the jack handle extensions (D),
and the wheel wrench (E).
1. Do a safety check before proceeding. SeeChanging
a Flat Tire on page 5-80for more information.2. If the vehicle has a
center cap, place the
chiseled end of
the wheel wrench in
the slot on the
wheel and gently pry
the cap out.
If the vehicle has a bolt-on hub cap, loosen the
plastic nut caps by turning the wheel wrench
counterclockwise. The plastic nut caps will be
retained in the hub cap after it is removed from the
wheel.
5-86

3. Use the wheel
wrench to loosen
all the wheel nuts. Turn
the wheel wrench
counterclockwise to
loosen the wheel nuts.
Do not remove the
wheel nuts yet.
A. Front Position
B. Rear Position
{CAUTION:
Getting under a vehicle when it is jacked up is
dangerous. If the vehicle slips off the jack, you
could be badly injured or killed. Never get under a
vehicle when it is supported only by a jack.
{CAUTION:
Raising your vehicle with the jack improperly
positioned can damage the vehicle and even
make the vehicle fall. To help avoid personal injury
and vehicle damage, be sure to t the jack lift
head into the proper location before raising the
vehicle.
4. Position the jack under the vehicle as shown.
Jacking Locations (Overall View)
5-87

Front Tire Flat:If the at tire is on a front tire of
the vehicle, you will need to use the jack handle and
only one jack handle extension. Attach the wheel
wrench to the jack handle extension. Attach the jack
handle to the jack (A). Position the jack on the
frame behind the at tire near the front body mount
as shown. Turn the wheel wrench clockwise to
raise the vehicle. Raise the vehicle far enough off
the ground so there is enough room for the
spare tire to clear the ground.Rear Tire Flat:If the at tire is on a rear tire of the
vehicle, you will need to use the jack handle and
both jack handle extensions. Attach the wheel
wrench to the jack handle extensions. Attach the
jack handle to the jack. Use the jacking pad
provided on the rear axle. Turn the wheel wrench
clockwise to raise the vehicle. Raise the vehicle far
enough off the ground so there is enough room
for the spare tire to clear the ground. Front Position
Rear Position
5-88

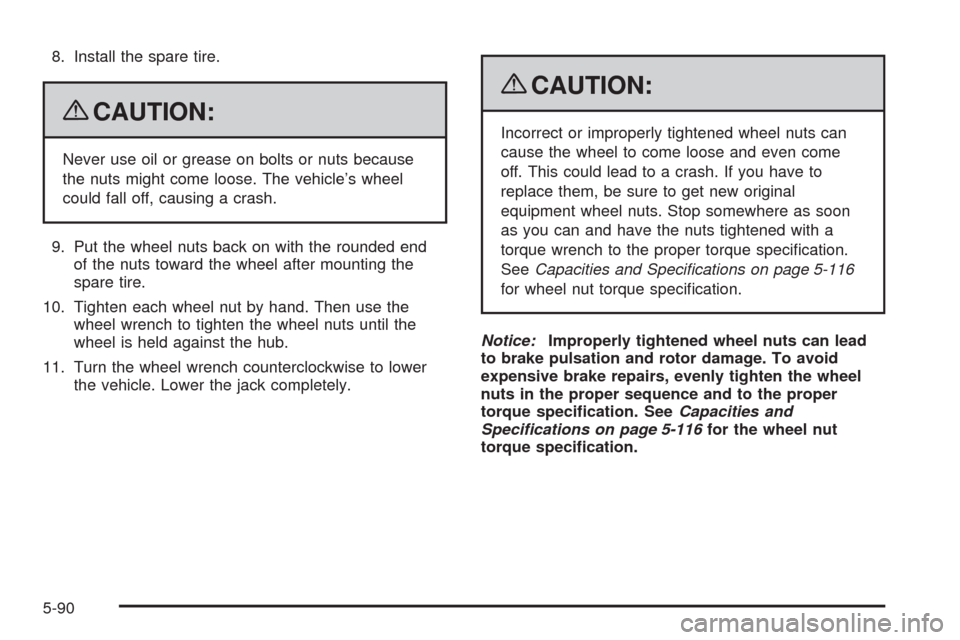

8. Install the spare tire.
{CAUTION:
Never use oil or grease on bolts or nuts because
the nuts might come loose. The vehicle’s wheel
could fall off, causing a crash.
9. Put the wheel nuts back on with the rounded end
of the nuts toward the wheel after mounting the
spare tire.
10. Tighten each wheel nut by hand. Then use the
wheel wrench to tighten the wheel nuts until the
wheel is held against the hub.
11. Turn the wheel wrench counterclockwise to lower
the vehicle. Lower the jack completely.
{CAUTION:
Incorrect or improperly tightened wheel nuts can
cause the wheel to come loose and even come
off. This could lead to a crash. If you have to
replace them, be sure to get new original
equipment wheel nuts. Stop somewhere as soon
as you can and have the nuts tightened with a
torque wrench to the proper torque specication.
SeeCapacities and Specications on page 5-116
for wheel nut torque specication.
Notice:Improperly tightened wheel nuts can lead
to brake pulsation and rotor damage. To avoid
expensive brake repairs, evenly tighten the wheel
nuts in the proper sequence and to the proper
torque specication. SeeCapacities and
Specifications on page 5-116for the wheel nut
torque specication.
5-90

12. Tighten the nuts rmly
in a crisscross
sequence as shown by
turning the wheel
wrench clockwise.When you reinstall the full-size wheel and tire, you must
also reinstall the either the center cap or the bolt-on
hub cap, depending on what your vehicle has.
If you are reinstalling a center cap, line up the tab
on the center cap with the slot on the wheel. The
cap only goes in one way. Place the cap on
the wheel and press until it snaps into place.
If you are reinstalling bolt-on hub caps, line
up the plastic nut caps with the wheel nuts
and tighten them clockwise by hand to get them
started. Continue tightening with the wheel wrench
until snug.
5-91

Secondary Latch System
Your vehicle has an underbody-mounted tire hoist
assembly equipped with a secondary latch system. It is
designed to stop the spare tire from suddenly falling
off your vehicle. For the secondary latch to work,
the spare must be installed with the valve stem pointing
down. SeeStoring a Flat or Spare Tire and Tools on
page 5-95.
{CAUTION:
Before beginning this procedure read all the
instructions. Failure to read and follow the
instructions could damage the hoist assembly and
you and others could get hurt. Read and follow the
instructions listed next.To release the spare tire from the secondary latch:
1. Check under the
vehicle to see if the
cable end is visible. If
the cable is not visible
proceed to Step 6.
2. If it is visible, rst try to tighten the cable by turning
the wheel wrench clockwise until you hear two
clicks or feel it skip twice. You cannot overtighten
the cable.
3. Loosen the cable by turning the wrench
counterclockwise three or four turns.
4. Repeat this procedure at least two times. If the
spare tire lowers to the ground, continue with
Step 5 ofRemoving the Spare Tire and Tools on
page 5-81.
5-92
