2009 CHERY TIGGO dimensions

Downloaded from www.Manualslib.com manuals search engine NOTE :
Uppercase letters indicate the left side of the body. Lowercase letters indicate the right side of the body (view from
the rear of the vehicle).

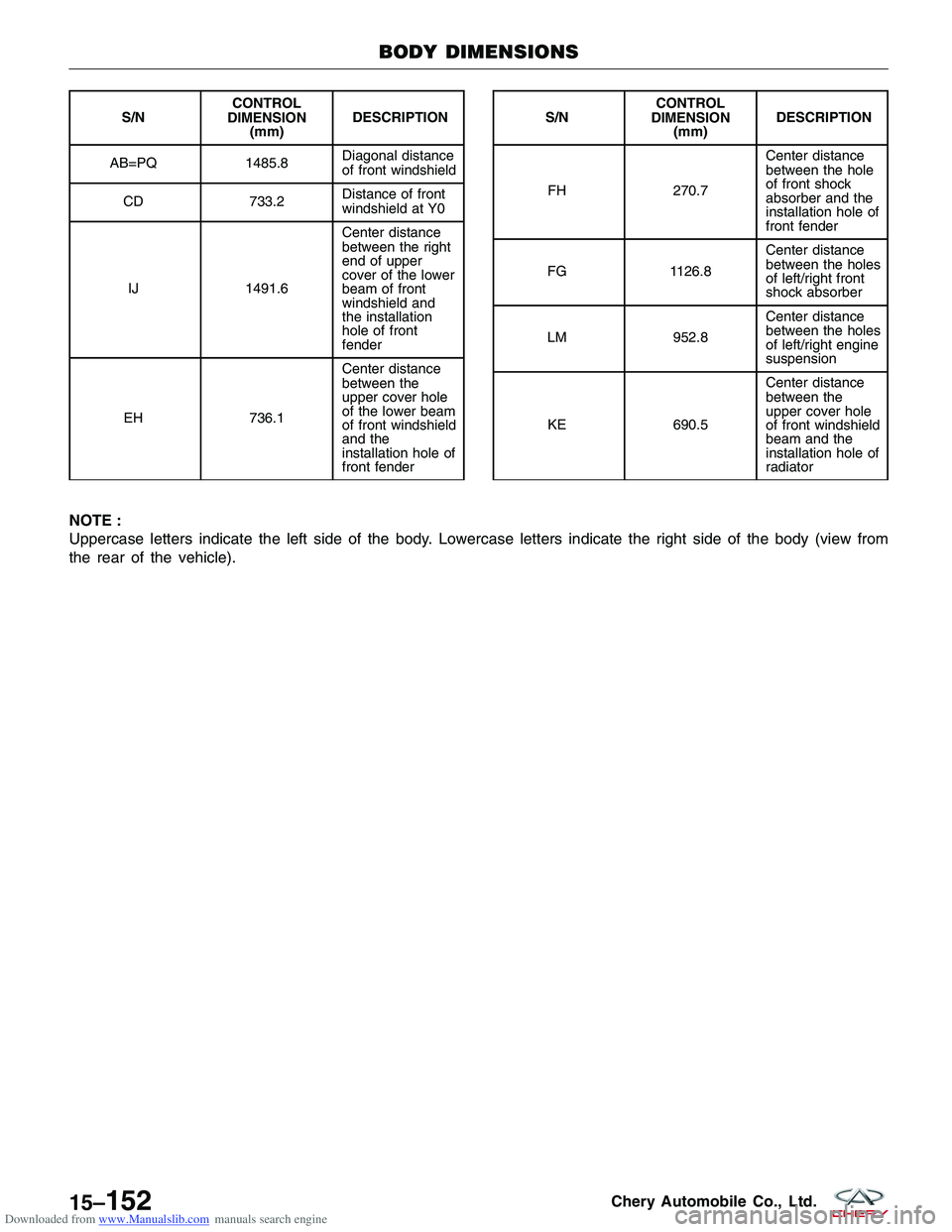

S/NCONTROL
DIMENSION (mm) DESCRIPTION
AB=PQ 1485.8 Diagonal distance
of front windshield
CD 733.2Distance of front
windshield at Y0
IJ 1491.6Center distance
between the right
end of upper
cover of the lower
beam of front
windshield and
the installation
hole of front
fender
EH 736.1Center distance
between the
upper cover hole
of the lower beam
of front windshield
and the
installation hole of
front fenderS/N
CONTROL
DIMENSION (mm) DESCRIPTION
FH 270.7 Center distance
between the hole
of front shock
absorber and the
installation hole of
front fender
FG 1126.8Center distance
between the holes
of left/right front
shock absorber
LM 952.8Center distance
between the holes
of left/right engine
suspension
KE 690.5Center distance
between the
upper cover hole
of front windshield
beam and the
installation hole of
radiator
BODY DIMENSIONS
LTSM150001
15–152Chery Automobile Co., Ltd.

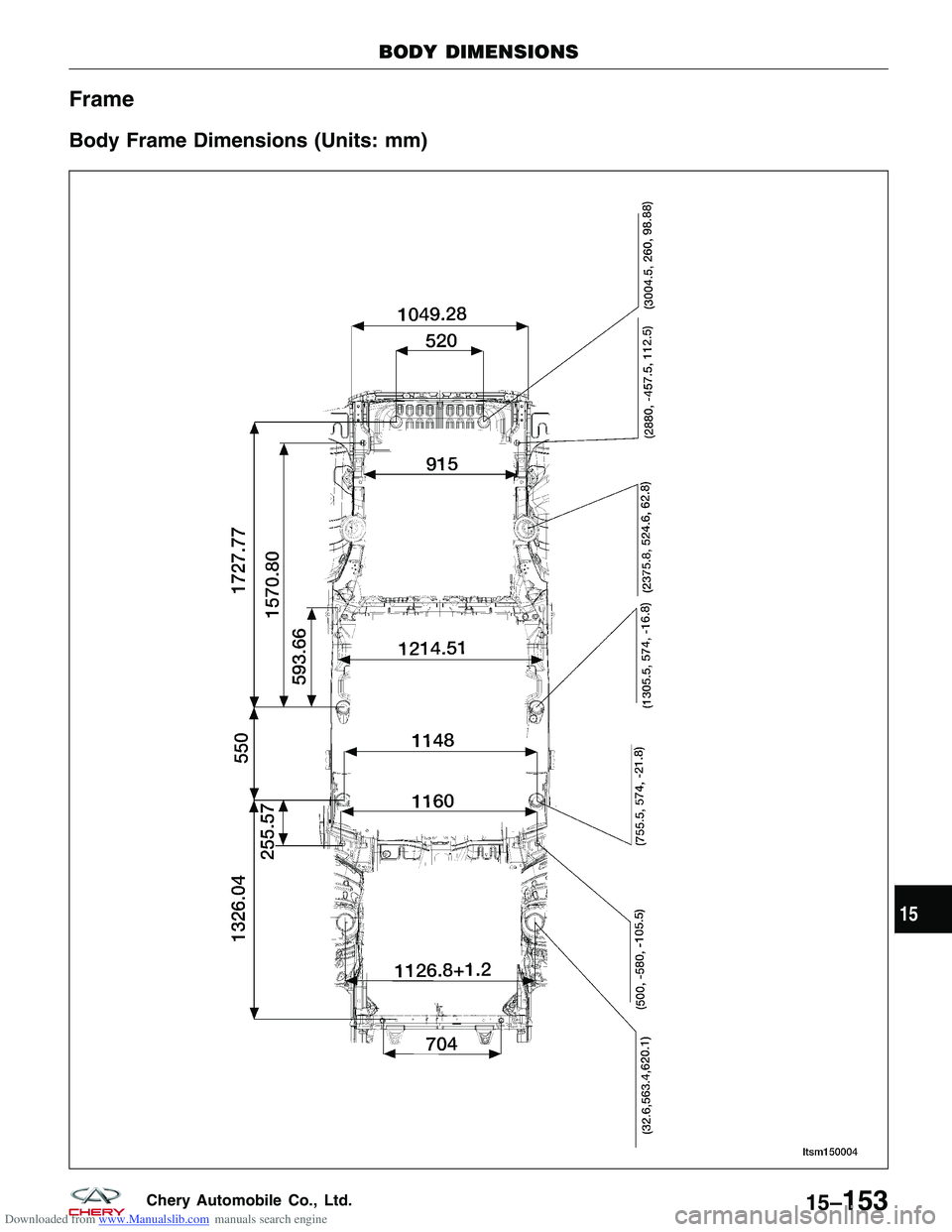

Downloaded from www.Manualslib.com manuals search engine Frame
Body Frame Dimensions (Units: mm)
BODY DIMENSIONS
LTSM150004
15
15–153Chery Automobile Co., Ltd.

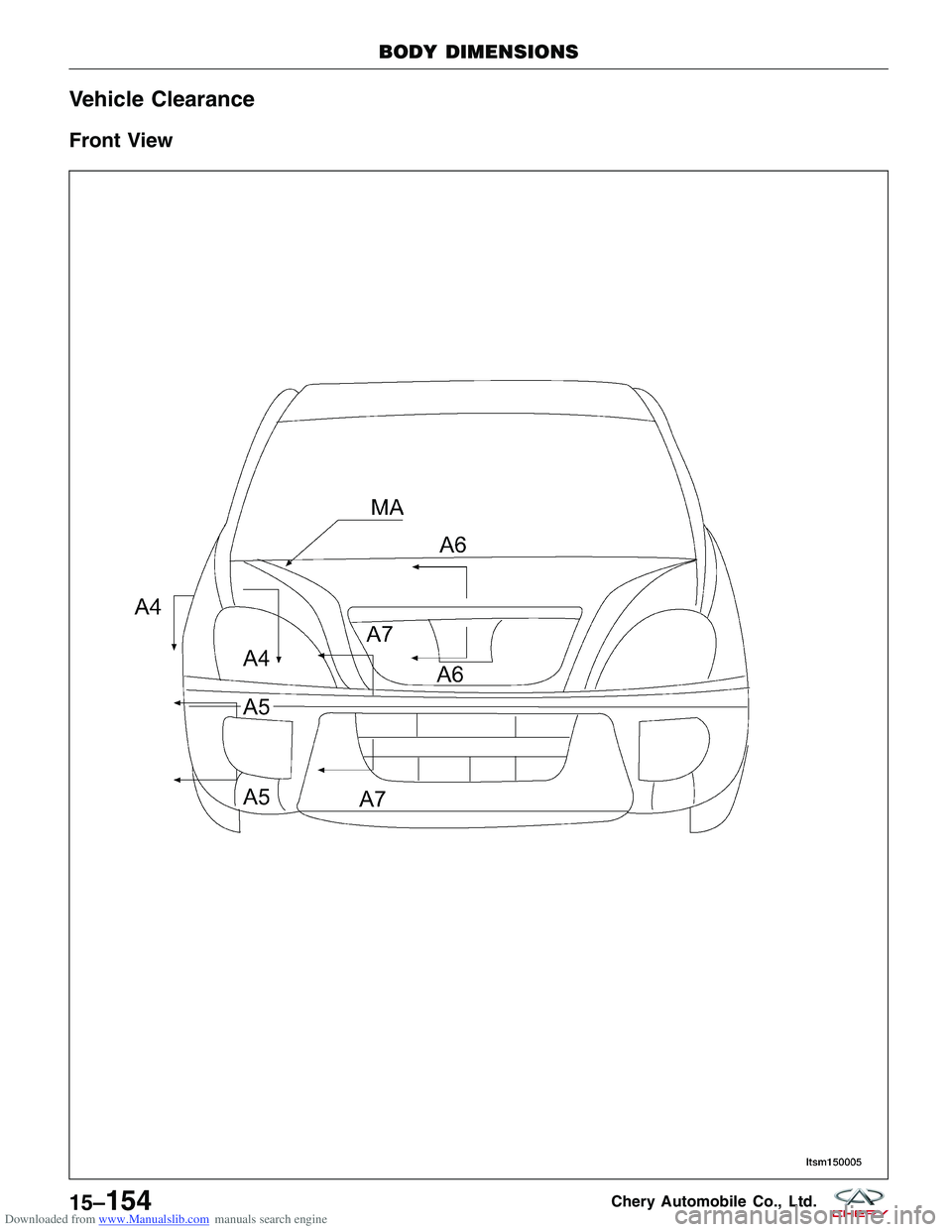

Downloaded from www.Manualslib.com manuals search engine Vehicle Clearance
Front View
BODY DIMENSIONS
LTSM150005
15–154Chery Automobile Co., Ltd.

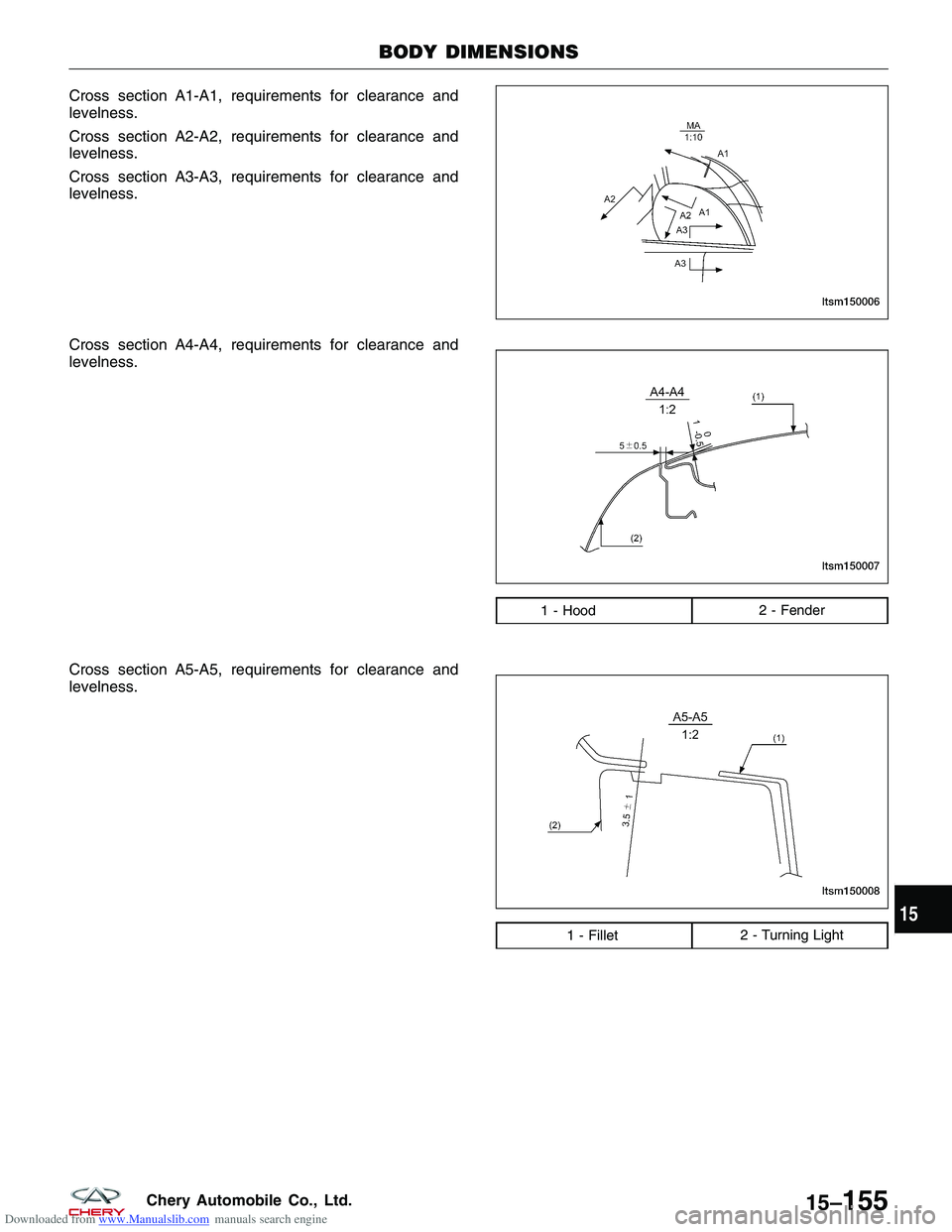

Downloaded from www.Manualslib.com manuals search engine Cross section A1-A1, requirements for clearance and
levelness.
Cross section A2-A2, requirements for clearance and
levelness.
Cross section A3-A3, requirements for clearance and
levelness.
Cross section A4-A4, requirements for clearance and
levelness.
Cross section A5-A5, requirements for clearance and
levelness.
1 - Hood2 - Fender
1 - Fillet2 - Turning Light
BODY DIMENSIONS
LTSM150006
LTSM150007
LTSM150008
15
15–155Chery Automobile Co., Ltd.

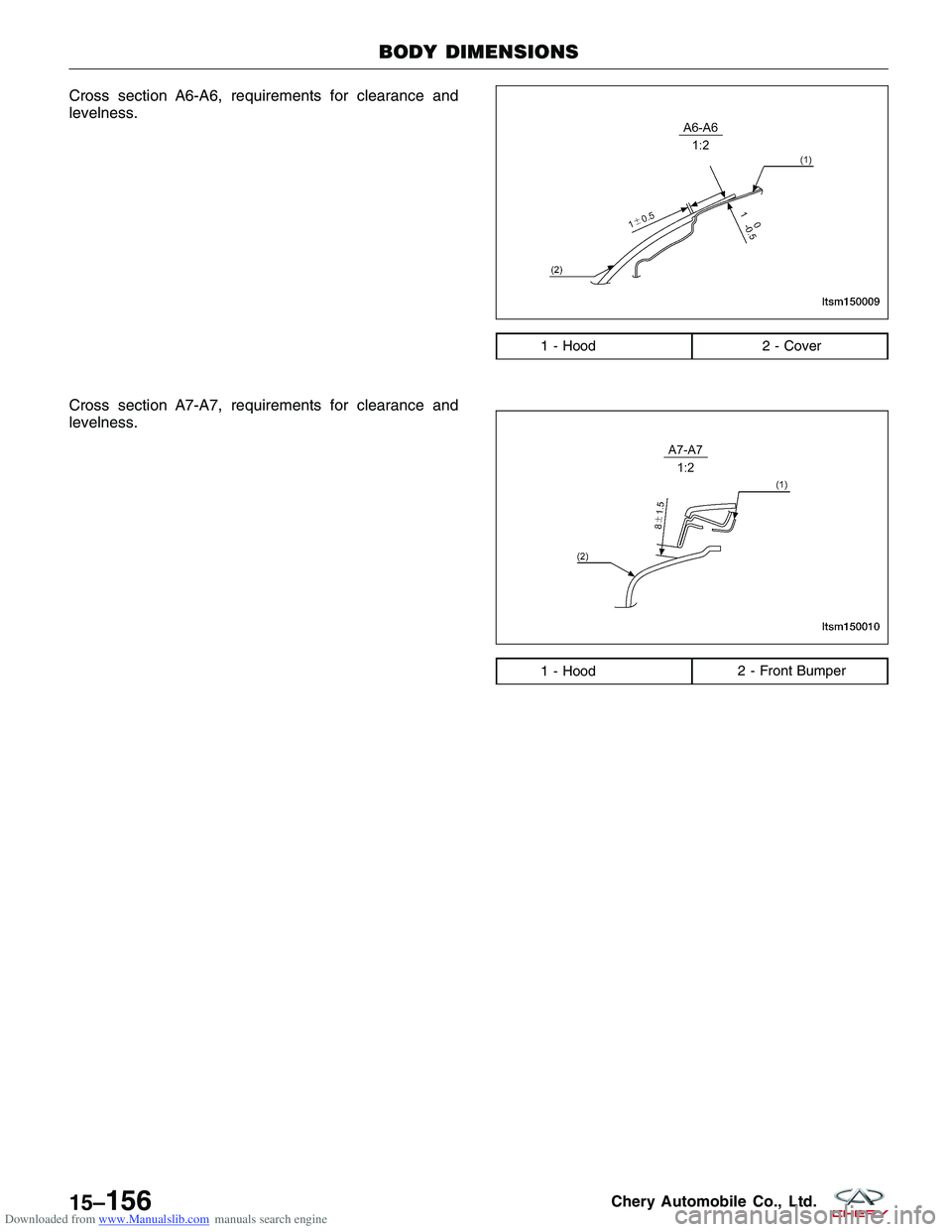

Downloaded from www.Manualslib.com manuals search engine Cross section A6-A6, requirements for clearance and
levelness.
Cross section A7-A7, requirements for clearance and
levelness.
1 - Hood2 - Cover
1 - Hood2 - Front Bumper
BODY DIMENSIONS
LTSM150009
LTSM150010
15–156Chery Automobile Co., Ltd.

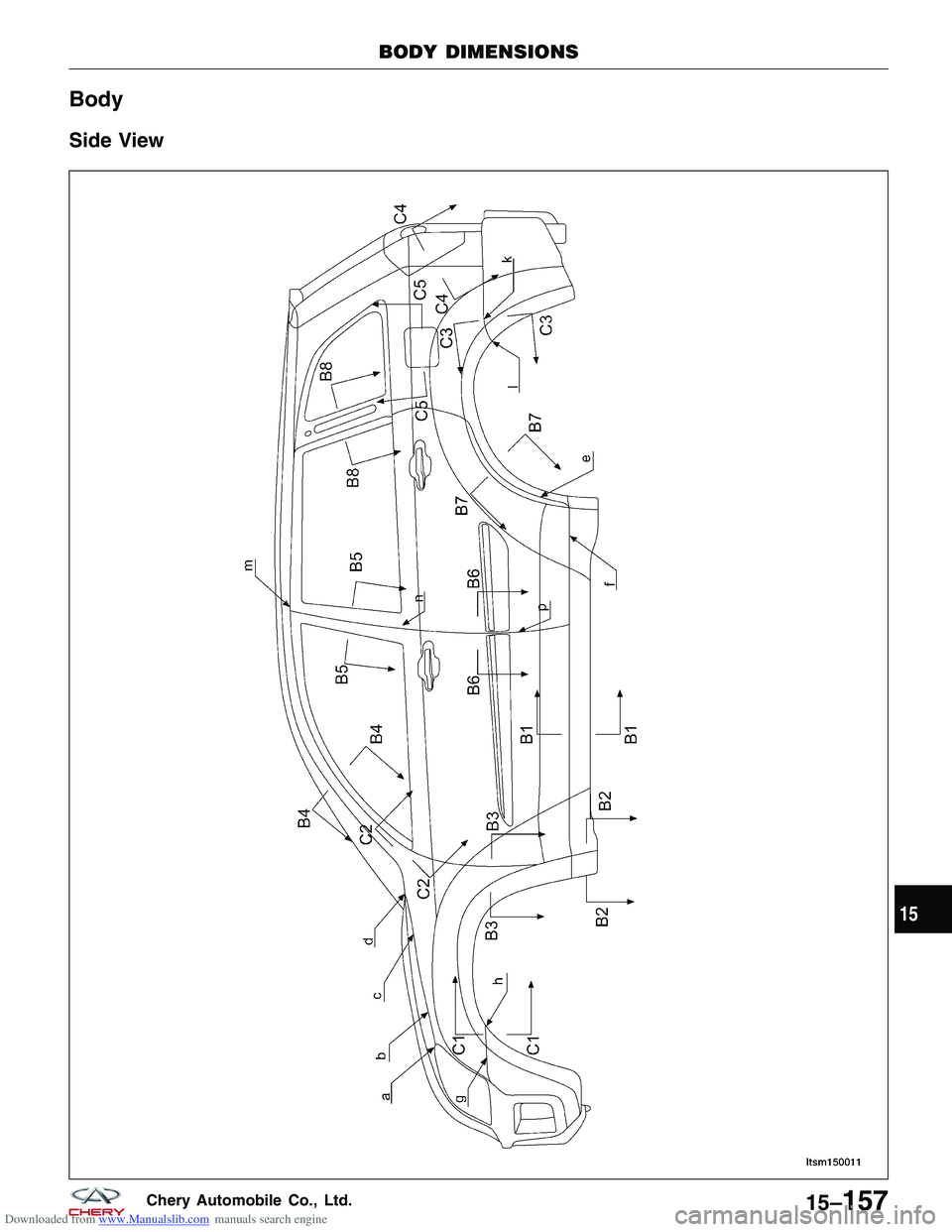

Downloaded from www.Manualslib.com manuals search engine Body
Side View
BODY DIMENSIONS
LTSM150011
15
15–157Chery Automobile Co., Ltd.

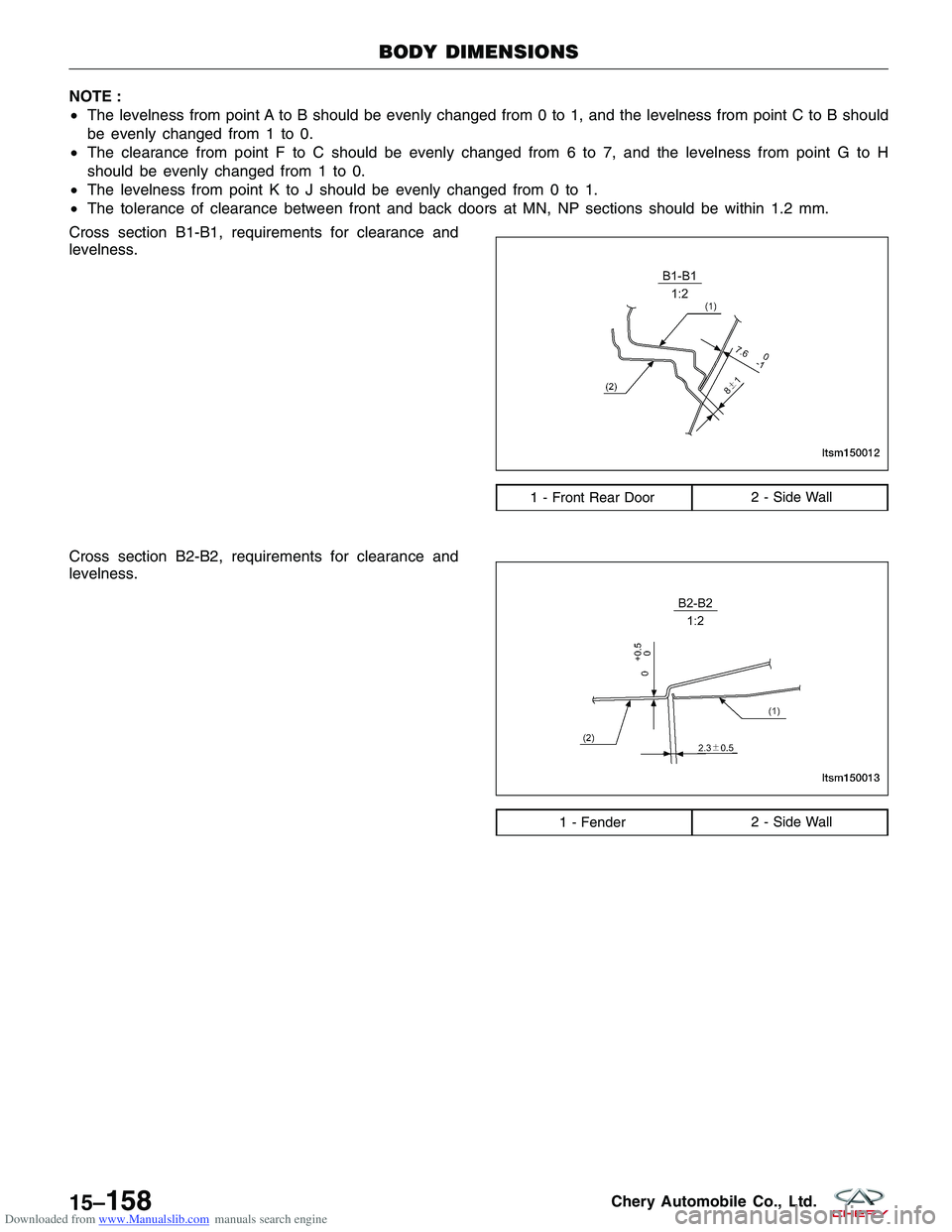

Downloaded from www.Manualslib.com manuals search engine NOTE :
•The levelness from point A to B should be evenly changed from 0 to 1, and the levelness from point C to B should
be evenly changed from 1 to 0.
• The clearance from point F to C should be evenly changed from 6 to 7, and the levelness from point G to H
should be evenly changed from 1 to 0.
• The levelness from point K to J should be evenly changed from 0 to 1.
• The tolerance of clearance between front and back doors at MN, NP sections should be within 1.2 mm.
Cross section B1-B1, requirements for clearance and
levelness.
Cross section B2-B2, requirements for clearance and
levelness.
1 - Front Rear Door 2 - Side Wall
1 - Fender2 - Side Wall
BODY DIMENSIONS
LTSM150012
LTSM150013
15–158Chery Automobile Co., Ltd.

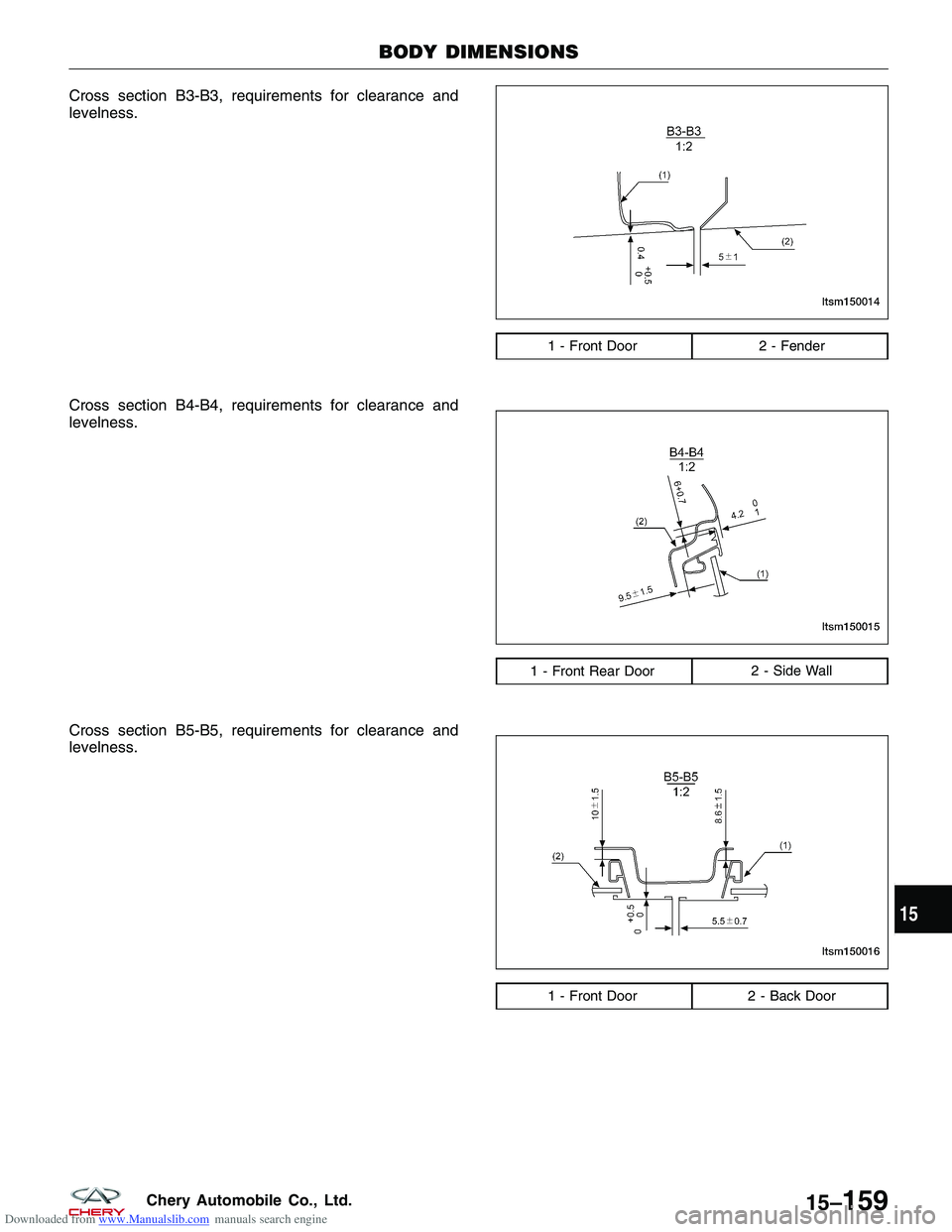

Downloaded from www.Manualslib.com manuals search engine Cross section B3-B3, requirements for clearance and
levelness.
Cross section B4-B4, requirements for clearance and
levelness.
Cross section B5-B5, requirements for clearance and
levelness.
1 - Front Door2 - Fender
1 - Front Rear Door 2 - Side Wall
1 - Front Door2 - Back Door
BODY DIMENSIONS
LTSM150014
LTSM150015
LTSM150016
15
15–159Chery Automobile Co., Ltd.
