2009 CADILLAC STS Owners Manual

Using an MP3
MP3 CD-R Disc
MP3 Format
The MP3 player will only play CD-R discs. It can read
and play a maximum of:
50 folders.
11 folders in depth
50 playlists
10 sessions
255 les
All folders, playlists, sessions and les over the
maximum are ignored.
When recording an MP3 disc, make sure that:
Playlists use an .m3u or .wpl extension.
Standard audio and compressed audio les are not
mixed on the same disc.
The disc is nalized when using multiple sessions.
File Naming
Song title, artist name, and album are available for
display by the radio when recorded using ID3 tags
version 1 and 2.
The song name that is displayed on the radio is the
song name that is contained in the ID3 tag. If the song
name is not present in the ID3 tag, the radio displays the
le name without the le extension as the track name.
Track names longer than 32 characters or four pages
are shortened. Parts of words on the last page of
text and the extension of the lename do not display.
Order of Play
Playlists are accessed before les or folders in the root
directory.
CD’s that have playlists play the tracks in the following
order:
1. After the rst track in the rst playlist ends, play
continues sequentially through all tracks in each
playlist.
2. After the last track of the last playlist ends, play
restarts from the rst track of the rst playlist.
3-111

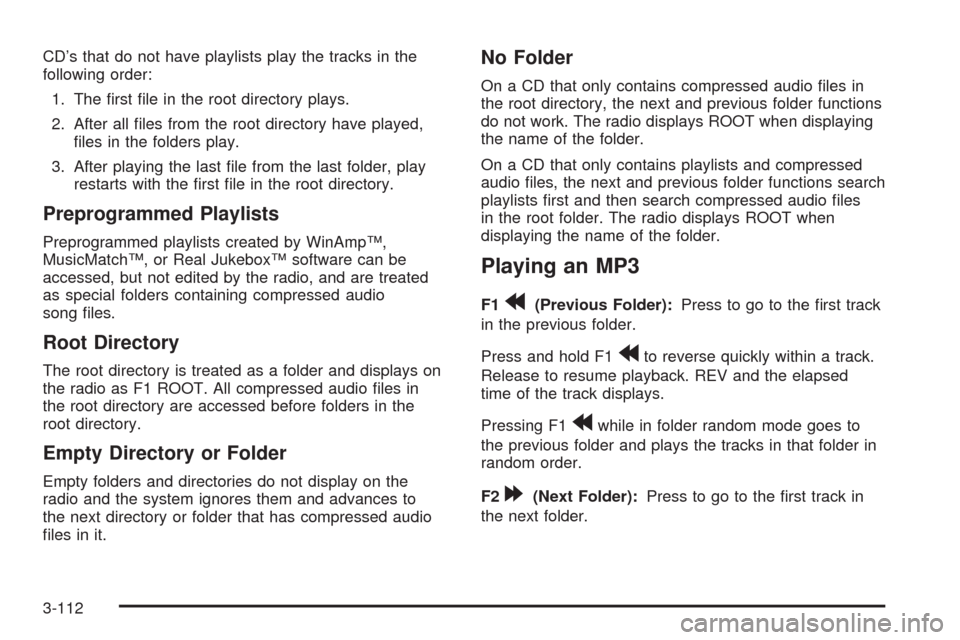

CD’s that do not have playlists play the tracks in the
following order:
1. The rst le in the root directory plays.
2. After all les from the root directory have played,
les in the folders play.
3. After playing the last le from the last folder, play
restarts with the rst le in the root directory.
Preprogrammed Playlists
Preprogrammed playlists created by WinAmp™,
MusicMatch™, or Real Jukebox™ software can be
accessed, but not edited by the radio, and are treated
as special folders containing compressed audio
song les.
Root Directory
The root directory is treated as a folder and displays on
the radio as F1 ROOT. All compressed audio les in
the root directory are accessed before folders in the
root directory.
Empty Directory or Folder
Empty folders and directories do not display on the
radio and the system ignores them and advances to
the next directory or folder that has compressed audio
les in it.
No Folder
On a CD that only contains compressed audio les in
the root directory, the next and previous folder functions
do not work. The radio displays ROOT when displaying
the name of the folder.
On a CD that only contains playlists and compressed
audio les, the next and previous folder functions search
playlists rst and then search compressed audio les
in the root folder. The radio displays ROOT when
displaying the name of the folder.
Playing an MP3
F1r(Previous Folder):Press to go to the rst track
in the previous folder.
Press and hold F1
rto reverse quickly within a track.
Release to resume playback. REV and the elapsed
time of the track displays.
Pressing F1
rwhile in folder random mode goes to
the previous folder and plays the tracks in that folder in
random order.
F2
[(Next Folder):Press to go to the rst track in
the next folder.
3-112

Press and hold F1rto advance quickly within a track.
Release to resume playback. FWD and the elapsed
time of the track displays.
Pressing F2
[while in folder random mode goes to
the next folder and plays the tracks in that folder
in random order.
F3 RDM (Random):Press to listen to the tracks in a
random, rather than sequential order. Random can
be used on the entire disc or the current folder.
While in random, pressing and releasing
©or¨goes
to the previous or to the next random track.
To play the tracks on entire disc in random, press
and release F3 RDM until RDM TRCK displays.
Once all of the tracks in the current folder or playlist
have played, the system moves on to the next folder
or playlist and plays all of the tracks in random order.
To play the tracks in the current folder in random,
press and release F3 RDM until RDM FLDR
displays. This feature does not work with playlists.
To turn random off, press and release F3 RDM until
NORMAL displays.F4 RPT (Repeat):Single tracks or folders can be
repeated.
To repeat the current track, press and release
F4 RPT until RPT TRCK displays.
To repeat the tracks in the current folder, press and
release F4 RPT until RPT FLDR displays.
To turn repeat off, press and release F4 RPT until
NORMAL displays.
F6 DISP (Display):Press to switch between the
elapsed time of the track and the MP3 playback
information.
©¨(Seek):Press and release to go to the start of
the previous track or the start of the next track. Press and
hold for more than two seconds to search the previous or
next tracks at two tracks per second. Release to stop
searching and to play the track.
©¨(Scan):Press to scan the tracks in each folder.
The radio goes to the next track, plays for 10 seconds,
then goes to the next track. Press again to stop
scanning.
3-113

w(Tune):Turn to fast track reverse or advance
through the tracks in all folders or playlists. The
track number and le name displays for each track.
Turning
wwhile in random will fast track reverse
or advance the tracks in sequential order.
4(Information):Press to view the Title, Artist, Album,
or Folder names. To view this information:
1. Press
wto enter the main menu.
2. Turn
wuntil INFO displays.
3. Press
wto select INFO. The display changes
to show the additional MP3 information.
4. Press one of the following pushbuttons to view that
specic information.
F1 TTLE (Title):Displays the title name.
F2 ATST (Artist):Displays the artist name.
F3 ALBM (Album):Displays the album name.
F4 FLDR (Folder):Displays the folder name.
5. Press F6 to exit the display. To return to the original
display, repeatedly press F6 or wait for the display
to time out.
XM Radio Messages
XL (Explicit Language Channels):These channels,
or any others, can be blocked at a customer’s request,
by calling 1-800-852-XMXM (9696).
XM Updating:The encryption code in the receiver is
being updated, and no action is required. This process
should take no longer than 30 seconds.
No XM Signal:The system is functioning correctly, but
the vehicle is in a location that is blocking the XM™
signal. When the vehicle is moved into an open area,
the signal should return.
Loading XM:The audio system is acquiring and
processing audio and text data. No action is needed.
This message should disappear shortly.
Channel Off Air:This channel is not currently in
service. Tune in to another channel.
Channel Unauth:This channel is blocked or cannot be
received with your XM Subscription package.
3-114

Channel Unavail:This previously assigned channel
is no longer assigned. Tune to another station.
If this station was one of the presets, choose another
station for that preset button.
No Artist Info:No artist information is available at this
time on this channel. The system is working properly.
No Title Info:No song title information is available
at this time on this channel. The system is working
properly.
No CAT Info:No category information is available
at this time on this channel. The system is working
properly.
No Information:No text or informational messages are
available at this time on this channel. The system is
working properly.
CAT Not Found:There are no channels available for
the selected category. The system is working properly.XM Theftlocked:The XM™ receiver in your vehicle
could have previously been in another vehicle.
For security purposes, XM™ receivers cannot be
swapped between vehicles. If this message is received
after having your vehicle serviced, check with your
dealer/retailer.
XM Radio ID:If tuned to channel 0, this message
alternates with the XM™ Radio 8 digit radio ID label.
This label is needed to activate the service.
Unknown:If this message is received when tuned to
channel 0, there could be a receiver fault. Consult
with your dealer/retailer.
Check XM Receivr:If this message does not clear
within a short period of time, the receiver could have a
fault. Consult with your dealer/retailer.
XM Not Available:If this message does not clear
within a short period of time, the receiver could have
a fault. Consult with your dealer/retailer.
3-115

Navigation/Radio System
For vehicles with a navigation radio system, see the
separate Navigation System manual.
Bluetooth®
For vehicles with a Navigation System and Bluetooth,
see the Navigation System manual for information about
how to use the Bluetooth system.
For vehicles without a Navigation System, the Bluetooth
system can use a Bluetooth capable cell phone with a
Hands Free Prole to make and receive phone calls.
The system can be used while the key is in ON/RUN or
ACC/ACCESSORY position. The range of the Bluetooth
system can be up to 30 ft. (9.1 m). Not all phones support
all functions, and not all phones are guaranteed to work
with the in-vehicle Bluetooth system. See gm.com/
bluetooth for more information on compatible phones.
Voice Recognition
The Bluetooth system uses voice recognition to interpret
voice commands to dial phone numbers and name tags.
Noise:Keep interior noise levels to a minimum.
The system may not recognize voice commands
if there is too much background noise.
When to Speak:A short tone sounds after the system
responds indicating when it is waiting for a voice
command. Wait until the tone and then speak.
How to Speak:Speak clearly in a calm and natural
voice.
Audio System
When using the in-vehicle Bluetooth system, sound
comes through the vehicle’s front audio system speakers
and over-rides the audio system. Use the audio system
volume knob, during a call, to change the volume level.
The adjusted volume level remains in memory for later
calls. To prevent missed calls, a minimum volume level
is used if the volume is turned down too low.
3-116

Bluetooth Controls
Use the buttons located on the steering wheel to
operate the in-vehicle Bluetooth system. SeeAudio
Steering Wheel Controls on page 3-131for more
information.
bg(Push To Talk):Press to answer incoming calls,
to conrm system information, and to start speech
recognition.
Pairing
A Bluetooth enabled cell phone must be paired to the
in-vehicle Bluetooth system rst and then connected to
the vehicle before it can be used. See the cell phone
manufacturers user guide for Bluetooth functions before
pairing the cell phone. If a Bluetooth phone is not
connected, calls will be made using OnStar
®Hands-Free
Calling, if available. Refer to the OnStar owner’s guide for
more information.Pairing Information:
Up to ve cell phones can be paired to the in-vehicle
Bluetooth system.
The pairing process is disabled when the vehicle is
moving.
The in-vehicle Bluetooth system automatically links
with the rst available paired cell phone in the
order the phone was paired.
Only one paired cell phone can be connected to the
in-vehicle Bluetooth system at a time.
Pairing should only need to be completed once,
unless changes to the pairing information have
been made or the phone is deleted.
To link to a different paired phone, see Linking to a
Different Phone later in this section.
3-117

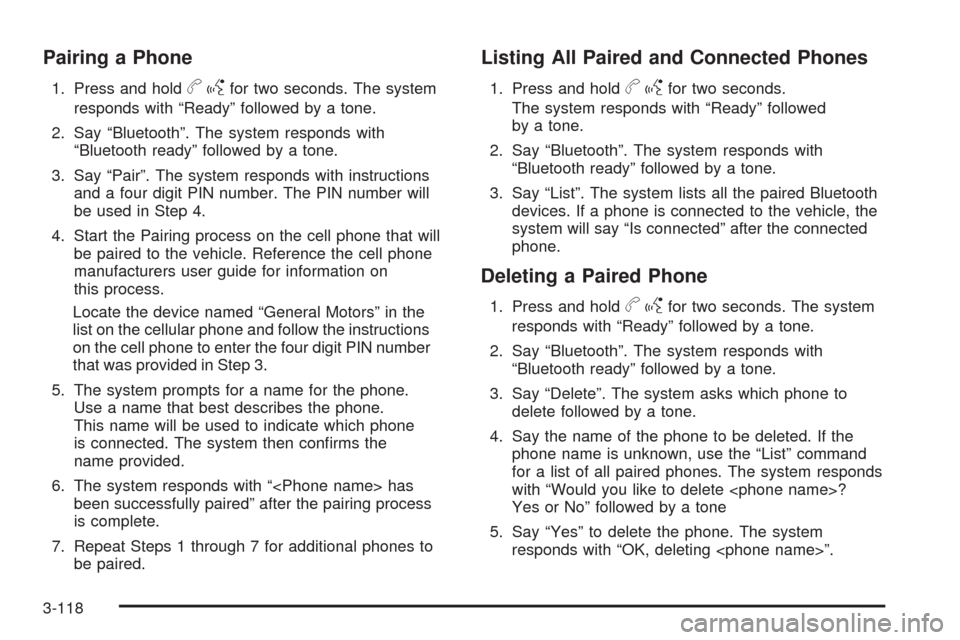

Pairing a Phone
1. Press and holdbgfor two seconds. The system
responds with “Ready” followed by a tone.
2. Say “Bluetooth”. The system responds with
“Bluetooth ready” followed by a tone.
3. Say “Pair”. The system responds with instructions
and a four digit PIN number. The PIN number will
be used in Step 4.
4. Start the Pairing process on the cell phone that will
be paired to the vehicle. Reference the cell phone
manufacturers user guide for information on
this process.
Locate the device named “General Motors” in the
list on the cellular phone and follow the instructions
on the cell phone to enter the four digit PIN number
that was provided in Step 3.
5. The system prompts for a name for the phone.
Use a name that best describes the phone.
This name will be used to indicate which phone
is connected. The system then conrms the
name provided.
6. The system responds with “ has
been successfully paired” after the pairing process
is complete.
7. Repeat Steps 1 through 7 for additional phones to
be paired.
Listing All Paired and Connected Phones
1. Press and holdbgfor two seconds.
The system responds with “Ready” followed
by a tone.
2. Say “Bluetooth”. The system responds with
“Bluetooth ready” followed by a tone.
3. Say “List”. The system lists all the paired Bluetooth
devices. If a phone is connected to the vehicle, the
system will say “Is connected” after the connected
phone.
Deleting a Paired Phone
1. Press and holdbgfor two seconds. The system
responds with “Ready” followed by a tone.
2. Say “Bluetooth”. The system responds with
“Bluetooth ready” followed by a tone.
3. Say “Delete”. The system asks which phone to
delete followed by a tone.
4. Say the name of the phone to be deleted. If the
phone name is unknown, use the “List” command
for a list of all paired phones. The system responds
with “Would you like to delete ?
Yes or No” followed by a tone
5. Say “Yes” to delete the phone. The system
responds with “OK, deleting ”.
3-118
