You are driving on a very rough road. When
the road becomes smoother, the map disc
should play.
The map disc is dirty, scratched, wet, or
upside down.
If any error occurs repeatedly or if an error cannot be
corrected, contact your dealer/retailer.
Ejecting the DVD Map Disc
Z
(DVD Map Disc Eject):Press to eject the DVD
map disc. This button is located next to the upper
disc slot.
Handling the DVD Map Disc
When handling the DVD map disc, be careful of the
following:
Handle the disc very carefully to avoid
contamination or aws. Signals may not read out
properly if the disc gets contaminated or awed.
If the disc gets soiled, use a soft cloth to gently wipe
it out from the center of the disc to the outside. Do
not use photographic record cleaner, solvents,
or other cleaners.
Do not use the disc to rest on while writing or
drawing using any writing utensil or attach a seal to
any of the sides or the disc.
Do not keep the disc in direct sunlight, high
temperatures, or humidity.
After using the disc, place it back into the
original case.
Map Adjustments
The system lets you adjust the scale of view on the
map. Also, as you drive, the map scrolls automatically
based on the direction of travel.
Map Scales
+/−(Zoom In/Zoom Out):Touch the zoom in or out
screen buttons or the scale on the bar to change
the level of map detail. The scale appears on the screen
once the zoom in or zoom out screen buttons are
selected. The system adjusts the map accordingly. The
scale of a map can range from 1/32 mi. (50 m) to
256 mi. (400 km). To change English or metric, seeDIC
Operation and Displays on page 3-42for more
information.
4-15

The stopover symbol
displays on the map after
a stopover has been
added to the route.
The stopover symbols are numbered one through three,
depending on how many stopovers have been set.
The distance to destination
symbol indicates the
distance to the nal
destination.
This symbol appears when the time to the destination is
not available or while you are scrolling on the map.The distance and time to
destination symbol
indicates the distance and
the estimated time
remaining to the nal
destination, depending on
the option selected.
The straight line to
distance symbol indicates
the straight-line distance
to the destination.
This symbol appears before you start driving on the
route or if on a road where navigation guidance cannot
be given.
4-17

The north up symbol
indicates the map with
North Up, known as North
Up mode.
While in North Up mode, the vehicle icon follows the
north direction on the map regardless of which direction
the vehicle is traveling. Select this screen symbol to
switch between North Up, Heading Up, and 3–D view
modes.
The heading up symbol
indicates that the vehicle is
traveling up on the map
and is known as Heading
Up mode.
The shaded triangle indicates the North direction. While
in Heading Up mode the direction at the top of the
screen and the way the vehicle icon is heading indicates
the direction the vehicle is traveling. Select this screen
symbol to switch between Heading Up, North Up,
and 3–D view modes.Three-dimensional (3–D) view mode changes the
appearance of the map display to a road level view.
The No GPS symbol
appears when the vehicle
is acquiring or not
receiving a Global
Positioning System (GPS)
satellite signal.
SeeGlobal Positioning System (GPS) on page 4-54for
more information.
Select the Mark screen
button to store the location
on the screen in the
address book.
The system automatically stores the point in the
address book. See “Adding Destinations to the Address
Book” underDestination on page 4-23for more
information.
4-18

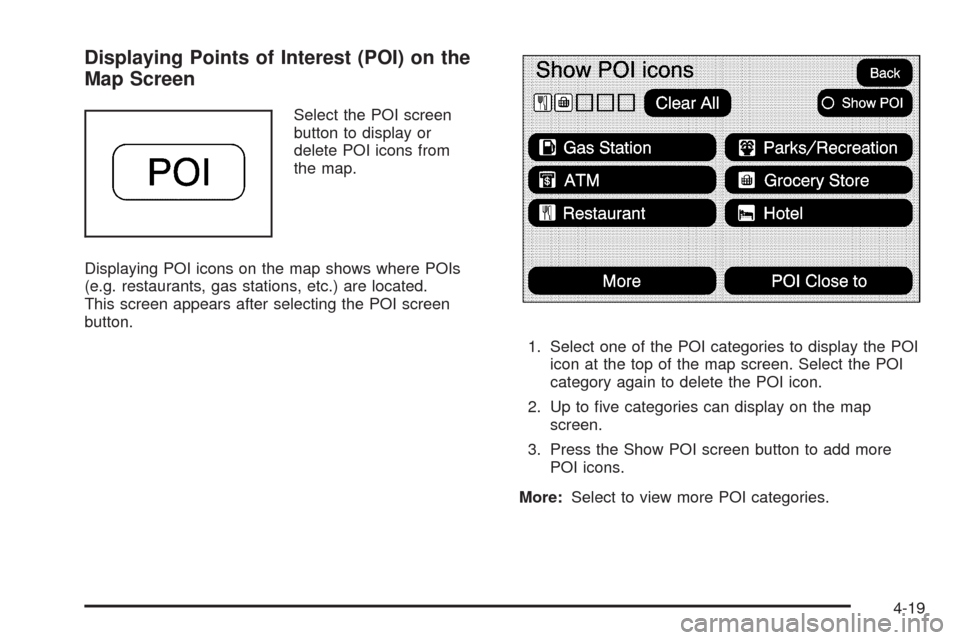

Displaying Points of Interest (POI) on the
Map Screen
Select the POI screen
button to display or
delete POI icons from
the map.
Displaying POI icons on the map shows where POIs
(e.g. restaurants, gas stations, etc.) are located.
This screen appears after selecting the POI screen
button.
1. Select one of the POI categories to display the POI
icon at the top of the map screen. Select the POI
category again to delete the POI icon.
2. Up to ve categories can display on the map
screen.
3. Press the Show POI screen button to add more
POI icons.
More:Select to view more POI categories.
4-19

POI Close to:
1. Once a category has been selected, touch this
button to display the list of available POIs for the
selected POI category. The list provides the
POI icon, the name, the direction, and the distance
to the POI from the vehicle’s current position.
2. Use the scroll arrows to move up and down the list.
3. Use the sorting screen buttons: Dist (distance),
Icon, Name, and on Route as needed.
Go:Select this screen button, next to the desired POI,
to make this POI a destination or a stopover.Select a POI name to receive information about the
POI. From this screen you can select: Address Book,
Go, Map, or Call (if Bluetooth
®or OnStar®personal
calling is activated).
Address Book:Press to add this POI to the address
book. See “Nav” underCongure Menu on page 4-40for
information on editing address book entries.
Go:Select to make this POI a destination or a stopover.
Map:Select to display the map showing the location
of the POI.
Call:Select to dial the phone number using your
Bluetooth
®phone (if “paired” with the vehicle) or the
OnStar HandsFree Calling system. For more information
about Bluetooth calling, seeBluetooth
®on page 3-66.
For more information about OnStar HandsFree
calling, see the OnStar Owner Guide.
OK:Select to display the map screen.
Show POI:Select to display or remove the POI icons
from the map screen.
List all Categories:Select to list all POIs sorted
alphabetically.
Delete:To delete a specic POI category, select the
category.
Clear All:Select this screen button to clear all selected
POI categories.
4-20

Driving on a Route
When driving on a routed destination, the map screen
automatically displays the next maneuver.
The pop-up displays the
next maneuver direction
and the distance from it.
When approximately 1/4 mi (400 m) from the next
maneuver, the screen displays the name and a detailed
view of it.
4-21

3–D Lane Guidance
Some major metropolitan areas may include a 3–D lane
guidance feature for highway exits and junctions.
This feature gives you an enhanced representation of
the exits and junctions on the route. Cities that
include this feature are New York, Los Angeles,
Chicago, Detroit, and San Francisco, and may also
include Philadelphia, Washington D.C., and other major
highway junctions.
Dual Mode
This dual screen symbol
displays when the screen
is in dual mode.
Dual mode displays the route on half of the screen and
a maneuver or Interstate Exit list on the other half.
The Interstate Exit list advises of approaching exits.
Press this button to switch between dual screen and full
screen which displays the entire route.
Auto Reroute
When a destination is set but is off the planned route,
the system automatically plans a new route and
begins to reroute. The new route is highlighted on the
screen.
4-22

The Last 5 Cities screen displays a list of the last
ve city names that had been entered. Select a city
from the list and it appears in the City name area.
If using the alpha keyboard, nish entering the city
name. If ve or less names are available, a list
displays. If more than ve are available, the
List screen button displays a number. This number
represents the number of available cities. Select
this button to view the list and select a city.
5. Once a city has been selected the Street name
category is automatically selected for entry.
Start entering the street name. If ve or less names
are available, a list displays. If more than ve are
available, the List screen button displays a number.
This number represents the number of available
streets. Select this button to view the list.
6. Once a street has been selected, press the House #
screen button to enter the house number. The
system displays the house number range that is
available for the street.
7. Select the Go screen button. The map screen, with
the destination marked displays.
8. Select the route preference (Fastest, Shortest, or
Other). The system calculates and highlights the
route.9. Select the Start Guidance screen button. The route
is now ready to be started.
See “Getting Started on Your Route” later in this
section for more information.
To enter a destination by entering the street name rst:
1. Press the DEST hard key.
2. Select the
2screen button.
3. Select the state/province screen button, if needed,
to change the current state or province. A list of all
of the available states and provinces appear.
Select the state or province.
4. Select the Street screen button and start entering
the street name or touch the Last 5 Streets screen
button.
If the street name is common, the city might need
to be entered rst.
The Last 5 Streets screen displays a list of the last
ve street names that had been entered. Select
a street from the list and it appears in the Street
name area.
If using the alpha keyboard, nish entering the
street name. If ve or less names are available, a
list displays. If more than ve are available, the List
screen button displays a number. This number
represents the number of available streets. Select
this button to view the list and select a street.
