2009 CADILLAC ESCALADE ESV clock

4. Insert the open end
of the extension (J)
through the hole in the
rear bumper (I) (hoist
shaft access hole).
5. Raise the tire part way upward. Make sure the
retainer is fully seated across the underside of
the wheel and centered in the wheel opening.
6. Raise the tire fully against the underside of the
vehicle by turning the wheel wrench clockwise
until you hear two clicks or feel it skip twice.
You cannot overtighten the cable. 7. Make sure the tire is stored securely. Push, pull (A),
and then try to turn (B) the tire. If the tire moves,
use the wheel wrench to tighten the cable.
8. Reinstall the spare tire lock.
9. Reinstall the hoist shaft access cover.
10. Reinstall the hitch cover.
6-94

To store the tools:
A. Wheel Blocks
B. Tool Bag with
Jack Tools
C. Retaining Bracket
D. Wing Nut Retaining
Tool Bag E. Jack
F. Wing Nut Retaining
Wheel Blocks
G. Jack Knob
1. Return the tools (wheel wrench, jack handle, and
jack handle extensions) to the tool bag (B).
2. Assemble wheel blocks (A) and jack (E) together
with the wing nut (F). 3. Position the jack (E) and wheel blocks (A) in the
driver’s side trim panel over the wheelhouse.
4. Turn the jack knob (G) clockwise until the jack is
secured tight in the mounting bracket. Be sure to
position the holes in the base of the jack onto
the pin in the mounting bracket.
5. Use the retaining bracket (C) to fasten the tool
bag (B) on the stud and turn the wing nut (D)
clockwise to secure.
6. Return the storage tray to its original stored position. Regular Wheelbase shown,
Extended Wheelbase similar.
6-95

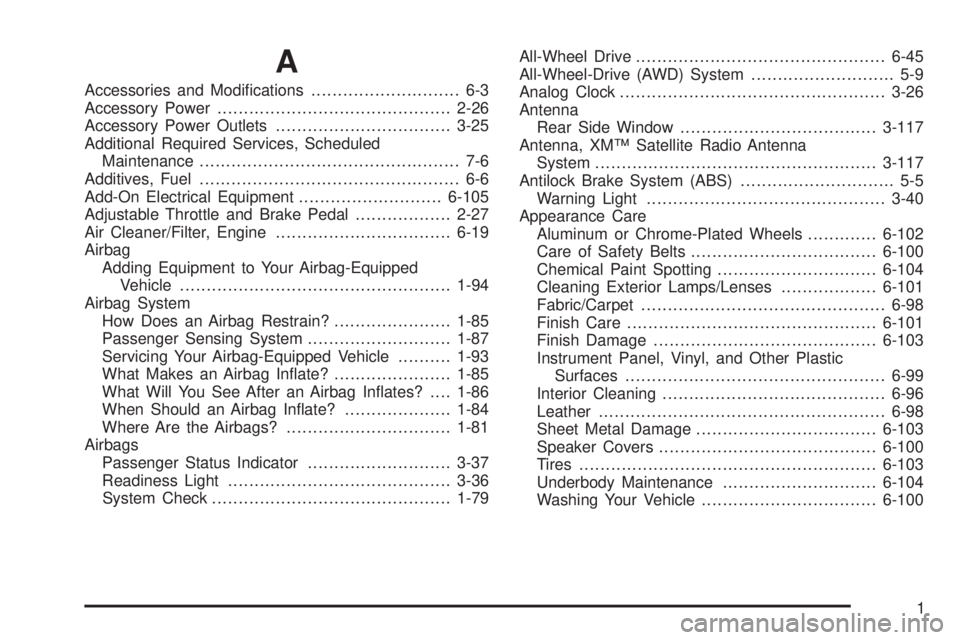

AAccessories and Modications ............................ 6-3
Accessory Power ............................................ 2-26
Accessory Power Outlets ................................. 3-25
Additional Required Services, Scheduled
Maintenance ................................................. 7-6
Additives, Fuel ................................................. 6-6
Add-On Electrical Equipment ........................... 6-105
Adjustable Throttle and Brake Pedal .................. 2-27
Air Cleaner/Filter, Engine ................................. 6-19
Airbag
Adding Equipment to Your Airbag-Equipped
Vehicle ................................................... 1-94
Airbag System
How Does an Airbag Restrain? ...................... 1-85
Passenger Sensing System ........................... 1-87
Servicing Your Airbag-Equipped Vehicle .......... 1-93
What Makes an Airbag Inate? ...................... 1-85
What Will You See After an Airbag Inates? .... 1-86
When Should an Airbag Inate? .................... 1-84
Where Are the Airbags? ............................... 1-81
Airbags
Passenger Status Indicator ........................... 3-37
Readiness Light .......................................... 3-36
System Check ............................................. 1-79 All-Wheel Drive ............................................... 6-45
All-Wheel-Drive (AWD) System ........................... 5-9
Analog Clock .................................................. 3-26
Antenna
Rear Side Window ..................................... 3-117
Antenna, XM™ Satellite Radio Antenna
System ..................................................... 3-117
Antilock Brake System (ABS) ............................. 5-5
Warning Light ............................................. 3-40
Appearance Care
Aluminum or Chrome-Plated Wheels ............. 6-102
Care of Safety Belts ................................... 6-100
Chemical Paint Spotting .............................. 6-104
Cleaning Exterior Lamps/Lenses .................. 6-101
Fabric/Carpet .............................................. 6-98
Finish Care ............................................... 6-101
Finish Damage .......................................... 6-103
Instrument
Panel, Vinyl, and Other Plastic
Surfaces ................................................. 6-99
Interior Cleaning .......................................... 6-96
Leather ...................................................... 6-98
Sheet Metal Damage .................................. 6-103
Speaker Covers ......................................... 6-100
Tires ........................................................ 6-103
Underbody Maintenance ............................. 6-104
Washing Your Vehicle ................................. 6-100
1

Cleaning (cont.)
Weatherstrips ............................................ 6-100
Windshield, Backglass, and Wiper Blades ...... 6-102
Wood Panels ............................................ 6-100
Climate Control System
Outlet Adjustment ........................................ 3-31
Rear Air Conditioning and Heating System,
Electronic ................................................ 3-32
Climate Control Systems
Dual Automatic ............................................ 3-27
Clock ............................................................ 3-26
Collision Damage Repair .................................. 8-12
Compass ....................................................... 3-53
Content Theft-Deterrent .................................... 2-21
Control of a Vehicle .......................................... 5-3
Coolant
Engine ....................................................... 6-25
Engine Temperature Gage ............................ 3-41
Cooled Seats ................................................... 1-6
Cooling System .............................................. 6-24
Courtesy Transportation Program ...................... 8-10
Cruise Control ................................................ 3-13
Light .......................................................... 3-46
Cupholders .................................................... 2-62 Customer Assistance ......................................... 8-6
Offices ......................................................... 8-6
Text Telephone (TTY) Users ........................... 8-6
Customer Information
Service Publications Ordering Information ........ 8-15
Customer Satisfaction Procedure ........................ 8-2
D Damage Repair, Collision ................................. 8-12
Data Recorders
Event ......................................................... 8-17
Database Coverage Explanations ...................... 4-62
Daytime Running Lamps (DRL) ......................... 3-21
Defensive Driving ............................................. 5-2
Delayed Locking ............................................. 2-10
DIC Compass ................................................. 3-53
Doing Your Own Service Work ........................... 6-4
Dome Lamp Override ...................................... 3-23
Dome Lamps ................................................. 3-23
Door
Delayed Locking .......................................... 2-10
Locks ........................................................ 2-10
Power Locks ............................................... 2-10
Programmable Automatic Door Locks ............. 2-11
Rear Door Security Locks ............................. 2-11
4
