2009 CADILLAC CTS navigation system

To Mute a Call
1. Pressbg. The system responds with “Ready”
followed by a tone.
2. Say “Mute Call”. The system responds with
“Call muted”.
To Cancel Mute
1. Pressbg. The system responds with “Ready”
followed by a tone.
2. After the tone, say “Mute Call”. The system
responds with “Resuming call”.
Transferring a Call
Audio can be transferred between the in-vehicle
Bluetooth system and the cell phone.
To Transfer Audio to the Cell Phone
During a call with the audio in the vehicle:
1. Press
bg. The system responds with “Ready”
followed by a tone.
2. Say “Transfer Call.” The system responds with
“Transferring call” and the audio will switch from
the vehicle to the cell phone.
To Transfer Audio to the In-Vehicle
Bluetooth System
The cellular phone must be paired and connected with
the Bluetooth system before a call can be transferred.
The connection process can take up to two minutes
after the ignition is turned to the ON/RUN or ACC/
ACCESSORY position.
1. During a call with the audio on the cell phone,
press and hold
bgfor two seconds:
For vehicles without a navigation system, the call
transfers to the Bluetooth system.
For vehicles with a navigation system, the
system responds with a tone. After the tone say
“Hands Free”. The call then transfers to the
Bluetooth system.
3-123

Voice Pass-Thru
Voice Pass-Thru allows access to the voice recognition
commands on the cell phone. See the cell phone
manufacturers user guide to see if the cell phone
supports this feature. This feature can be used to
verbally access contacts stored in the cell phone.
1. Press and hold
bgfor two seconds:
For vehicles without a navigation system, the
system responds with “Ready” followed by a tone.
For vehicles with a navigation system, the system
responds with a tone. After the tone say “Hands
Free”. The system responds with “Ready”
followed by a tone.
2. Say “Bluetooth”. The system responds with
“Bluetooth ready” followed by a tone.
3. Say “Voice”. The system responds with “OK,
accessing ”.
The cell phone’s normal prompt messages will
go through its cycle according to the phone’s
operating instructions.
Dual Tone Multi-Frequency (DTMF)
Tones
The in-vehicle Bluetooth system can send numbers and
numbers stored as name tags during a call. This is
used when calling a menu driven phone system.
Account numbers can be programmed into the
phonebook for retrieval during menu driven calls.
Sending a Number During a Call
1. Pressbg. The system responds with “Ready”
followed by a tone.
2. Say “Dial”. The system responds with “Say a
number to send tones” followed by a tone.
3. Say the number to send.
If the system clearly recognizes the number it
responds with “OK, Sending Number” and the
dial tones are sent and the call continues.
If the system is not sure it recognized the
number properly, it responds “Dial Number,
Please say yes or no?” followed by a tone.
If the number is correct, say “Yes”. The system
responds with “OK, Sending Number” and
the dial tones are sent and the call continues.
3-124

bg(Mute/Speech Recognition/Push to Talk):
Press and release to silence the vehicle speakers only.
The audio of the wireless and wired headphones, if
the vehicle has these features, does not mute.
Press and release
bgagain, to turn the sound on.
For vehicles with a navigation system, press
and hold
gfor two seconds to initiate speech
recognition. See “Speech Recognition” in the
Navigation System manual for more information.
For vehicles without a navigation system, press and
hold
gfor two seconds to interact with OnStar®or
Bluetooth. See theOnStar®System on page 2-56,
orBluetooth®on page 3-113for more information
about these features.
For vehicles with a navigation system, Onstar, or
Bluetooth, press and hold
gfor two seconds
and say “hands free” to interact with OnStar or
Bluetooth. See theOnStar
®System on page 2-56,
orBluetooth®on page 3-113for more information
about these features.
Radio Reception
Frequency interference and static can occur during
normal radio reception if items such as cell phone
chargers, vehicle convenience accessories, and external
electronic devices are plugged into the accessory power
outlet. If there is interference or static, unplug the item
from the accessory power outlet.
AM
The range for most AM stations is greater than for FM,
especially at night. The longer range can cause station
frequencies to interfere with each other. For better radio
reception, most AM radio stations boost the power levels
during the day, and then reduce these levels during the
night. Static can also occur when things like storms and
power lines interfere with radio reception. When this
happens, try reducing the treble on the radio.
FM Stereo
FM signals only reach about 10 to 40 miles (16 to 65 km).
Although the radio has a built-in electronic circuit that
automatically works to reduce interference, some static
can occur, especially around tall buildings or hills,
causing the sound to fade in and out.
3-127

Customer Assistance and Information...............7-2
Customer Satisfaction Procedure......................7-2
Online Owner Center......................................7-5
Customer Assistance for
Text Telephone (TTY) Users.........................7-6
Customer Assistance Offices............................7-6
GM Mobility Reimbursement Program................7-7
Roadside Service...........................................7-7
Scheduling Service Appointments....................7-10
Courtesy Transportation.................................7-10
Collision Damage Repair................................7-11Reporting Safety Defects................................7-14
Reporting Safety Defects to the
United States Government..........................7-14
Reporting Safety Defects to the
Canadian Government................................7-15
Reporting Safety Defects to General Motors.....7-15
Service Publications Ordering Information.........7-15
Vehicle Data Recording and Privacy................7-16
Event Data Recorders...................................7-17
OnStar
®......................................................7-18
Navigation System........................................7-18
Radio Frequency Identication (RFID)..............7-18
Section 7 Customer Assistance Information
7-1

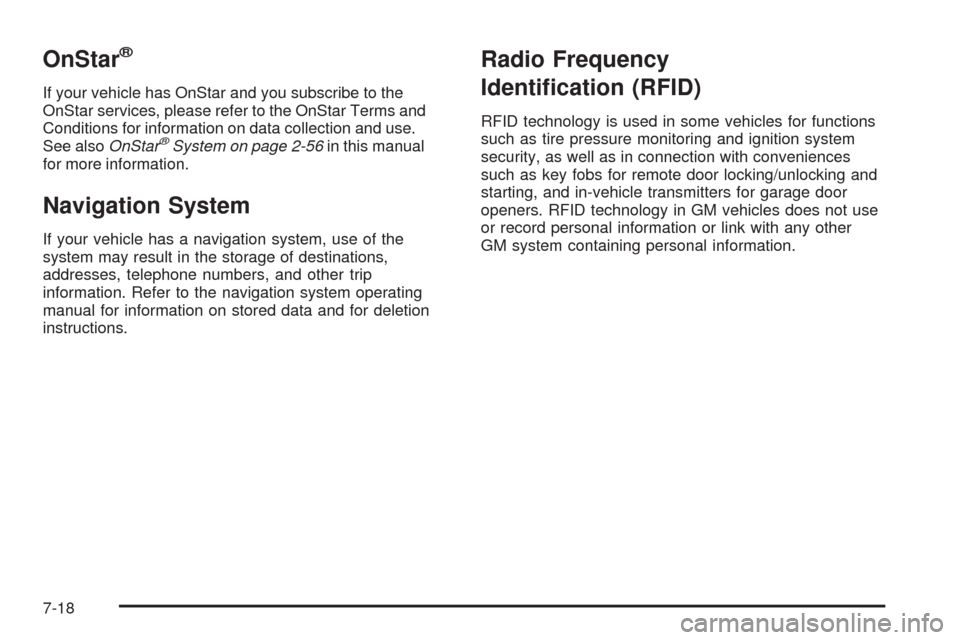

OnStar®
If your vehicle has OnStar and you subscribe to the
OnStar services, please refer to the OnStar Terms and
Conditions for information on data collection and use.
See alsoOnStar
®System on page 2-56in this manual
for more information.
Navigation System
If your vehicle has a navigation system, use of the
system may result in the storage of destinations,
addresses, telephone numbers, and other trip
information. Refer to the navigation system operating
manual for information on stored data and for deletion
instructions.
Radio Frequency
Identication (RFID)
RFID technology is used in some vehicles for functions
such as tire pressure monitoring and ignition system
security, as well as in connection with conveniences
such as key fobs for remote door locking/unlocking and
starting, and in-vehicle transmitters for garage door
openers. RFID technology in GM vehicles does not use
or record personal information or link with any other
GM system containing personal information.
7-18

Audio System.................................................3-85
Audio Steering Wheel Controls....................3-126
Backglass Antenna.....................................3-128
Navigation/Radio System,
see Navigation Manual............................3-113
Radio Reception........................................3-127
Theft-Deterrent Feature...............................3-126
XM™ Satellite Radio Antenna System...........3-128
Audio System(s).............................................3-86
Automatic Transmission
Fluid..........................................................5-29
Operation...................................................2-36
B
Backglass Antenna........................................3-128
Battery..........................................................5-45
Electric Power Management..........................3-21
Exterior Lighting Battery Saver......................3-20
Run-Down Protection...................................3-22
Bluetooth
®....................................................3-113
Boost Gage...................................................3-50
Brake
Electric Parking...........................................2-44
Emergencies................................................ 4-5
Brake Fluid....................................................5-42
Brakes..........................................................5-42
System Warning Light..................................3-39
Braking........................................................... 4-4Braking in Emergencies..................................... 4-5
Break-In, New Vehicle.....................................2-30
Bulb Replacement...........................................5-57
Front Turn Signal and Fog Lamps..................5-58
Halogen Bulbs............................................5-57
Headlamp Aiming........................................5-53
High Intensity Discharge (HID) Lighting...........5-57
License Plate Lamps....................................5-59
Replacement Bulbs......................................5-59
Buying New Tires...........................................5-78
C
Calibration.....................................................3-56
California Fuel.................................................. 5-7
California Perchlorate Materials Requirements....... 5-4
California Proposition 65 Warning....................... 5-4
Canadian Owners............................................... iii
Capacities and Specications..........................5-127
Carbon Monoxide...........................2-19, 2-50, 4-17
Care of
Safety Belts..............................................5-109
CD, MP3 .....................................................3-108
Center Console Storage Area...........................2-65
Chains, Tire...................................................5-84
Charging System Light....................................3-38
Check
Engine Lamp..............................................3-43
Checking Things Under the Hood......................5-12
2

Mirrors
Automatic Dimming Rearview........................2-52
Outside Convex Mirror.................................2-53
Outside Heated Mirrors................................2-53
Outside Power Mirrors..................................2-52
Park Tilt .....................................................2-53
MP3 ............................................................3-108
MyGMLink.com................................................ 7-5
N
Navigation System, Privacy..............................7-18
Navigation/Radio System,
see Navigation Manual...............................3-113
New Vehicle Break-In......................................2-30
O
Odometer......................................................3-33
Odometers, Trip..............................................3-33
Off-Road Recovery..........................................4-11
Oil
Engine.......................................................5-18
Engine Oil Pressure Gage............................3-47
Pressure Light.............................................3-46
Oil, Engine Oil Life System..............................5-21
Older Children, Restraints................................1-34Online Owner Center........................................ 7-5
OnStar, Privacy..............................................7-18
OnStar
®System, see OnStar®Manual...............2-56
Operation, Universal Home Remote System........2-60
Outlet Adjustment............................................3-29
Outlets
Accessory Power.........................................3-22
Outside
Convex Mirror.............................................2-53
Heated Mirrors............................................2-53
Power Mirrors.............................................2-52
Overheated Engine Protection Operating Mode....5-39
Owner Checks and Services.............................6-10
Owners, Canadian.............................................. iii
P
Paint, Damage..............................................5-113
Parade Dimming.............................................3-20
Park
Shifting Into................................................2-47
Shifting Out of............................................2-48
Park Aid........................................................2-54
Park Brake....................................................2-42
Park Tilt Mirrors..............................................2-53
Parking
Assist........................................................2-54
Over Things That Burn.................................2-49
9

Parking Your Vehicle.......................................2-49
Passenger Airbag Status Indicator.....................3-37
Passenger Compartment Air Filter.....................3-29
Passenger Sensing System..............................1-67
Passing.........................................................4-11
Perchlorate Materials Requirements, California...... 5-4
Phone
Bluetooth
®................................................3-113
Power
Door Locks.................................................2-17
Electrical System.......................................5-115
Lumbar and Side Bolsters.............................. 1-6
Lumbar Controls........................................... 1-6
Retained Accessory.....................................2-33
Seat ............................................................ 1-5
Steering Fluid.............................................5-40
Tilt Wheel and Telescopic Steering Column....... 3-7
Windows....................................................2-23
Privacy..........................................................7-16
Event Data Recorders..................................7-17
Navigation System.......................................7-18
OnStar .......................................................7-18
Radio Frequency Identication.......................7-18
Programmable Automatic Door Locks.................2-17
R
Radio Frequency Identication (RFID), Privacy....7-18
Radio(s)........................................................3-86
Radios
Navigation/Radio System,
see Navigation Manual............................3-113
Reception.................................................3-127
Theft-Deterrent..........................................3-126
Rainsense™ Wipers........................................3-10
Reading Lamps..............................................3-21
Rear Axle......................................................5-52
Limited-Slip.................................................. 4-9
Rear Door Security Locks................................2-18
Rearview Mirror, Automatic Dimming..................2-52
Reclining Seatbacks........................................1-10
Recommended Fluids and Lubricants.................6-14
Recreational Vehicle Towing.............................4-26
Remote, Keyless Access System........................ 2-8
Remote Keyless Entry (RKE) System.................. 2-5
Remote Keyless Entry (RKE) System, Operation . . . 2-6
Remote Vehicle Start.......................................2-14
Removing the Flat Tire and Installing the
Spare Tire..................................................5-99
10
