Remote Vehicle Start
This vehicle may have a remote starting feature that
allows you to start the engine from outside the vehicle.
It may also start the vehicle’s automatic climate control
system. When the remote start system is active, the
climate control system heats and cools the inside of the
vehicle according to the previous settings of the system
before turning the vehicle off. The windshield defroster
and/or rear window defogger turn on if it is cold outside.
If the vehicle has heated seats, they also turn on if the
interior or exterior temperature is cold enough. See
Heated and Ventilated Seats on page 1-7for additional
information. Normal operation of the climate control
system returns after the ignition is turned to ON/RUN.
SeeDual Climate Control System on page 3-24.
/(Remote Start):This button will be on the
transmitter if the vehicle has remote start.
To start the vehicle using the remote start feature:
1. Aim the transmitter at the vehicle.
2. Press and release the transmitter’s
Q, then
immediately press and hold the transmitter’s
/for at
least four seconds or until the vehicle’s turn signal
lamps ash. The vehicle’s doors will be locked.
When the vehicle starts, the parking lamps turn on
and remain on while the vehicle is running.3. If it is the rst remote start since the vehicle has been
driven, repeat these steps, while the engine is still
running, to extend the engine running time by
10 minutes. Remote start can be extended one time.
If the vehicle is left running it automatically shuts off after
10 minutes unless a time extension has been done.
To manually shut off a remote start:
Aim the transmitter at the vehicle and press the
remote start button until the parking lamps turn off.
Turn on the hazard warning ashers.
Turn the ignition switch on and then off.
When you enter the vehicle during a remote start, press
the brake pedal and turn the ignition to ON/RUN to drive
the vehicle.
Laws in some communities may restrict the use of
remote starters. For example, some laws may require
a person using remote start to have the vehicle in
view when doing so. Check local regulations for any
requirements on remote starting of vehicles.
Do not use the remote start feature if the vehicle is low
on fuel. The vehicle may run out of fuel.
2-14

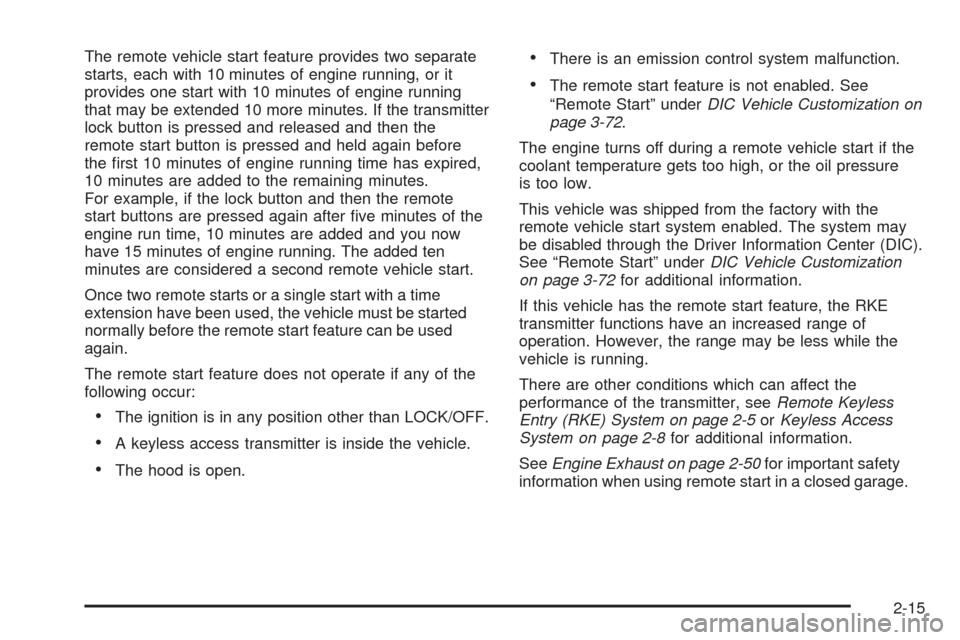

The remote vehicle start feature provides two separate
starts, each with 10 minutes of engine running, or it
provides one start with 10 minutes of engine running
that may be extended 10 more minutes. If the transmitter
lock button is pressed and released and then the
remote start button is pressed and held again before
the rst 10 minutes of engine running time has expired,
10 minutes are added to the remaining minutes.
For example, if the lock button and then the remote
start buttons are pressed again after ve minutes of the
engine run time, 10 minutes are added and you now
have 15 minutes of engine running. The added ten
minutes are considered a second remote vehicle start.
Once two remote starts or a single start with a time
extension have been used, the vehicle must be started
normally before the remote start feature can be used
again.
The remote start feature does not operate if any of the
following occur:
The ignition is in any position other than LOCK/OFF.
A keyless access transmitter is inside the vehicle.
The hood is open.
There is an emission control system malfunction.
The remote start feature is not enabled. See
“Remote Start” underDIC Vehicle Customization on
page 3-72.
The engine turns off during a remote vehicle start if the
coolant temperature gets too high, or the oil pressure
is too low.
This vehicle was shipped from the factory with the
remote vehicle start system enabled. The system may
be disabled through the Driver Information Center (DIC).
See “Remote Start” underDIC Vehicle Customization
on page 3-72for additional information.
If this vehicle has the remote start feature, the RKE
transmitter functions have an increased range of
operation. However, the range may be less while the
vehicle is running.
There are other conditions which can affect the
performance of the transmitter, seeRemote Keyless
Entry (RKE) System on page 2-5orKeyless Access
System on page 2-8for additional information.
SeeEngine Exhaust on page 2-50for important safety
information when using remote start in a closed garage.
2-15

Retained Accessory Power (RAP)
These vehicle accessories can be used for up to
10 minutes after the engine is turned off:
Audio System
Power Windows
Sunroof (if equipped)
Power to the audio system will work up to 10 minutes or
until the driver door is opened. Power to the windows or
sunroof will work up to 10 minutes or until any door is
opened. For an additional 10 minutes of operation, close
all the doors and turn the key to ON/RUN and then back
to LOCK/OFF.
Starting the Engine
Place the transmission in the proper gear.
Automatic Transmission
Move the shift lever to P (Park) or N (Neutral). The
engine will not start in any other position. To restart
the engine when the vehicle is already moving, use
N (Neutral) only.If the vehicle has the keyless access system, put your
foot on the brake pedal and turn the ignition control knob
to the START position. When the engine begins cranking,
let go of the ignition control knob, it will return to the
ON/RUN position.
If the transmitter is not in the vehicle or something is
interfering with the transmitter, the Driver Information
Center (DIC) will display Electronic Key Not Detected.
SeeDIC Warnings and Messages on page 3-58for
more information.
If the battery in the keyless access transmitter needs
replacing, the DIC displays Replace Battery In Remote
Key. The vehicle can still be driven. See “Battery
Replacement” underKeyless Access System Operation
on page 2-8for more information.
Notice:Do not try to shift to P (Park) if the
vehicle is moving. If you do, you could damage
the transmission. Shift to P (Park) only when
the vehicle is stopped.Manual Transmission
The shift lever should be in neutral position and the
parking brake engaged. Hold the clutch pedal down to
the oor and start the engine. The vehicle will not start if
the clutch pedal is not all the way down.
2-33

Keep the original hand-held transmitter for use in other
vehicles as well as for future Universal Home Remote
programming. It is also recommended that upon the
sale of the vehicle, the programmed Universal Home
Remote buttons should be erased for security purposes.
See “Erasing Universal Home Remote Buttons” later in
this section.
When programming a garage door, park outside of the
garage. Park directly in line with and facing the garage
door opener motor-head or gate motor-head. Be sure that
people and objects are clear of the garage door or gate
that is being programmed.
It is recommended that a new battery be installed in
your hand-held transmitter for quicker and more
accurate transmission of the radio-frequency signal.
Programming the Universal Home
Remote System
For questions or help programming the Universal
Home Remote System, call 1-800-355-3515 or
go to www.homelink.com.
Programming a garage door opener involves
time-sensitive actions, so read the entire procedure
before starting. Otherwise, the device will time out
and the procedure will have to be repeated.To program up to three devices:
1. From inside the vehicle, press and hold down the
two outside buttons at the same time, releasing
only when the Universal Home Remote indicator
light begins to ash, after 20 seconds. This step
will erase the factory settings or all previously
programmed buttons.
Do not hold down the buttons for longer than
30 seconds and do not repeat this step to program
the remaining two Universal Home Remote buttons.
2. Hold the end of your hand-held transmitter about
1 to 3 inches (3 to 8 cm) away from the Universal
Home Remote buttons while keeping the indicator
light in view. The hand-held transmitter was supplied
by the manufacturer of your garage door opener
receiver (motor head unit).
2-61

Heated and Ventilated Seats:Press to heat or
ventilate the seat. SeeHeated and Ventilated Seats
on page 1-7.
_(Heated Windshield Washer, If Equipped):
For more information, seeWindshield Washer on
page 3-12.
Remote Start Climate Control Operation:For
vehicles with remote vehicle start feature and it is
activated, the climate control system heats and cools
the inside of the vehicle using the previous settings
of the system before the vehicle was turned off.
SeeRemote Vehicle Start on page 2-14.
The windshield defroster and/or rear window defogger
turn on if it is cold outside. If the vehicle has heated
seats, they turn on if the temperature inside the
vehicle is cooler than 54°F (12.5°C) or if the outside
temperature is cooler than 48°F (9°C).
Sensors
The solar sensor located
on the instrument panel,
near the windshield,
monitors the solar heat.
The interior temperature
sensor located on the
instrument panel to
the right of the steering
wheel, measures the
temperature of the
air inside the vehicle.
3-28

Passenger Airbag Status Indicator
The vehicle has the passenger sensing system.
SeePassenger Sensing System on page 1-67for
important safety information. The instrument panel has
a passenger airbag status indicator.
When the vehicle is started, the passenger airbag status
indicator will light ON and OFF, or the symbol for on
and off, for several seconds as a system check. If you
are using remote start to start the vehicle from a
distance, if equipped, you may not see the system
check. Then, after several more seconds, the status
indicator will light either ON or OFF, or either the on
or off symbol, to let you know the status of the right
front passenger frontal airbag.If the word ON or the on symbol is lit on the passenger
airbag status indicator, it means that the right front
passenger frontal airbag is enabled (may inate).
If the word OFF or the off symbol is lit on the passenger
airbag status indicator, it means that the passenger
sensing system has turned off the right front passenger
frontal airbag.
If, after several seconds, both status indicator lights
remain on, or if there are no lights at all, there may be
a problem with the lights or the passenger sensing
system. See your dealer/retailer for service.
{CAUTION:
If the airbag readiness light ever comes on and
stays on, it means that something may be wrong
with the airbag system. To help avoid injury to
yourself or others, have the vehicle serviced right
away. SeeAirbag Readiness Light on page 3-36
for more information, including important safety
information. United States
Canada
3-37

Differential Hot, Reduce Speed
(CTS-V Only)
This message displays and a chime sounds if the
differential uid temperature exceeds 300°F (150°C).
Driving aggressively or at high speeds can cause
the differential uid temperature to be higher than
normal. If this message appears, you may continue to
drive at a slower speed. If you have been operating the
vehicle under normal driving conditions, the vehicle
may need service. See your dealer/retailer for an
inspection.
To acknowledge the message, press
V. The message
reappears and a chime sounds every two minutes until
this condition changes. If you do not clear the message,
it will remain on until the condition changes.
Driver Door Open
This message displays when the driver door is not
closed completely. Close the door completely.
Electronic Key Already Known
If the vehicle has the keyless access system, this
message displays if you try to match a transmitter that
has already been learned. SeeKeyless Access
System Operation on page 2-8for more information.
Electronic Key Not Detected
If the vehicle has the keyless access system, this
message displays if the vehicle does not detect the
presence of a transmitter when you have attempted to
start the vehicle or a vehicle door has just closed.
The following conditions may cause this message to
appear:
Driver-added equipment plugged into the accessory
power outlet on the center console is causing
interference. Examples of these devices are cell
phones and cell phone chargers, two-way radios,
power inverters, or similar items. Try moving
the keyless access transmitter away from these
devices when starting the vehicle. In addition,
PDA devices and remote garage and gate openers
may also generate Electromagnetic Interference
(EMI) that may interfere with the keyless access
transmitter. Do not carry the keyless access
transmitter in the same pocket or bag as these
devices.
The vehicle is experiencing Electromagnetic
Interference (EMI). Some locations, such as
airports, automatic toll booths, and some gas
stations have EMI elds which may interfere with
the keyless access transmitter.
3-61

Memory Seat Recall
If the vehicle has this feature, it allows you to select
your preference for the remote memory seat recall
feature. SeeMemory Seat, Mirrors and Steering Wheel
on page 1-8for more information.
Press the customization button until Memory Seat Recall
appears on the DIC display. Press the set/reset button
once to access the settings for this feature. Then press
the menu up/down button to scroll through the following
settings:
Off (default):No remote memory seat recall will occur.
On:The driver’s seat and outside mirrors will
automatically move to the stored driving position when
the unlock button on the Remote Keyless Entry (RKE)
or keyless access transmitter is pressed. The steering
column will also move on vehicles with the power tilt
and telescopic steering feature. SeePower Tilt Wheel
and Telescopic Steering Column on page 3-7for
more information. See “Relearn Remote Key” under
DIC Operation and Displays on page 3-51for more
information on matching transmitters to driver
ID numbers.
No Change:No change will be made to this feature.
The current setting will remain.
To select a setting, press the set/reset button while the
desired setting is displayed on the DIC.
Remote Start
If the vehicle has this feature, it allows you to turn the
remote start feature off or on. The remote start feature
allows you to start the engine from outside of the vehicle
using the Remote Keyless Entry (RKE) or keyless access
transmitter. SeeRemote Vehicle Start on page 2-14for
more information.
Press the customization button until Remote Start
appears in the DIC display. Press the set/reset button
once to access the settings for this feature. Then press
the menu up/down button to scroll through the following
settings:
Off:The remote start feature will be disabled.
On (default):The remote start feature will be enabled.
No Change:No change will be made to this feature.
The current setting will remain.
To select a setting, press the set/reset button while the
desired setting is displayed on the DIC.
3-83
