Additional Required Services (cont’d)
Service and Miles (Kilometers)25,000
(40 000) 50,000
(80 000) 75,000
(120 000) 100,000
(160 000) 125,000
(200 000) 150,000
(240 000)
Engine cooling system service
(or every ve years, whichever occurs
rst). An Emission Control Service.
See footnote (i). •
Inspect engine accessory drive belt.
An Emission Control Service.
See footnote (k). •
Maintenance Footnotes
(a)
Visually inspect brake lines
and hoses for proper hook-up,
binding, leaks, cracks, chafing, etc.
Inspect disc brake pads for wear
and rotors for surface condition.
Inspect other brake parts, including
calipers, parking brake, etc.
Check parking brake adjustment.
(b) Visually inspect front and
rear suspension and steering
system for damaged, loose, or
missing parts or signs of wear. Inspect power steering lines and
hoses for proper hook-up, binding,
leaks, cracks, chafing, etc.
(c)
Visually inspect hoses and have
them replaced if they are cracked,
swollen, or deteriorated. Inspect all
pipes, fittings and clamps; replace
with genuine parts as needed. To
help ensure proper operation, a
pressure test of the cooling system
and pressure cap and cleaning the
outside of the radiator and air
conditioning condenser is
recommended at least once a year. (d)
Inspect wiper blades for wear,
cracking, or contamination. Clean the
windshield and wiper blades, if
contaminated. Replace wiper blades
that are worn or damaged. See
Windshield Wiper Blade
Replacement on page 5-36 and
Windshield, Backglass, and Wiper
Blades on page 5-88 for more
information.
(e) Make sure the safety belt
reminder light and safety belt
assemblies are working properly.
Look for any other loose or
damaged safety belt system parts.
Maintenance Schedule 6-7

If you see anything that might keep
a safety belt system from doing
its job, have it repaired. Have any
torn or frayed safety belts replaced.
Also see Checking the Restraint
Systems on page 1-58.
(f)Lubricate all key lock cylinders,
hood latch assemblies, secondary
latches, pivots, spring anchor
and release pawl, hood and door
hinges, rear folding seats, and
liftgate hinges. More frequent
lubrication may be required when
exposed to a corrosive environment.
Applying silicone grease on
weatherstrips with a clean cloth will
make them last longer, seal
better, and not stick or squeak.
(g)A fluid loss in any vehicle system
could indicate a problem. Have
the system inspected and repaired
and the fluid level checked. Add
fluid if needed.(h)Change automatic transmission
fluid if the vehicle is mainly
driven under one or more of these
conditions:
In heavy city traffic where the
outside temperature regularly
reaches 90°F (32°C) or higher.
In hilly or mountainous terrain.
When doing frequent trailer
towing.
Uses such as found in taxi,
police, or delivery service.
(i)Drain, flush, and refill cooling
system. This service can be
complex; you should have your
dealer/retailer perform this service.
See Engine Coolant on page 5-17 for
what to use. Inspect hoses. Clean
radiator, condenser, pressure cap,
and filler neck. Pressure test the
cooling system and pressure cap.
(j)Check system for interference or
binding and for damaged or missing
parts. Replace parts as needed.
Replace any components that havehigh effort or excessive wear. Do not
lubricate accelerator or cruise control
cables.
(k)Visually inspect belt for fraying,
excessive cracks, or obvious
damage. Replace belt if necessary.
(l)If driving regularly under dusty
conditions, inspect the filter at each
engine oil change.
(m)Change transfer case fluid if the
vehicle is mainly driven under
one or more of these conditions:
In heavy city traffic where
the outside temperature regularly
reaches 90°F (32°C) or higher.
In hilly or mountainous terrain.
When doing frequent trailer
towing.
Uses such as found in taxi,
police, or delivery service.
6-8 Maintenance Schedule

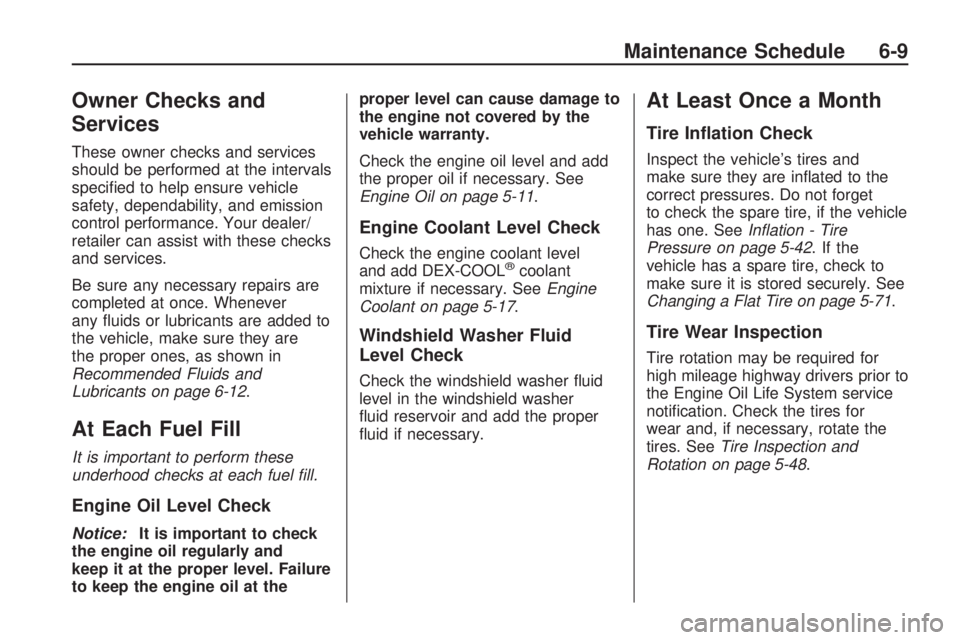

Owner Checks and
Services
These owner checks and services
should be performed at the intervals
specied to help ensure vehicle
safety, dependability, and emission
control performance. Your dealer/
retailer can assist with these checks
and services.
Be sure any necessary repairs are
completed at once. Whenever
any uids or lubricants are added to
the vehicle, make sure they are
the proper ones, as shown in
Recommended Fluids and
Lubricants on page 6-12.
At Each Fuel Fill
It is important to perform these
underhood checks at each fuel fill.
Engine Oil Level Check
Notice:It is important to check
the engine oil regularly and
keep it at the proper level. Failure
to keep the engine oil at theproper level can cause damage to
the engine not covered by the
vehicle warranty.
Check the engine oil level and add
the proper oil if necessary. See
Engine Oil on page 5-11.
Engine Coolant Level Check
Check the engine coolant level
and add DEX-COOL®coolant
mixture if necessary. SeeEngine
Coolant on page 5-17.
Windshield Washer Fluid
Level Check
Check the windshield washer uid
level in the windshield washer
uid reservoir and add the proper
uid if necessary.
At Least Once a Month
Tire Ination Check
Inspect the vehicle’s tires and
make sure they are inated to the
correct pressures. Do not forget
to check the spare tire, if the vehicle
has one. SeeInflation - Tire
Pressure on page 5-42.Ifthe
vehicle has a spare tire, check to
make sure it is stored securely. See
Changing a Flat Tire on page 5-71.
Tire Wear Inspection
Tire rotation may be required for
high mileage highway drivers prior to
the Engine Oil Life System service
notication. Check the tires for
wear and, if necessary, rotate the
tires. SeeTire Inspection and
Rotation on page 5-48.
Maintenance Schedule 6-9

At Least Once a Year
Starter Switch Check
{CAUTION
When you are doing this
inspection, the vehicle could move
suddenly. If the vehicle moves,
you or others could be injured.
1. Before starting this check, be
sure there is enough room
around the vehicle.
2. Firmly apply both the parking
brake and the regular brake.
SeeParking Brake on page 2-27.
Do not use the accelerator
pedal, and be ready to turn off
the engine immediately if it starts.
3. Try to start the engine in
each gear. The vehicle should
start only in P (Park) or
N (Neutral).
If the vehicle starts in any other
position, contact your
dealer/retailer for service.
Automatic Transmission Shift
Lock Control System Check
{CAUTION
When you are doing this
inspection, the vehicle could move
suddenly. If the vehicle moves,
you or others could be injured.
1. Before starting this check, be
sure there is enough room
around the vehicle. It should be
parked on a level surface.
2. Firmly apply the parking brake.
SeeParking Brake on page 2-27.
Be ready to apply the regular
brake immediately if the vehicle
begins to move.3. With the engine off, turn the
ignition to ON/RUN, but do not
start the engine. Without applying
the regular brake, try to move the
shift lever out of P (Park) with
normal effort. If the shift lever
moves out of P (Park), contact
your dealer/retailer for service.
Ignition Transmission Lock
Check
While parked, and with the parking
brake set, try to turn the ignition
to LOCK/OFF in each shift
lever position.
The ignition should turn to
LOCK/OFF only when the
shift lever is in P (Park).
The ignition key should come out
only in LOCK/OFF.
Contact your dealer/retailer if
service is required.
6-10 Maintenance Schedule

Parking Brake and Automatic
Transmission P (Park)
Mechanism Check
{CAUTION
When you are doing this check,
the vehicle could begin to move.
You or others could be injured
and property could be damaged.
Make sure there is room in front
of the vehicle in case it begins to
roll. Be ready to apply the regular
brake at once should the vehicle
begin to move.Park on a fairly steep hill, with the
vehicle facing downhill. Keeping
your foot on the regular brake, set
the parking brake.
To check the parking brake’s
holding ability: With the engine
running and the transmission
in N (Neutral), slowly remove foot
pressure from the regular
brake pedal. Do this until the
vehicle is held by the parking
brake only.
To check the P (Park)
mechanism’s holding ability: With
the engine running, shift to
P (Park). Then release the
parking brake followed by the
regular brake.
Contact your dealer/retailer if
service is required.
Underbody Flushing Service
At least every spring, use plain
water to ush any corrosive
materials from the underbody. Take
care to clean thoroughly any
areas where mud and other debris
can collect.
Tire Sealant and
Compressor Kit
If the vehicle has a Tire Sealant and
Compressor Kit, check the sealant
expiration date printed on the
instruction label of the kit at least
once a year. See your dealer/retailer
for a replacement canister.
Maintenance Schedule 6-11

Current and Past Model Order
Forms
Technical Service Bulletins and
Manuals are available for current
and past model GM vehicles.
To request an order form, specify
year and model name of the vehicle.
ORDER TOLL FREE:
1-800-551-4123 Monday-Friday
8:00 AM - 6:00 PM Eastern Time
For Credit Card Orders Only
(VISA-MasterCard-Discover), visit
Helm, Inc. on the World Wide
Web at: helminc.comOr you can write to:
Helm, Incorporated
P.O. Box 07130
Detroit, MI 48207
Prices are subject to change without
notice and without incurring
obligation. Allow ample time for
delivery.
Note to Canadian Customers: All
listed prices are quoted in U.S.
funds. Canadian residents are to
make checks payable in U.S. funds.
Vehicle Data
Recording and
Privacy
Your GM vehicle has a number of
sophisticated computers that
record information about the
vehicle’s performance and how it is
driven. For example, your vehicle
uses computer modules to monitor
and control engine and transmission
performance, to monitor the
conditions for airbag deployment
and deploy airbags in a crash and,
if so equipped, to provide antilock
braking to help the driver control the
vehicle. These modules may
store data to help your dealer/
retailer technician service your
vehicle. Some modules may also
store data about how you operate
the vehicle, such as rate of fuel
consumption or average speed.
These modules may also retain the
owner’s personal preferences,
such as radio pre-sets, seat
positions, and temperature settings.
7-14 Customer Assistance Information

B
Battery...............................5-27
Electric Power
Management.................3-16
Run-Down Protection.........3-17
Bluetooth
®..........................3-92
Brake
Emergencies...................... 4-5
Brake Fluid.........................5-24
Brakes...............................5-24
System Warning Light.......3-33
Braking................................ 4-3
Braking in Emergencies.......... 4-5
Break-In, New Vehicle..........2-20
Bulb Replacement................5-33
Halogen Bulbs..................5-34
Headlamp Aiming..............5-33
High Intensity Discharge
(HID) Lighting...............5-33
License Plate Lamps.........5-35
Replacement Bulbs...........5-35
Taillamps, Turn Signal,
Stoplamps and
Sidemarker Lamps.........5-34
Buying New Tires.................5-50
C
Calibration..........................3-46
California Fuel....................... 5-5
California Perchlorate
Materials Requirements....... 5-4
California Proposition 65
Warning............................ 5-3
Canadian Owners..................... ii
Capacities and
Specications...................5-98
Carbon
Monoxide........2-10, 2-30, 4-13
Care of
Safety Belts.....................5-86
Cargo Management System . . . 2-52
Cargo Tie Downs.................2-51
CD, MP3 ....................3-82, 3-86
Center Console
Storage Area....................2-49
Chains, Tire........................5-56
Charging System Light..........3-32
Check
Engine Lamp...................3-36
Checking Things Under
the Hood ........................... 5-9
Chemical Paint Spotting........5-90Child Restraints
Child Restraint Systems.....1-31
Infants and Young
Children.......................1-28
Lower Anchors and Tethers
for Children..................1-34
Older Children..................1-26
Securing a Child Restraint
in a Rear Seat
Position.......................1-40
Securing a Child Restraint
in the Right Front Seat
Position.......................1-42
Where to Put the
Restraint......................1-32
Cleaning
Aluminum or
Chrome-Plated Wheels . . . 5-88
Exterior Lamps/Lenses......5-87
Fabric/Carpet...................5-85
Finish Care......................5-87
Instrument Panel, Vinyl,
and Other Plastic
Surfaces......................5-86
Interior............................5-83
Leather...........................5-85
Tires...............................5-89
i-2 INDEX

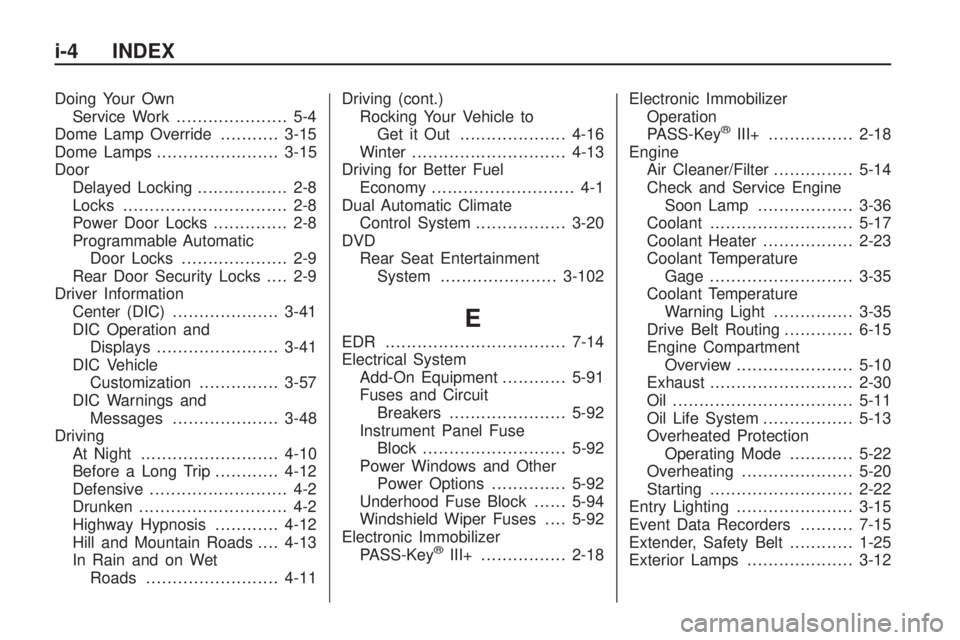

Doing Your Own
Service Work..................... 5-4
Dome Lamp Override...........3-15
Dome Lamps .......................3-15
Door
Delayed Locking................. 2-8
Locks............................... 2-8
Power Door Locks.............. 2-8
Programmable Automatic
Door Locks.................... 2-9
Rear Door Security Locks.... 2-9
Driver Information
Center (DIC)....................3-41
DIC Operation and
Displays.......................3-41
DIC Vehicle
Customization...............3-57
DIC Warnings and
Messages....................3-48
Driving
At Night..........................4-10
Before a Long Trip............4-12
Defensive.......................... 4-2
Drunken............................ 4-2
Highway Hypnosis............4-12
Hill and Mountain Roads....4-13
In Rain and on Wet
Roads.........................4-11Driving (cont.)
Rocking Your Vehicle to
Get it Out ....................4-16
Winter.............................4-13
Driving for Better Fuel
Economy........................... 4-1
Dual Automatic Climate
Control System.................3-20
DVD
Rear Seat Entertainment
System......................3-102
E
EDR ..................................7-14
Electrical System
Add-On Equipment............5-91
Fuses and Circuit
Breakers......................5-92
Instrument Panel Fuse
Block...........................5-92
Power Windows and Other
Power Options..............5-92
Underhood Fuse Block......5-94
Windshield Wiper Fuses....5-92
Electronic Immobilizer
PASS-Key
®III+................2-18Electronic Immobilizer
Operation
PASS-Key
®III+................2-18
Engine
Air Cleaner/Filter...............5-14
Check and Service Engine
Soon Lamp..................3-36
Coolant...........................5-17
Coolant Heater.................2-23
Coolant Temperature
Gage ...........................3-35
Coolant Temperature
Warning Light...............3-35
Drive Belt Routing.............6-15
Engine Compartment
Overview......................5-10
Exhaust...........................2-30
Oil ..................................5-11
Oil Life System.................5-13
Overheated Protection
Operating Mode............5-22
Overheating.....................5-20
Starting...........................2-22
Entry Lighting......................3-15
Event Data Recorders..........7-15
Extender, Safety Belt............1-25
Exterior Lamps....................3-12
i-4 INDEX
