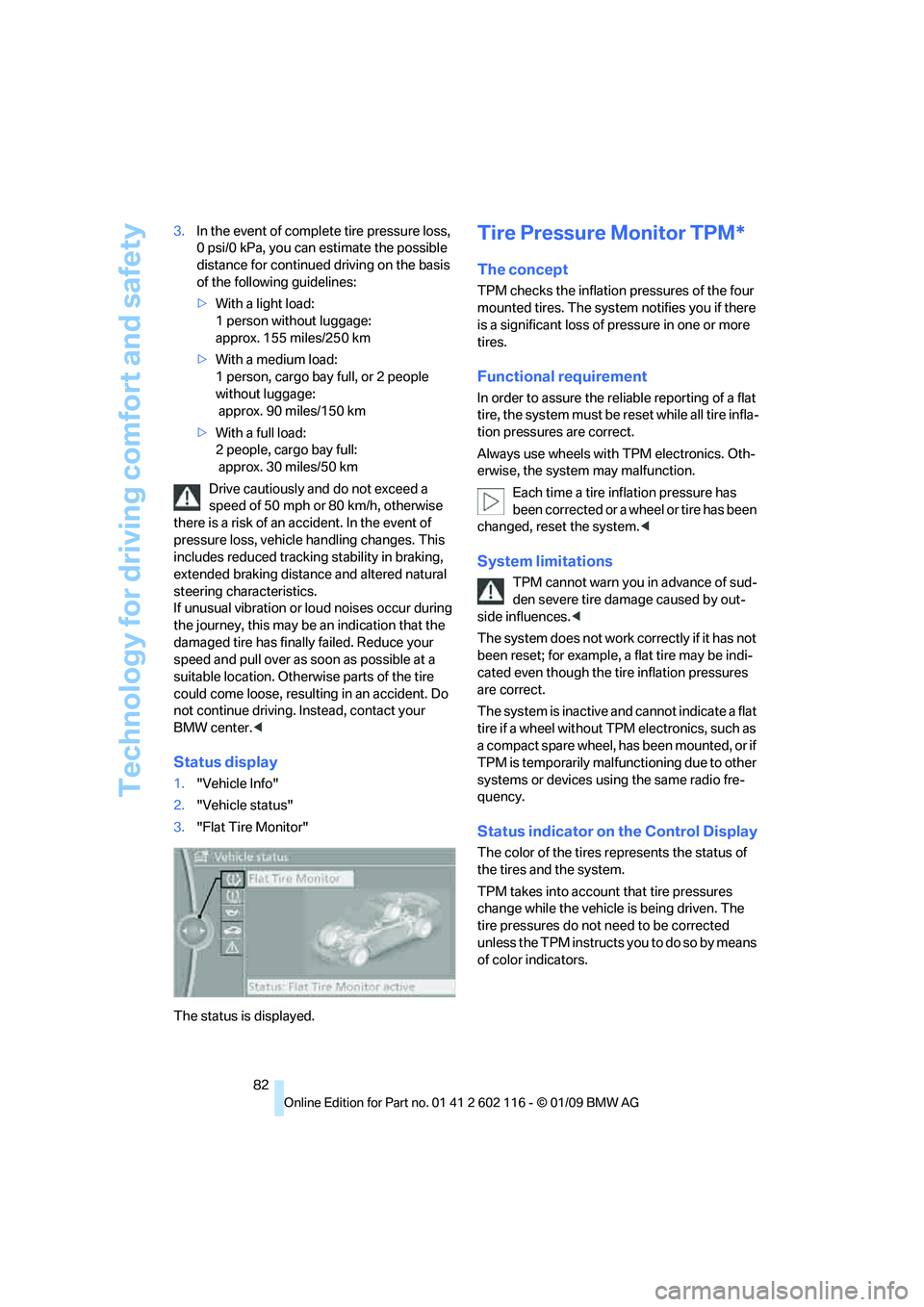

Technology for driving comfort and safety
82
3.
In the event of complete tire pressure loss,
0 psi/0 kPa, you can estimate the possible
distance for continued driving on the basis
of the following guidelines:
>With a light load:
1 person without luggage:
approx. 155 miles/250 km
> With a medium load:
1 person, cargo bay full, or 2 people
without luggage:
approx. 90 miles/150 km
> With a full load:
2 people, cargo bay full:
approx. 30 miles/50 km
Drive cautiously and do not exceed a
speed of 50 mph or 80 km/h, otherwise
there is a risk of an accident. In the event of
pressure loss, vehicle handling changes. This
includes reduced tracking stability in braking,
extended braking distance and altered natural
steering characteristics.
If unusual vibration or lo ud noises occur during
the journey, this may be an indication that the
damaged tire has finally failed. Reduce your
speed and pull over as soon as possible at a
suitable location. Otherw ise parts of the tire
could come loose, resulting in an accident. Do
not continue driving. Instead, contact your
BMW center. <
Status display
1."Vehicle Info"
2. "Vehicle status"
3. "Flat Tire Monitor"
The status is displayed.
Tire Pressure Monitor TPM*
The concept
TPM checks the inflation pressures of the four
mounted tires. The system notifies you if there
is a significant loss of pressure in one or more
tires.
Functional requirement
In order to assure the re liable reporting of a flat
tire, the system must be reset while all tire infla-
tion pressures are correct.
Always use wheels with TPM electronics. Oth-
erwise, the system may malfunction.
Each time a tire inflation pressure has
been corrected or a wheel or tire has been
changed, reset the system. <
System limitations
TPM cannot warn you in advance of sud-
den severe tire damage caused by out-
side influences. <
The system does not work correctly if it has not
been reset; for example, a flat tire may be indi-
cated even though the tire inflation pressures
are correct.
The system is inactive and cannot indicate a flat
tire if a wheel without TP M electronics, such as
a compact spare wheel, has been mounted, or if
TPM is temporarily malfunctioning due to other
systems or devices using the same radio fre-
quency.
Status indicator on the Control Display
The color of the tires represents the status of
the tires and the system.
TPM takes into account that tire pressures
change while the vehicl e is being driven. The
tire pressures do not need to be corrected
unless the TPM instructs you to do so by means
of color indicators.
Reference 241
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Side windows, refer to Windows 36
Signal horn, refer to Horn 10,11
Sitting safely 41
– with airbags 41
– with safety belts 41
Ski bag for convertible, refer to
Through-loading opening
with integrated transport
bag 105
Slot for remote control 50
Smokers' package, refer to
Ashtray 104
SMS 171
Snap-in adapter
– inserting/removing 174
– use 164
Snap-in adapter, refer to
Center armrest storage
compartment 102
Socket, On-Board Diagnosis
OBD 202
Socket, refer to Connecting electrical appliances 104
SOS, refer to Sending an Emergency Request 213
Sound output for
entertainment on/off 138
Spare fuses, 212
Spare fuses, refer to
Fuses 212
Special destinations 122
Speed
– Run-Flat Tires 82
– with winter tires 196
Speed limit 74
Speed limit warning, refer to Speed limit 74
Speedometer 12
Speed Volume 139
SPORT+ program, Dynamic Driving Control 79,80
SPORT program, Dynamic Driving Control 79,80
Sport program with sport
automatic transmission 57Spray nozzles, refer to
Cleaning windshield and
headlamps 60
Stability control, refer to Driving stability control
systems 78,79
Start/stop button 50
– starting the engine 51
– switching off the engine 52
Starting, refer to Starting the engine 51
Starting assistance, refer to Jump starting 214
Star
ting difficulties
– jump starting 214
Starting the engine
– start/stop button 50
State/province for navigation 119
Station, selecting
– radio 141
Status of this Owner's Manual
at time of printing 5
Steam jet 204,205
Steering wheel 46
– adjustment 46
– buttons on steering wheel 11
– lock 50
– locking with convenient access 35
– shift paddles 57
Steering wheel buttons, refer to Shift paddles 57
Steptronic, refer to Automatic transmission with
Steptronic 53
Storage 207
Storage compartments 102
Storage nets 104
Storing music 153
Storing seat positions, refer to Seat and mirror memory 43
Storing tires 196
Stowage, refer to Storage compartments 102
Stowing cargo 114 Street, entering,
navigation 120
Summer tires, refer to Wheels and tires 190
Surface ice, refer to Outside
temperature warning 64
SVCD 148
SW, waveband 141
Switches, refer to Cockpit 10
Switching off
– engine 52
Switching off the engine
– start/stop button 50
Switching on
– audio 138
– CD/DVD changer 138
– CD/DVD player 138
– radio 138
Symbols 4
– status information 20
– traffic bulletins for navigation system 131
T
Tachometer 64
Tailgate
– opening from inside 33
Tailgate, refer to Luggage compartment lid 32
Tail lamps 210
– replacing bulb 210
Tank contents, refer to Capacities 222
Technical data 220
– capacities 222
– dimensions 221
Technical modifications, refer to For your own safety 5
Telephone 164
– installation location, refer to Center armrest 102
– refer to separate Owner's
Manual
TeleService, activating 183
TeleService Diagnosis 180
TeleService Help 180
