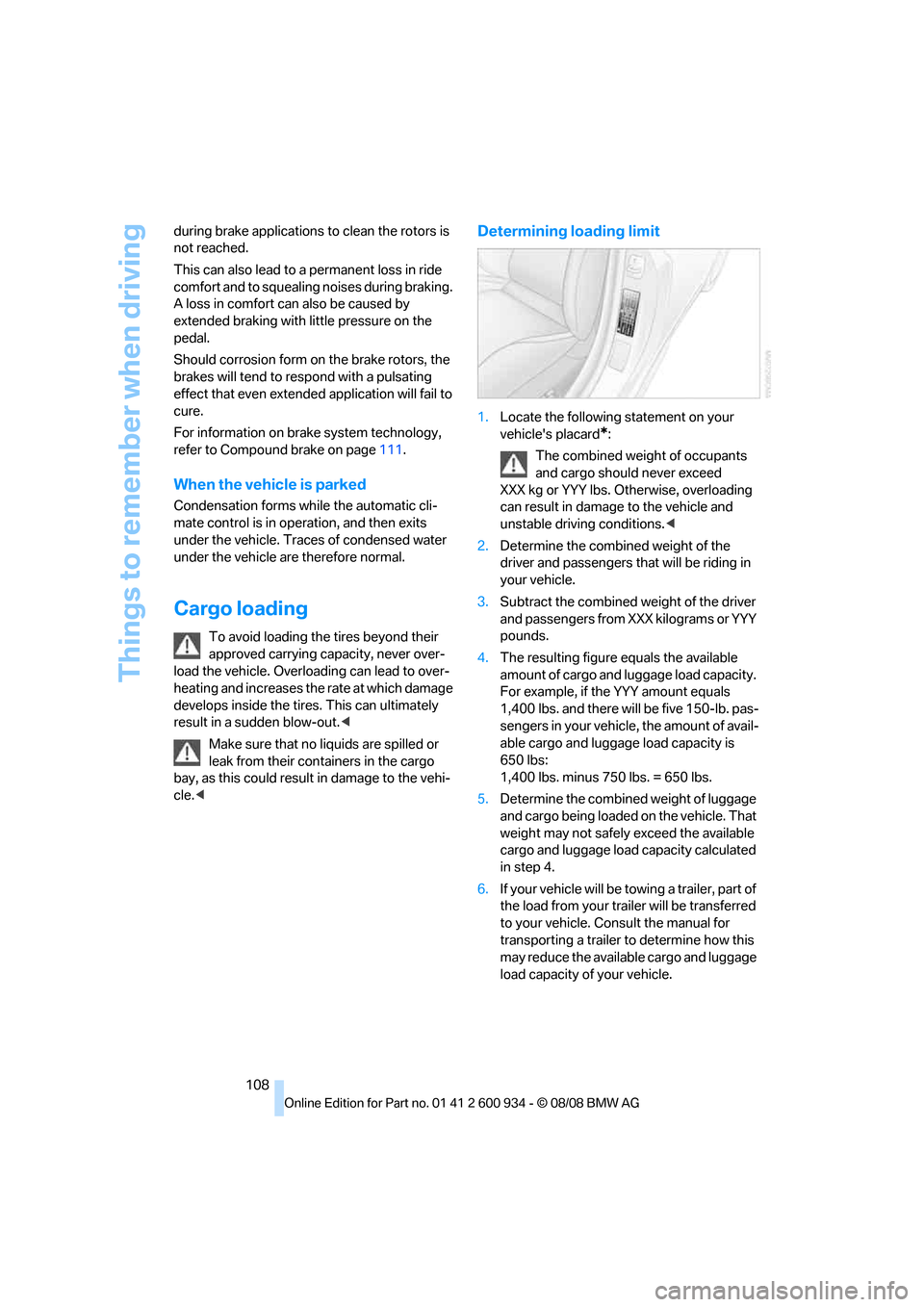

Things to remember when driving
108 during brake applications to clean the rotors is
not reached.
This can also lead to a permanent loss in ride
comfort and to squealing noises during braking.
A loss in comfort can also be caused by
extended braking with little pressure on the
pedal.
Should corrosion form on the brake rotors, the
brakes will tend to respond with a pulsating
effect that even extended application will fail to
cure.
For information on brake system technology,
refer to Compound brake on page111.
When the vehicle is parked
Condensation forms while the automatic cli-
mate control is in operation, and then exits
under the vehicle. Traces of condensed water
under the vehicle are therefore normal.
Cargo loading
To avoid loading the tires beyond their
approved carrying capacity, never over-
load the vehicle. Overloading can lead to over-
heating and increases the rate at which damage
develops inside the tires. This can ultimately
result in a sudden blow-out.<
Make sure that no liquids are spilled or
leak from their containers in the cargo
bay, as this could result in damage to the vehi-
cle.<
Determining loading limit
1.Locate the following statement on your
vehicle's placard
*:
The combined weight of occupants
and cargo should never exceed
XXX kg or YYY lbs. Otherwise, overloading
can result in damage to the vehicle and
unstable driving conditions.<
2.Determine the combined weight of the
driver and passengers that will be riding in
your vehicle.
3.Subtract the combined weight of the driver
and passengers from XXX kilograms or YYY
pounds.
4.The resulting figure equals the available
amount of cargo and luggage load capacity.
For example, if the YYY amount equals
1,400 lbs. and there will be five 150-lb. pas-
sengers in your vehicle, the amount of avail-
able cargo and luggage load capacity is
650 lbs:
1,400 lbs. minus 750 lbs. = 650 lbs.
5.Determine the combined weight of luggage
and cargo being loaded on the vehicle. That
weight may not safely exceed the available
cargo and luggage load capacity calculated
in step 4.
6.If your vehicle will be towing a trailer, part of
the load from your trailer will be transferred
to your vehicle. Consult the manual for
transporting a trailer to determine how this
may reduce the available cargo and luggage
load capacity of your vehicle.
ba8_E90M3_cic.book Seite 108 Dienstag, 19. August 2008 11:51 11

Reference 229
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
B
Backrest contour, refer to
Lumbar support38
Backrests, refer to Seat
adjustment38
Backrest width adjustment39
Back seats
– refer to Rear seats39
Backup lamps
– replacing bulb205,206
Backup lamps, refer to Tail
lamps205
Band-aids, refer to First-aid
pouch211
Bar, refer to Towing
methods213
Base plate for telephone or
mobile phone
– refer to Snap-in adapter171
– refer to Snap-in adapter in
the center armrest storage
compartment98
Bass, tone setting136
Battery208
– charging208
– disposal34,208
– jump starting211
– remote control26
– temporary power failure209
Battery for mobile phone171
Battery renewal
– remote control34
– remote control for vehicle34
Being towed212
Belts, refer to Safety belts41
Belt tensioner, refer to Safety
belts41
Beverage holders, refer to
Cup holders99
Blower, refer to Air flow
rate91
Bluetooth, activating/
deactivating164
Bluetooth, refer to separate
Owner's Manual
BMW
– car shampoo201
BMW Assist, activating176BMW Assist175
BMW center180
BMW Homepage4
BMW Maintenance
System197
BMW Search176
BMW webpage4
Bottle holders, refer to Cup
holders99
Brake assist76
Brake fluid, refer to Service
requirements66
Brake force display82
Brake lamps
– replacing bulb205,206
Brake lights
– brake force display82
Brake pads106
– breaking in106
Brake rotors107
– brakes106
– breaking in106
Brakes
– ABS76
– BMW Maintenance
System197
– brake force display82
– breaking in106
– parking brake51
– service requirements66
Brakes, refer to Braking
safely107
Brake system106
– BMW Maintenance
System197
– breaking in106
– disc brakes107
Breakdown services, refer to
Roadside Assistance210
Breaking in the clutch106
Breaking in the differential,
refer to Engine and
differential106
Break-in period106
Brightness of the Control
Display73
Bulb changing, refer to Lamps
and bulbs203Button for starting the engine,
refer to Start/stop button49
Buttons on the steering
wheel11
C
California Proposition 65
warning6
Call
– accepting165
– ending166
– rejecting166
Calling, refer to Phone
numbers, dialing166
Can holders, refer to Cup
holders99
Capacities220
Capacity of the cargo bay220
Car battery, refer to Vehicle
battery208
Car care, refer to Care199
Care199
– automatic car washes199
– care products199
– carpets201
– CD/DVD drives201
– chrome parts200
– displays201
– exterior199
– fine wood parts201
– headlamps200
– high-pressure washer199
– interior201
– leather201
– light-alloy wheels200
– paintwork200
– plastic parts201
– rubber seals200
– safety belts201
– sensors and cameras201
– upholstery and cloth
trim201
– washing the car
manually200
– windows200
– wiper blades200
Cargo, securing109
ba8_E90M3_cic.book Seite 229 Dienstag, 19. August 2008 11:51 11

Everything from A - Z
230 Cargo bay
– capacity220
– convenient access33
– folding up the floor
panel101
– lamp, refer to Interior
lamps87
– opening from inside30
– opening from outside30
Cargo loading
– securing cargo109
– stowing cargo109
– vehicle108
Car jack
– jacking points208
Car key, refer to Remote
control26
Car phone
– installation location, refer to
Center armrest98
– refer to separate Owner's
Manual
Car phone, refer to
Telephone162
Car radio, refer to Radio139
Car shampoo201
Car wash
– before entering51
Catalytic converter, refer to
Hot exhaust system106
CBS Condition Based
Service197
CD, audio playback144
CD changer144
– controls136
– fast forward/reverse146
– installation location148
– random play sequence145
– selecting a track144
– switching on/off136
– tone control136
– volume136CD player144
– controls136
– fast forward/reverse146
– random play sequence145
– selecting a track144
– switching on/off136
– tone control136
– volume136
Center armrest98
Center brake lamp, replacing
bulb206
Center console, refer to
Around the center
console14
Central locking
– from inside29
– from outside27
Central locking system27
– convenient access32
– hotel function31
Changes, technical, refer to
For your own safety5
Changing bulbs, refer to
Lamps and bulbs203
Changing gears54
Changing the language on the
Control Display73
Changing the measurement
units on the Control
Display65
Changing wheels208
Chassis number, refer to
Engine compartment193
Check Control70
Check Gas Cap184
Child-restraint fixing system
LATCH47
Child-restraint systems46
Child-safety lock48
Child seats, refer to
Transporting children
safely46
Chrome parts201
Chrome polish201
Cigarette lighter, refer to
Lighter99
Cleaning headlamps59
– washer fluid60Cleaning your BMW, refer to
Care199
Clock62
– 12h/24h mode69
– setting the time and date69
– setting time68
Closing
– from inside29
– from outside27
Clothes hooks98
Cockpit10
Cold start, refer to Starting the
engine50
Combined instrument, refer to
Instrument cluster12
Comfort access, refer to
Convenient access32
Comfort area, refer to Around
the center console14
Compartment for remote
control, refer to Ignition
lock49
Compass96
Computer63
– displays on Control
Display64
Computer, refer to iDrive16
Concierge service175
Condensation, refer to When
the vehicle is parked108
Condition Based Service
CBS197
Configuring settings, refer to
Personal Profile
26
Confirmation signals for
locking/unlocking the
vehicle28
Congestion
– refer to Route, bypassing
sections128
Connecting vacuum cleaner,
refer to Connecting
electrical appliances100
Consumption, refer to
Average consumption64
Consumption indicator, refer
to Average consumption64
Control Center, refer to
iDrive16
ba8_E90M3_cic.book Seite 230 Dienstag, 19. August 2008 11:51 11

Reference 233
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Flat Tire Monitor FTM78
– indicating a flat tire79
– indicator/warning lamp79
– initializing the system78
– malfunction79
– snow chains78,191
– system limits78
Flat tires, refer to Tire
condition189
Fluid reservoir, refer to
Washer fluid reservoir60
FM, waveband139
Folding up the floor panel101
Footbrake, refer to Braking
safely107
Footwell lamps, refer to
Interior lamps87
Forward position, engaging,
refer to Selector lever
positions52
For your own safety5
Free memory capacity, music
collection154
Front airbags82
FTM, refer to Flat Tire
Monitor78
Fuel184
– average consumption64
– gauge63
– high-quality brands184
– quality184
– specifications184
– tank contents, refer to
Capacities220
Fuel clock, refer to Fuel
gauge63
Fuel display, refer to Fuel
gauge63
Fuel filler door184
– releasing in the event of
electrical malfunction184
Fuses209
G
Garage door opener, refer to
Integrated universal remote
control94Gasoline
– refer to Average
consumption64
Gasoline, refer to Required
fuel184
Gasoline display, refer to Fuel
gauge63
Gasoline engine, checking
engine oil level193
Gear
– neutral53
Gear display, refer to Displays
in the instrument cluster54
Gearshift lever
– manual transmission51
Gearshifts
– manual transmission51
General driving notes106
Glass roof, electric35
– closing after electrical
malfunction36
– convenient operation28,29
– initializing36
– opening, closing35
– operation with convenient
access33
– pinch protection system36
– power failure36
– raising35
– remote control28
Glove compartment97
GPS navigation, refer to
Navigation system116
Grills89
Gross vehicle weight, refer to
Weights220
H
Handbrake, refer to Parking
brake51
Hands-free system14
Hazard warning flashers14
HD radio, refer to High
Definition Radio140
Head airbags82
Headlamp control,
automatic85Headlamp flasher58
– indicator lamp11,13
Head restraints39
– rear, removing39
– sitting safely37
Heated
– mirrors43
– rear window92
– seats40
Heating
– mirrors43
– rear window92
– residual heat91
– seats40
Heating and ventilation, refer
to Climate89
Heating while at a standstill,
refer to Using residual
heat91
Heavy loads, refer to Stowing
cargo109
Height, refer to
Dimensions219
Height adjustment
– seats38
– steering wheel43
High beams87
– headlamp flasher87
– indicator lamp13
High Definition Radio140
High-pressure
washer199,200
High water, refer to Driving
through water107
Highways, refer to Route
criteria127
Hills107
Holders for cups99
Homepage BMW4
Hood192
Hooks for shopping bags101
Horn10,11
Hotel function31
Hot exhaust system106
Hydraulic brake assist, refer to
Brake assist76
Hydroplaning107
ba8_E90M3_cic.book Seite 233 Dienstag, 19. August 2008 11:51 11

Reference 237
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Pressure monitoring of tires,
refer to Tire Pressure
Monitor TPM79
Programmable buttons on the
steering wheel11
Protection function, refer to
Pinch protection system
– glass roof, electric36
– windows35
Providing medical assistance,
refer to First aid pouch211
Puncture
– Flat Tire Monitor78
R
Radio
– controls136
– High Definition Radio140
– satellite radio142
– selecting a waveband139
– storing stations139
– switching on/off136
– tone control136
– volume136
Radio-operated key, refer to
Remote control26
Radio position, refer to Radio
readiness49
Radio readiness49
– switched off50
– switched on49
Rain sensor59
Reading lamps88
Rear lamps, refer to Tail
lamps205
Rear seats
– adjusting head restraints39
– folding down backrests100
– folding head restraint down
and up40
Rear ventilation92
Rearview mirror, refer to
Mirrors42
Rear window blind, refer to
Roller sun blinds97
Rear window defroster92
Rear window safety switch35Receiving level of mobile
phone, refer to Status
information19
Reception
– quality140
– radio station140
Recirculated-air mode91
Recirculation of air, refer to
Recirculated-air mode91
Reclining seat, refer to
Backrest38
Refueling184
Releasing
– hood192
Remaining distance, refer to
Cruising range64
Remote control26
– battery renewal34
– convenient access32
– garage door opener94
– luggage compartment lid28
– malfunction28,33
– removing from the ignition
lock49
– service data197
Replacement remote
control
26
Replacing bulbs, refer to
Lamps and bulbs203
Replacing tires189
Replacing tires, refer to New
wheels and tires189
Reporting safety defects6
Reserve warning, refer to Fuel
gauge63
Reset, refer to Resetting tone
settings138
Residual heat91
Restraint systems
– for children46
– refer to Safety belts41
Reverse
– CD changer146
– CD player146
Reverse gear53
– manual transmission52
Road map129
Roadside
Assistance175,210Roadside parking lamps87
Roadworthiness test, refer to
Service requirements66
Roller blind
– sun blinds97
Roof load capacity220
Roof-mounted luggage
rack109
Rope, refer to Tow-starting,
towing away213
Rotary/pushbutton, refer to
iDrive16
Route127,128
– bypassing sections128
– changing127,128
– changing criteria127
– displaying streets or towns/
cities128
– map display129
– selecting127
Route instructions, refer to
Destination guidance
through voice
instructions128
Route map, refer to Map
display129
Route section, changing128
Route selection127
S
Safety-belt height
adjustment41
Safety belts41
– damage42
– indicator/warning lamp42
– reminder42
– sitting safely37
Safety systems
– airbags82
– Antilock Brake System
ABS76
– brake system76
– driving stability control
systems76
– Dynamic Stability Control
DSC76
– safety belts41
ba8_E90M3_cic.book Seite 237 Dienstag, 19. August 2008 11:51 11
