Controls
43Reference
At a glance
Driving tips
Communications
Navigation
Entertainment
Mobility

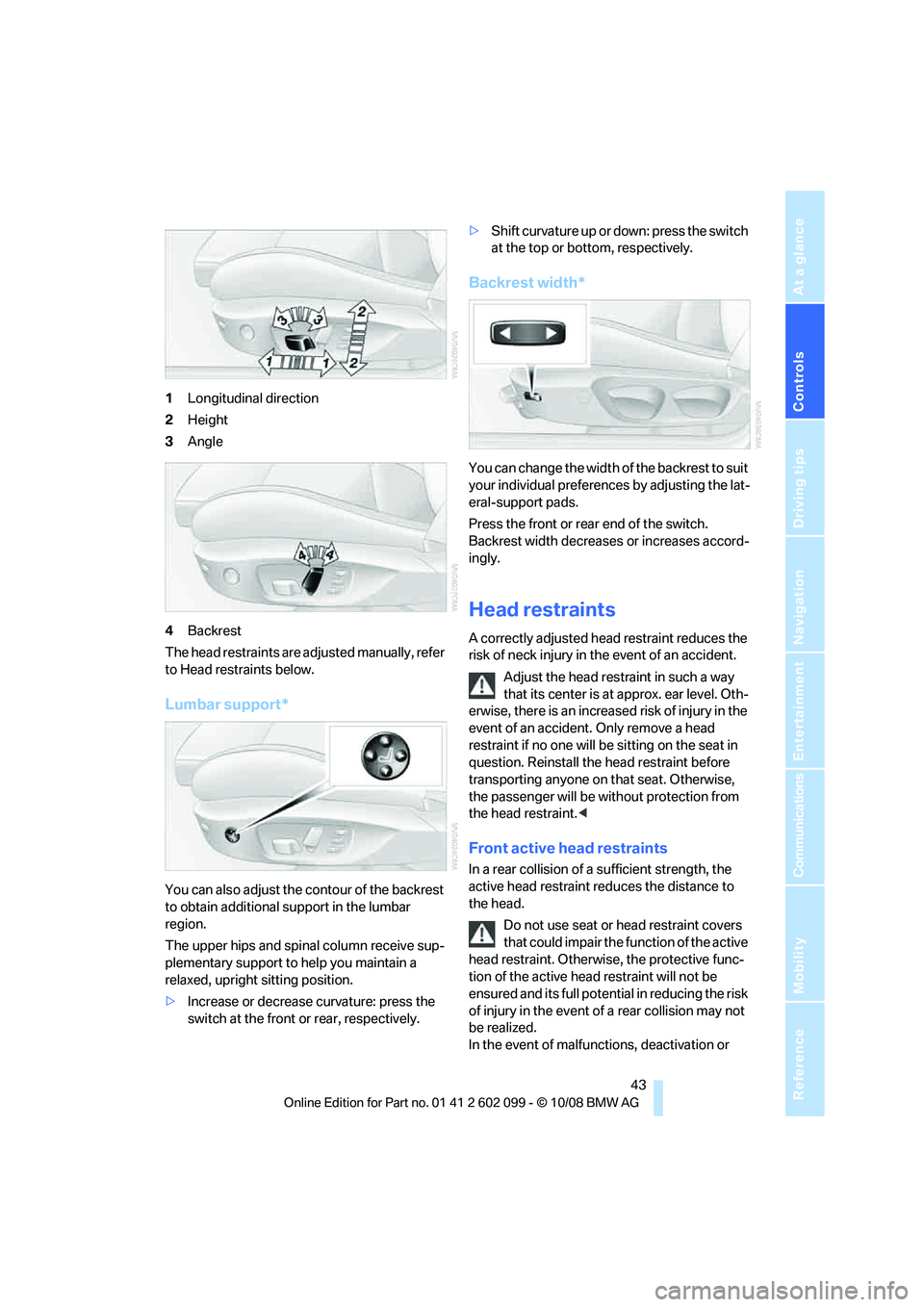

1Longitudinal direction
2 Height
3 Angle
4 Backrest
The head restraints are adjusted manually, refer
to Head restraints below.
Lumbar support*
You can also adjust the contour of the backrest
to obtain additional support in the lumbar
region.
The upper hips and spinal column receive sup-
plementary support to help you maintain a
relaxed, upright sitting position.
> Increase or decrease curvature: press the
switch at the front or rear, respectively. >
Shift curvature up or down: press the switch
at the top or botto m, respectively.
Backrest width*
You can change the width of the backrest to suit
your individual preferen ces by adjusting the lat-
eral-support pads.
Press the front or rear end of the switch.
Backrest width decreases or increases accord-
ingly.
Head restraints
A correctly adjusted head restraint reduces the
risk of neck injury in the event of an accident.
Adjust the head restraint in such a way
that its center is at approx. ear level. Oth-
erwise, there is an increased risk of injury in the
event of an accident. Only remove a head
restraint if no one will be sitting on the seat in
question. Reinstall the head restraint before
transporting anyone on that seat. Otherwise,
the passenger will be wi thout protection from
the head restraint. <
Front active head restraints
In a rear collision of a sufficient strength, the
active head restraint re duces the distance to
the head.
Do not use seat or head restraint covers
that could impair the function of the active
head restraint. Otherwis e, the protective func-
tion of the active head restraint will not be
ensured and its full potential in reducing the risk
of injury in the event of a rear collision may not
be realized.
In the event of malfunctions, deactivation or
ba8_E9091_cic.book Seite 43 Mittwoch, 29. Oktober 2008 2:59 14

Reference 251
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
AUX-IN
– port103
AUX-IN port 161
Average fuel consumption 69
– setting the units 71
Average speed 69
Avoid highways in navigation 133
Avoiding unintentional alarms 34
Axle loads, refer to
Weights 241
B
Backrest contour, refer to
Lumbar support 43
Backrests, refer to Seat adjustment 42
Backrest width adjustment 43
Back seats
– refer to Rear seats 44
Backup lamps
– replacing bulb 227
Backup lamps, refer to Tail
lamps 226
Band-aids, refer to First-aid pouch 231
Bar, refer to Towing methods 233
Base plate for telephone or
mobile phone
– refer to Snap-in adapter 177
– refer to Snap-in adapter in
the center armrest storage
compartment 103
Bass, tone setting 142
Battery 228
– charging 229
– disposal 35,229
– jump starting 231
– remote control 26
– temporary power failure 229
Battery for mobile phone 177
Battery renewal
– remote control 35
– remote control for vehicle 35
Being towed 233
Belts, refer to Safety belts 46Belt tensioner,
refer to Safety
belts 46
Beverage holders, refer to Cup holders 104
Blower, refer to Air flow
rate 95
Bluetooth, activating/ deactivating 170
Bluetooth, refer to separate Owner's Manual
BMW
– car shampoo 220
BMW Assist, activating 182
BMW Advanced Diesel 192
BMW Assist 181
BMW center 186
BMW Homepage 4
BMW Maintenance System 216
BMW Search 182
BMW webpage 4
Bottle holders, refer to Cup
holders 104
Brake assist, refer to Dynamic Brake Control DBC 81
Brake fluid, refer to Service requirements 71
Brake force display 87
Br

ake lamps
– brake force display 87
– replacing bulb 227
Brake pads 114
– breaking in 114
Brake rotors 116
– brakes 114
– breaking in 114
Brakes
– ABS 81
– BMW Maintenance System 216
– brake force display 87
– breaking in 114
– parking brake 54
– service requirements 71
Brakes, refer to Braking safely 116 Brake system
114
– BMW Maintenance
System 216
– breaking in 114
– disc brakes 116
Breakdown services, refer to Roadside Assistance 230
Breaking in the clutch 114
Breaking in the differential, refer to Engine and
differential 114
Break-in period 114
Brightness of Control
Display 78
Bulb changing, refer to Lamps and bulbs 223
Button for starting the engine, refer to Start/stop button 53
Buttons on the steering
wheel 11
C
California Proposition 65
warning 6
Call
– accepting 171
– ending 172
– rejecting 172
Calling, refer to Phone numbers, dialing 172
Can holders, refer to Cup holders 104
Capacities 242
Capacity of the cargo bay 241
Car battery, refer to Vehicle battery 228
Car care, refer to Care 218
ba8_E9091_cic.book Seite 251 Mittwoch, 29. Oktober 2008 2:59 14

Reference 257
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility

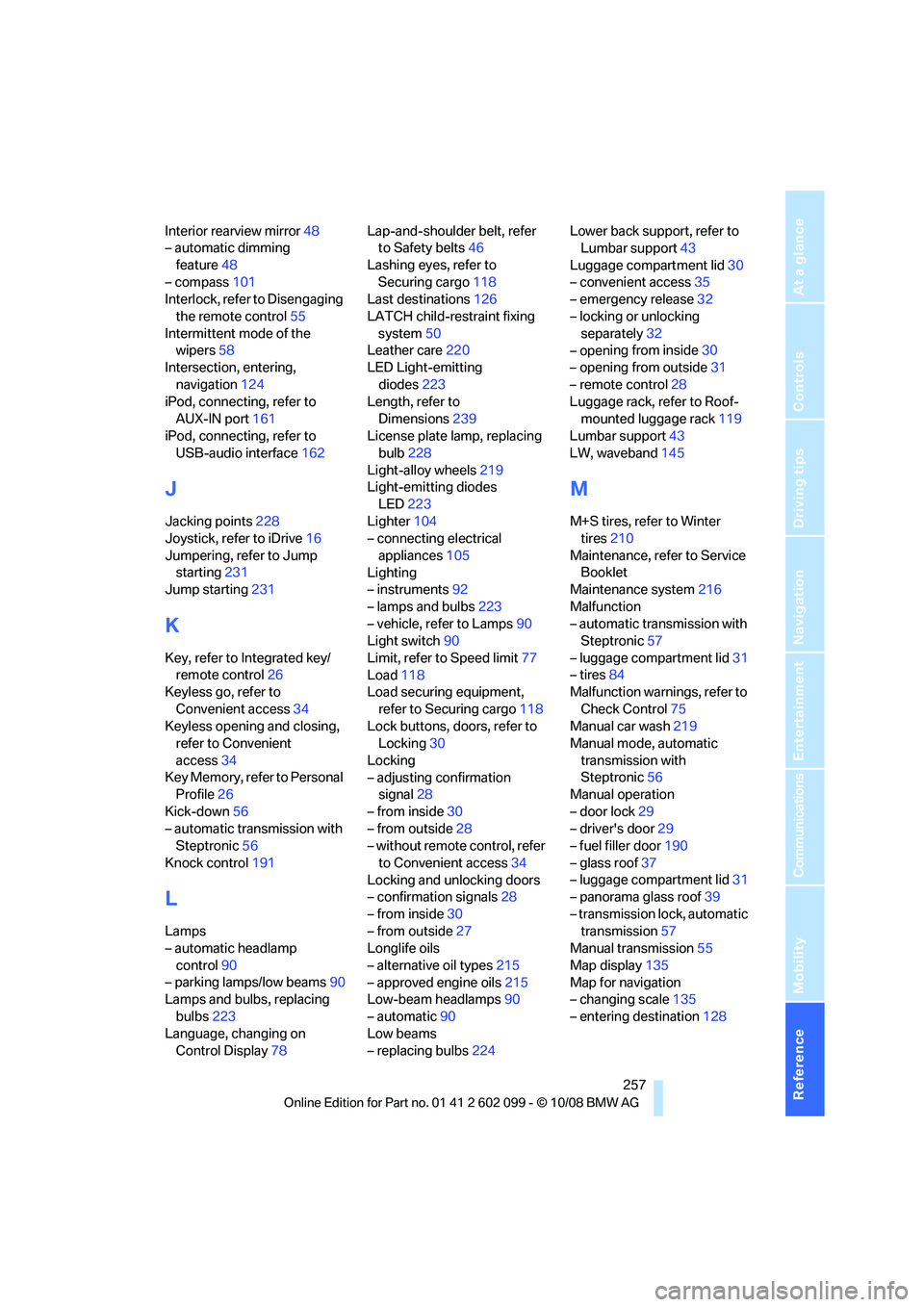

Interior rearview mirror48
– automatic dimming
feature 48
– compass 101
Interlock, refer to Disengaging
the remote control 55
Intermittent mode of the wipers 58
Intersection, entering, navigation 124
iPod, connecting, refer to
AUX-IN port 161
iPod, connecting, refer to
USB-audio interface 162
J
Jacking points228
Joystick, refer to iDrive 16
Jumpering, refer to Jump starting 231
Jump starting 231
K
Key, refer to Integrated key/
remote control 26
Keyless go, refer to
Convenient access 34
Keyless opening and closing, refer to Convenient
access 34
Key Memory, refer to Personal Profile 26
Kick-down 56
– automatic transmission with Steptronic 56
Knock control 191
L
Lamps
– automatic headlamp
control 90
– parking lamps/low beams 90
Lamps and bulbs, replacing
bulbs 223
Language, changing on Control Display 78 Lap-and-shoulder belt, refer
to Safety belts 46
Lashing eyes, refer to Securing cargo 118
Last destinations 126
LATCH child-restraint fixing system 50
Leather care 220
LED Light-emitting diodes 223
Length, refer to
Dimensions 239
License plate lamp, replacing
bulb 228
Light-alloy wheels 219
Light-emitting diodes
LED 223
Lighter 104
– connecting electrical
appliances 105
Lighting
– instruments 92
– lamps and bulbs 223
– vehicle, refer to Lamps 90
Light switch 90
Limit, refer to Speed limit 77
Load 118
Load securing equipment,
refer to Securing cargo 118
Lock buttons, doors, refer to Locking 30
Locking
– adjusting confirmation signal 28
– from inside 30
– from outside 28
– without remote control, refer
to Convenient access 34
Locking and unlocking doors
– confirmation signals 28
– from inside 30
– from outside 27
Longlife oils
– alternative oil types 215
– approved engine oils 215
Low-beam headlamps 90
– automatic 90
Low beams
– replacing bulbs 224Lower back support, refer to
Lumbar support 43
Luggage compartment lid 30
– convenient access 35
– emergency release 32
– locking or unlocking separately 32
– open
ing from inside 30
– opening from outside 31
– remote control 28
Luggage rack, refer to Roof-
mounted luggage rack 119
Lumbar support 43
LW, waveband 145
M
M+S tires, refer to Winter
tires 210
Maintenance, refer to Service Booklet
Maintenance system 216
Malfunction
– automatic transmission with Steptronic 57
– luggage compartment lid 31
– tires 84
Malfunction warnings, refer to
Check Control 75
Manual car wash 219
Manual mode, automatic
transmission with
Steptronic 56
Manual operation
– door lock 29
– driver's door 29
– fuel filler door 190
– glass roof 37
– luggage compartment lid 31
– panorama glass roof 39
– transmission lock, automatic transmission 57
Manual transmission 55
Map display 135
Map for navigation
– changing scale 135
– entering destination 128
