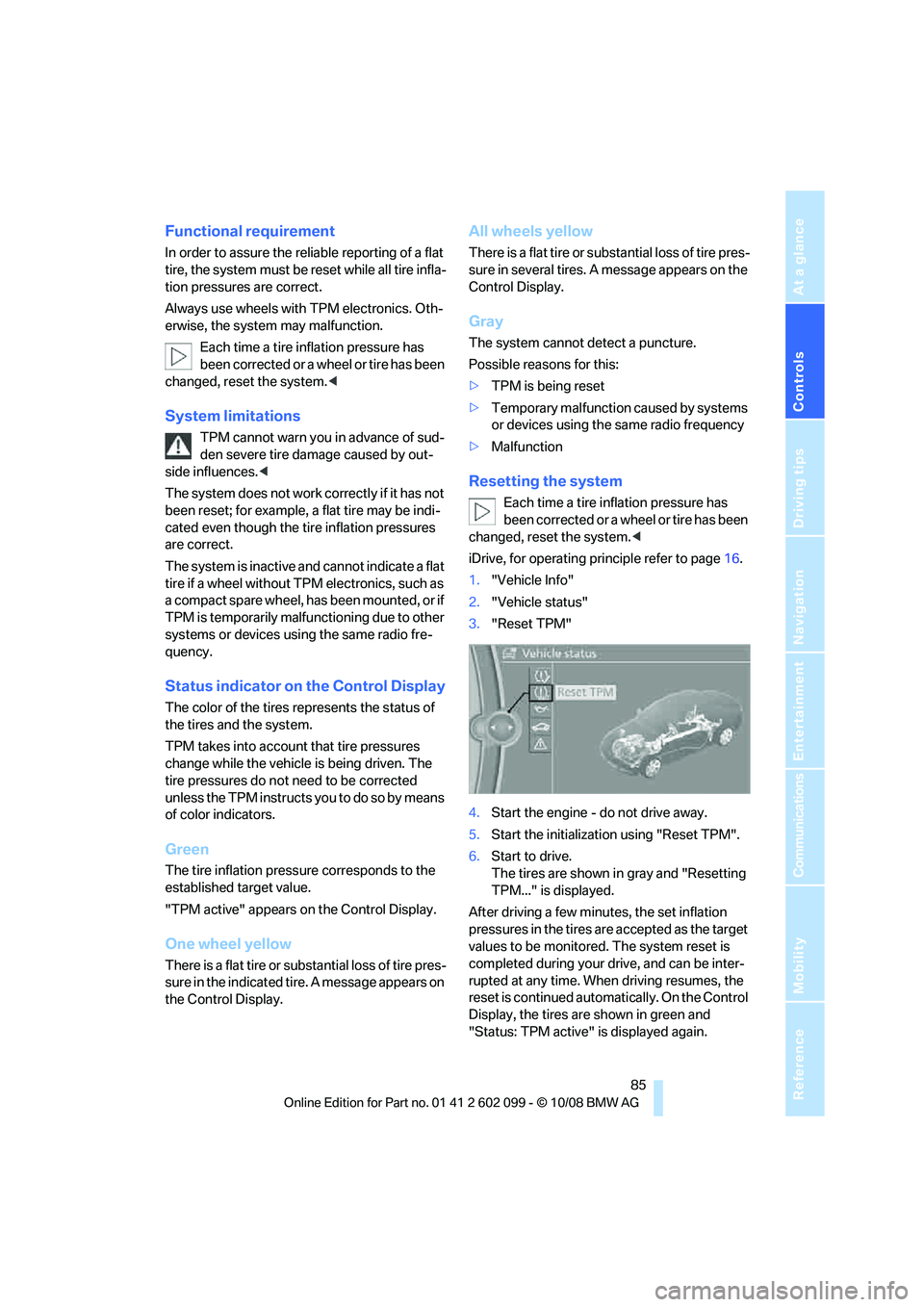

Functional requirement
In order to assure the reliable reporting of a flat
tire, the system must be reset while all tire infla-
tion pressures are correct.
Always use wheels with TPM electronics. Oth-
erwise, the system may malfunction.Each time a tire inflation pressure has
been corrected or a wheel or tire has been
changed, reset the system. <
System limitations
TPM cannot warn you in advance of sud-
den severe tire damage caused by out-
side influences. <
The system does not work correctly if it has not
been reset; for example, a flat tire may be indi-
cated even though the ti re inflation pressures
are correct.
The system is inactive and cannot indicate a flat
tire if a wheel without TPM electronics, such as
a compact spare wheel, has been mounted, or if
TPM is temporarily malfun ctioning due to other
systems or devices using the same radio fre-
quency.
Status indicator on the Control Display
The color of the tires represents the status of
the tires and the system.
TPM takes into account that tire pressures
change while the vehicle is being driven. The
tire pressures do not need to be corrected
unless the TPM instructs you to do so by means
of color indicators.
Green
The tire inflation pressure corresponds to the
established target value.
"TPM active" appears on the Control Display.
One wheel yellow
There is a flat tire or su bstantial loss of tire pres-
sure in the indicated tire. A message appears on
the Control Display.
All wheels yellow
There is a flat tire or substantial loss of tire pres-
sure in several tires. A message appears on the
Control Display.
Gray
The system cannot detect a puncture.
Possible reasons for this:
> TPM is being reset
> Temporary malfunction caused by systems
or devices using the same radio frequency
> Malfunction
Resetting the system
Each time a tire inflation pressure has
been corrected or a wheel or tire has been
changed, reset the system. <
iDrive, for operating pr inciple refer to page16.
1. "Vehicle Info"
2. "Vehicle status"
3. "Reset TPM"
4. Start the engine - do not drive away.
5. Start the initialization using "Reset TPM".
6. Start to drive.
The tires are shown in gray and "Resetting
TPM..." is displayed.
After driving a few minutes, the set inflation
pressures in the tires are accepted as the target
values to be monitored. The system reset is
completed during your drive, and can be inter-
rupted at any time. When driving resumes, the
reset is continued automatically. On the Control
Display, the tires are shown in green and
"Status: TPM active" is displayed again.
ba8_E9091_cic.book Seite 85 Mittwoch, 29. Oktober 2008 2:59 14

Mobility
209Reference
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
The manufacturing date of tires is contained in
the tire coding:
DOT ... 3208 means that the tire was manufac-
tured in week 32 of 2008.
Run-Flat Tires
The symbol identifying Run-Flat Tires is a circle
with the letters RSC on the sidewall.
Run-Flat Tires comprise a conditionally self-
supporting tire and a special rim. The reinforce-
ment in the sidewalls ensures that the tire can
continue to be used su bject to certain restric-
tions, even if depressurized.
For information on continuing to drive with a flat
tire, refer to Indication of a flat tire, page 84.
New wheels and tires
Have new wheels and tires installed only
by your BMW center or tire shop that
works according to BMW repair procedures
with correspondingly trai ned personnel. If this
work is not carried out properly, there is a dan-
ger of subsequent dama ge and related safety
hazards. Make sure that the new wheels are bal-
anced. <
Retreaded tires
BMW recommends that you do not use
retreaded tires, since driving safety may
be impaired. The causes for this include poten-
tially different tire casing structures and often
wide variations in tire ag e, which can result in a
limited service life. <
Correct wheels and tires
When mounting new tires or changing over
from summer to winter tires and vice versa,
mount Run-Flat Tires for your own safety. In the
event of a flat, no spare wheel is available. Your
BMW center will be glad to advise you.
BMW recommends that you use only
wheel and tire combinations that BMW
has tested and approved for your particular
vehicle. Variations in factors such as manufac-
turing tolerances mean that even wheels and
tires with identical official size ratings could
actually have different dimensions, which could
lead to body contact and thus to severe acci-
dents. If non-approved wheels and tires are
used, BMW cannot evaluate their suitability,
and therefore cannot guarantee their driving
safety. <
You can inquire about the right wheel/tire com-
bination at your BMW center.
The correct combination of wheels and tires is
also necessary to ensure reliable operation of
various vehicle systems such as ABS, DSC or
FTM.
To maintain good handling and vehicle
response, use only tires of a single brand and
tread configuration. After a tire has been dam-
aged, mount the previous wheel and tire combi-
nation again as soon as possible.
Wheels with Tire Pressure Monitor
TPM electronics
When mounting new tires or changing over
from summer to winter tires, or vice versa, only
use wheels with TPM electronics; otherwise the
Tire Pressure Monitor may not be able to detect
a puncture, refer to page 84. Your BMW center
will be glad to advise you.
ba8_E9091_cic.book Seite 209 Mittwoch, 29. Oktober 2008 2:59 14

Replacing components
228
6.
Reattach the trim of the luggage compart-
ment lid and the holder for the warning tri-
angle.
Sports Wagon
1. Use a screwdriver to press out the cover at
the clips, see arrows, and fold it downward.
2. Fold away the foam insulating material.
3. Release the bulb holder at the clip, see
arrow, and remove.
4. Apply gentle pressure to the bulb while
turning it to the left for removal and replace-
ment.
5. Re-engage the bulb holder so that it audibly
clicks into place.
6. Reattach the trim of the tailgate.
License plate lamp, center brake lamp,
parking/tail lamp and turn signal*
These lamps use LED technology for operation.
In the event of a malfunction, please contact
your BMW center or a workshop that works
according to BMW repair procedures with cor-
respondingly trained personnel.
Changing wheels
Your BMW is equipped with Run-Flat Tires as
standard. This removes the need to change a
wheel immediately in the event of a puncture.
For information on continuing to drive with a
damaged tire, refer to Indica tion of a flat tire on
page 84.
The symbol identifying Run- Flat Tires is a circle
with the letters RSC on the sidewall, refer to
Run-Flat Tires, page 209.
When mounting new tires or changing over
from summer to winter tires and vice versa,
mount Run-Flat Tires for your own safety. In the
event of a flat, no spare wheel is available. Your
BMW center will be glad to advise you. Refer
also to New wheels and tires, page 209.
The tools for changing wheels are avail-
able as optional accessories from your
BMW center. <
Jack mounting points
The jacking points are at the positions shown in
the illustration.
Vehicle battery
Battery care
The battery is 100 % ma intenance-free, the
electrolyte will last for the life of the battery
when the vehicle is operated in a temperate cli-
mate. Your BMW center will be glad to advise in
all matters concerning the battery.
ba8_E9091_cic.book Seite 228 Mittwoch, 29. Oktober 2008 2:59 14

Reference 261
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility

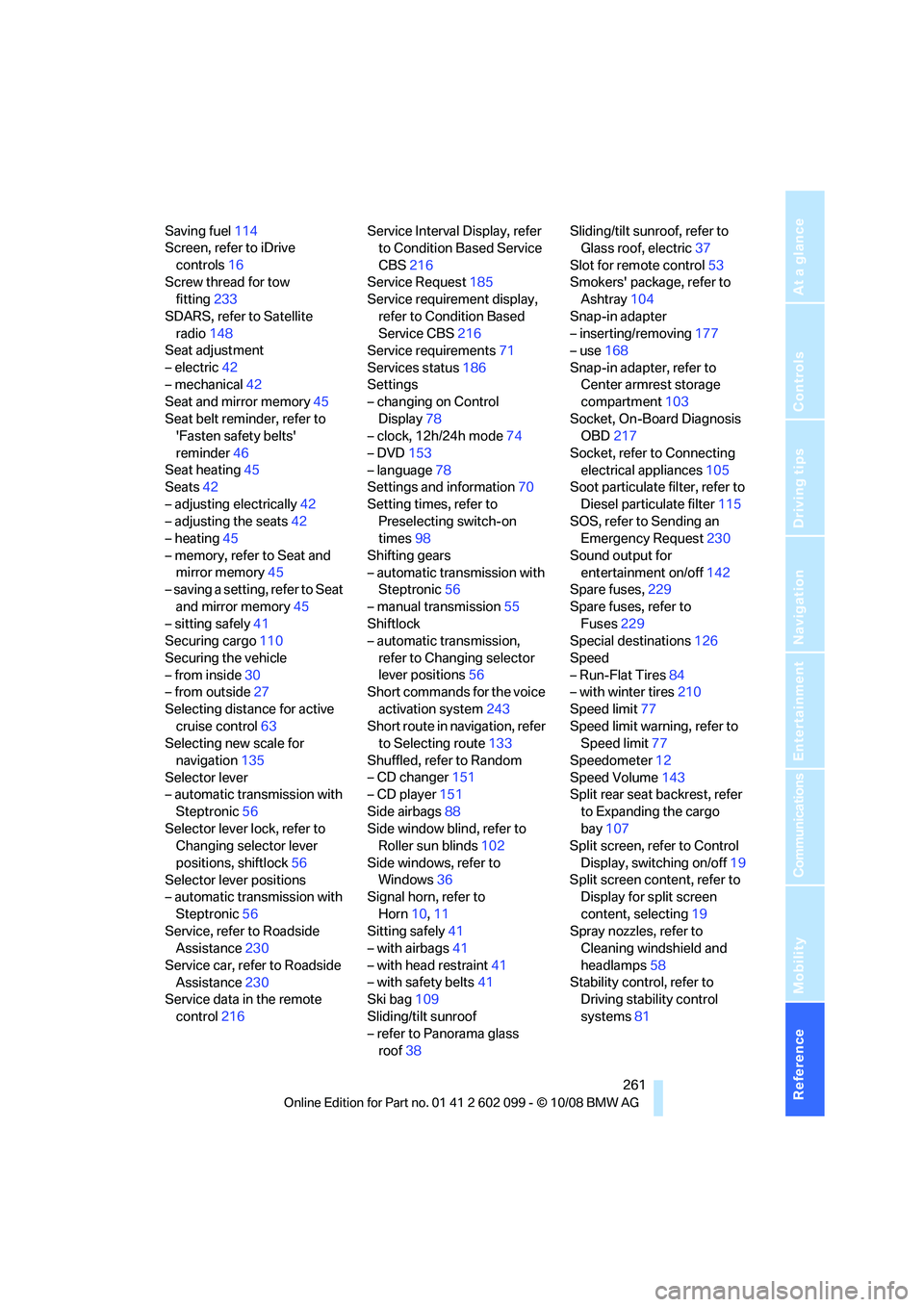

Saving fuel114
Screen, refer to iDrive
controls 16
Screw thread for tow fitting 233
SDARS, refer to Satellite radio 148
Seat adjustment
– electric 42
– mechanical 42
Seat and mirror memory 45
Seat belt reminder, refer to 'Fasten safety belts'
reminder 46
Seat heating 45
Seats 42
– adjusting electrically 42
– adjusting the seats 42
– heating 45
– memory, refer to Seat and mirror memory 45
– saving a setting, refer to Seat
and mirror memory 45
– sitting safely 41
Securing cargo 110
Securing the vehicle
– from inside 30
– from outside 27
Selecting distance for active cruise control 63
Selecting new scale for
navigation 135
Selector lever
– automatic transmission with
Steptronic 56
Selector lever lock, refer to Changing selector lever
positions, shiftlock 56
Selector lever positions
– automatic transmission with
Steptronic 56
Service, refer to Roadside Assistance 230
Service car, refer to Roadside Assistance 230
Service data in the remote
control 216 Service Interval Display, refer
to Condition Based Service
CBS 216
Service Request 185
Service requirement display,
refer to Condition Based
Service CBS 216
Service requirements 71
Services status 186
Settings
– changing on Control
Display 78
– clock, 12h/24h mode 74
– DVD 153
– language 78
Settings and information 70
Setting times, refer to Preselecting switch-on
times 98
Shifting gears
– automatic transmission with
Steptronic 56
– manual

transmission 55
Shiftlock
– automatic transmission,
refer to Changing selector
lever positions 56
Short commands for the voice
activation system 243
Short route in navigation, refer to Selecting route 133
Shuffled, refer to Random
– CD changer 151
– CD player 151
Side airbags 88
Side window blind, refer to Roller sun blinds 102
Side windows, refer to Windows 36
Signal horn, refer to
Horn 10,11
Sitting safely 41
– with airbags 41
– with head restraint 41
– with safety belts 41
Ski bag 109
Sliding/tilt sunroof
– refer to Panorama glass roof 38 Sliding/tilt sunroof, refer to
Glass roof, electric 37
Slot for remote control 53
Smokers' package, refer to Ashtray 104
Snap-in adapter
– inserting/removing 177
– use 168
Snap-in adapter, refer to Center armrest storage
compartment 103
Socket, On-Board Diagnosis OBD 217
Socket, refer to Connecting electrical appliances 105
Soot particulate filter, refer to
Diesel particulate filter 115
SOS, refer to Sending an Emergency Request 230
Sound output for entertainment on/off 142
Spare fuses, 229
Spare fuses, refer to Fuses 229
Special destinations 126
Speed
– Run-Flat Tires 84
– with winter tires 210
Speed limit 77
Speed limit warning, refer to Speed limit 77
Speedometer 12
Speed Volume 143
Split rear seat backrest, refer
to Expanding the cargo
bay 10
7
Split screen, refer to Control
Display, switching on/off 19
Split screen content, refer to Display for split screen
content, selecting 19
Spray nozzles, refer to Cleaning windshield and
headlamps 58
Stability control, refer to Driving stability control
systems 81
ba8_E9091_cic.book Seite 261 Mittwoch, 29. Oktober 2008 2:59 14
