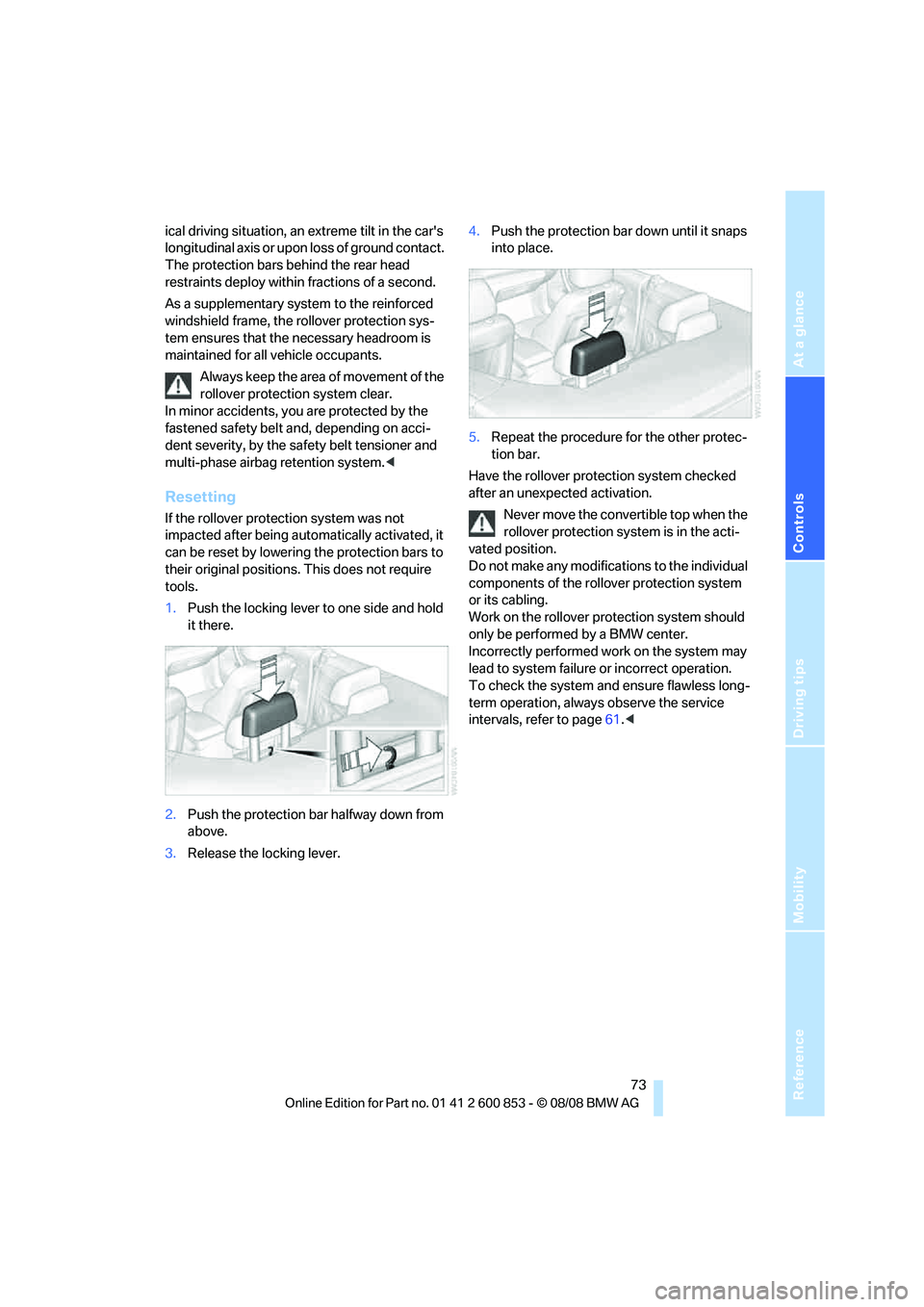

73
ical driving situation, an extreme tilt in the car's
longitudinal axis or upon loss of ground contact.
The protection bars behind the rear head
restraints deploy within fractions of a second.
As a supplementary system to the reinforced
windshield frame, the rollover protection sys-
tem ensures that the necessary headroom is
maintained for all vehicle occupants.
Always keep the area of movement of the
rollover protection system clear.
In minor accidents, you are protected by the
fastened safety belt and, depending on acci-
dent severity, by the safety belt tensioner and
multi-phase airbag retention system.<
Resetting
If the rollover protection system was not
impacted after being automatically activated, it
can be reset by lowering the protection bars to
their original positions. This does not require
tools.
1.Push the locking lever to one side and hold
it there.
2.Push the protection bar halfway down from
above.
3.Release the locking lever.4.Push the protection bar down until it snaps
into place.
5.Repeat the procedure for the other protec-
tion bar.
Have the rollover protection system checked
after an unexpected activation.
Never move the convertible top when the
rollover protection system is in the acti-
vated position.
Do not make any modifications to the individual
components of the rollover protection system
or its cabling.
Work on the rollover protection system should
only be performed by a BMW center.
Incorrectly performed work on the system may
lead to system failure or incorrect operation.
To check the system and ensure flawless long-
term operation, always observe the service
intervals, refer to page61.<

Reference
At a glance
Controls
Driving tips
Mobility

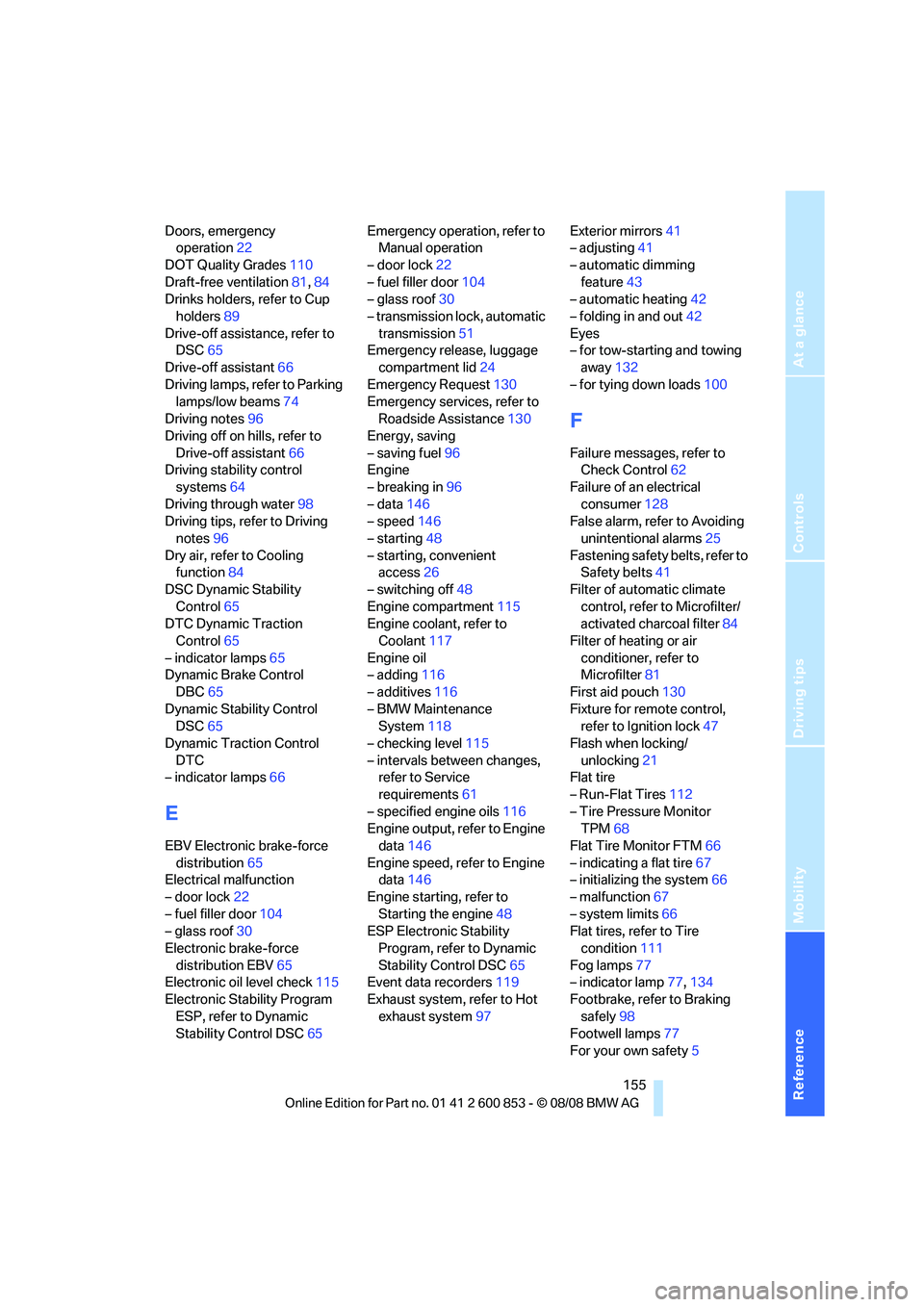

155
Doors, emergency
operation22
DOT Quality Grades110
Draft-free ventilation81,84
Drinks holders, refer to Cup
holders89
Drive-off assistance, refer to
DSC65
Drive-off assistant66
Driving lamps, refer to Parking
lamps/low beams74
Driving notes96
Driving off on hills, refer to
Drive-off assistant66
Driving stability control
systems64
Driving through water98
Driving tips, refer to Driving
notes96
Dry air, refer to Cooling
function84
DSC Dynamic Stability
Control65
DTC Dynamic Traction
Control65
– indicator lamps65
Dynamic Brake Control
DBC65
Dynamic Stability Control
DSC65
Dynamic Traction Control
DTC
– indicator lamps66
E
EBV Electronic brake-force
distribution65
Electrical malfunction
– door lock22
– fuel filler door104
– glass roof30
Electronic brake-force
distribution EBV65
Electronic oil level check115
Electronic Stability Program
ESP, refer to Dynamic
Stability Control DSC65Emergency operation, refer to
Manual operation
– door lock22
– fuel filler door104
– glass roof30
– transmission lock, automatic
transmission51
Emergency release, luggage
compartment lid24
Emergency Request130
Emergency services, refer to
Roadside Assistance130
Energy, saving
– saving fuel96
Engine
– breaking in96
– data146
– speed146
– starting48
– starting, convenient
access26
– switching off48
Engine compartment115
Engine coolant, refer to
Coolant117
Engine oil
– adding116
– additives116
– BMW Maintenance
System118
– checking level115
– intervals between changes,
refer to Service
requirements61
– specified engine oils116
Engine output, refer to Engine
data146
Engine speed, refer to Engine
data146
Engine starting, refer to
Starting the engine48
ESP Electronic Stability
Program, refer to Dynamic
Stability Control DSC65
Event data recorders119
Exhaust system, refer to Hot
exhaust system97Exterior mirrors41
– adjusting41
– automatic dimming
feature43
– automatic heating42
– folding in and out42
Eyes
– for tow-starting and towing
away132
– for tying down loads100
F
Failure messages, refer to
Check Control62
Failure of an electrical
consumer128
False alarm, refer to Avoiding
unintentional alarms25
Fastening safety belts, refer to
Safety belts41
Filter of automatic climate
control, refer to Microfilter/
activated charcoal filter84
Filter of heating or air
conditioner, refer to
Microfilter81
First aid pouch130
Fixture for remote control,
refer to Ignition lock47
Flash when locking/
unlocking21
Flat tire
– Run-Flat Tires112
– Tire Pressure Monitor
TPM68
Flat Tire Monitor FTM66
– indicating a flat tire67
– initializing the system66
– malfunction67
– system limits66
Flat tires, refer to Tire
condition111
Fog lamps77
– indicator lamp77,134
Footbrake, refer to Braking
safely98
Footwell lamps77
For your own safety5

Reference
At a glance
Controls
Driving tips
Mobility

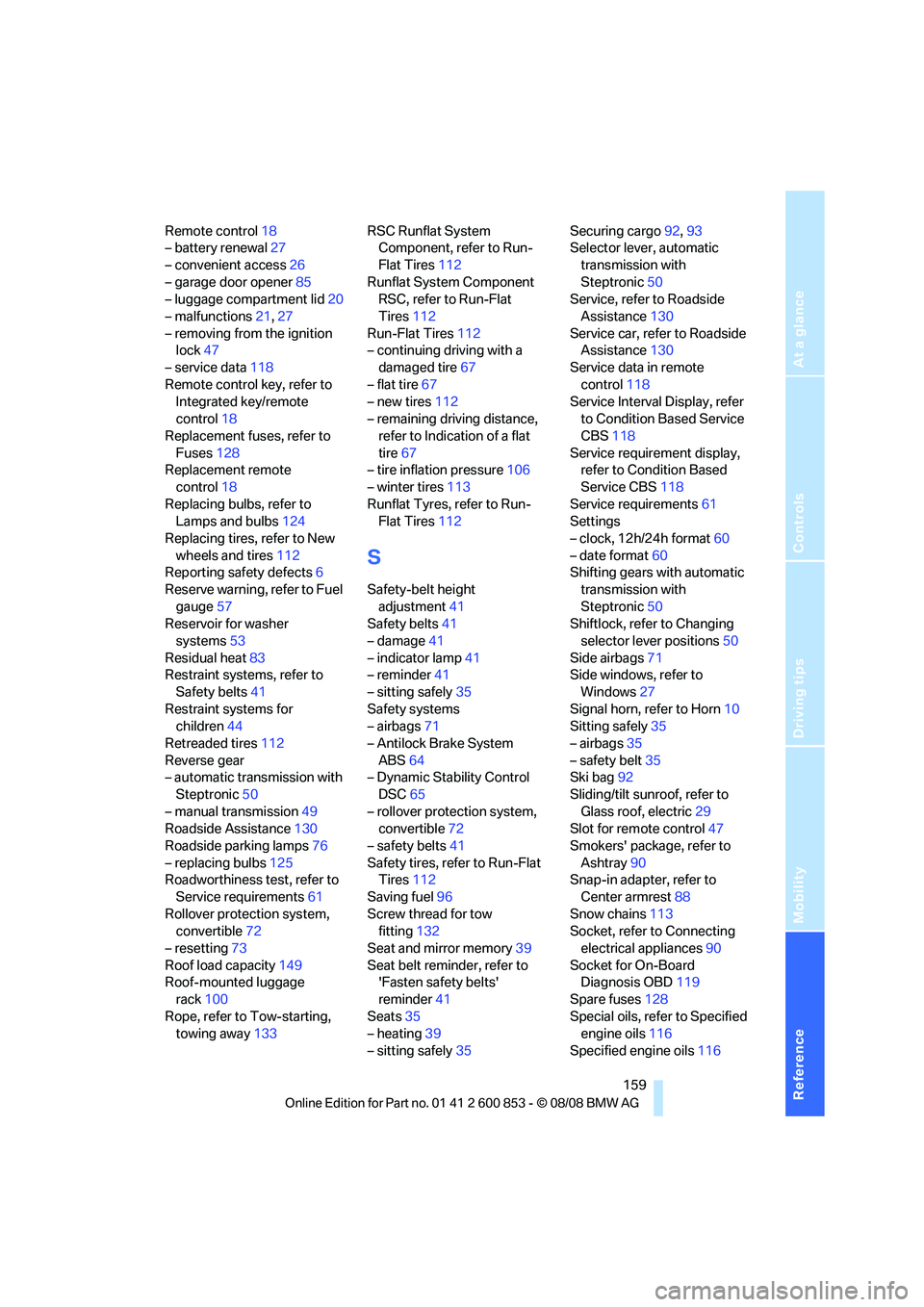

159
Remote control18
– battery renewal27
– convenient access26
– garage door opener85
– luggage compartment lid20
– malfunctions21,27
– removing from the ignition
lock47
– service data118
Remote control key, refer to
Integrated key/remote
control18
Replacement fuses, refer to
Fuses128
Replacement remote
control18
Replacing bulbs, refer to
Lamps and bulbs124
Replacing tires, refer to New
wheels and tires112
Reporting safety defects6
Reserve warning, refer to Fuel
gauge57
Reservoir for washer
systems53
Residual heat83
Restraint systems, refer to
Safety belts41
Restraint systems for
children44
Retreaded tires112
Reverse gear
– automatic transmission with
Steptronic50
– manual transmission49
Roadside Assistance130
Roadside parking lamps76
– replacing bulbs125
Roadworthiness test, refer to
Service requirements61
Rollover protection system,
convertible72
– resetting73
Roof load capacity149
Roof-mounted luggage
rack100
Rope, refer to Tow-starting,
towing away133RSC Runflat System
Component, refer to Run-
Flat Tires112
Runflat System Component
RSC, refer to Run-Flat
Tires112
Run-Flat Tires112
– continuing driving with a
damaged tire67
– flat tire67
– new tires112
– remaining driving distance,
refer to Indication of a flat
tire
67
– tire inflation pressure106
– winter tires113
Runflat Tyres, refer to Run-
Flat Tires112
S
Safety-belt height
adjustment41
Safety belts41
– damage41
– indicator lamp41
– reminder41
– sitting safely35
Safety systems
– airbags71
– Antilock Brake System
ABS64
– Dynamic Stability Control
DSC65
– rollover protection system,
convertible72
– safety belts41
Safety tires, refer to Run-Flat
Tires112
Saving fuel96
Screw thread for tow
fitting132
Seat and mirror memory39
Seat belt reminder, refer to
'Fasten safety belts'
reminder41
Seats35
– heating39
– sitting safely35Securing cargo92,93
Selector lever, automatic
transmission with
Steptronic50
Service, refer to Roadside
Assistance130
Service car, refer to Roadside
Assistance130
Service data in remote
control118
Service Interval Display, refer
to Condition Based Service
CBS118
Service requirement display,
refer to Condition Based
Service CBS118
Service requirements61
Settings
– clock, 12h/24h format60
– date format60
Shifting gears with automatic
transmission with
Steptronic50
Shiftlock, refer to Changing
selector lever positions50
Side airbags71
Side windows, refer to
Windows27
Signal horn, refer to Horn10
Sitting safely35
– airbags35
– safety belt35
Ski bag92
Sliding/tilt sunroof, refer to
Glass roof, electric
29
Slot for remote control47
Smokers' package, refer to
Ashtray90
Snap-in adapter, refer to
Center armrest88
Snow chains113
Socket, refer to Connecting
electrical appliances90
Socket for On-Board
Diagnosis OBD119
Spare fuses128
Special oils, refer to Specified
engine oils116
Specified engine oils116
