Technology for driving comfort and safety

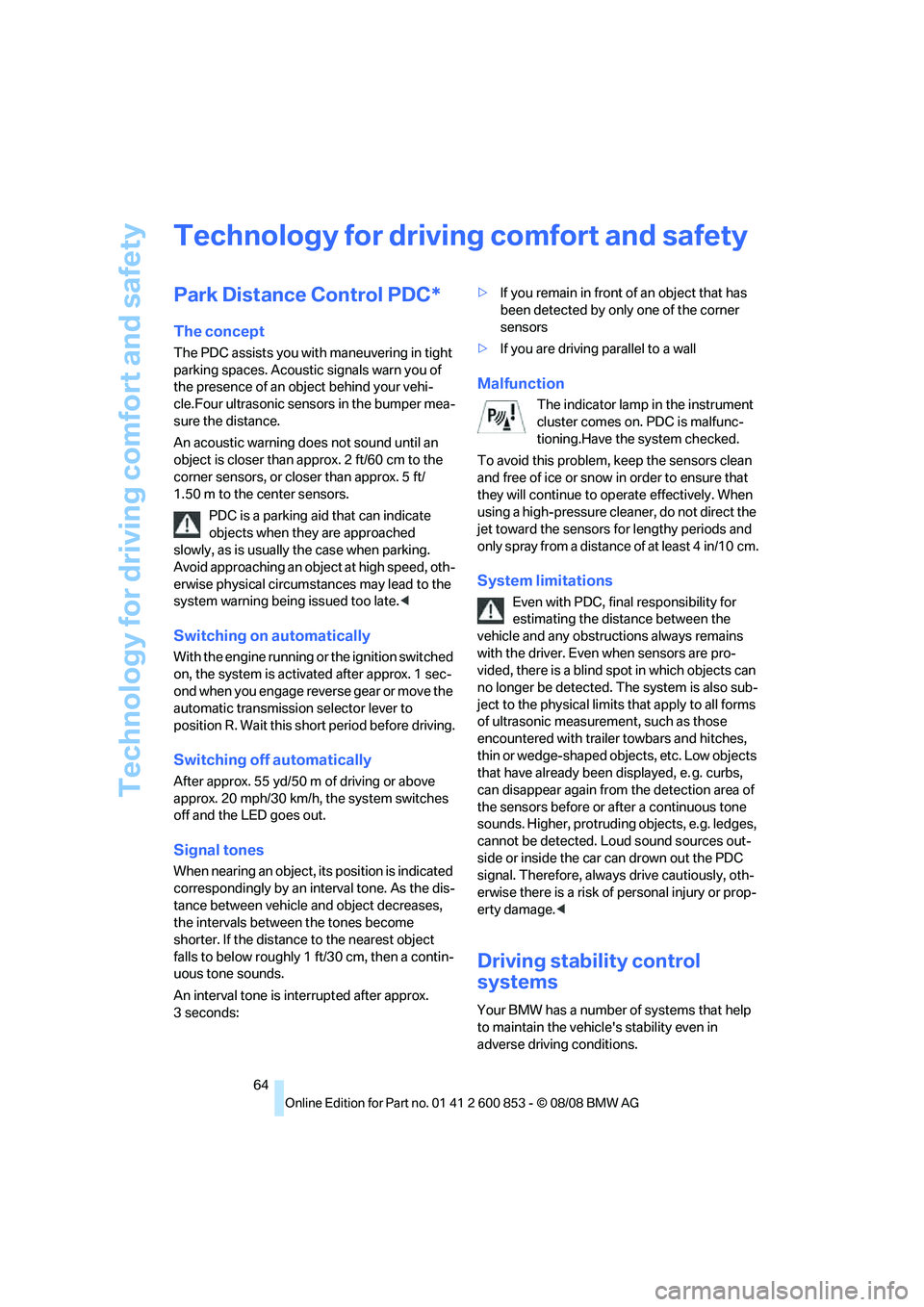

64
Technology for driving comfort and safety
Park Distance Control PDC*
The concept
The PDC assists you with maneuvering in tight
parking spaces. Acoustic signals warn you of
the presence of an object behind your vehi-
cle.Four ultrasonic sensors in the bumper mea-
sure the distance.
An acoustic warning does not sound until an
object is closer than approx. 2 ft/60 cm to the
corner sensors, or closer than approx. 5 ft/
1.50 m to the center sensors.
PDC is a parking aid that can indicate
objects when they are approached
slowly, as is usually the case when parking.
Avoid approaching an object at high speed, oth-
erwise physical circumstances may lead to the
system warning being issued too late.<
Switching on automatically
With the engine running or the ignition switched
on, the system is activated after approx. 1 sec-
ond when you engage reverse gear or move the
automatic transmission selector lever to
position R. Wait this short period before driving.
Switching off automatically
After approx. 55 yd/50 m of driving or above
approx. 20 mph/30 km/h, the system switches
off and the LED goes out.
Signal tones
When nearing an object, its position is indicated
correspondingly by an interval tone. As the dis-
tance between vehicle and object decreases,
the intervals between the tones become
shorter. If the distance to the nearest object
falls to below roughly 1 ft/30 cm, then a contin-
uous tone sounds.
An interval tone is interrupted after approx.
3seconds:>If you remain in front of an object that has
been detected by only one of the corner
sensors
>If you are driving parallel to a wall
Malfunction
The indicator lamp in the instrument
cluster comes on. PDC is malfunc-
tioning.Have the system checked.
To avoid this problem, keep the sensors clean
and free of ice or snow in order to ensure that
they will continue to operate effectively. When
using a high-pressure cleaner, do not direct the
jet toward the sensors for lengthy periods and
only spray from a distance of at least 4 in/10 cm.
System limitations
Even with PDC, final responsibility for
estimating the distance between the
vehicle and any obstructions always remains
with the driver. Even when sensors are pro-
vided, there is a blind spot in which objects can
no longer be detected. The system is also sub-
ject to the physical limits that apply to all forms
of ultrasonic measurement, such as those
encountered with trailer towbars and hitches,
thin or wedge-shaped objects, etc. Low objects
that have already been displayed, e. g. curbs,
can disappear again from the detection area of
the sensors before or after a continuous tone
sounds. Higher, protruding objects, e.g. ledges,
cannot be detected. Loud sound sources out-
side or inside the car can drown out the PDC
signal. Therefore, always drive cautiously, oth-
erwise there is a risk of personal injury or prop-
erty damage.<
Driving stability control
systems
Your BMW has a number of systems that help
to maintain the vehicle's stability even in
adverse driving conditions.
Reference
At a glance
Controls
Driving tips
Mobility

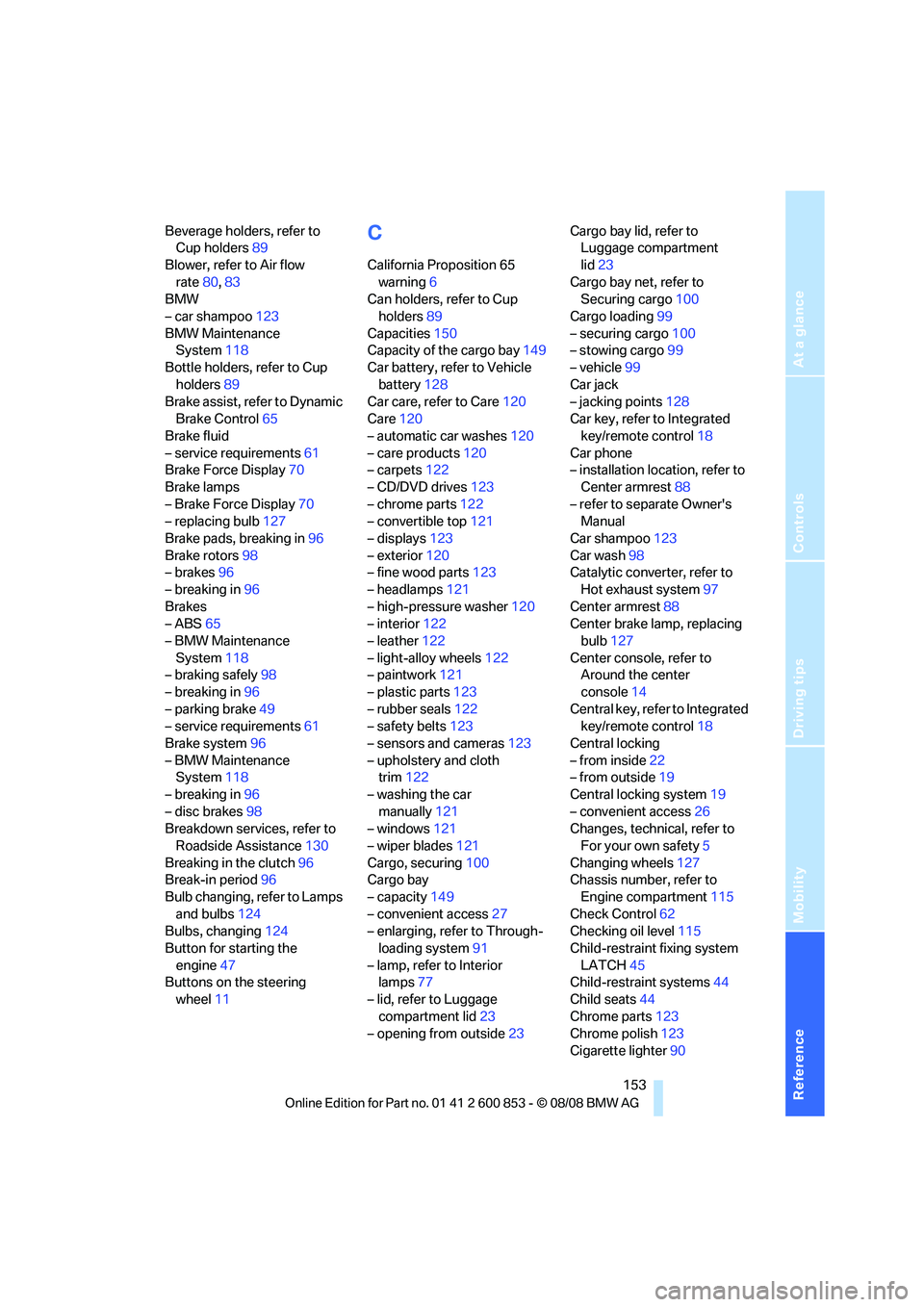

153
Beverage holders, refer to
Cup holders89
Blower, refer to Air flow
rate80,83
BMW
– car shampoo123
BMW Maintenance
System118
Bottle holders, refer to Cup
holders89
Brake assist, refer to Dynamic
Brake Control65
Brake fluid
– service requirements61
Brake Force Display70
Brake lamps
– Brake Force Display70
– replacing bulb127
Brake pads, breaking in96
Brake rotors98
– brakes96
– breaking in96
Brakes
– ABS65
– BMW Maintenance
System118
– braking safely98
– breaking in96
– parking brake49
– service requirements61
Brake system96
– BMW Maintenance
System118
– breaking in96
– disc brakes98
Breakdown services, refer to
Roadside Assistance130
Breaking in the clutch96
Break-in period96
Bulb changing, refer to Lamps
and bulbs124
Bulbs, changing124
Button for starting the
engine47
Buttons on the steering
wheel11C
California Proposition 65
warning6
Can holders, refer to Cup
holders89
Capacities150
Capacity of the cargo bay149
Car battery, refer to Vehicle
battery128
Car care, refer to Care120
Care120
– automatic car washes120
– care products120
– carpets122
– CD/DVD drives123
– chrome parts122
– convertible top121
– displays123
– exterior120
– fine wood parts123
– headlamps121
– high-pressure washer120
– interior122
– leather122
– light-alloy wheels122
– paintwork121
– plastic parts123
– rubber seals122
– safety belts123
– sensors and cameras123
– upholstery and cloth
trim122
– washing the car
manually121
– windows121
– wiper blades121
Cargo, securing100
Cargo bay
– capacity149
– convenient access27
– enlarging, refer to Through-
loading system91
– lamp, refer to Interior
lamps77
– lid, refer to Luggage
compartment lid23
– opening from outside23Cargo bay lid, refer to
Luggage compartment
lid23
Cargo bay net, refer to
Securing cargo100
Cargo loading99
– securing cargo100
– stowing cargo99
– vehicle99
Car jack
– jacking points128
Car key, refer to Integrated
key/remote control
18
Car phone
– installation location, refer to
Center armrest88
– refer to separate Owner's
Manual
Car shampoo123
Car wash98
Catalytic converter, refer to
Hot exhaust system97
Center armrest88
Center brake lamp, replacing
bulb127
Center console, refer to
Around the center
console14
Central key, refer to Integrated
key/remote control18
Central locking
– from inside22
– from outside19
Central locking system19
– convenient access26
Changes, technical, refer to
For your own safety5
Changing wheels127
Chassis number, refer to
Engine compartment115
Check Control62
Checking oil level115
Child-restraint fixing system
LATCH45
Child-restraint systems44
Child seats44
Chrome parts123
Chrome polish123
Cigarette lighter90
