2009 Alfa Romeo Brera/Spider dashboard warning lights

246
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS– camber
front wheels: – caster
– half toe-in
16” rim (*)
17” rim (*)
18” rim (*)
– camber
Rear wheels:
– half toe-in
16” rim (*)
17” rim (*)
18” rim (*)
CORRECT USE
OF THE CAR

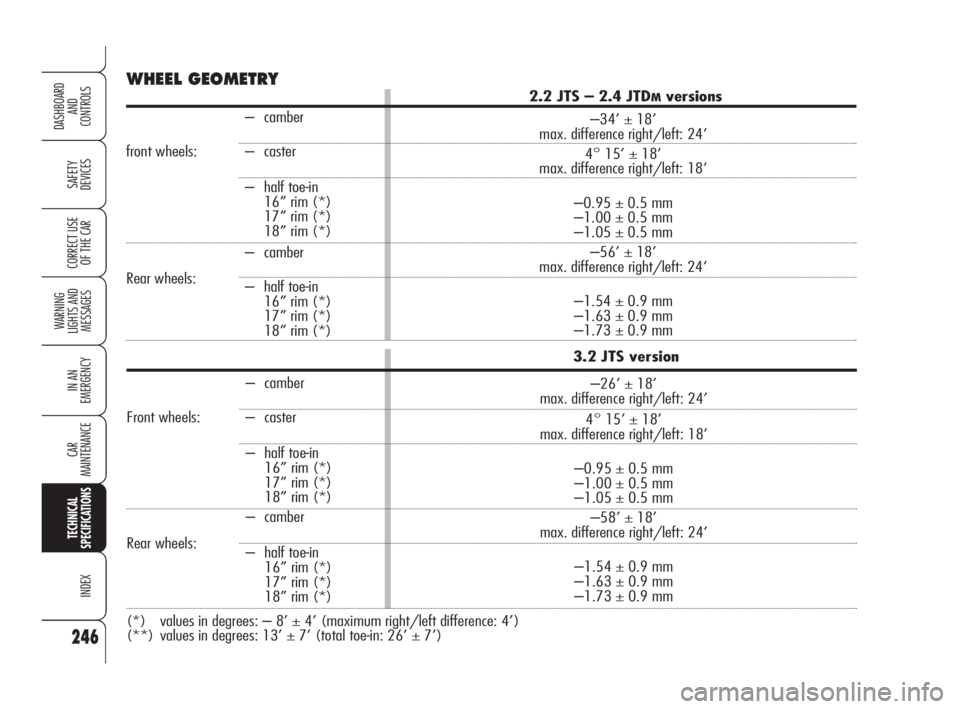

WHEEL GEOMETRY
2.2 JTS – 2.4 JTDMversions
–34’ ± 18’
max. difference right/left: 24’
4° 15’ ± 18’
max. difference right/left: 18’
–0.95 ± 0.5 mm
–1.00 ± 0.5 mm
–1.05 ± 0.5 mm
–56’ ± 18’
max. difference right/left: 24’
–1.54 ± 0.9 mm
–1.63 ± 0.9 mm
–1.73 ± 0.9 mm
3.2 JTS version
–26’ ± 18’
max. difference right/left: 24’
4° 15’ ± 18’
max. difference right/left: 18’
–0.95 ± 0.5 mm
–1.00 ± 0.5 mm
–1.05 ± 0.5 mm
–58’ ± 18’
max. difference right/left: 24’
–1.54 ± 0.9 mm
–1.63 ± 0.9 mm
–1.73 ± 0.9 mm
– camber
Front wheels: – caster
– half toe-in
16” rim (*)
17” rim (*)
18” rim (*)
– camber
Rear wheels:
– half toe-in
16” rim (*)
17” rim (*)
18” rim (*)
(*) values in degrees: – 8’ ± 4’ (maximum right/left difference: 4’)
(**) values in degrees: 13’ ± 7’ (total toe-in: 26’ ± 7’)
235-258 Alfa BRERA gb 28-08-2008 11:47 Pagina 246

247
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

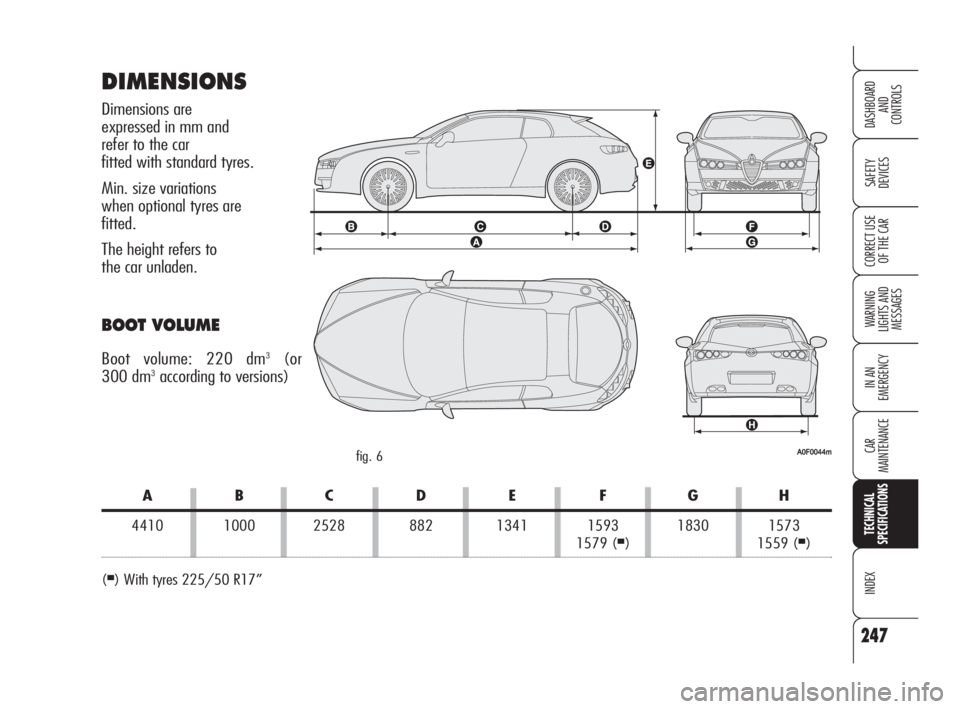

DIMENSIONS
Dimensions are
expressed in mm and
refer to the car
fitted with standard tyres.
Min. size variations
when optional tyres are
fitted.
The height refers to
the car unladen.
BOOT VOLUME
Boot volume: 220 dm3(or
300 dm3according to versions)
(■) With tyres 225/50 R17”
A0F0044mfig. 6
ABCDE FGH
4410 1000 2528 882 1341 1593 1830 1573
1579 (■) 1559 (■)
235-258 Alfa BRERA gb 28-08-2008 11:47 Pagina 247

248
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

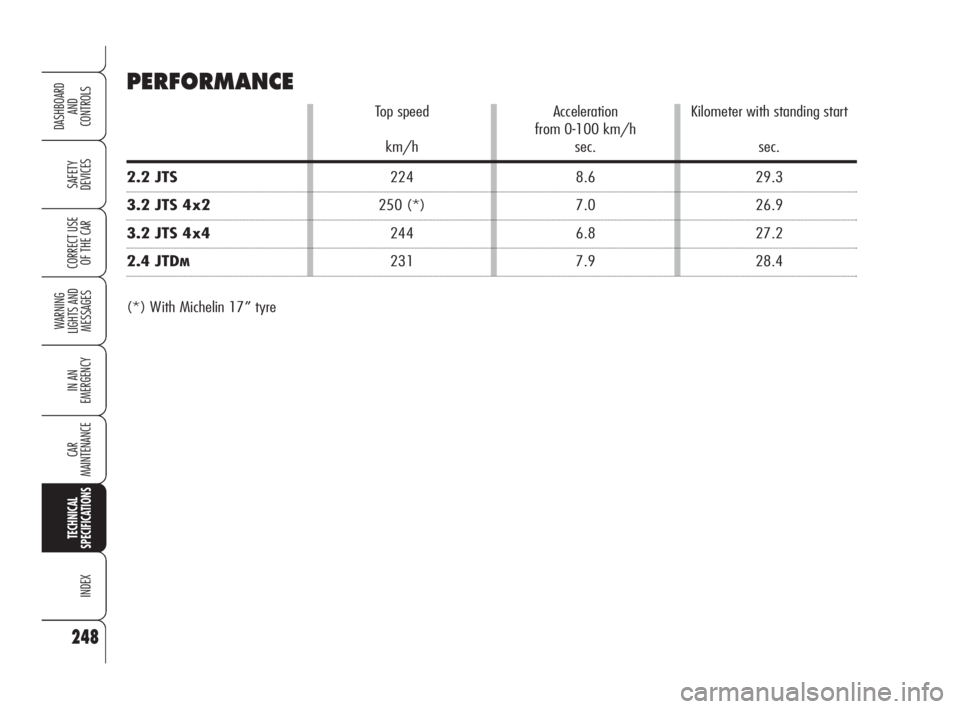

PERFORMANCE
Top speed Acceleration Kilometer with standing start
from 0-100 km/h
km/h sec. sec.
2.2 JTS224 8.6 29.3
3.2 JTS 4x2250 (*) 7.0 26.9
3.2 JTS 4x4244 6.8 27.2
2.4 JTDM231 7.9 28.4
(*) With Michelin 17” tyre
235-258 Alfa BRERA gb 28-08-2008 11:47 Pagina 248

249
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
WEIGHTS
2.4 JTDM
1575
1200
1050
2035
460
1500
60
80
2.2 JTS
1445
1100
1050
1905
460
1450
60
80
3.2 JTS 4x4
1605
1200
1050
2065
460
1500
60
80
3.2 JTS 4x2
1540
1200
1050
2000
460
1500
60
80
Weights (kg)
Weight empty (including fluids,
90% fuel in the tank and
no optional)
Maximum admitted load (*)
– front axle
– rear axle
– total
Payload including
driver (**)
Towable loads
Max. load
on ball
Max. load
on tailgate (***)
(*) Loads not to be exceeded. The driver is responsible for arranging the loads in the boot an/or on the roof so
that they comply with these limits.
(**) If special equipment is fitted (sunroof, tow hitch etc.) the unladen weight increases, thus reducing the payload as specified in the
maximum weight allowed.
(***) Lineaccessori Alfa Romeo roof racks, max. capacity: 50 kg.
235-258 Alfa BRERA gb 28-08-2008 11:47 Pagina 249

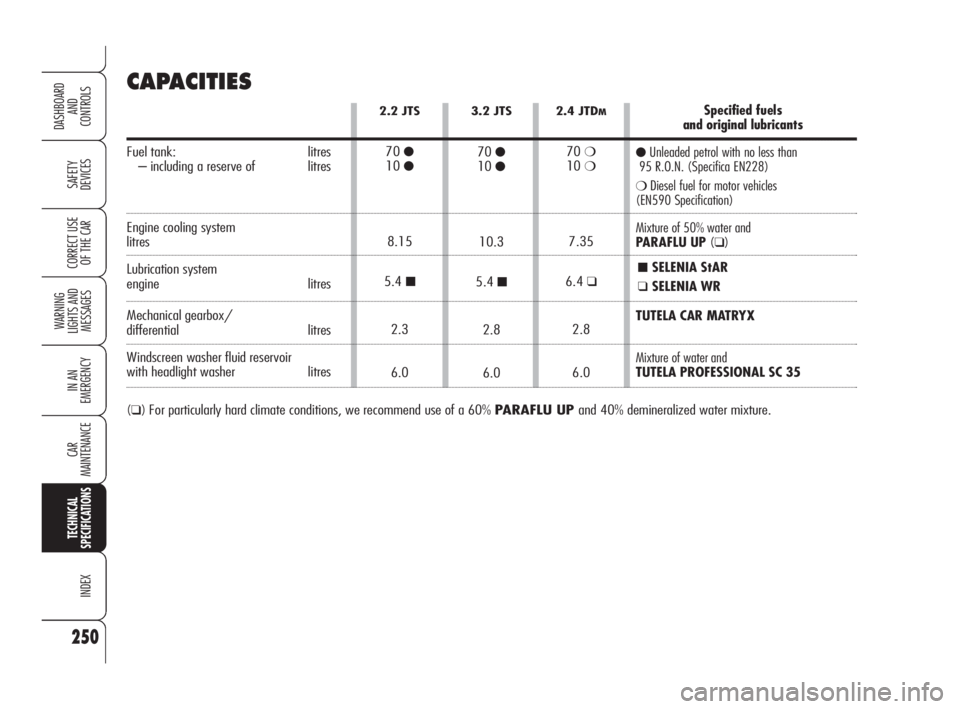

CAPACITIES
2.4 JTDM
70❍10❍
7.35
6.4
❑
2.8
6.0
2.2 JTS
70●10●
8.15
5.4
■
2.3
6.0
3.2 JTS
70●10●
10.3
5.4
■
2.8
6.0
Fuel tank: litres
– including a reserve of litres
Engine cooling systemlitres
Lubrication system
engine litres
Mechanical gearbox/
differential litres
Windscreen washer fluid reservoir
with headlight washer litres
250
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
Specified fuelsand original lubricants
●Unleaded petrol with no less than
95 R.O.N. (Specifica EN228)
❍Diesel fuel for motor vehicles
(EN590 Specification)
Mixture of 50% water and
PARAFLU UP (
❑)
■SELENIA StAR
❑SELENIA WR
TUTELA CAR MATRYX
Mixture of water and
TUTELA PROFESSIONAL SC 35
(
❑)For particularly hard climate conditions, we recommend use of a 60% PARAFLU UP and 40% demineralized water mixture.
235-258 Alfa BRERA gb 28-08-2008 11:47 Pagina 250

Synthetic-based oils, grade SAE 5W-40,
FIAT 9.55535-H2qualification
Synthetic-based oils, grade SAE 5W-40,
FIAT 9.55535-N2qualificationSELENIA StAR
Contractual Technical
Reference N° F216.D05
SELENIA WR
Contractual Technical
Reference N° F515.D06According to
Service Schedule
According to
Service Schedule
For diesel engines, in the event of emergencies when genuine products are not available, lubricants providing at least ACEA B4
performance are allowed; in that case, engine best performance is not guaranteed; we recommend to have it replaced as soon as
possible with the recommended lubricants by the Alfa Romeo Authorized Services.
Use of products with low-quality properties than ACEA A3 and ACEA B4 could cause damages to the engine that are not covered by the
warranty.
For very cold climate conditions, ask Alfa Romeo Authorized Service for the appropriate Seleniaproduct to use.
251
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

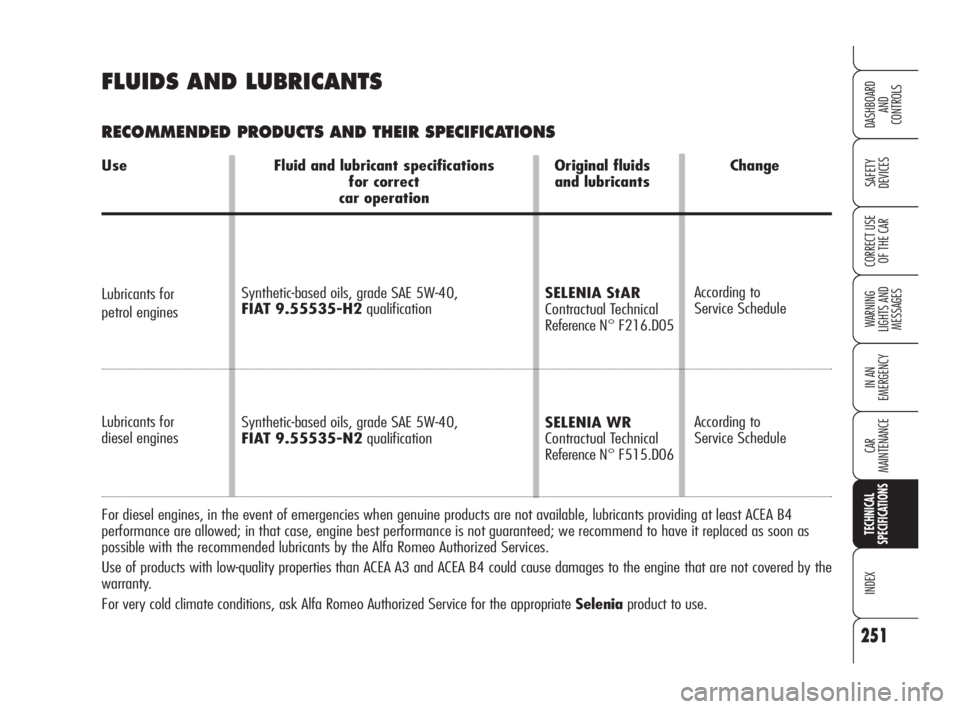

FLUIDS AND LUBRICANTS
RECOMMENDED PRODUCTS AND THEIR SPECIFICATIONS
Use Fluid and lubricant specifications Original fluids Change
for correct and lubricants
car operation
Lubricants for
petrol engines
Lubricants for
diesel engines
235-258 Alfa BRERA gb 28-08-2008 11:47 Pagina 251

252
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
TUTELA CAR
MATRYX
Contractual Technical
Reference N° F108.F02
TUTELA
MULTIAXLE
Contractual Technical
Reference N° F426.E06
TUTELA GI/EContractual Technical
Reference N° F001.C94
TUTELA ALL STARContractual Technical
Reference N° F702.G07
TUTELA STAR 700Contractual Technical
Reference N° F701.C07
TUTELA TOP 4Contractual Technical
Reference N° F001.A93
PARAFLU UP (●)Contractual Technical
Reference N° F101.M01
TUTELADIESEL ARTContractual Technical
Reference N° F601.L06
TUTELA
PROFESSIONAL SC 35
Contractual Technical
Reference N° F201.D02
Mechanical gearbox and
differential
Rear differential and
transmission unit
(3.2 JTS version)
Power steering
CV joints
on wheel side
CV joints
on differential side
Hydraulic brake and
clutch controls
Cooling circuits
Proportion:
50% water and
50%PARAFLU UP
(❑)
To be mixed with fuel oil
(25 cc per 10 litres)
To be used diluted or
undiluted in windscreen/
rear window washer/
wiper systems Brake fluid
Windscreen/
headlight washer
fluid
Use Fluid and lubricant specifications Original fluids Applications
for correct car operation and lubricants
Protective agent for
radiators Lubricants and
greases
for transmission
(●)IMPORTANTDo not top up or mix with fluids having different specifications from those described here.(❑)For particularly hard climate conditions, we recommend use of a 60% PARAFLU UP and 40% demineralized water mixture.
Additive for
diesel fuel
Synthetic-based oil, grade SAE 75W-85
Passes API GL 4 specifications.
QualificationFIAT 9.55550-MZ1
Synthetic-based oil, grade SAE 75W-90
Passes API GL-5, ZF-TE ML 18 specifications.
QualificationFIAT 9.55550-DA3
Lubricant for automatic transmissions that passes
"ATF DEXRON III" specification.
QualificationFIAT 9.55550-AG2.
Grease containing Molybdenum bisulphide for high temperature
appliances. N.L.G.I. 1-2 consistency.
QualificationFIAT 9.55580.
Grease for homokinetic joints with low friction coefficient.
NLGI 0-1 consistency.
QualificationFIAT 9.55580.
Synthetic fluid for Brake and clutch controls FMVSS n° 116
DOT 4, ISO 4925, SAE J1704, CUNA NC 956-01
QualificationFIAT 9.55597.
Protective with antifreeze action, red colour based on inhibited
monoethylen glycol and organic formula, that passes
CUNA NC 956-16, ASTM D 3306 specifications
QualificationFIAT 9.555523.
Additive for diesel fuels with protective action for Diesel engines
Mixture of alcohol, water and surfactants CUNA NC 956-11
QualificationFIAT 9.55522.
235-258 Alfa BRERA gb 28-08-2008 11:47 Pagina 252

253
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
–extra-urban cycle: frequent ac-
celerating in all gears, simulating ex-
traurban use of the car; the speed varies
between 0 and 120 km/h;
–combined consumption: is cal-
culated weighing about 37% of urban
cycle consumption and about 63% of
extraurban consumption.IMPORTANT The type of route,
traffic situations, weather condi-
tions, driving style, general con-
ditions of the car, trim level/
equipment/accessories, load, cli-
mate control system, roof rack,
other situations that affect air
drag may lead to different fuel
consumption levels than those
measured.FUEL CONSUMPTION
The fuel consumption figures given in
the table below are determined on the
basis of the homologation tests set
down by specific European Directives.
The procedures below are followed for
measuring consumption:
–urban cycle: cold starting followed
by driving that simulates urban use of
the car;
Fuel consumption according
to 2004/3/EC Directive Urban Extra-urban Combined
(litres x 100 km)
2.2 JTS12.7 7.2 9.2
3.2 JTS 4x216.4 7.9 11.0
3.2 JTS 4x416.7 8.3 11.4
2.4 JTDM9.2 5.4 6.8
