2009 Alfa Romeo 159 check engine

169
SAFETY
DEVICES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
WARNING
LIGHTS AND
MESSAGES
–Car heavy duty (e.g.: towing trail-
er uphill or fully laden car): decrease
speed, if the warning light stays on, stop
the car. Wait for 2 or 3 minutes leaving
the engine on and slightly accelerated to
further activate the circulation of the
coolant fluid, then switch the engine off.
IMPORTANTUnder severe use of the
car, keep the engine on and slightly ac-
celerated for few minutes before switch-
ing it off.ENGINE COOLANT
HIGH TEMPERATURE
(red)
Fitting the key into the ignition device,
the warning light (set on engine coolant
gauge) turns on but it shall go off after
a few seconds.
The warning light turns on (on certain
versions a dedicated message is dis-
played) to indicate engine overheating.
If the warning light comes on, proceed
as follows:
–Normal driving conditions: stop
the car, switch off the engine and check
whether the water level in the reservoir
is not below the MINmarl. Otherwise
wait for few seconds to allow engine
cooling, then open slowly and carefully
the cap, top up coolant and check
whether its level is falling between MIN
andMAXmarks in the reservoir. Check
visually any leak. If when restarting the
warning light comes on again, contact
Alfa Romeo Authorized Services.
u
With engine hot, do not
remove the cap: risk of
burnt.
WARNING
ENGINE OIL
HIGH TEMPERATURE
Fitting the key into the ignition
device, the warning light (set on engine
oil temperature gauge) turns on but it
should go off after a few seconds. Warn-
ing light turning on when travelling (on
certain versions together with the mes-
sage on the display) indicates that en-
gine oil is too hot; switch the engine off
and contact Alfa Romeo Authorized Ser-
vices.
If warning light `
starts flashing when
travelling contact Alfa
Romeo Authorized Services.
`
165-180 Alfa 159 GB 4-06-2008 9:42 Pagina 169

170
SAFETY
DEVICES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
WARNING
LIGHTS AND
MESSAGES
LOW ENGINE
OIL PRESSURE
EXHAUST OIL
(diesel versions)
Low engine oil pressure
On certain versions, fitting the key into
the ignition device, the warning light
turns on but it should go off as soon as
the engine has started.After the first indication, at each engine
starting the warning light
vwill go
on flashing for about 1 minute and then
every 2 hours until oil is changed.
LOW BATTERY
CHARGE (red)
The warning light (where pro-
vided) turns on, but it should go off as
soon as the engine has started (with the
engine running at idle speed a brief de-
lay in going out is allowed).
If the warning light (or as an alternative,
on certain versions, a symbol and a mes-
sage are displayed) stays on glowing
steadily or flashing contact immediate-
ly Alfa Romeo Authorized Services.
w
v
If the warning light
(or as an alternative,
on certain versions, a symbol
and a message are displayed)
comes on when travelling,
stop immediately and contact
Alfa Romeo Authorized Ser-
vices.
WARNING
If warning light v
starts flashing, contact
Alfa Romeo Authorized
Services as soon as possible to
have the engine oil changed and
the instrument panel (or symbol
von the display) switched
off.
Exhaust oil (diesel versions)
The warning light (where provided) with
turn on flashing (on certain versions a
message is displayed) when the system
detects that the engine oil is exhaust.
MINIMUM ENGINE
OIL LEVEL (RED)
When the electronic key is in-
serted into the starting device the dis-
play will show the engine oil level for
a few seconds.
On some versions the display will show
a message and a symbol if the engine
oil level is too low. In this case, top up
the engine oil to the correct level (see
“Checking fluid levels” in “Car mainte-
nance” chapter).
k
165-180 Alfa 159 GB 4-06-2008 9:42 Pagina 170

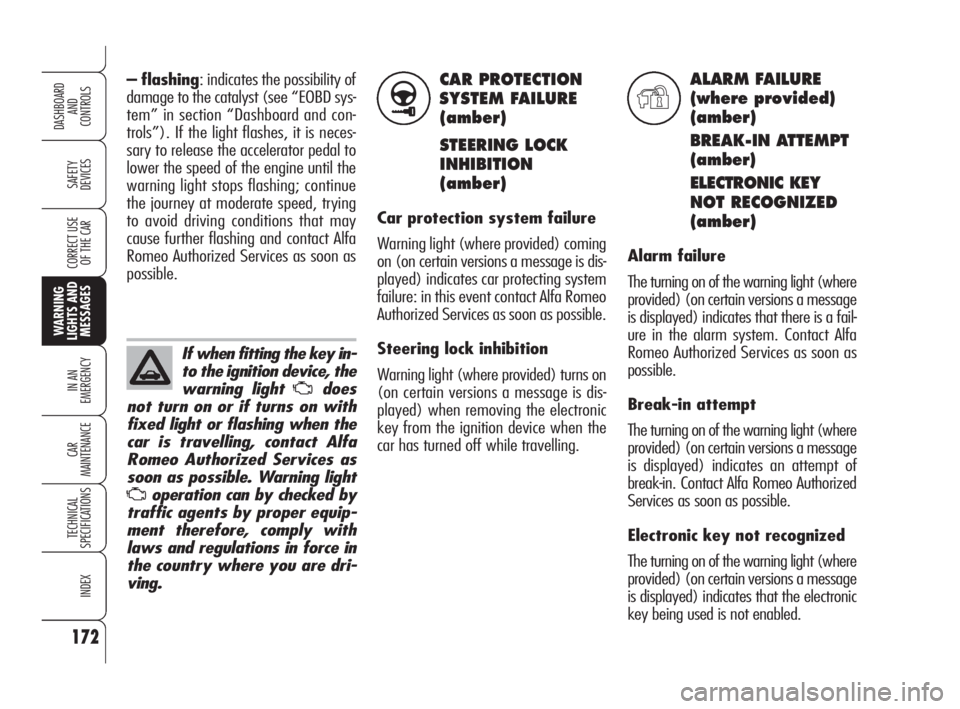

CAR PROTECTION
SYSTEM FAILURE
(amber)
STEERING LOCK
INHIBITION
(amber)
Car protection system failure
Warning light (where provided) coming
on (on certain versions a message is dis-
played) indicates car protecting system
failure: in this event contact Alfa Romeo
Authorized Services as soon as possible.
Steering lock inhibition
Warning light (where provided) turns on
(on certain versions a message is dis-
played) when removing the electronic
key from the ignition device when the
car has turned off while travelling.
ALARM FAILURE
(where provided)
(amber)
BREAK-IN ATTEMPT
(amber)
ELECTRONIC KEY
NOT RECOGNIZED
(amber)
Alarm failure
The turning on of the warning light (where
provided) (on certain versions a message
is displayed) indicates that there is a fail-
ure in the alarm system. Contact Alfa
Romeo Authorized Services as soon as
possible.
Break-in attempt
The turning on of the warning light (where
provided) (on certain versions a message
is displayed) indicates an attempt of
break-in. Contact Alfa Romeo Authorized
Services as soon as possible.
Electronic key not recognized
The turning on of the warning light (where
provided) (on certain versions a message
is displayed) indicates that the electronic
key being used is not enabled. – flashing: indicates the possibility of
damage to the catalyst (see “EOBD sys-
tem” in section “Dashboard and con-
trols”). If the light flashes, it is neces-
sary to release the accelerator pedal to
lower the speed of the engine until the
warning light stops flashing; continue
the journey at moderate speed, trying
to avoid driving conditions that may
cause further flashing and contact Alfa
Romeo Authorized Services as soon as
possible.
172
SAFETY
DEVICES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
WARNING
LIGHTS AND
MESSAGES
If when fitting the key in-
to the ignition device, the
warning light
Udoes
not turn on or if turns on with
fixed light or flashing when the
car is travelling, contact Alfa
Romeo Authorized Services as
soon as possible. Warning light
Uoperation can by checked by
traffic agents by proper equip-
ment therefore, comply with
laws and regulations in force in
the country where you are dri-
ving.
>Y
165-180 Alfa 159 GB 4-06-2008 9:42 Pagina 172

175
SAFETY
DEVICES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
WARNING
LIGHTS AND
MESSAGES
EBD SYSTEM
FAILURE
(red)
(amber)
With the engine running the
turning on at the same time of
the
>andxwarning lights (on cer-
tain versions together with the message
on the display) indicates that the EBD
system is inefficient; in this case heavy
braking may cause the rear wheels to
lock before time, with the possibility of
skidding.
Drive with the utmost care to the near-
est Alfa Romeo Authorized Service to
have the system checked.
VDC SYSTEM
(where provided)
(amber)
Fitting the key into the ignition device
the warning light turns on, but it should
go off after few seconds.
The warning light flashes when the VDC
cuts in, to alert the driver that the sys-
tem is adapting to the road surface grip
conditions.
VDC deactivation
When the VDC is deactivated manually
(pressing the ASR/VDC button for 2 sec-
onds) (see paragraph “VDC system” in
section “Dashboard and controls”) the
instrument panel warning light turns on
(on certain versions a message is dis-
played).
VDC failure
In case of failure, the VDC system will
deactivate automatically and the in-
strument panel warning light
áwill turn
on glowing steadily (on certain versions
a message will also be displayed). In
this case contact Alfa Romeo Authorized
Services as soon as possible.
ABS SYSTEM
FAILURE (amber)
Fitting the key into the ignition
device the warning light turns on, but
it should go off after few seconds.
The warning light turns on (on certain
versions a dedicated message is dis-
played) when the system is inefficient.
In this case the braking system keeps
its effectiveness unchanged, but without
the potential offered by the ABS system.
Drive carefully and contact Alfa Romeo
Authorized Services as soon as possible.
>
>
xá
165-180 Alfa 159 GB 4-06-2008 9:42 Pagina 175

185
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
IN AN
EMERGENCY
Please note:
❒the jack weight is 1.76 kg;
❒the jack requires no adjustment;
❒the jack cannot be repaired. If it
breaks it must be replaced with a
new jack;
❒no tool other than its cranking device
may be fitted on the jack.To change a wheel proceed as follows:
❒Stop the car in a position that is not
dangerous for oncoming traffic where
you can change the wheel safely. The
ground should be flat and adequate-
ly firm;
❒Turn the engine off, pull up the hand-
brake and engage first gear or re-
verse;
❒Using handle A-fig. 2, lift the stiff
coverBand secure it as shown in
fig. 3;
Never tamper with the
inflation valve. Never
place tools between the rim
and tyre. Check and restore, if
required, the pressure of tyres
and spare wheel to the values
given in section “Technical
Specifications”.
WARNING
A0E0132mfig. 2A0E0133mfig. 3
181-222 Alfa 159 GB 4-06-2008 9:43 Pagina 185

193
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
IN AN
EMERGENCY
❒after reaching the tyre pressure spec-
ified in paragraph “Wheels” in sec-
tion “Technical Specifications”, start
driving immediately;
❒if after 5 minutes it is still impossi-
ble to reach at least 1.5 bar, disen-
gage compressor from valve and cur-
rent outlet, then move the car forth
for approx. 10 metres in order to dis-
tribute the sealing fluid inside the tyre
evenly, then repeat the inflation op-
eration;
❒If after this operation it is still im-
possible after 5 minutes to reach at
least 1.8 bar, do start driving since
the tyre is excessively damaged and
the quick tyre repair kit cannot guar-
antee suitable sealing, contact Alfa
Romeo Authorized Services;
❒make sure the compressor switch A-
fig. 19is set to 0(off), start the
engine and fit plug A-fig. 20into
the outlet/cigar lighter on the front
console and then turn on the com-
pressor by setting switch A-fig. 19
toI(on);
❒Inflate the tyre to the pressure speci-
fied in paragraph “Wheels” in section
“Technical Specifications”. Check tyre
pressure on gauge B-fig. 19 with
compressor off to obtain precise read-
ing;
A0E0213mfig. 19A0E0217mfig. 20Apply the sticker in a
visible position for the
driver to indicate that the tyre
has been treated with the
quick tyre repair kit. Drive
carefully especially when cor-
nering and do not exceed 80
km/h. Avoid heavy braking
and accelerating.
WARNING
❒after driving for about 10 minutes
stop and check again the tyre pres-
sure;pull up the handbrake;
181-222 Alfa 159 GB 4-06-2008 9:43 Pagina 193

194
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
IN AN
EMERGENCY
You shall absolutely
communicate that the
tyre has been repaired with
the quick tyre repair kit. Hand
the instruction brochure to the
personnel charged with treat-
ing the tyre repaired with the
kit.
WARNING
A0E0215mfig. 21A0E0216mfig. 22
CHECKING AND RESTORING
PRESSURE ONLY
The compressor can be also used just for
restoring pressure.
Disconnect the quick connectionA-fig.
21and connect it directly to the tyre
valvefig. 22; in this way the cylinder
is not connected to compressor and the
sealing fluid will not flow into the tyre.
If pressure falls below
1.8 bar, stop the car
since the tyre is excessively
damaged and the quick tyre
repair kit Fix & Go automatic
cannot guarantee suitable
sealing, contact Alfa Romeo
Authorized Services.
WARNING
❒if at least 1.8 bar pressure is read, re-
store proper pressure (with engine
running and handbrake on) and
restart;
❒drive with the utmost care to the
nearest Alfa Romeo Authorized
Service.
181-222 Alfa 159 GB 4-06-2008 9:43 Pagina 194

225
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
INDEX
CORRECT USE
OF THE CAR
DASHBOARD
AND
CONTROLS
CAR
MAINTENANCE
35 70 105 140 175
●●●●●
●●●●●
●●●●●
●●●●●
●●●●●
●●●●●
●●●●●
●●●●●
●●●●●
●●●
●●
●
●
SERVICE SCHEDULE
Thousands of km
Check tyre conditions/wear and adjust pressure if required
Check light system operation (headlights, direction indicators, hazard lights,
boot lights, passenger compartment lights, glovebox lights, warning lights, etc.)
Check windscreen wiper/washer operation,adjust nozzles if required
Check windscreen/rear window blade position/wear
Check front disk brake pad conditions and wear and wear indicator operation
Check rear disk brake pad conditions and wear
Sight inspect the conditions of: body external parts, underbody protection,
pipes and hoses (exhaust - fuel - brakes), rubber parts
(boots, sleeves, bushes, etc.)
Check cleanness of locks, bonnet and boot and lever cleanness
and lubrication
Check and top up, if required, fluid levels (brakes/hydraulic clutch,
power steering, windscreen washer, battery, engine coolant, etc.)
Check and adjust handbrake lever stroke
Sight inspect accessory drive belt conditions (except 1.8 version)
Sight inspect accessory drive belt conditions (1.8 version)
Sight inspect timing belt conditions (1.8 version)
223-248 Alfa 159 GB 4-06-2008 9:44 Pagina 225
