ENGINE STARTING ............................................. 150
PARKING.......................................................... 155
USING THE GEARBOX......................................... 156
CONTAINING RUNNING COSTS ............................. 157
TOWING TRAILERS............................................. 159
SNOW TYRES................................................... 162
SNOW CHAINS................................................. 163
CAR INACTIVITY ............................................... 164
149-164 Alfa 159 GB 4-06-2008 9:42 Pagina 149

150
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CARWe recommend that
during the initial period
you do not drive to full
car performance (e.g.: excessive
acceleration, long journeys at
top speed, sharp braking, etc.).
Running the engine in
confined areas is ex-
tremely dangerous. The engine
consumes oxygen and pro-
duces carbon monoxide which
is a highly toxic and lethal gas.
WARNING
When the engine is
switched off never leave
the electronic key into the
ignition device to prevent point-
less current absorption from
draining the batter.ENGINE STARTING
The car is fitted with an electronic engine
immobilising system. If the engine fails
to start, see paragraph “Alfa Romeo
CODE system” in section “Dashboard
and controls”.
IMPORTANTTampering with the ig-
nition device can cause unrequired steer-
ing lock.
IMPORTANT Fit completely the elec-
tronic key into the ignition device until
it locks into place.IMPORTANT Never take the elec-
tronic key out of the ignition device while
the car is moving unless you have to car-
ry out an emergency removal (see para-
graph “Removing the electronic key from
the ignition device in an emergency”),
this ensures that the steering column lock
is deactivated while the car is moving
(e.g.: towing the car).
149-164 Alfa 159 GB 4-06-2008 9:42 Pagina 150

151
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
STARTING PROCEDURE FOR
PETROL VERSIONS
Proceed as follows:
❒ Ensure that the handbrake is up;
❒ Fully press the clutch pedal, without
pressing the accelerator;
❒Put the gear lever neutral;
❒Fit the electronic key into the ignition
device to stop limit;
❒Briefly press the START/STOPbut-
ton.
STARTING PROCEDURE FOR
DIESEL VERSIONS
Proceed as follows:
❒Ensure that the handbrake is up;
❒Fully press the clutch pedal, without
pressing the accelerator;
❒Put the gear lever neutral;
❒fit the electronic key down into the
ignition device until it stops. The in-
strument panel warning light
m
will turn on;
❒Wait for the warning light mto
turn off. The hotter the engine is, the
quicker this will happen;
❒Briefly press the START/STOPbut-
ton as soon as the warning light
m
turns on. Waiting for too long means
making spark plugs heating useless. The starter automatically operates until
the engine starts.
With engine off and electronic key in-
serted in the ignition device, it is possible
to operate the automatic ignition briefly
pressing the START/STOPbutton and
keeping the clutch pedal pressed.
IMPORTANTIt is possible to start the
engine keeping pressed only the brake
pedal. In that case, automatic start is not
enabled. Then press the START/STOP
button and release it as soon as the en-
gine starts.
149-164 Alfa 159 GB 4-06-2008 9:42 Pagina 151

152
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
The starter automatically operates until
the engine starts.
With engine off and electronic key in-
serted in the ignition device, it is possi-
ble to operate the automatic ignition
briefly pressing the START/STOPbut-
ton and keeping the clutch pedal
pressed.
In the event of cold weather, we rec-
ommend to wait for warning light
m
turn off before operating the starter.
IMPORTANTIt is possible to start the
engine keeping pressed only the brake
pedal. In that case, automatic start is not
enabled. Then press the START/STOP
button and release it as soon as the en-
gine starts.IMPORTANT
If at start-up the engine turns off, restart
it by pressing the clutch or brake pedal
and then press button START/STOP.
If after a few attempts the engine does
not start, do not insist but contact Alfa
Romeo Authorized Services.
With car started the electronic key is
locked into the ignition device and it can
be removed only after switching the en-
gine off. With car running and key
locked into the ignition device, forced
key removal could damage the ignition
device.Start-up failures, if any, are indicated by
the turning on of the warning light
Y
on the instrument panel (on certain ver-
sions a dedicated message is displayed).
In this case contact Alfa Romeo Autho-
rized Services.
If the engine will not start after pressing
buttonSTART/STOP, repeat the
start-up procedure by pressing the oth-
er pedal (clutch or brake).
149-164 Alfa 159 GB 4-06-2008 9:42 Pagina 152

153
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR

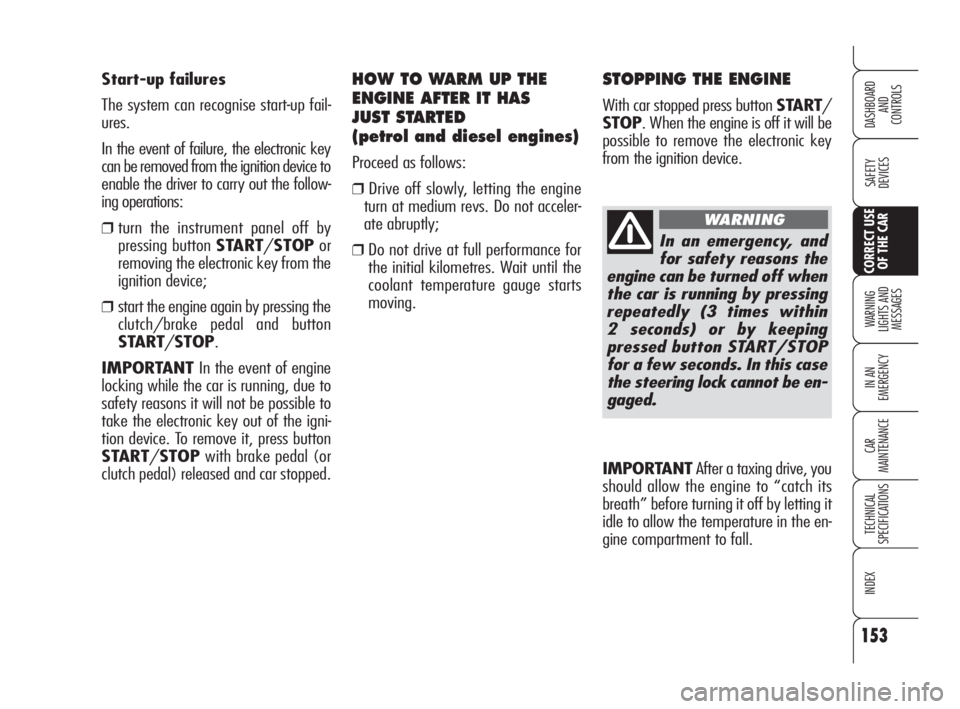

Start-up failures
The system can recognise start-up fail-
ures.
In the event of failure, the electronic key
can be removed from the ignition device to
enable the driver to carry out the follow-
ing operations:
❒turn the instrument panel off by
pressing button START/STOPor
removing the electronic key from the
ignition device;
❒start the engine again by pressing the
clutch/brake pedal and button
START/STOP.
IMPORTANT In the event of engine
locking while the car is running, due to
safety reasons it will not be possible to
take the electronic key out of the igni-
tion device. To remove it, press button
START/STOPwith brake pedal (or
clutch pedal) released and car stopped.
HOW TO WARM UP THE
ENGINE AFTER IT HAS
JUST STARTED
(petrol and diesel engines)
Proceed as follows:
❒Drive off slowly, letting the engine
turn at medium revs. Do not acceler-
ate abruptly;
❒Do not drive at full performance for
the initial kilometres. Wait until the
coolant temperature gauge starts
moving.
IMPORTANTAfter a taxing drive, you
should allow the engine to “catch its
breath” before turning it off by letting it
idle to allow the temperature in the en-
gine compartment to fall.
STOPPING THE ENGINE
With car stopped press button START/
STOP. When the engine is off it will be
possible to remove the electronic key
from the ignition device.
In an emergency, and
for safety reasons the
engine can be turned off when
the car is running by pressing
repeatedly (3 times within
2 seconds) or by keeping
pressed button START/STOP
for a few seconds. In this case
the steering lock cannot be en-
gaged.
WARNING
149-164 Alfa 159 GB 4-06-2008 9:42 Pagina 153

154
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
IMPORTANTTurning the car off will
deactivate the electronic safety systems
and turn off the external lights.
IMPORTANTIn the event of engine
locking while the car is running, due to
safety reasons it will not be possible to
take the electronic key out of the igni-
tion device. To remove it, turn the in-
strument panel on and off by pressing
buttonSTART/STOPwith brake ped-
al (and clutch pedal) released and car

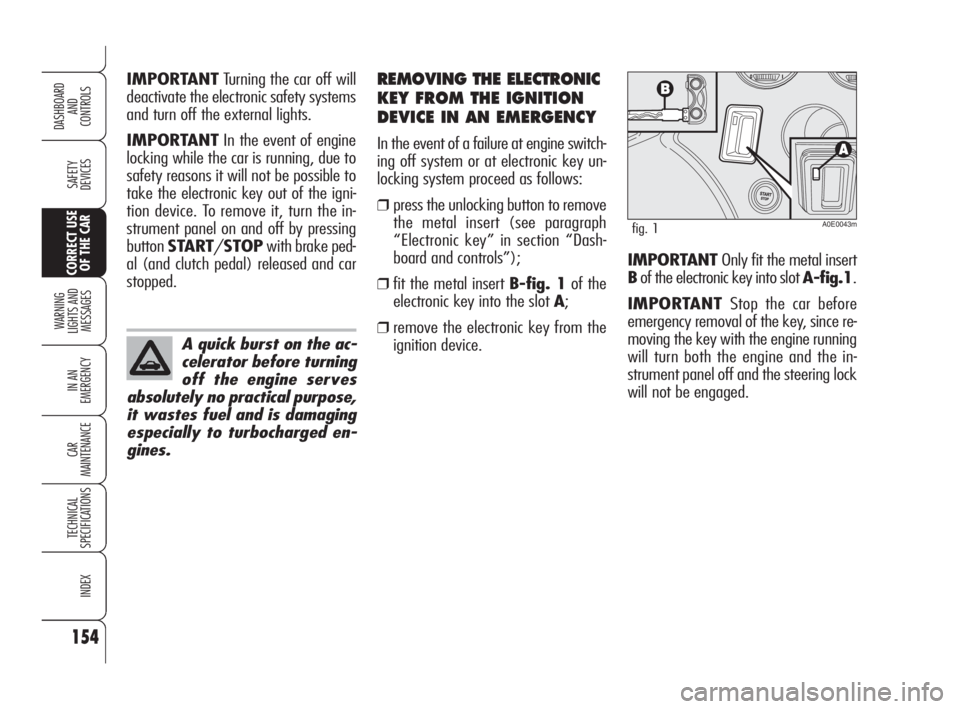

stopped.REMOVING THE ELECTRONIC
KEY FROM THE IGNITION
DEVICE IN AN EMERGENCY
In the event of a failure at engine switch-
ing off system or at electronic key un-
locking system proceed as follows:
❒press the unlocking button to remove
the metal insert (see paragraph
“Electronic key” in section “Dash-
board and controls”);
❒fit the metal insert B-fig. 1of the
electronic key into the slot A;
❒remove the electronic key from the
ignition device.
A quick burst on the ac-
celerator before turning
off the engine serves
absolutely no practical purpose,
it wastes fuel and is damaging
especially to turbocharged en-
gines.
IMPORTANTOnly fit the metal insert
Bof the electronic key into slot A-fig.1.
IMPORTANTStop the car before
emergency removal of the key, since re-
moving the key with the engine running
will turn both the engine and the in-
strument panel off and the steering lock
will not be engaged.
A0E0043mfig. 1
149-164 Alfa 159 GB 4-06-2008 9:42 Pagina 154

155
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
To release the handbrake proceed as fol-
lows:
❒Slightly lift the handbrake Aand
press release button B;
❒Keep button Bpressed and lower the
lever. Warning light
xon the in-
strument panel will turn off.
Press the brake pedal when carrying out
this operation to prevent the car from
moving accidentally.
HANDBRAKE
The handbrake lever A-fig. 2 is locat-
ed between the two front seats. Pull the
handbrake lever Aupwards, until the
car cannot be moved.
With electronic key fitted into the igni-
tion device, the instrument panel warn-
ing light
xwill come on.
IMPORTANT The car shall stop after
a few clicks of the handbrake lever. If
this is not the case, contact Alfa Romeo
Authorized Services to have the hand-
brake adjusted.
A0E0030mfig. 2
PARKING THE CAR
Proceed as follows:
❒Stop the engine and engage the
handbrake;
❒Engage a gear (on a slope, engage
first gear if the car is faced uphill or
reverse if it is faced downhill) and
leave the wheels steered.
Block the wheels with a wedge or a stone
if the car is parked on a steep slope. Do
not leave the electronic key in the igni-
tion switch to prevent draining the bat-
tery.
Never leave children un-
attended in the car. Al-
ways remove the electronic key
from the ignition device when
leaving the car and take it out
with you.
WARNING
149-164 Alfa 159 GB 4-06-2008 9:42 Pagina 155

156
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
CORRECT USE
OF THE CAR
IMPORTANT The car can only be put
into reverse gear when it has stopped
moving completely. With the engine run-
ning, before engaging the reverse, wait
at least 3 seconds with the clutch ped-
al fully down to prevent damage and
grating of the gears.
A0E0151mfig. 4
To change gears prop-
erly you must push the
clutch pedal fully down. It is
therefore essential that there
is nothing under the pedals:
make sure mats are lying flat
and do not get in the way of
the pedals.
WARNING
Do not drive with your
hand resting on the gear
lever as the force ex-
erted, even if slight, could lead
over time to premature wear on
the gearbox internal compo-
nents. The clutch pedal must be
used for gear shift only. Never
drive with the foot resting,
even if slightly, on the clutch
pedal. For versions/markets
where applicable the clutch ped-
al control electronics can inter-
vene interpreting the wrong dri-
ve style as a fault.
USING THE
GEARBOX
The car can be fitted with 6-gear or
5-gear manual gearbox (1.8 version).
Gear positions are shown on the
gearshift lever knob.
Always press down the clutch pedal
when shifting gears. To engage the 6
th
gear, move the gearshift lever pressing
slightly rightwards to prevent engaging
the 4
thgear accidentally.
To engage reverse Rfrom neutral, raise
ringA-fig. 3orA-fig. 4 under the
knob and at the same time move the
gearshift lever leftwards and then for-
ward. After engaging reverse release the
ring. To shift from reverse to another
gear it is not necessary to raise the ring.
A0E0397mfig. 3
149-164 Alfa 159 GB 4-06-2008 9:42 Pagina 156
