2009 Acura TSX navigation system

As required by the FCC:This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, includinginterf erence that may cause undesiredoperation.
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing twoconditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.
BluetoothAudio System (Models without navigation system)
Features
221
\f—\f—\fy
\f\f\fy
)!
\f\fy\fy
2009 TSX

Most audio system f unctions can still
be controlled by standard buttons,
dials, and knobs, but some f unctions
can only be accessed using the
interf ace dial. The interf ace dial has
two parts, a knob and a selector.The knob turns lef t and right. Use it
to make selections or adjustments to
a list or menu on the screen.
The selector can be pushed lef t,
right, up, down, and in. Use the
selector to scroll through lists, to
select menus, and to highlight menu
items. When you make a selection,
push the center of the selector
(ENTER)togotothatselection.The audio system can also be
operated by voice control. See the
Navi section in your quick start
guide f or an overview of this system,
and the navigation system manual
f or complete details.
Interf ace Dial Voice Control System
Audio System (Models with navigation system)
222
ENTER
SELECTOR
KNOB
\f—\f—\fy
\f\f
y
)!
\f\fy\fy
2009 TSX

Playing the FM/A M Radio (Models with navigation system)
Features
223

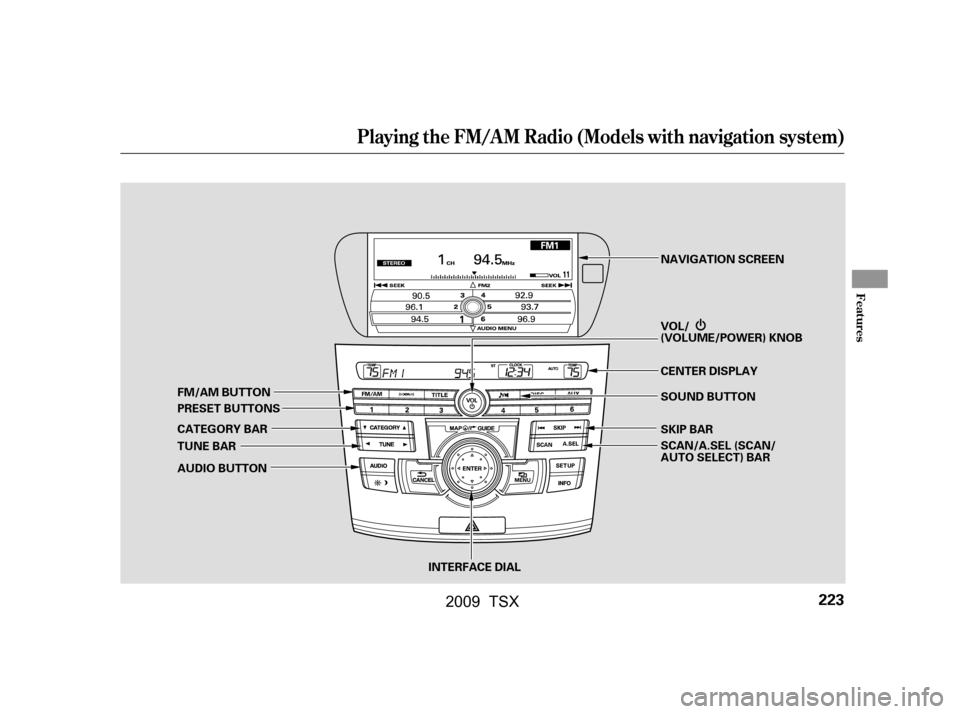

INTERFACE DIAL
AUDIO BUTTON
CATEGORY BAR
PRESET BUTTONS
FM/AM BUTTON
TUNE BAR
SCAN/A.SEL (SCAN/
AUTO SELECT) BAR
SKIP BAR
SOUND BUTTON
CENTER DISPLAY
VOL/
(VOLUME/POWER) KNOB NAVIGATION SCREEN
\f—\f—\fy
\f\fy
)!
\f\fy\fy
2009 TSX

The band and f requency that the
radio was last tuned to are shown on
the display. To change bands, pressthe FM/AM button. You can also
change bands by pushing the
interf ace selector up. Each time you
push it up, the band will change to
FM1, FM2, or AM. On the FM bands,
STEREO will be shown on the
navigation screen and ST on the
center display, if the station is
broadcasting in stereo. Stereo
reproduction on AM is not available.
On the AM band, AM noise
reduction turns on automatically.
The ignition switch must be in the
ACCESSORY (I) or the ON (II)
position. Press the AUDIO button to
view the audio control display. Turn
the system on by pressing the
VOL/ knob or the FM/AM
button. Adjust the volume by turning
the VOL/ knob. You can use any of f ive methods to
f ind radio stations on the selected
band: tune, skip (seek), scan, the
preset buttons, and auto select.
On the FM band, you can also use
the f eatures provided by the radio
data system (RDS). For more
inf ormation on the RDS, see page
.
227
T o Play the FM/A M Radio T o Select a Station
Playing the FM/A M Radio (Models with navigation system)
224
STEREO ICON
BAND
\f—\f—\fy
\f\fy
)!
\f\fy\fy
2009 TSX

µ
µ µ
CONT INUED
The skip (seek)
f unction searches up and down f rom
the current f requency to f ind a
station with a strong signal. To
activate it, press either side ( or ) of the SKIP bar, then release
it. You can also activate the skip
f unction (SEEK is displayed on the
screen) by pushing the interf ace
selector to the right or lef t.
Use the TUNE bar to tune
the radio to a desired f requency.
Press the right side of the bar to
tune to a higher f requency, or the
lef t side to tune to a lower f requency.
To tune with the interf ace dial, push
the selector down, and turn the knob
to TUNE icon. Then press ENTER
on the selector, and turn the knob to
the desired f requency. To exit the
TUNE mode, press ENTER on the
selector, then push the selector up. The SCAN f unction
samples all stations with strong
signals on the selected band. To
activate it, press the SCAN side of
the SCAN/A.SEL bar, then release it.
To scan with the interf ace dial, push
the selector down, and then push it
to the right. You will see SCAN on
the screen.
Playing the FM/A M Radio (Models with navigation system)
SK IP (SEEK )
TUNE SCAN
Features
225
SCAN ICON
TUNE ICON
\f—\f—\fy
\f\f
y
)!
\f\fy\f\fy
2009 TSX

µ
µ
If you are
traveling far from home and can no
longer receive your preset stations,
you can use the auto select feature to
find stations in the local area.
Push the interf ace selector down to
scroll down the screen, highlight
A.SEL, then press ENTER on the
interf ace selector. You will see
A.SEL f lashing on the screen, and
the system goes into scan mode f or
several seconds.
Usethetune,skip(seek),scan,or
RDS function to tune the radio to a
desired station.
Press the preset button, and hold
it until you hear a beep. You can
also store f requencies with the
interf ace dial. Select the preset
icon you want to store the
f requency on, then press ENTER
on the interf ace selector, and hold
it f or more than 2 seconds.
Repeat steps 1 through 3 to store a
total of six stations on AM and
twelve stations on FM.
The system will scan f or a station
with a strong signal. When it f inds
one, it will stop and play that station
f or about 10 seconds. If you do
nothing, the system will then scan
f or the next strong station and play it
f or 10 seconds. When it plays a
station that you want to listen to,
press the scan side of the bar again,
or push the interf ace selector to the
right again.
Each preset button or
preset icon can store one f requency
on AM and two f requencies on FM.
Select the desired band, AM or
FM. FM1 and FM2 let you store
twosetsof FMfrequencieswith
the preset buttons (on-screen
icons). 2.
3.
4.
1.
To store a preset memory location:
Playing the FM/A M Radio (Models with navigation system)
AUTO SELECT
Preset
226
A.SEL INDICATOR
PRESET ICON
A.SEL ICON
\f—\f—\fy
\f\f
y
)!
\f\fy\f
y
2009 TSX

ToswitchthePSnamedisplay
f unction on and of f , press and
release the TITLE button. With the
system on, you will see the ‘‘PS ON’’
message on the center display. If the
station you are listening to is an RDS
station, the displayed f requency
switches to the station name.
On the FM band, you can select a
favorite station and display the
program service name according to
the inf ormation provided by the
radio data system (RDS).
Theprogramservicenamedisplay
f unction shows the name of the
station you are listening to. With the
audio system on and the FM band
selected, you can turn this f unction
on or of f .
You will see ‘‘0’’ displayed if auto
select cannot f ind a strong station f or
every preset button.
You can also press the A.SEL side of
the SCAN/A.SEL bar. You will see
A.SEL on the screen, and the system
goes into scan mode f or several
seconds. The system stores the
f requencies of six AM and twelve
FM stations in the preset buttons. press ENTER
on the interf ace selector.
If you do not like the stations auto
select has stored, you can store
other f requencies on the preset
buttons (icons) as previously
described.
For inf ormation on FM/AM radio
f requencies and reception, see page . ,pressthe
A. SEL side of the bar. This restores
the presets you originally set.
285
CONT INUED
To turn of f auto select,
To turn of f auto selectRadio Data System (RDS)
Program Service (PS) Name Display
Playing the FM/A M Radio (Models with navigation system)
Features
227
PS ON MESSAGE
\f—\f—\fy
\f
\fy
)!
\f\fy\fy
2009 TSX

ROCK: Rock, classic rock and sof t
rock music
COUNTRY: Country music
SOFT: Adult hits and sof t music
TOP 40: Top 40 hits
OLDIES: Nostalgia music and oldies
R & B: Rhythm and blues, and sof t
rhythm and blues
RELIGION: Religious music and
religious talk
CLASSIC: Classical music
JAZZ: Jazz
INFO: News, inf ormation, sports,
talk, f oreign language, personality,
public, college, and weather
TRAFFIC: Traffic information
On the FM band selected, you can
select the program type provided by
the RDS. Press the AUDIO button to
display the radio inf ormation on the
screen. Push down the selector on
the interf ace dial, then turn the knob
to select RDS SEARCH icon. Press
ENTER to set your selection. The
principal RDS categories are shown
as f ollows;
If the station you are listening to is
not an RDS station, the audio screen
and the center display continue to
show the f requency with the PS
name display f unction on.
When you turn of f this f unction by
pressing the TITLE button, the
center display shows ‘‘PS OFF.’’
ALL: All RDS category stationsRadio Data System (RDS) Category
Playing the FM/A M Radio (Models with navigation system)
228
RDS SEARCH ICON
\f—\f—\fy
\f

y
)!
\f\fy\fy
2009 TSX
