This shows how much f uel you
have. It may show slightly more
or less than the actual amount.
The needle returns to the
bottom after you turn off the
ignition.
Gauges
Fuel Gauge
68
SPEEDOMETER
TEMPERATURE
GAUGE
U.S. model is shown. TACHOMETER
FUEL GAUGE
MULTI-INFORMATION
DISPLAY
Avoid driving with an extremely low
f uel level. Running out of f uel could
cause the engine to misf ire, damaging
the catalytic converter.
\f—\f—\fy\f\f
y
)!
\f\fy\f\fy
2009 TSX

This shows the temperature of the
engine’s coolant. During normal
operation, the pointer should rise
from the bottom mark to about the
middle of the gauge. In severe
driving conditions, such as very hot
weather or a long period of uphill
driving, the pointer may rise to the
upper zone. If it reaches the red
(hot) mark, pull saf ely to the side of
the road. Turn to page for
instructions and precautions on
checking the engine cooling system. If the pointer of the temperaturegauge reaches to or above the red
mark, you will also see the ‘‘WATER
TEMP HOT’’ message on the multi-
inf ormation display. This will alert
you that the engine should be cooled
down.
468
Gauges
Temperature Gauge
Inst rument s and Cont rols
69
\f—\f—\fy\f\fy
)!
\f\fy\f\fy
2009 TSX

The multi-inf ormation display in the
instrument panel displays various
inf ormation and messages when the
ignition switch is in the ON (II)
position. Some of the messages help
you operate your vehicle more
comf ortably.
Others help to keep you aware of the
periodic maintenance your vehicle
needs f or continued trouble-f ree
driving.
There are three types of messages;
normal display messages, engine oil
lif e and maintenance messages, and
system messages.
You can select the displayed
language and also customize some
vehicle control settings to your liking
with the multi-information display
and the three buttons on the steering
wheel (see page ).When you unlock and open the
driver’s door, the display shows
‘‘DRIVER 1’’ or ‘‘DRIVER 2’’
depending on which remote
transmitter you use, and the driver’s
seat moves to the position stored in
that remote transmitter (see page
). If you do not f asten your seat belt,
you will also see a ‘‘FASTEN SEAT
BELT’’ message on the multi-
inf ormation display when you turn
the ignition switch to the ON (II)
position.
These messages go of f in about
several seconds after you insert the
ignition key.
71 142
Normal Display Messages
Multi-Inf ormation Display
70
Remote transmitter 1 is used.
Remote transmitter 2 is used.
\f—\f—\fy\f
y
)!
\f\fy\f\fy
2009 TSX

ÛÝ
ÛÝ
CONT INUED
With the ignition switch in the ON
(II) position, the multi-inf ormation
display changes as shown in the next
page each time you press the INFO
( / ) button or SEL/RESET
button.
When you turn the ignition switch to
the ON (II) position, what you last
selected is displayed.In the multi-information display, the
system message is also displayed
(see page ) and you can
customize your vehicle control
settings (see page ).
The multi-inf ormation display
consists of an upper segment, a
middle segment and a lower
segment.
In the normal display mode, the
upper and middle segments display
trip computer inf ormation, such as
f uel economy or average speed. The
lower segment displays the
odometer/trip meter (A/B), outside
temperature, and engine oil lif e and
maintenance item code(s).
78
81
Multi-Inf ormation Display
Inst rument s and Cont rols
71
MIDDLE
SEGMENT
U.S. model is shown. UPPER
SEGMENT
LOWER
SEGMENT
INFO BUTTONS ( / )
SEL/RESET BUTTON
\f—\f—\fy\fy
)!
\f\fy\f\fy
2009 TSX

ÎÛÝ
Î
Multi-Inf ormation Display
72
U.S. model is shown.Engine Oil Life
(See page76.)
Trip Computer (See page74.)
: Tire Pressure
for each tire
(See page76.)
Outside Temperature
(See page74.) This display will be shown when the
BluetoothHandsFreeLinkis activated.: Press the INFO button ( / ).
: Press the SEL/RESET button. HFL
(See page77.)
——yy
)!
yy
2009 TSX

This shows the outside Fahrenheit
temperature in U.S. models, and
Centigrade temperature in Canadian
models.In certain weather conditions,
temperature readings near f reezing
(32°F, 0°C) could mean that ice is
f orming on the road surf ace.
You can adjust the outside
temperature display (see page ).
The temperature sensor is in the
f ront bumper. The temperature
reading can be affected by heat
ref lection f rom the road surf ace,
engine heat, and the exhaust f rom
surrounding traf f ic. This can cause
an incorrect temperature reading
when your vehicle speed is under
19 mph (30 km/h). When you start
your trip, the sensor is not f ully
acclimatized, theref ore it may take
several minutes until the proper
temperature is displayed.
This shows your current f uel
mileage.
When you turn of f the engine, INST.
MPG or INST. L/100 km is also
reset.
88
Multi-Inf ormation Display
Outside Temperature Trip Computer
INST . MPG (U.S. models)/INST . L /
100 km (Canadian models)
74
OUTSIDE TEMPERATURE CANADA
U.S. CANADA
U.S.
\f—\f—\fy\fy
)!
\f\fy\f\fy
2009 TSX

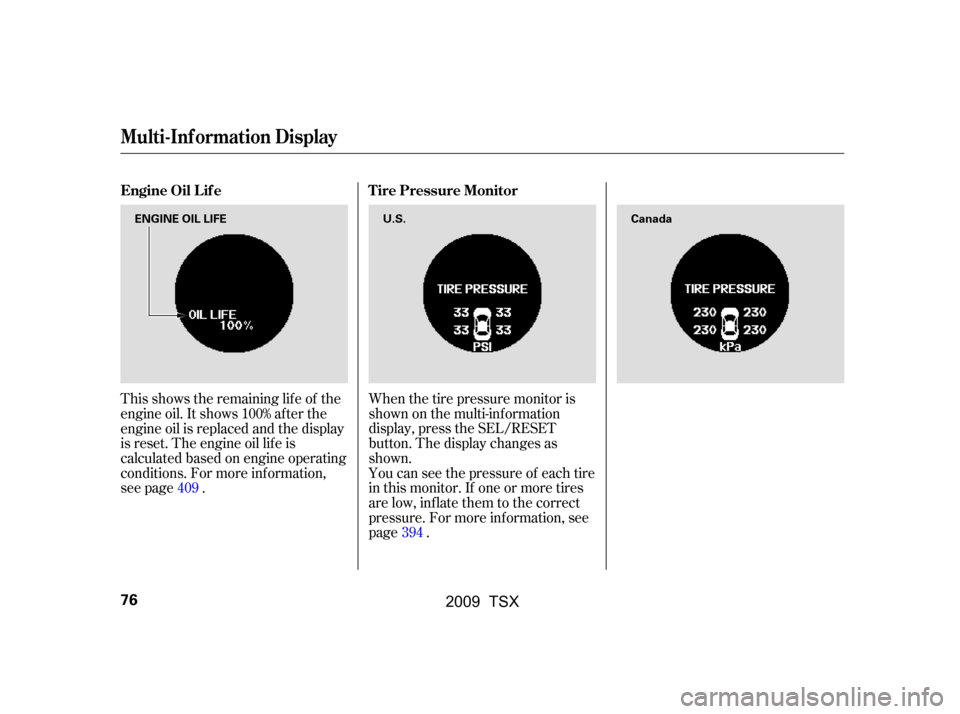

This shows the remaining lif e of the
engine oil. It shows 100% af ter the
engine oil is replaced and the display
is reset. The engine oil lif e is
calculated based on engine operating
conditions. For more inf ormation,
see page .Whenthetirepressuremonitoris
shown on the multi-inf ormation
display, press the SEL/RESET
button. The display changes as
shown.
You can see the pressure of each tire
in this monitor. If one or more tires
are low, inflate them to the correct
pressure. For more inf ormation, see
page .
409
394
Engine Oil L if e T ire Pressure Monitor
Multi-Inf ormation Display
76
U.S. Canada
ENGINE OIL LIFE
\f—\f—\fy\f
y
)!
\f\fy\f\f
y
2009 TSX

ÛÝÛÝ
ÛÝ
If there is a problem with your
vehicle, f or example, the engine oil
level is low or a door is not f ully
closed, the multi-inf ormation display
will show you the problem. It does
this by interrupting the current
display with one or more messages. The system message(s) triggers the
appropriate indicator(s) on the
instrument panel, including the
system message indicator, to come
on. The system message indicator
does not go of f until the problem(s)
is corrected.
You will also hear a beep when the
system message comes on f or the
first time.
Most of the messages are displayed
f or about 5 seconds, and then the
normal display returns. If there are
several system messages to be
shown, the display switches these
messages every 5 seconds.
To switch the message(s) bef ore 5
seconds have elapsed, press the
INFO( / )buttononthesteering
wheel.
Even if you press the INFO ( / )
button, some messages stay on or
come on again at regular intervals
until the problem is corrected.
If the system message indicator
remains lit on the instrument panel,
you can see the corresponding
message(s) again by pressing the
INFO ( / ) button repeatedly.
Here is a list of all messages:
Multi-Inf ormation Display
System Messages
78
SYSTEM MESSAGE INDICATOR
