2009 Acura RL fuse box

The fuses are located in five fuse
boxes. The interior f use boxes are
located under the dashboard on the
driver’s and passenger’s side.
To remove the f use box lid, put your
f inger in the notch on the lid, pull it
toward you, and take it out of its
hinges.To open the secondary f use box lid,
push the tab in the direction as
shown in the illustration.
Fuses
510
NOTCH
NOTCH
INTERIOR FUSE BOX
Driver’s side
INTERIOR FUSE BOX
Passenger’s sideSECONDARY INTERIOR FUSE BOX
Driver’s side
FUSE BOX
2009 RL

The primary under-hood f use box is
in the engine compartment on the
driver’s side. To open it, push the
tabs as shown.The secondary under-hood f use box
is on the battery. To open it, push
thetabsasshown.
To check the f use box, remove the
battery cover f irst (see page ).
491
Fuses
T aking Care of t he Unexpect ed
511
PRIMARY UNDER-HOOD FUSE BOX SECONDARY UNDER-HOOD FUSE BOX
TAB TAB
2009 RL

Turn the ignition switch to the
LOCK (0) position. Make sure the
headlights and all other
accessories are of f .
If something electrical in your
vehicle stops working, the first thing
youshouldcheckforisablownfuse.
Determine f rom the chart on pages
, , and , or the diagram
on the f use box lid, which f use or
f uses control that device. Check
those fuses first, but check all the
f uses bef ore deciding that a blown
f use is the cause. Replace any blown
f uses, and check if the device works.
Check each of the large f uses in
the under-hood f use box by
looking through the top at the wire
inside. Removing these f uses
requires a Phillips-head
screwdriver.
Remove the cover f rom the f use
box. 3.
1.
2. 516 517 518
Checking and Replacing Fuses
Fuses
512
FUSE
BLOWN BLOWN
2009 RL

CONT INUED

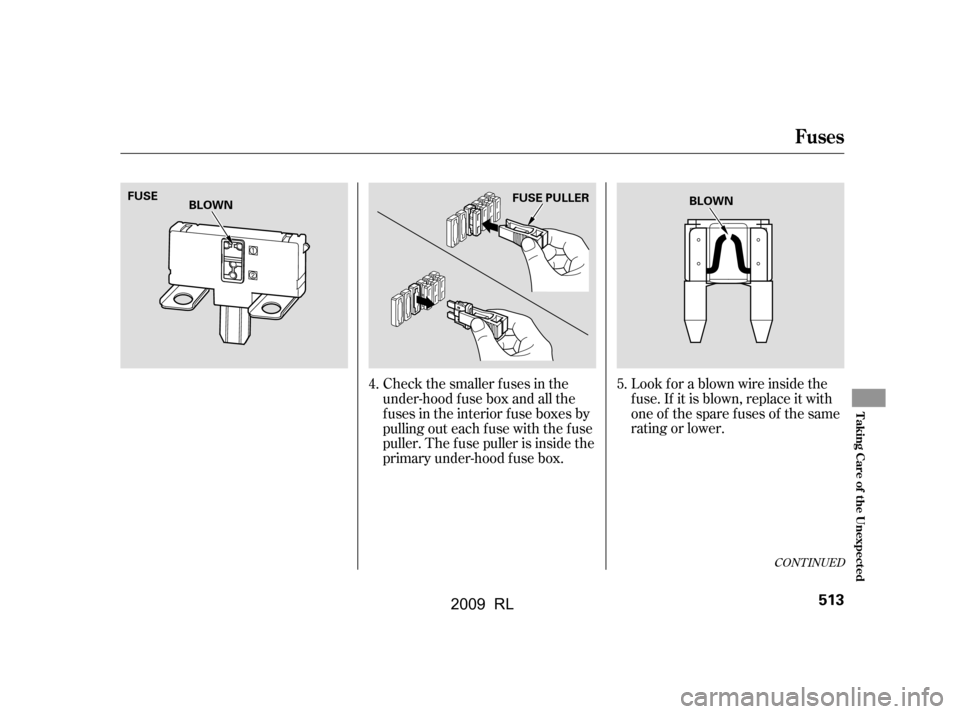

Check the smaller f uses in the
under-hood f use box and all the
fuses in the interior fuse boxes by
pulling out each f use with the f use
puller. The f use puller is inside the
primary under-hood f use box.Look f or a blown wire inside the
fuse.If itisblown,replaceitwith
one of the spare f uses of the same
rating or lower.
4. 5.
Fuses
T aking Care of t he Unexpect ed
513
FUSE
FUSE PULLER
BLOWN
BLOWN
2009 RL

If you cannot drive the vehicle
without f ixing the problem, and you
do not have a spare fuse, take a fuse
of the same rating or a lower rating
f rom one of the other circuits with
the f use puller provided in the under-
hood f use box. Make sure you can
do without that circuit temporarily
(such as the accessory power socket
or radio).
If you replace the blown f use with a
spare f use that has a lower rating, it
might blow out again. This does not
indicate anything wrong. Replace the
f use with one of the correct rating as
soon as you can.If the replacement fuse of the
same rating blows in a short time,
there is probably a serious
electrical problem with your
vehicle. Leave the blown fuse in
that circuit, and have your vehicle
checked by a qualif ied technician.
6.
Fuses
514
SPARE FUSES
FUSE PULLER
Replacing a f use with one that has a
higher rating greatly increases the
chances of damaging the electrical
system. If you do not have a
replacement f use with the proper rating
f or the circuit, install one with a lower
rating.
2009 RL

Î
Î
No.
No. Amps.No.
Circuits Protected
Circuits Protected Amps. Circuits Protected
Amps.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
150A 15
16
17
18
19
20
21
22
23
Radiator fan
Left headlight low beam
Rear defroster coil
Left headlight high beam
Small light
Right headlight high beam
Right headlight low beam
Back-up
FI ECU
Wiper
Headlight washer
Fog lights
MG clutch
Horn, Stop
Rear defroster 40 A
15 A
30 A
40 A
40 A
(40 A) 40 A
70 A
120 A 50 A
50 A Back-up, ACC
Hazard
ABS/VSA motor
ABS/VSA
Drive by wire, LAF heater
Option
Heater motor
Passenger’s f use box
Battery
IG main
Power window
15 A
30 A
10 A
15 A
10 A
15 A
7.5 A 15 A
30 A
30 A
10 A
7.5 A 15 A
40 A : On Canadian models
Fuse Locations
516
PRIMARY UNDER-HOOD FUSE BOX
SECONDARY UNDER-HOOD FUSE BOX
2009 RL

No.
No.No. Circuits Protected
Circuits Protected
Circuits Protected
Amps.
Amps. Amps.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
2 17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
ACG
Fuel Pump
IGN SOL
Meter
SRS
IGP (PGM-FI ECU)
Left rear power window
ETS (telescopic)
ETS (tilt)
Driver’s power window
Moonroof
Adaptive Front Lighting
System
Air Conditioner
e-pretensioner
ACC
Option
Starter diag.
Starter signal
DrivebyWire
Ignition coil
Daytime running light
LAF heater
Radio
Interior light
Back-up
Door lock
Accessory socket
Occupant position detection
system
Wiper
Rear heated seat
Driver’s power seat sliding
Driver’s power seat reclining
15 A
15 A
10 A
15 A
7.5 A
7.5 A 10 A
20 A
20 A
7.5 A
15 A
15 A
20 A
20 A
7.5 A 20 A
7.5 A
7.5 A 20 A
15 A
20 A
15 A
10 A
10 A
7.5 A 20 A
20 A
20 A
30 A
20 A
7.5 A
7.5 A
7.5 A 10 A
(7.5 A)Passenger’s power seat sliding
Passenger’s power seat reclining
Tire pressure monitoring system
Fuse Locations
T aking Care of t he Unexpect ed
517
INTERIOR FUSE BOX
Driver’s side
SECONDARY INTERIOR FUSE BOX
Driver’s side
2009 RL

No. Amps. No. Amps.Circuits Protected Circuits Protected
1
2
3
4
530 A
30 A
30 A
30 A
20 A 6
7
8
920 A
7.5 A
30 A
7.5 A
SH-AWD
Premium amplifier
Passenger’s power window
Driver’s automatic seat belt
tensioner/e-pretensioner
Right rear power window Heated seats
Illumination lights
Passenger’s automatic seat
belt tensioner/
e-pretensioner
Air conditioner
Fuse Locations
518
INTERIOR FUSE BOX
Passenger’s side
2009 RL
