This indicator comes on when the
security system is set. For more
inf ormation, see page .
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position.
Itcomesonasareminderthatyou
have turned off the adaptive front
lighting system (AFS).
This indicator blinks when there is a
problem with the AFS system; you
will also see a ‘‘CHECK ADAPTIVE
FRONT LIGHTING SYSTEM’’
message on the multi-inf ormation
display (see page ). If this
happens, stop the vehicle in a saf e
place, turn the ignition switch to the
ACCESSORY (I) or the LOCK (0)
position, and restart the engine. If
the indicator does not go of f or
blinks again, take your vehicle to a
dealer to have it checked. For more
inf ormation, see page .
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position. It also comes on as areminder that you have turned of f
the collision mitigation brake system
(CMBS).
The CMBS indicator also comes on
if dirt or other debris blocks the
radar sensor in the f ront grille. You
will also see a ‘‘CHECK CMBS
RADAR SENSOR’’ message on the
multi-inf ormation display. When you
clean the radar sensor, the indicator
should go of f the next time you turn
the ignition switch to the ON (II)
position.
If the indicator comes on at any
other time, there is a problem with
the CMBS. You will also see a
‘‘CHECK CMBS SYSTEM’’ message
on the multi-information display. If
this happens, take your vehicle to a
dealer, and have it checked. For
more information, see page .
When this indicator is on, the CMBS
is not working.
78
144 315
423
If equipped
If equipped
A daptive Front L ighting
System (A FS) IndicatorSecurity System Indicator
Collision Mitigation
Brake System (CMBS)
Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
69
SECURITY SYSTEM INDICATOR
2009 RL

If the AFS indicator comes on and
starts blinking while driving, pull to
the side of the road when it is saf e,
andturnoff theengine.If theAFS
indicator keeps blinking, or starts
blinking again while driving af ter
turning the ignition switch to the ON
(II) position, the AFS is not working
properly (see page ). Have the
AFS inspected by your dealer.
When the AFS indicator comes on,
you will also see a ‘‘CHECK
ADAPTIVE FRONT LIGHTING
SYSTEM’’ message on the multi-
inf ormation display (see page ).
Without AFS, your vehicle still has
normal lighting ability to continue
driving.
The adaptive f ront lighting system
(AFS) helps to improve visibility
during nighttime driving. The AFS
controls the aiming direction and
lighting distribution of the low
beams according to the amount of
turn applied to the steering wheel
during cornering or turning. Press
the AFS OFF switch to turn the AFS
on and off when the ignition switch
is in the ON (II) position and the
headlights are turned on.
69
78
If equippedAFS Indicator
A daptive Front L ighting System (A FS)
144
2009 RL

When you are pressing the ignition
switch, or when the ignition switch is
in the ON (II) position, the beeper
sounds if you take the remote out of
the vehicle and close the door.
To remove the ignition switch cover,
insert the built-in key (see page ),
then pull the cover out by pulling the
built-in key while pushing it.
Also, if you close the door when the
ignition switch is not in the LOCK
(0) position and the remote is not
inside the vehicle, the keyless access
alarm sounds outside the vehicle, a
message appears on the multi-
inf ormation display, and the beeper
sounds if the ignition switch is in the
ON (II) position.
When the beeper sounds af ter you
close the driver’s door outside the
vehicle, check the position of the
ignition switch and the location of
the remote.
If the engine is running and you
removetheremotefromthevehicle,
it will continue to run. But once
turned to the LOCK (0) position, the
engine will not restart until a remote
is brought back into the vehicle.
180
CONT INUED
Beeper and Message
Removing the Ignition Switch
Cover
K eyless Remot e Not Det ect ed
K eyless A ccess System
Inst rument s and Cont rols
177
BUILT-IN KEY
IGNITION SWITCH COVER
pushpull
2009 RL

Thebatteriesintheremotenormally
last about 2 years. To ensure
maximum battery lif e, do not store
the remote close to electrical devices
such as computers or TVs. When the
multi-inf ormation display shows
‘‘KEYLESS REMOTE LOW
BATTERY,’’ replace the batteries as
soon as possible (see page ).
The engine does not restart if you
turn the ignition switch to the LOCK
(0) position when the remote is
outside the vehicle. Check where the
remote is. Make sure that you carry
the remote or built-in key with you
when you operate the ignition switch.
When the ignition switch is in the
ON (II) position, the multi-
inf ormation display shows
‘‘KEYLESS REMOTE NOT
DETECTED,’’ and the inside and
outside beepers sound.
The multi-inf ormation display
message goes away when you
bring the remote back inside the
vehicle, and close the door or
apply the parking brake.
The outside beeper sounds when
the ignition switch is in the
ACCESSORY (I) or the ON (II)
position.
If the engine is running and you
removetheremotefromthe
vehicle, it will continue to run.
Once turned to the LOCK (0)
position, the engine will not restart
until a remote is brought back into
the vehicle. If you pass the remote through an
open window, the system does not
respond.Also,evenwhentheremote
is inside the vehicle, the beeper may
sound when the location of the
remote is not detected due to
surrounding conditions. It is not a
f ailure. Make sure that you carry the
remote with you.
174
K eyless Remot e L ow Bat t ery
K eyless A ccess System
178
2009 RL

The keyless access system
indicator comes on and stays on
while you are driving.
The indicator comes on f or several
seconds when you turn the ignition
switch to the ON (II) position. Have
your vehicle checked by your dealer
if : In this case, use the built-in key to
lock/unlock the doors and start the
engine.The multi-inf ormation display
shows ‘‘CHECK KEYLESS
ACCESS SYSTEM.’’
The indicator comes on with the
ignition switch in the ON (II)
position.Check K eyless A ccess Syst em
K eyless A ccess System
Inst rument s and Cont rols
179
KEYLESS ACCESS SYSTEM
INDICATOR
2009 RL

Bef ore you begin driving your
vehicle, you should know what
gasoline to use and how to check the
levels of important f luids. You also
need to know how to properly store
luggage or packages. The
inf ormation in this section will help
you. If you plan to add any
accessories to your vehicle, please
read the information in this section
first..............................
Break-in Period .384
.................
Fuel Recommendation .384
.........
Service Station Procedures .385
....................................
Ref ueling .385
.....
Tighten Fuel Cap Message .387
Opening and Closing
................................
the Hood .387
...................................
Oil Check .389
.............
Engine Coolant Check .389
...............................
Fuel Economy .390
...
Accessories and Modif ications .393
.............................
Carrying Cargo .395
Bef ore Driving
Bef ore Driving
383
2009 RL

Park the vehicle, and set the
parking brake. Pull the hood
release lever located under the
lower lef t corner of the dashboard.
The hood will pop up slightly.
Your vehicle’s on board diagnostic
system will detect a loose or missing
f uel f ill cap as an evaporative system
leak. The f irst time a leak is detected
a ‘‘TIGHTEN FUEL CAP’’ message
appears on the multi-inf ormation
display. Turn the engine of f , and
conf irm the f uel f ill cap is installed. If
it is, loosen it, then retighten it until
it clicks at least once. The message
should go of f af ter several days of
normal driving once you tighten or replace the f uel f ill cap. To scroll to
another message, press the INFO
button. The ‘‘TIGHTEN FUEL CAP’’
message will appear each time you
restart the engine until the system
turns the message of f .
If the system still detects a leak in
the vehicle’s evaporative emissions
system, the malf unction indicator
lamp (MIL) comes on. If the f uel f ill
cap was not already tightened, turn
the engine of f , and check or
retighten the f uel f ill cap until it
clicks at least once. The MIL should
go off after several days of normal
driving once the cap is tightened or
replaced. If the MIL does not go of f ,
have your vehicle inspected by a
dealer. For more inf ormation, see
page .
1.
507
CONT INUED
Opening and Closing the Hood
Tighten Fuel Cap Message
Service Station Procedures
Bef ore Driving
387
HOOD RELEASE LEVER
2009 RL

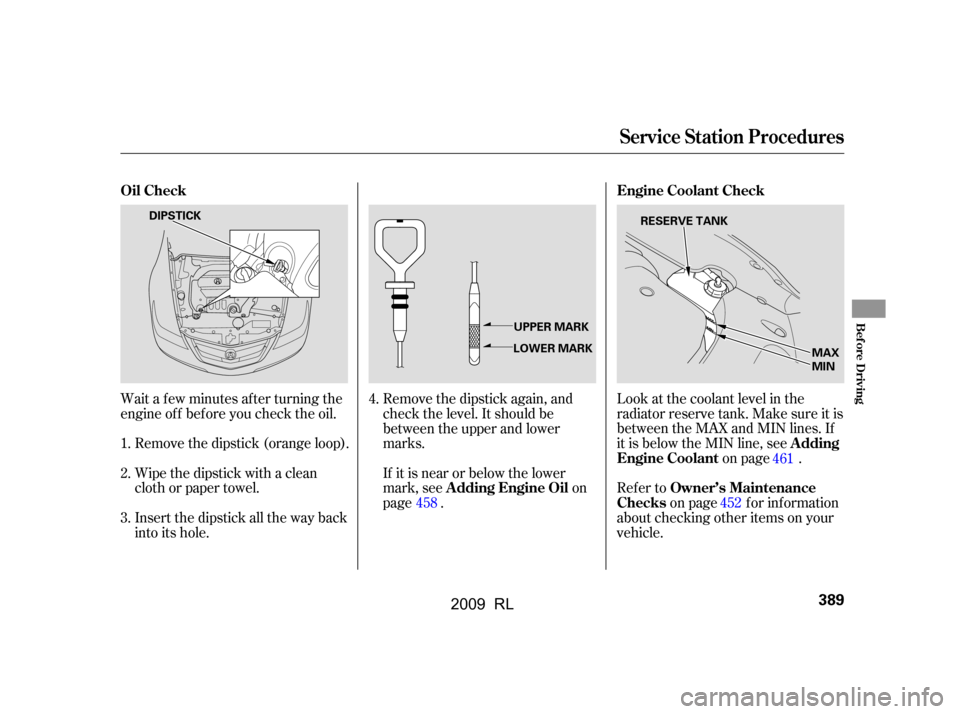

Remove the dipstick again, and
check the level. It should be
between the upper and lower
marks.
If it is near or below the lower
mark, see on
page .
Wait a f ew minutes af ter turning the
engine of f bef ore you check the oil.
Remove the dipstick (orange loop).
Wipe the dipstick with a clean
cloth or paper towel.
Insert the dipstick all the way back
into its hole. Look at the coolant level in the
radiator reserve tank. Make sure it is
between the MAX and MIN lines. If
it is below the MIN line, see
on page .
Refer to on page f or inf ormation
about checking other items on your
vehicle.
4.
1.
2.
3. 458 461
452
Engine Coolant Check
A dding Engine Oil
Oil Check
A dding
Engine Coolant
Owner’s Maintenance
Checks
Service Station Procedures
Bef ore Driving
389
MAX
MIN
LOWER MARK UPPER MARK
DIPSTICK
RESERVE TANK
