If you do not f ind an obvious leak,
check the coolant level in the
radiator reserve tank. Add coolant
if the level is below the MIN mark.
If there was no coolant in the
reserve tank, you may need to add
coolant to the radiator. Let the
engine cool down until the pointer
reaches the middle of the tempera-
ture gauge, or lower, bef ore check-
ing the radiator.Using gloves or a large heavy
cloth, turn the radiator cap
counterclockwise, without pushing
down, to the f irst stop. Af ter the
pressure releases, push down on
the cap, and turn it until it comes
off.
Put the radiator cap back on
tightly. Run the engine, and check
the temperature gauge. If it goes
back to the red mark, the engine
needs repair (see
on page ).
If the temperature stays normal,
check the coolant level in the
radiator reserve tank. If it has
gone down, add coolant to the
MAX mark. Put the cap back on
tightly.
Start the engine, and set the
interior temperature to maximum
(climate control to FULL AUTO at
‘‘ ’’). Add coolant to the
radiator up to the base of the f iller
neck. If you do not have the
proper coolant mixture available,
you can add plain water.
Remember to have the cooling
system drained and ref illed with
the proper mixture as soon as you
can.
6.
7.
8.
9.10.
11. 519
Emergency
Towing
If theEngineOverheats
504
Removing the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.
2009 RL

You can still drive your vehicle even
if this message appears on the multi-
inf ormation display, however you
should check the temperature gauge
while driving.
If you notice the temperature gauge
climbing to or above the red mark,
saf ely pull to the side of the road.
Follow the instructions on pagesand .
If there is a problem with the
radiator system, you will see a
‘‘CHECK RADIATOR SYSTEM’’ on
the multi-information display.
If you see this message, the engine
has probably overheated. You should
take your vehicle to a dealer, and
have it repaired as soon as possible. 503504
Check Radiator System
If theEngineOverheats
T aking Care of t he Unexpect ed
505
2009 RL

Let the vehicle sit f or a minute.
Open the hood, and check the oil
level (see page ). An engine
very low on oil can lose pressure
during cornering and other driving
maneuvers.
If necessary, add oil to bring the
level back to the full mark on the
dipstick (see page ).
Start the engine, and watch the oil
pressure indicator. If it does not go
out within 10 seconds, turn of f the
engine. There is a mechanical
problem that needs to be repaired
bef ore you can continue driving
(see on page). Immediately turn of f all electrical
accessories. Try not to use other
electrically operated controls such as
the power windows. Keep the engine
running; starting the engine will
discharge the battery rapidly.
Go to a dealer or a service station
where you can get technical
assistance.
Saf ely pull of f the road and shut
of f the engine. Turn on the hazard
warning lights.
This indicator should never come on
when the engine is running. If it
starts flashing or stays on, or if you
see a ‘‘CHECK ENGINE OIL
LEVEL’’ message on the multi-
inf ormation display, the oil pressure
has dropped very low or lost
pressure. Serious engine damage is
possible, and you should take
immediate action. If the charging system indicator
comes on brightly when the engine
is running, or if you see a ‘‘CHECK
CHARGING SYSTEM’’ message on
the multi-information display, the
battery is not being charged.
1.
2.
3.
4. 389
458
519 Emergency T owing
L ow Oil Pressure
Indicator
Charging System
Indicator
L ow Oil Pressure Indicator, Charging System Indicator
506
Running the engine with low oil
pressure can cause serious mechanical
damage almost immediately. Turn of f
the engine as soon as you can saf ely get
the vehicle stopped.
2009 RL

Your vehicle has certain ‘‘readiness
codes’’ that are part of the on-board
diagnostics f or the emissions
systems. In some states, part of the
emissions testing is to make sure
these codes are set. If they are not
set, the test cannot be completed.
If this indicator comes on
while driving, or if you see
a ‘‘CHECK EMISSION
SYSTEM’’ message on the multi-
inf ormation display, it means one of
the engine’s emissions control
systems may have a problem. Even
though you may f eel no dif f erence in
your vehicle’s perf ormance, it can
reduce your f uel economy and cause
increased emissions. Continued
operation may cause serious damage. If the indicator comes on repeatedly,
even though it may go of f as you
continue driving, have the vehicle
checked by your dealer as soon as
possible.
If you have recently ref ueled your
vehicle, the indicator coming on
could be due to a loose or missing
f uel f ill cap. You will also see a
‘‘TIGHTEN FUEL CAP’’ message on
the multi-information display.
Tighten the cap until it clicks at least
once (see page ). Tightening the
cap will not turn the indicator of f
immediately; it can take several days
of normal driving. If the battery in your vehicle has
been disconnected or gone dead,
thesecodesmaybeerased.Itcan
take several days of driving under
various conditions to set the codes
again.
To check if they are set, turn the
ignition switch to the ON (II)
position, without starting the engine.
The malf unction indicator lamp will
come on f or 20 seconds. If it then
goes of f , the readiness codes are set.
If it blinks f ive times, the readiness
codes are not set. If possible, do not
take your vehicle f or an emissions
test until the readiness codes are set.
Refer to for
more information (see page ).
387 535
Readiness Code
Emissions T esting
Malf unction Indicator L amp
T aking Care of t he Unexpect ed
507
If you keep driving with the
malf unction indicator lamp on, you can
damage your vehicle’s emissions
controls and engine. Those repairs may
not be covered by your vehicle’s
warranties.
2009 RL

The primary under-hood f use box is
in the engine compartment on the
driver’s side. To open it, push the
tabs as shown.The secondary under-hood f use box
is on the battery. To open it, push
thetabsasshown.
To check the f use box, remove the
battery cover f irst (see page ).
491
Fuses
T aking Care of t he Unexpect ed
511
PRIMARY UNDER-HOOD FUSE BOX SECONDARY UNDER-HOOD FUSE BOX
TAB TAB
2009 RL

Your vehicle has several identif ying
numbers in various places.
The vehicle identif ication number
(VIN) is the 17-digit number your
dealer uses to register your vehicle
f or warranty purposes. It is also
necessary f or licensing and insuring
your vehicle. The easiest place to
find the VIN is on a plate fastened to
the top of the dashboard. You can
seeitbylookingthroughthe
windshield on the driver’s side. It is
also on the certification label
attached to the driver’s doorjamb,
and is stamped on the engine
compartment bulkhead. The VIN is
also provided in bar code on the
certif ication label.
Identif ication Numbers
522
U.S. vehicle is shown.CERTIFICATION LABEL
VEHICLE IDENTIFICATION NUMBER (VIN)
2009 RL

The engine number is stamped into
the engine block. It is on the f ront
left, below the valve cover.
The transmission number is on a
label on top of the transmission.
Identif ication Numbers
Technical Inf ormation
523

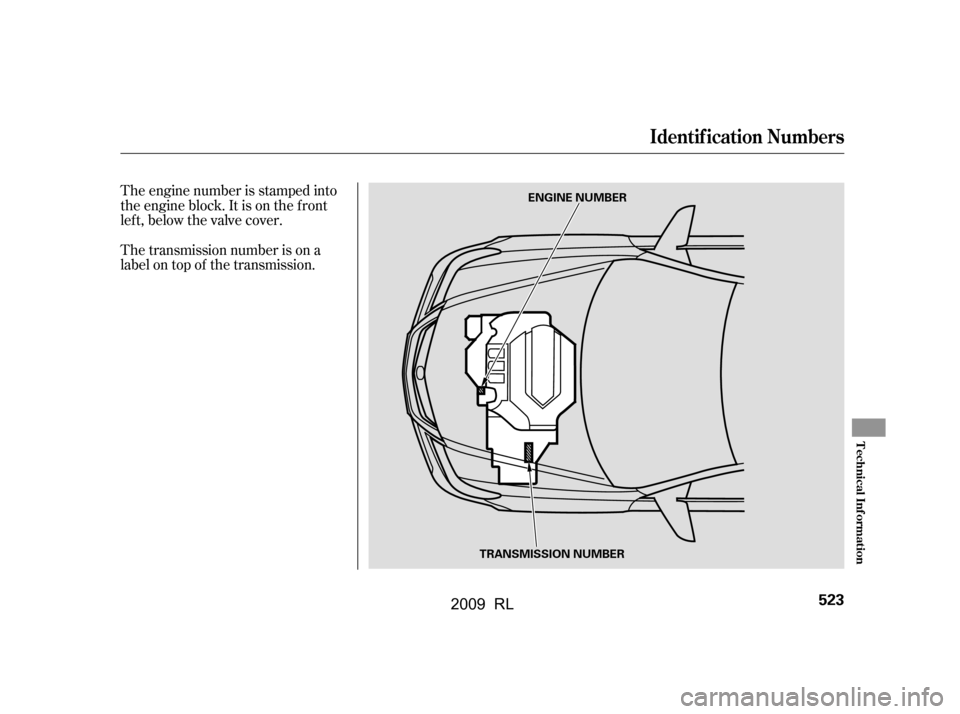

ENGINE NUMBER
TRANSMISSION NUMBER
2009 RL

µµÎ
Î
Î
Î
Specif ications
524
Dimensions
Weights
Air Conditioning
Seating Capacities Capacities
4.2 US qt (4.0
)
195.8 in (4,973 mm)
72.7 in (1,847 mm)
57.3 in (1,455 mm)
110.2 in (2,800 mm)
62.0 in (1,575 mm)
62.4 in (1,585 mm)
1.59 US gal (6.0
)
2.27 US gal (8.6)
4.5 US qt (4.3
)
5.3 US qt (5.0
)
3.0 US qt (2.8)
8.1 US qt (7.7)
Length
Width
Height
Wheelbase
Track
Gross vehicle weight rating See the certification label attached
to the driver’s doorjamb.
Excluding the oil remaining in the engine
Including the coolant in the reserve tank and that remaining in the
engine
Reserve tank capacity:6.9 US qt (6.5
)
2.6 US qt (2.5)
0.45 US qt (0.43
)
0.48 US qt (0.45)
3.3 US qt (3.1
)
Refrigerant type
Charge quantity
Lubricant type ND-OIL8 15.8 17.60 oz (450 500 g)HFC-134a (R-134a)
Total
Front
Rear
5
2
3 0.77 US qt (0.73
)
0.79 US qt (0.75)
19.4 US gal (73
)
2.8 US qt (2.7
)
0.16 US gal (0.58
)
Fuel tank
Engine
coolant
Engine oil
Automatic
transmission
fluid
Rear differential fluid
SH-AWD
differential
case
SH-AWD
clutch case
Transfer
assembly
fluid
Windshield
washer
reservoir
1:
2: Approx.
Front
Rear Change
Total
Change
Including filter
Without filter
Total
Change
Total
Change
Total
Change
Total
Change
Total
U.S. vehicles
Canadian
vehicles
1
2
