2009.5. PEUGEOT 807 technical data

Petrol and Diesel technical data

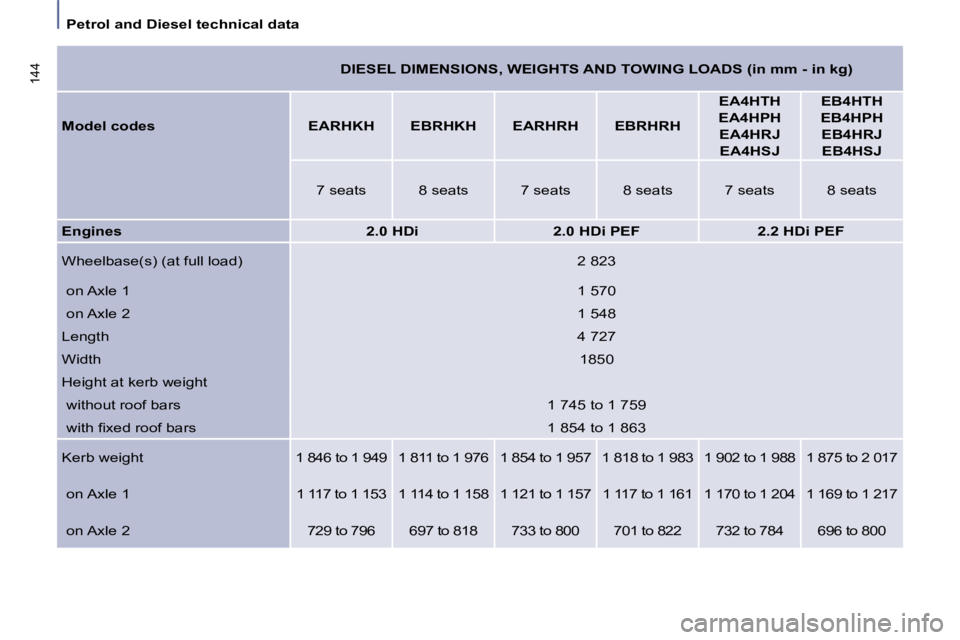

144 DIESEL DIMENSIONS, WEIGHTS AND TOWING LOADS (in mm - in kg)

Model codes EARHKH EBRHKH EARHRH EBRHRH
EA4HTH

EA4HPH
EA4HRJ EA4HSJ
EB4HTH

EB4HPH
EB4HRJ EB4HSJ


7 seats 8 seats 7 seats 8 seats 7 seats 8 seats

Engines 2.0 HDi 2.0 HDi PEF 2.2 HDi PEF
Wheelbase(s) (at full load) 2 823
on Axle 1 1 570
on Axle 2 1 548
Length 4 727
Width 1850
Height at kerb weight

without roof bars 1 745 to 1 759
with fi xed roof bars 1 854 to 1 863
Kerb weight 1 846 to 1 949 1 811 to 1 976 1 854 to 1 957 1 818 to 1 983 1 902 to 1 988 1 875 to 2 017
on Axle 1 1 117 to 1 153 1 114 to 1 158 1 121 t o 1 157 1 117 to 1 161 1 170 to 1 204 1 169 to 1 217
on Axle 2 729 to 796 697 to 818 733 to 800 701 to 822 732 to 784 696 to 800

145
Petrol and Diesel technical data
TECHNICAL DATA
The GTW and towing load values indicated are valid up to a maximum altitude of 1 000 metres; the towing load ment ioned
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is above 45 °C, restrict the towed wei ght.

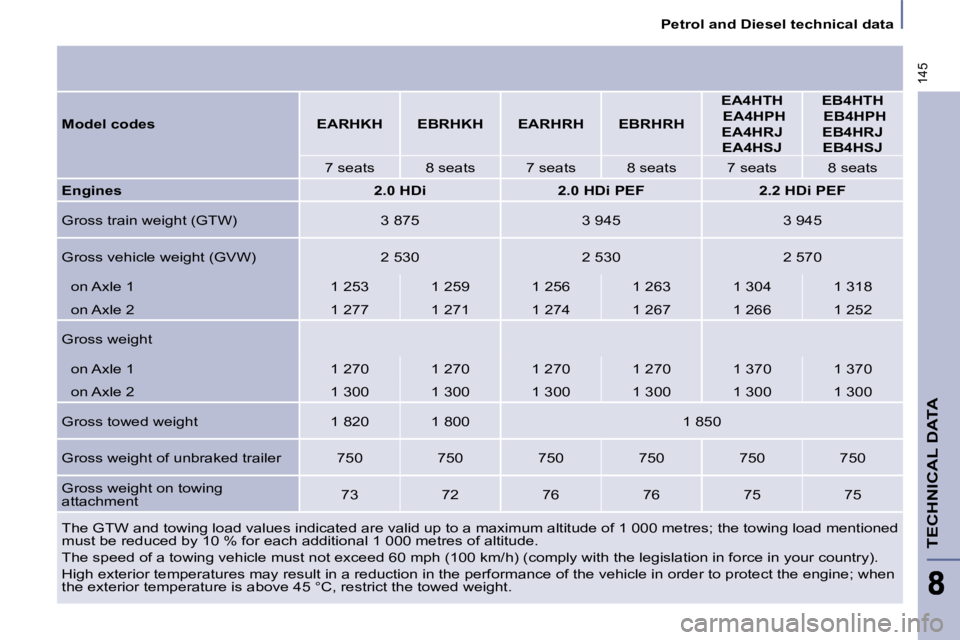

Model codes EARHKH EBRHKH EARHRH EBRHRH EA4HTH
EA4HPH EA4HRJ
EA4HSJ EB4HTH
EB4H PH EB4HRJ
EB4HSJ
7 seats 8 seats 7 seats 8 seats 7 seats 8 seats

Engines 2.0 HDi 2.0 HDi PEF 2.2 HDi PEF
Gross train weight (GTW) 3 875 3 945 3 945
Gross vehicle weight (GVW) 2 530 2 530 2 570 on Axle 1 1 253 1 259 1 256 1 263 1 304 1 318
on Axle 2 1 277 1 271 1 274 1 267 1 266 1 252
Gross weight

on Axle 1 1 270 1 270 1 270 1 270 1 370 1 370
on Axle 2 1 300 1 300 1 300 1 300 1 300 1 300
Gross towed weight 1 820 1 800 1 850
Gross weight of unbraked trailer 750 750 750 75 0 750 750
Gross weight on towing
attachment 73 72 76 76 75 75

147
8

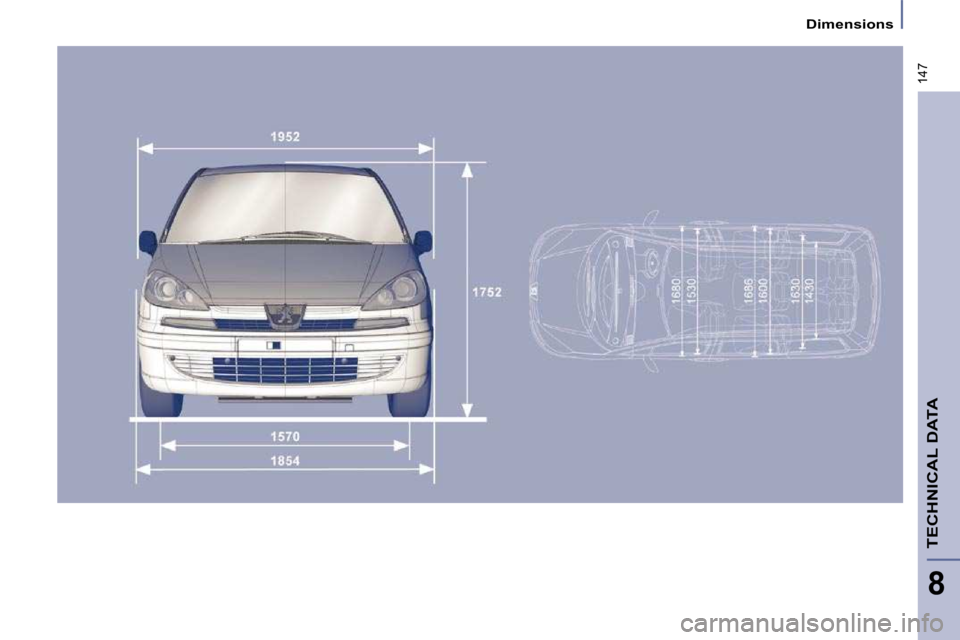

Dimensions
TECHNICAL DATA
