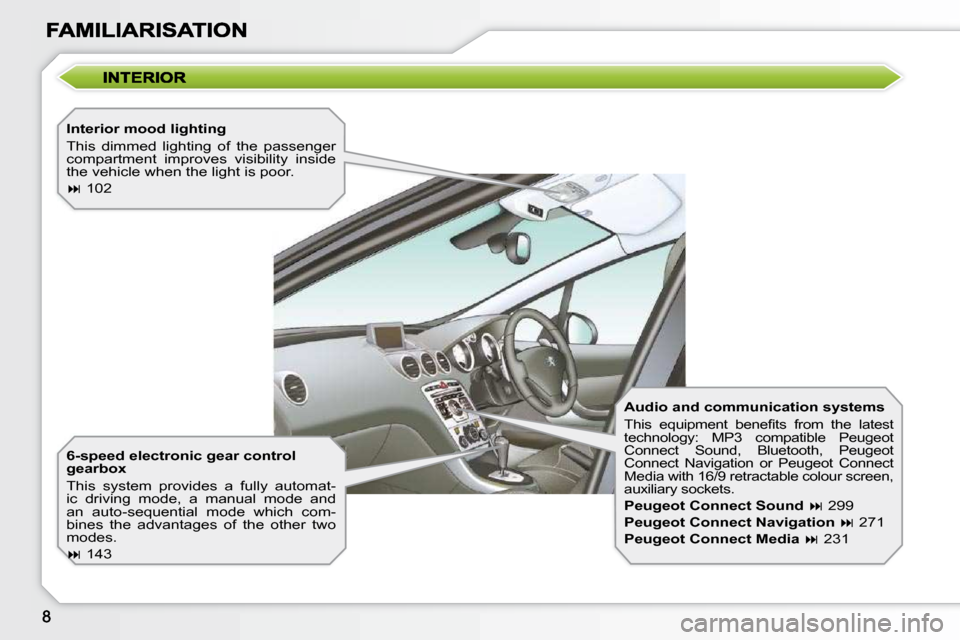

Interior mood lighting
This dimmed lighting of the passenger
compartment improves visibility inside
the vehicle when the light is poor.
102
6-speed electronic gear control
gearbox
This system provides a fully automat-
ic driving mode, a manual mode and
an auto-sequential mode which com-
bines the advantages of the other two
modes.
143 Audio and communication systems
T h i s e q u i p m e n t b e n e fi t s f r o m t h e l a t e s t
technology: MP3 compatible Peugeot
Connect Sound, Bluetooth, Peugeot
Connect Navigation or Peugeot Connect
Media with 16/9 retractable colour screen,
auxiliary sockets.
Peugeot Connect Sound
299
Peugeot Connect Navigation
271
Peugeot Connect Media
231
Page 44 of 329
i
47
MULTIFUNCTION SCREENS For operation of the retractable dis-
play (opening, closing, adjustment
of the position, etc.), refer to the
paragraph "Access to the retract-
able display".

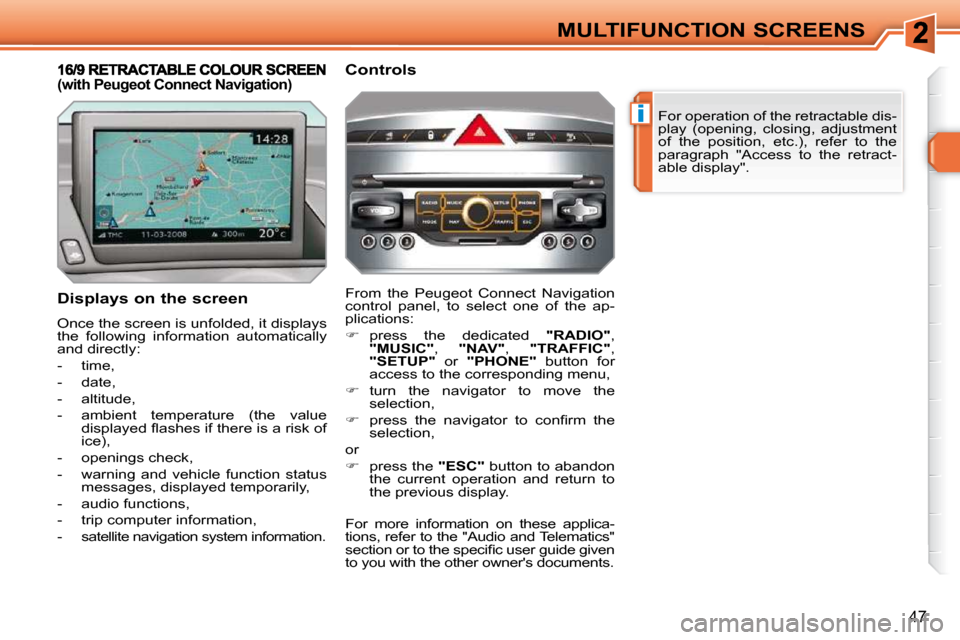

Displays on the screen
Once the screen is unfolded, it displays
the following information automatically
and directly:
- time,
- date,
- altitude,
- ambient temperature (the value d i s p l a y e d fl a s h e s i f t h e r e i s a r i s k o f
ice),
- openings check,
- warning and vehicle function status messages, displayed temporarily,
- audio functions,
- trip computer information,
- satellite navigation system information. From the Peugeot Connect Navigation
control panel, to select one of the ap-
plications:
press the dedicated "RADIO" ,
"MUSIC" , "NAV" , "TRAFFIC" ,
"SETUP" or "PHONE" button for
access to the corresponding menu,
turn the navigator to move the
selection,
p r e s s t h e n a v i g a t o r t o c o n fi r m t h e
selection,
or
press the "ESC" button to abandon
the current operation and return to
the previous display.
(with Peugeot Connect Navigation) Controls
For more information on these applica-
tions, refer to the "Audio and Telematics"
s e c t i o n o r t o t h e s p e c i fi c u s e r g u i d e g i v e n
to you with the other owner's documents.
Page 46 of 329
i
49
MULTIFUNCTION SCREENS
16/9 HIGH DEFINITION RETRACTABLE COLOUR SCREEN (with Peugeot Connect Media)
Displays on the screen
Once unfolded, it displays the following
information automatically and directly:
- time,
- date,
- altitude,
- ambient temperature (the value d i s p l a y e d fl a s h e s i f t h e r e i s a r i s k o f
ice),
- audio functions,
- parking sensors,
-
telephone and address book information,
- satellite navigation system information. From the Peugeot Connect Media control
panel, to select one of the applications:
press the dedicated "RADIO" ,
"MEDIA" , "NAV" , "TRAFFIC" ,
"ADDR BOOK" or "SETUP" button
for access to the corresponding
menu,
turn the navigator to move the
selection,
p r e s s t h e n a v i g a t o r t o c o n fi r m t h e
selection,
or
press the "ESC" button to abandon
the current operation and return to
the previous display. For operation of the retractable screen
(opening, closing, adjustment of the
position, etc.), refer to the paragraph
"Access to the retractable screen".
For more information on these applications,
refer to the Peugeot Connect Media part of
the "Audio and Telematics" section.
Controls
Page 207 of 329
11
!
i
193
PRACTICAL INFORMATION Do not disconnect the terminals
while the engine is running.
Do not charge the batteries without
d i s c o n n e c t i n g t h e t e r m i n a l s fi r s t .
Do not push the vehicle to start the
e n g i n e i f i t i s fi t t e d w i t h a 6 - s p e e d
e l e c t r o n i c g e a r c o n t r o l g e a r b o x .
The batteries contain harmful sub-
stances such as sulphuric acid and
lead. They must be disposed of in
accordance with regulations and
must not, in any circumstances, be
discarded with household waste.
Take used remote control batteries
and vehicle batteries to a special
collection point.
It is advisable to disconnect the
battery if the vehicle is to be left un-
used for more than one month. Before disconnecting the
battery
Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows and the doors
before disconnecting the battery.
Following reconnection of the
battery
Following reconnection of the bat-
tery, switch on the ignition and wait
1 minute before starting to permit
initialisation of the electronic sys-
tems. However, if problems are en-
countered following this operation,
contact a PEUGEOT dealer.
Referring to the corresponding sec-
t i o n , y o u m u s t y o u r s e l f r e i n i t i a l i s e :
- the remote control key,
- the panoramic sunroof blind,
- the GPS satellite navigation
system.
Charging the battery using a
battery charger
Disconnect the battery from the
vehicle.
Follow the instructions for use
provided by the manufacturer of the
charger.
Reconnect starting with the negative
t e r m i n a l ( - ) .
Check that the terminals and
connectors are clean. If they are
covered with sulphate (whitish or
g r e e n i s h d e p o s i t ) , r e m o v e t h e m a n d
clean them.
Connect one end of the green
or black cable to the negative
t e r m i n a l ( - ) o f t h e s l a v e b a t t e r y B .
Connect the other end of the green
or black cable to the earth point C
on the broken down vehicle.
Operate the starter, let the engine
run.
Wait until the engine returns to idle
and disconnect the cables.
Page 208 of 329
11
!
i
194
PRACTICAL INFORMATION A fl a t b a t t e r y p r e v e n t s t h e e n g i n e
from starting (refer to the corre-
s p o n d i n g p a r a g r a p h ) .
If the telephone is being used at
t h i s t i m e :
- it will be maintained for 10 minutes
with the hands-free kit of your
Peugeot Connect Sound,
- it will be maintained for 10 minutes with the Peugeot Connect
Navigation or the Peugeot
Connect Media, then it will transfer
to your telephone depending on
the telephone model.
System which manages the duration of
use of certain functions to conserve a
s u f fi c i e n t l e v e l o f c h a r g e i n t h e b a t t e r y .
After the engine has stopped, you can
still use functions such as the audio and
telematics system, windscreen wip-
ers, dipped beam headlamps, courtesy
l a m p s , e t c . f o r a m a x i m u m c o m b i n e d
duration of thirty minutes. Exiting economy mode
These functions are reactivated auto-
m a t i c a l l y n e x t t i m e t h e v e h i c l e i s d r i v e n .
In order to resume the use of these
functions immediately, start the
e n g i n e a n d l e t i t r u n :
- for less than ten minutes, to use t h e e q u i p m e n t f o r a p p r o x i m a t e l y
fi v e m i n u t e s ,
- for more than ten minutes, to use the equipment for up to
a p p r o x i m a t e l y t h i r t y m i n u t e s .
Switching to economy mode
Once the thirty minutes are over, a
message appears on the multi-function
screen indicating that the vehicle has
switched to economy mode and the active
functions are put on standby.
CHANGING A WIPER BLADE
Removing
Raise the corresponding wiper arm.
Unclip the wiper blade and remove it.
Fitting
Put the corresponding new wiper
blade in place and clip it.
Fold down the wiper arm carefully.
Before removing a front wiper
blade
Within one minute after switching off
the ignition, operate the wiper stalk
to position the wiper blades vertically
on the windscreen.
After fitting a front wiper blade
Switch on the ignition.
Operate the wiper stalk again to
park the wiper blades.
LOAD REDUCTION MODE
System which manages the use of cer-
tain functions according to the level of
charge remaining in the battery.
When the vehicle is being driven, the
load reduction function temporarily deac-
tivates certain functions, such as the air
conditioning, the heated rear screen...
The deactivated functions are reactivat-
ed automatically as soon as conditions
permit.
Page 247 of 329
234
0 2
SETUP
MEDIA
TRAFFIC

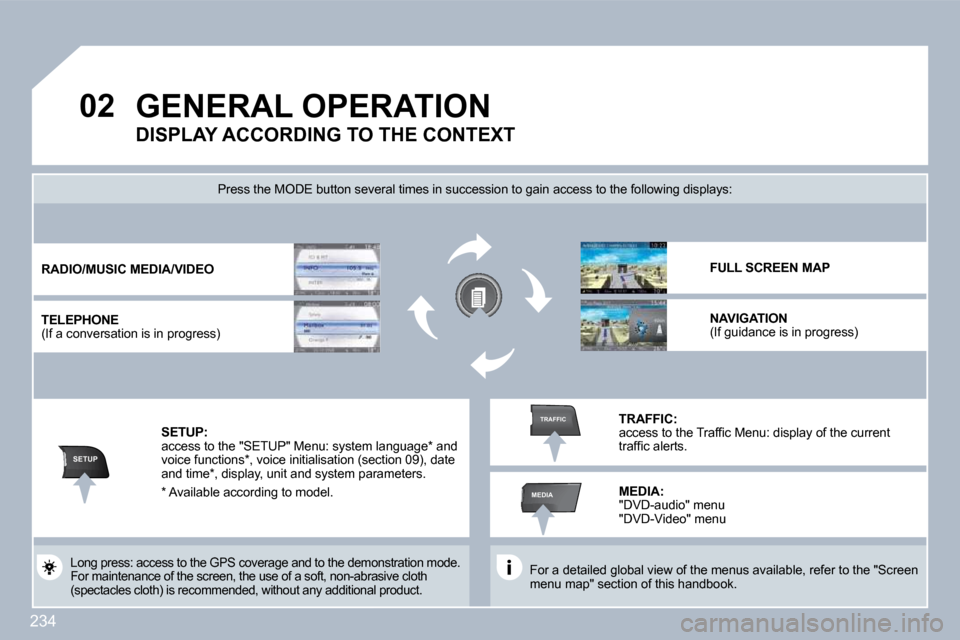

GENERAL OPERATION
For a detailed global view of the menus available, refer to the "Screen menu map" section of this handbook.
P r e s s t h e M O D E b u t t o n s e v e r a l t i m e s i n s u c c e s s i o n t o g a i n a c c e s s t o t h e f o l l o w i n g d i s p l a y s :
L o n g p r e s s : a c c e s s t o t h e G P S c o v e r a g e a n d t o t h e d e m o n s t r a t i o n m o d e . For maintenance of the screen, the use of a soft, non-abrasive cloth ( s p e c t a c l e s c l o t h ) i s r e c o m m e n d e d , w i t h o u t a n y a d d i t i o n a l p r o d u c t .
RADIO / MUSIC MEDIA/VIDEO
TELEPHONE ( I f a c o n v e r s a t i o n i s i n p r o g r e s s )
FULL SCREEN MAP
NAVIGATION ( I f g u i d a n c e i s i n p r o g r e s s )
SETUP: a c c e s s t o t h e " S E T U P " M e n u : s y s t e m l a n g u a g e * a n d v o i c e f u n c t i o n s * , v o i c e i n i t i a l i s a t i o n ( s e c t i o n 0 9 ) , d a t e and time * , display, unit and system parameters.
TRAFFIC: a c c e s s t o t h e T r a f fi c M e n u : d i s p l a y o f t h e c u r r e n t t r a f fi c a l e r t s .
DISPLAY ACCORDING TO THE CONTEXT
MEDIA: "DVD-audio" menu "DVD-Video" menu
* Available according to model.
Page 257 of 329
244
0 3
5
6
3
4
2
NAV
1
D o w n l o a d t h e " R i s k a r e a s P O I s " u p d a t e fi l e o n t o a n SD card or USB stick from the Internet. This servic e is available on www.peugeot.fr or www.peugeot.co.uk.
T h e fi l e s m u s t b e c o p i e d t o t h e r o o t o n t h e c h o s e n m e d i u m . T h e fi l e s m u s t b e c o p i e d t o t h e r o o t o n t h e c h o s e n m e d i u m .
I n s e r t t h e m e d i u m ( S D c a r d o r U S B s t i c k ) c o n t a i n i n g the POI database into the system's SD card reader o r USB reader.
S u c c e s s f u l d o w n l o a d i n g i s c o n fi r m e d b y a m e s s a g e .
The system restarts.
UPDATING THE RISK AREAS POIs
Select the medium ("USB" or " S D - C a r d " ) u s e d a n d p r e s s O K .
Press NAV, select Navigation Menu, then "Settings", then "Update personal POI".
SETTINGS
NAVIGATION MENU
N A V I G A T I O N - G U I D A N C E
The Risk Areas POIs version is available on the SETUPETUP\System menu.
UPDATE PERSONAL POI
Page 259 of 329
246
TRAFFIC
0 4
1
2
4
5
3

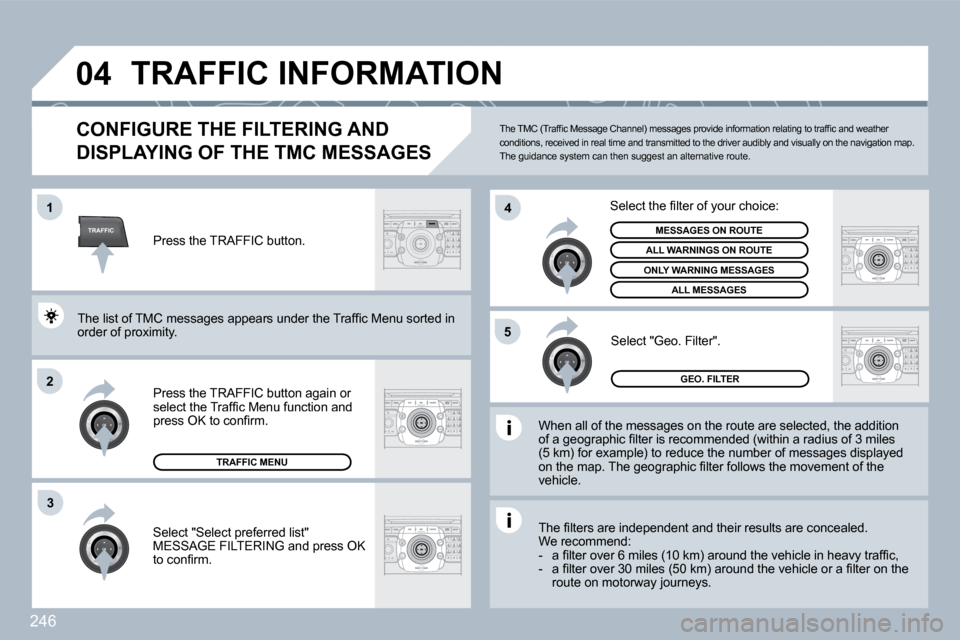

TRAFFIC INFORMATION
CONFIGURE THE FILTERING AND
DISPLAYING OF THE TMC MESSAGES
When all of the messages on the route are selected, the addition o f a g e o g r a p h i c fi l t e r i s r e c o m m e n d e d ( w i t h i n a r a d i u s o f 3 m i l e s ( 5 k m ) f o r e x a m p l e ) t o r e d u c e t h e n u m b e r o f m e s s a g e s d i s p l a y e d o n t h e m a p . T h e g e o g r a p h i c fi l t e r f o l l o w s t h e m o v e m e n t o f t h e vehicle.
T h e fi l t e r s a r e i n d e p e n d e n t a n d t h e i r r e s u l t s a r e c o n c e a l e d . W e r e c o m m e n d : - a fi l t e r o v e r 6 m i l e s ( 1 0 k m ) a r o u n d t h e v e h i c l e i n h e a v y t r a f fi c , - a fi l t e r o v e r 3 0 m i l e s ( 5 0 k m ) a r o u n d t h e v e h i c l e o r a fi l t e r o n t h e route on motorway journeys.
Press the TRAFFIC button again or s e l e c t t h e T r a f fi c M e n u f u n c t i o n a n d p r e s s O K t o c o n fi r m .
Select "Geo. Filter".
T h e l i s t o f T M C m e s s a g e s a p p e a r s u n d e r t h e T r a f fi c M e n u s o r t e d i n T h e l i s t o f T M C m e s s a g e s a p p e a r s u n d e r t h e T r a f fi c M e n u s o r t e d i n order of proximity.
S e l e c t t h e fi l t e r o f y o u r c h o i c e :
MESSAGES ON ROUTE
ALL WARNINGS ON ROUTE
ONLY WARNING MESSAGES
ALL MESSAGES
TRAFFIC MENU
Select "Select preferred list" MESSAGE FILTERING and press OK t o c o n fi r m .
T h e T M C ( T r a f fi c M e s s a g e C h a n n e l ) m e s s a g e s p r o v i d e i n f o r m a t i o n r e l a t i n g t o t r a f fi c a n d w e a t h e r conditions, received in real time and transmitted to the driver audibly and visually on the navigation map. The guidance system can then suggest an alternativ e route.
Press the TRAFFIC button.
G E O . F I L T E R
