Lighting
Ring A
Ring B Raise or lower the lighting stalk passing
the point of resistance; the correspond-
i n g d i r e c t i o n i n d i c a t o r s w i l l fl a s h f o r a s
long as the stalk remains in this posi-
tion.
Direction indicators
Switching on "AUTO"
Press the stalk down and release it.
Ring B: rear wiper
93
99
Lighting off.
Automatic illumination of head-
lamps.
Sidelamps.
Dipped/main beam headlamps.
Rear foglamp.
or
Front and rear foglamps.
Park.
Intermittent wipe.
Wash-wipe.
Stalk A: windscreen wipers
98
Wipers
Switching off "AUTO"
Push the stalk up and return it to
position "0" .
100
128
"Motorway" function
Raise or lower the lighting stalk once,
without passing the point of resistance;
the corresponding direction indicators
w i l l fl a s h t h r e e t i m e s .
This function can be used at any speed,
but it is particularly useful when changing
lane on high-speed roads.
Page 23 of 329
!
26
INSTRUMENTS and CONTROLS
The warning lamps may come on
c o n t i n u o u s l y o r fl a s h .
Certain warning lamps may come
on in two different modes. Only by
relating the type of lighting to the
operating status of the vehicle can
it be ascertained whether the situ-
ation is normal or whether a fault
has occurred.
Indicator and warning lamps
Visual indicators informing the driver
that a system is in operation (operation
or deactivation indicator lamps) or of the
occurrence of a fault (warning lamp).
Associated warnings
The switching on of certain warning
lamps may be accompanied by an
audible signal and a message on the
multifunction screen.
Operation indicator lamps
If one of the following indicator lamps
c o m e s o n , t h i s c o n fi r m s t h a t t h e c o r r e -
sponding system has come into operation.
Left-hand direction indicator.
Parking brake applied.
Right-hand direction
indicator.
Main beam headlamps.
Dipped beam headlamps.
Diesel engine pre-heating
Wait until this has gone out be-
fore operating the starter.
Front foglamps.
When the ignition is switched on
The warning lamps come on for a few
seconds when the vehicle's ignition is
switched on.
When the engine is started, these warning
lamps should switch off.
If they remain on, before moving off,
consult the warning lamp concerned.
Common operation indicator lamps
Rear foglamp.

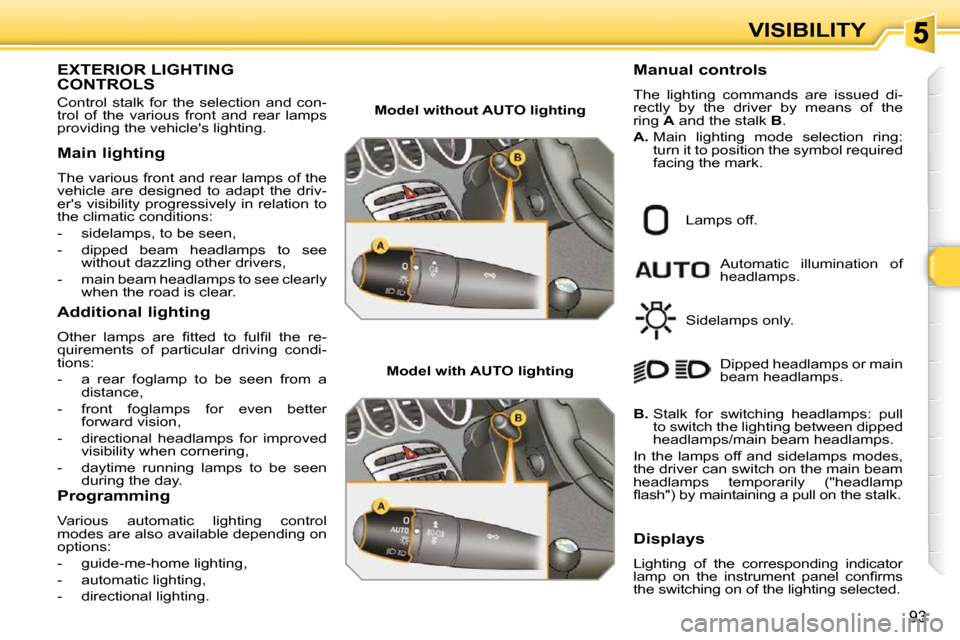

Page 99 of 329
93
VISIBILITY
EXTERIOR LIGHTING CONTROLS
Control stalk for the selection and con-
trol of the various front and rear lamps
providing the vehicle's lighting.
Main lighting
The various front and rear lamps of the
vehicle are designed to adapt the driv-
er's visibility progressively in relation to
the climatic conditions:
- sidelamps, to be seen,
- dipped beam headlamps to see without dazzling other drivers,
- main beam headlamps to see clearly when the road is clear.
Additional lighting
O t h e r l a m p s a r e fi t t e d t o f u l fi l t h e r e -
quirements of particular driving condi-
tions:
- a rear foglamp to be seen from a distance,
- front foglamps for even better forward vision,
- directional headlamps for improved visibility when cornering,
- daytime running lamps to be seen during the day.
Programming
Various automatic lighting control
modes are also available depending on
options:
- guide-me-home lighting,
- automatic lighting,
- directional lighting. Model without AUTO lighting
Model with AUTO lighting Automatic illumination of
headlamps.
Manual controls
The lighting commands are issued di-
rectly by the driver by means of the
ring
A and the stalk B .
A. Main lighting mode selection ring:
turn it to position the symbol required
facing the mark.
Lamps off.
Sidelamps only.
B. Stalk for switching headlamps: pull
to switch the lighting between dipped
headlamps/main beam headlamps.
In the lamps off and sidelamps modes,
the driver can switch on the main beam
headlamps temporarily ("headlamp
fl a s h " ) b y m a i n t a i n i n g a p u l l o n t h e s t a l k . Dipped headlamps or main
beam headlamps.
Displays
Lighting of the corresponding indicator
l a m p o n t h e i n s t r u m e n t p a n e l c o n fi r m s
the switching on of the lighting selected.
Page 100 of 329
!
i
94
VISIBILITY
Model with rear foglamp only rear foglamp
To switch on the foglamp, turn the
ring C forwards.
When the lighting is switched off
a u t o m a t i c a l l y ( w i t h A U T O m o d e l ) , t h e
foglamp and the dipped headlamps will
remain on.
To switch off all of the lighting, turn
the ring C rearwards. In good or rainy weather, both day
and night, the front foglamps and
the rear foglamp are prohibited. In
these situations, the power of their
beams may dazzle other drivers.
They should only be used in fog or
snow.
In these weather conditions, it is
your responsibility to switch on the
foglamps and dipped beam head-
lamps manually as the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Do not forget to switch off the front
foglamps and the rear foglamp when
they are no longer necessary.
Switching off of the lamps when
the ignition is switched off
On switching off the ignition, all of the
lamps turn off immediately, except
for dipped beam if guide-me-home
lighting is activated.
Model with front foglamps and
a rear foglamp Front and rear foglamps
Rotate and release the ring C :
f o r w a r d s a fi r s t t i m e t o s w i t c h o n t h e
front foglamps.
forwards a second time to switch on
the rear foglamp,
r e a r w a r d s a fi r s t t i m e t o s w i t c h o f f
the rear foglamp
rearwards a second time to switch
of the front fog lamps.
When the lighting is switched off auto-
m a t i c a l l y ( w i t h A U T O m o d e l ) o r w h e n
the dipped headlamps are switched off
manually, the foglamps and sidelamps
will remain on.
Turn the ring rearwards to switch
off the foglamps, the sidelamps will
then switch off.
C. Foglamp selection ring.
The foglamps operate with the dipped
and main beam headlamps.
Switching on the lamps after the
ignition is switched off
To reactivate the lighting control, ro-
tate ring A to the "0" position - lamps
off, then to the desired position.
On opening the driver's door a
temporary audible signal warns the
driver that the lighting is on.
The lamps, with the exception of
the sidelamps, switch off automati-
cally after a maximum duration of
thirty minutes to prevent discharg-
ing of the battery.
Page 103 of 329
i
!
i
96
VISIBILITY
EXTERIOR WELCOME LIGHTING
The remote switching on of the light-
ing makes your approach to the vehicle
easier in poor light. It is activated ac-
cording to the level of light detected by
the brightness sensor.
Switching on
Press the open padlock on the
remote control.
The dipped beam headlamps and the sidelamps come on; your vehicle
is also unlocked.
Programming The lighting duration is se-
lected via the multifunction
s c r e e n c o n fi g u r a t i o n m e n u .
The duration of the welcome light-
ing is associated with and identical
to that of the automatic guide-me-
home lighting.
In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lighting will not come
on automatically.
Do not cover the brightness sensor,
coupled with the rain sensor and
located in the centre of the wind-
screen behind the rear view mirror;
the associated functions would no
longer be controlled.
Coupling with the automatic
"Guide-me-home" lighting
Association with the automatic illumination
of headlamps provides "guide-me-home"
lighting with the following additional op-
tions:
- selection of the lighting duration to
15, 30 or 60 seconds in the vehicle
parameters on the multifunction
s c r e e n c o n fi g u r a t i o n m e n u ( e x c e p t
in the case of the monochrome
screen A, for which the duration is
s e t : 6 0 s e c o n d s ) ,
- automatic activation of "guide-me- home" lighting when automatic
illumination of headlamps is in
operation.
Operating fault In the event of a fault with the
brightness sensor, the lighting
come on, this warning lamp is
displayed on the instrument
panel and/or a message appears on
the multifunction screen, accompanied
by an audible signal.
Consult a PEUGEOT dealer.
MANUAL ADJUSTMENT OF HALOGEN HEADLAMPS
The initial setting is position "0" .
To avoid causing a nuisance to other
road users, the height of the halogen
headlamps should be adjusted in rela-
tion to the load in the vehicle.
0. 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
-. Intermediate setting.
2. 5 people + maximum authorised load.
-. Intermediate setting.
3. Driver + maximum authorised load.
Switching off
The exterior welcome lighting switches
off automatically after a set time, when
the ignition is switched on or on locking
the vehicle.
Page 104 of 329
i
!
i
96
VISIBILITY
EXTERIOR WELCOME LIGHTING
The remote switching on of the light-
ing makes your approach to the vehicle
easier in poor light. It is activated ac-
cording to the level of light detected by
the brightness sensor.
Switching on
Press the open padlock on the
remote control.
The dipped beam headlamps and the sidelamps come on; your vehicle
is also unlocked.
Programming The lighting duration is se-
lected via the multifunction
s c r e e n c o n fi g u r a t i o n m e n u .
The duration of the welcome light-
ing is associated with and identical
to that of the automatic guide-me-
home lighting.
In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lighting will not come
on automatically.
Do not cover the brightness sensor,
coupled with the rain sensor and
located in the centre of the wind-
screen behind the rear view mirror;
the associated functions would no
longer be controlled.
Coupling with the automatic
"Guide-me-home" lighting
Association with the automatic illumination
of headlamps provides "guide-me-home"
lighting with the following additional op-
tions:
- selection of the lighting duration to
15, 30 or 60 seconds in the vehicle
parameters on the multifunction
s c r e e n c o n fi g u r a t i o n m e n u ( e x c e p t
in the case of the monochrome
screen A, for which the duration is
s e t : 6 0 s e c o n d s ) ,
- automatic activation of "guide-me- home" lighting when automatic
illumination of headlamps is in
operation.
Operating fault In the event of a fault with the
brightness sensor, the lighting
come on, this warning lamp is
displayed on the instrument
panel and/or a message appears on
the multifunction screen, accompanied
by an audible signal.
Consult a PEUGEOT dealer.
MANUAL ADJUSTMENT OF HALOGEN HEADLAMPS
The initial setting is position "0" .
To avoid causing a nuisance to other
road users, the height of the halogen
headlamps should be adjusted in rela-
tion to the load in the vehicle.
0. 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
-. Intermediate setting.
2. 5 people + maximum authorised load.
-. Intermediate setting.
3. Driver + maximum authorised load.
Switching off
The exterior welcome lighting switches
off automatically after a set time, when
the ignition is switched on or on locking
the vehicle.
Page 105 of 329
i
!
i
96
VISIBILITY
EXTERIOR WELCOME LIGHTING
The remote switching on of the light-
ing makes your approach to the vehicle
easier in poor light. It is activated ac-
cording to the level of light detected by
the brightness sensor.
Switching on
Press the open padlock on the
remote control.
The dipped beam headlamps and the sidelamps come on; your vehicle
is also unlocked.
Programming The lighting duration is se-
lected via the multifunction
s c r e e n c o n fi g u r a t i o n m e n u .
The duration of the welcome light-
ing is associated with and identical
to that of the automatic guide-me-
home lighting.
In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lighting will not come
on automatically.
Do not cover the brightness sensor,
coupled with the rain sensor and
located in the centre of the wind-
screen behind the rear view mirror;
the associated functions would no
longer be controlled.
Coupling with the automatic
"Guide-me-home" lighting
Association with the automatic illumination
of headlamps provides "guide-me-home"
lighting with the following additional op-
tions:
- selection of the lighting duration to
15, 30 or 60 seconds in the vehicle
parameters on the multifunction
s c r e e n c o n fi g u r a t i o n m e n u ( e x c e p t
in the case of the monochrome
screen A, for which the duration is
s e t : 6 0 s e c o n d s ) ,
- automatic activation of "guide-me- home" lighting when automatic
illumination of headlamps is in
operation.
Operating fault In the event of a fault with the
brightness sensor, the lighting
come on, this warning lamp is
displayed on the instrument
panel and/or a message appears on
the multifunction screen, accompanied
by an audible signal.
Consult a PEUGEOT dealer.
MANUAL ADJUSTMENT OF HALOGEN HEADLAMPS
The initial setting is position "0" .
To avoid causing a nuisance to other
road users, the height of the halogen
headlamps should be adjusted in rela-
tion to the load in the vehicle.
0. 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
-. Intermediate setting.
2. 5 people + maximum authorised load.
-. Intermediate setting.
3. Driver + maximum authorised load.
Switching off
The exterior welcome lighting switches
off automatically after a set time, when
the ignition is switched on or on locking
the vehicle.
