Stopping the vehicle
Before switching off the engine, you
can engage position P or N to place the
g e a r b o x i n n e u t r a l .
In both cases, apply the parking brake
to immobilise the vehicle. Operating fault
When the ignition is on, the
lighting of this warning lamp,
accompanied by an audible sig-
nal and a message on the multi-
f u n c t i o n s c r e e n , i n d i c a t e s a g e a r b o x
malfunction.
I n t h i s c a s e , t h e g e a r b o x s w i t c h e s t o
emergency mode and is locked in 3rd
gear. You may feel a substantial knock
when changing from P to R and from N
to R . This will not cause any damage to
t h e g e a r b o x .
D o n o t e x c e e d a s p e e d o f 6 0 m p h
( 1 0 0 k m / h ) , l o c a l s p e e d r e s t r i c t i o n s p e r -
mitting.
Have it checked by a PEUGEOT dealer.
This warning lamp may also come on if
a door is opened.
There is a risk of damage to the
g e a r b o x :
- if you press the accelerator and brake pedals at the same time,
- if you force the lever from posi- tion P to another position when
t h e b a t t e r y i s fl a t .
Manual operation
Select position M for sequential
c h a n g i n g o f t h e f o u r o r s i x g e a r s .
Push the lever towards the + sign to
change up a gear.
Pull the lever towards the - sign to
change down a gear.
D disappears and the gears
engaged appear in succes-
sion on the instrument panel.
In the event of under-revving
or over-revving, the gear se-
l e c t e d fl a s h e s f o r a f e w s e c o n d s , t h e n
the actual gear engaged is displayed. If the lever is not in position
P ,
when the driver's door is opened or
a p p r o x i m a t e l y 4 5 s e c o n d s a f t e r t h e ignition is switched off, an audible
signal is heard and a message ap-
pears.
Return the lever to position P ;
the audible signal stops and the
message disappears.
It is only possible to change from one
gear to another if the vehicle speed and
engine speed permit; otherwise, the
g e a r b o x w i l l o p e r a t e t e m p o r a r i l y i n a u -
tomatic mode.
Invalid value during manual
operation
This symbol is displayed if a
gear is not engaged correctly
(selector between two posi-
t i o n s ) .
It is possible to change from position D
( a u t o m a t i c ) t o p o s i t i o n M ( m a n u a l ) a t
any time.
When the vehicle is stationary or moving
v e r y s l o w l y , t h e g e a r b o x s e l e c t s g e a r M1
automatically.
The sport and snow programmes do not
operate in manual mode. To limit fuel consumption when sta-
tionary for long periods with the en-
g i n e r u n n i n g ( t r a f fi c j a m . . . ) , p l a c e
the gear lever in position
N and apply
the parking brake.
Page 164 of 329
i
1 5 0
DRIVING
SPEED LIMITER
System which prevents the vehicle from
e x c e e d i n g t h e s p e e d p r o g r a m m e d b y
the driver.
When the programmed speed limit is
reached, pressing the accelerator pedal
no longer has any effect. The controls of this system are grouped
together on stalk A .
1. Speed limiter mode selection dial
2. Value decrease button
3. Value increase button
4. S p e e d l i m i t e r o n / o f f b u t t o n
The programmed information is grouped
together on the instrument panel screen.
5. S p e e d l i m i t e r o n / o f f i n d i c a t i o n
6.
Speed limiter mode selection indication
7. Programmed speed value
Steering mounted controls Displays on the instrumen
t panel
The speed limiter cannot, in any
circumstances, replace the need
to respect speed limits, nor can it
replace the need for vigilance and
responsibility on the part of the
driver.
The speed limiter is switched on manu-
ally: it requires a programmed speed of
a t l e a s t 2 0 m p h ( 3 0 k m / h ) .
The speed limiter is switched off by
manual operation of the control.
T h e p r o g r a m m e d s p e e d c a n b e e x c e e -
ded temporarily by pressing the acce-
l e r a t o r fi r m l y .
To return to the programmed speed,
simply slow down to a speed below the
programmed speed.
The programmed speed remains in the
memory when the ignition is switched off.
Page 165 of 329
!
DRIVING
On a steep descent or in the event
of sharp acceleration, the speed
limiter will not be able to prevent
t h e v e h i c l e f r o m e x c e e d i n g t h e p r o -
grammed speed.
T o a v o i d a n y r i s k o f j a m m i n g o f t h e
pedals:
- ensure that the mat is posi- tioned correctly,
- d o n o t fi t o n e m a t o n t o p o f a n - other.

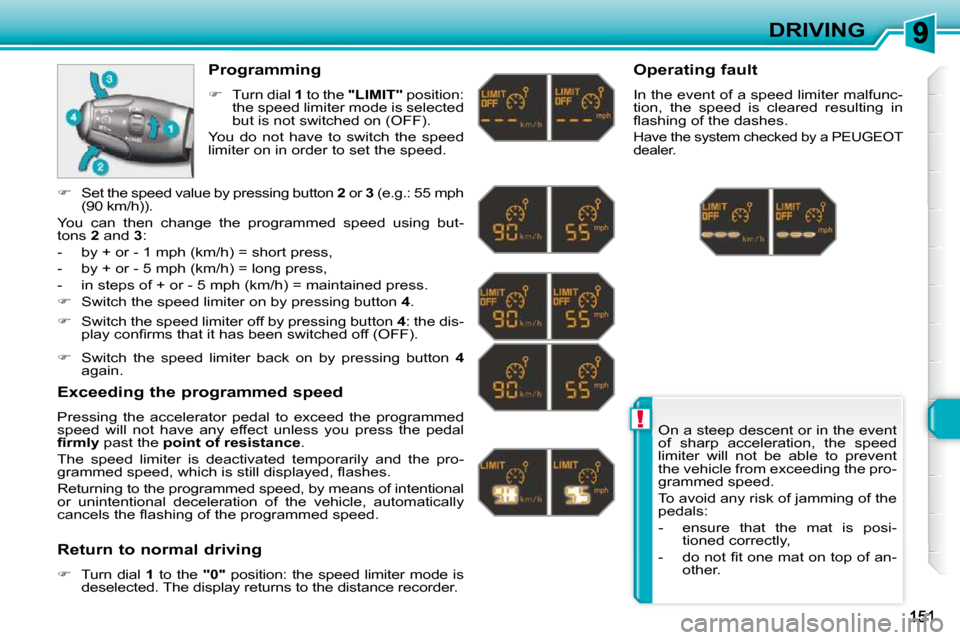

Programming
Turn dial 1 to the "LIMIT" position:
the speed limiter mode is selected
b u t i s n o t s w i t c h e d o n ( O F F ) .
You do not have to switch the speed
limiter on in order to set the speed.
Exceeding the programmed speed
P r e s s i n g t h e a c c e l e r a t o r p e d a l t o e x c e e d t h e p r o g r a m m e d
speed will not have any effect unless you press the pedal
fi r m l y past the point of resistance .
The speed limiter is deactivated temporarily and the pro-
g r a m m e d s p e e d , w h i c h i s s t i l l d i s p l a y e d , fl a s h e s .
Returning to the programmed speed, by means of int entional
or unintentional deceleration of the vehicle, automaticall y
c a n c e l s t h e fl a s h i n g o f t h e p r o g r a m m e d s p e e d .
Return to normal driving
Turn dial 1 to the "0" position: the speed limiter mode is
deselected. The display returns to the distance rec order. Operating fault
In the event of a speed limiter malfunc-
tion, the speed is cleared resulting in
fl a s h i n g o f t h e d a s h e s .
Have the system checked by a PEUGEOT
dealer.
Switch the speed limiter off by pressing button 4 : the dis-
p l a y c o n fi r m s t h a t i t h a s b e e n s w i t c h e d o f f ( O F F ) .
Switch the speed limiter back on by pressing button 4
again.
Set the speed value by pressing button 2 or 3 (e.g.: 55 mph
( 9 0 k m / h ) ) .
You can then change the programmed speed using but-
tons 2 and 3 :
- b y + o r - 1 m p h ( k m / h ) = s h o r t p r e s s ,
- b y + o r - 5 m p h ( k m / h ) = l o n g p r e s s ,
- i n s t e p s o f + o r - 5 m p h ( k m / h ) = m a i n t a i n e d p r e s s .
Switch the speed limiter on by pressing button 4 .
Page 166 of 329
i
152
DRIVING
CRUISE CONTROL
System which automatically maintains
the speed of the vehicle at the value
programmed by the driver, without any
action on the accelerator pedal.
The cruise control is switched on
manually: it requires a minimum vehicle
s p e e d o f 2 5 m p h ( 4 0 k m / h ) a n d t h e e n -
gaging:
- o f f o u r t h g e a r o n t h e m a n u a l g e a r b o x ,
- of second gear on the electronic gear c o n t r o l g e a r b o x o r a u t o m a t i c g e a r -
b o x , i n s e q u e n t i a l d r i v i n g m o d e ,
- of position A on the electronic gear
c o n t r o l g e a r b o x o r D on the auto-
m a t i c g e a r b o x . The controls of this system are grouped
together on lever
A .
1. Cruise control mode selection dial
2. S p e e d p r o g r a m m i n g / p r o g r a m m e d
value decrease button
3. S p e e d p r o g r a m m i n g / p r o g r a m m e d
value increase button
4. C r u i s e c o n t r o l o f f / r e s u m e b u t t o n The programmed information is grouped
together on the instrument panel display.
5. C r u i s e c o n t r o l o f f / r e s u m e i n d i c a t i o n
6.
Cruise control mode selection indication
7. Programmed speed value
Steering mounted controls Displays on the instrumen
t panel
The cruise control cannot, in any
circumstances, replace the need
to respect speed limits, nor can it
replace the need for vigilance and
responsibility on the part of the
driver.
The cruise control is switched off manu-
ally or by pressing the brake or clutch
pedal or on triggering of the ESP system
for safety reasons.
I t i s p o s s i b l e t o e x c e e d t h e p r o g r a m m e d
speed temporarily by pressing the ac-
celerator pedal.
To return to the programmed speed,
simply release the accelerator pedal.
Switching off the ignition cancels any
programmed speed value.
Page 167 of 329
!
DRIVING
When the cruise control is switched
on, be careful if you maintain the
pressure on one of the programmed
speed changing buttons: this may
result in a very rapid change in the
speed of your vehicle.
Do not use the cruise control on
s l i p p e r y r o a d s o r i n h e a v y t r a f fi c .
On a steep descent, the cruise
control will not be able to prevent
t h e v e h i c l e f r o m e x c e e d i n g t h e p r o -
grammed speed.
T o a v o i d a n y r i s k o f j a m m i n g o f t h e
pedals:
- ensure that the mat is posi- tioned correctly,
- n e v e r fi t o n e m a t o n t o p o f a n - other.

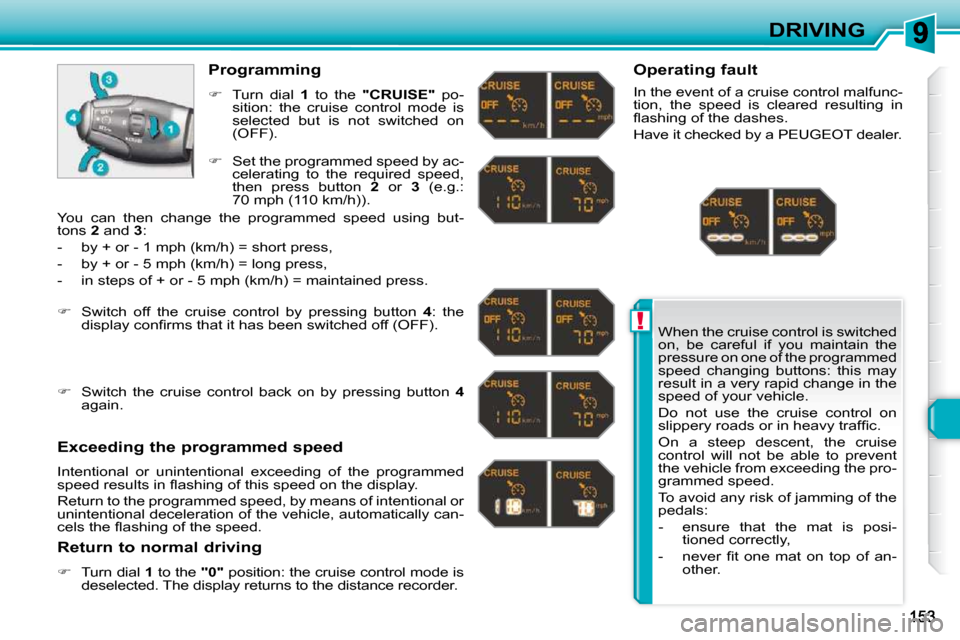

Programming
Turn dial 1 to the "CRUISE" po-
sition: the cruise control mode is
selected but is not switched on
( O F F ) .
Exceeding the programmed speed
I n t e n t i o n a l o r u n i n t e n t i o n a l e x c e e d i n g o f t h e p r o g r a m m e d
s p e e d r e s u l t s i n fl a s h i n g o f t h i s s p e e d o n t h e d i s p l a y .
Return to the programmed speed, by means of intentional or
unintentional deceleration of the vehicle, automatically ca n-
c e l s t h e fl a s h i n g o f t h e s p e e d .
Return to normal driving
Turn dial 1 to the "0" position: the cruise control mode is
deselected. The display returns to the distance rec order. Operating fault
In the event of a cruise control malfunc-
tion, the speed is cleared resulting in
fl a s h i n g o f t h e d a s h e s .
Have it checked by a PEUGEOT dealer.
Set the programmed speed by ac-
celerating to the required speed,
then press button 2 or 3 (e.g.:
7 0 m p h ( 1 1 0 k m / h ) ) .
Switch off the cruise control by pressing button 4 : the
d i s p l a y c o n fi r m s t h a t i t h a s b e e n s w i t c h e d o f f ( O F F ) .
Switch the cruise control back on by pressing button 4
again.
You can then change the programmed speed using but-
tons
2 and 3 :
- b y + o r - 1 m p h ( k m / h ) = s h o r t p r e s s ,
- b y + o r - 5 m p h ( k m / h ) = l o n g p r e s s ,
- i n s t e p s o f + o r - 5 m p h ( k m / h ) = m a i n t a i n e d p r e s s .
Page 170 of 329
i
i
156
DRIVING

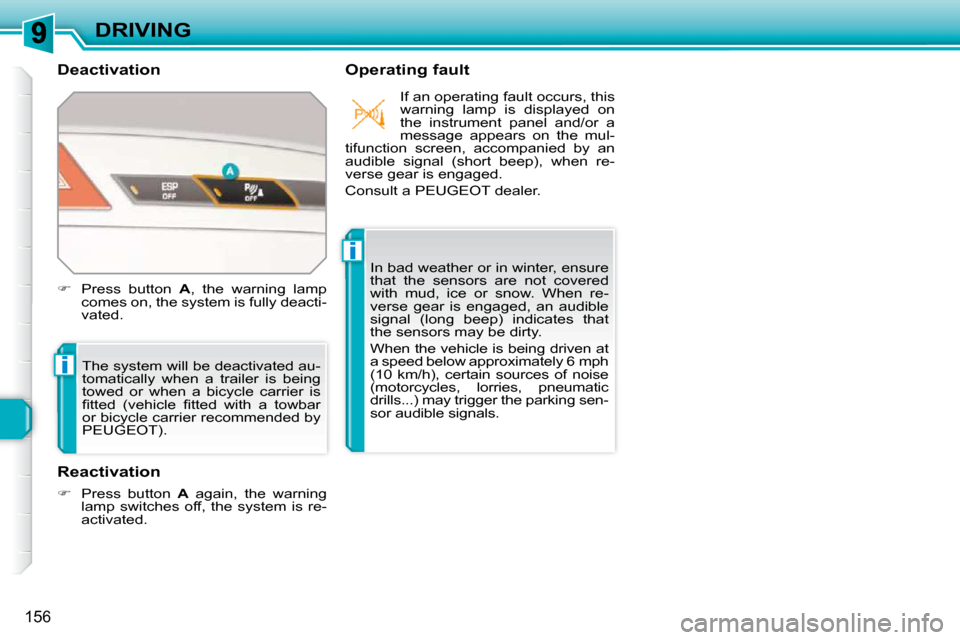

Deactivation Operating fault
The system will be deactivated au-
tomatically when a trailer is being
towed or when a bicycle carrier is
fi t t e d ( v e h i c l e fi t t e d w i t h a t o w b a r
or bicycle carrier recommended by
P E U G E O T ) .
Reactivation
Press button A , the warning lamp
comes on, the system is fully deacti-
vated. In bad weather or in winter, ensure
that the sensors are not covered
with mud, ice or snow. When re-
verse gear is engaged, an audible
s i g n a l ( l o n g b e e p ) i n d i c a t e s t h a t
the sensors may be dirty.
When the vehicle is being driven at
a s p e e d b e l o w a p p r o x i m a t e l y 6 m p h
( 1 0 k m / h ) , c e r t a i n s o u r c e s o f n o i s e
(motorcycles, lorries, pneumatic
d r i l l s . . . ) m a y t r i g g e r t h e p a r k i n g s e n -
sor audible signals. If an operating fault occurs, this
warning lamp is displayed on
t h e i n s t r u m e n t p a n e l a n d / o r a
message appears on the mul-
tifunction screen, accompanied by an
a u d i b l e s i g n a l ( s h o r t b e e p ) , w h e n r e -
verse gear is engaged.
Consult a PEUGEOT dealer.
Press button A again, the warning
lamp switches off, the system is re-
activated.
Page 201 of 329
11PRACTICAL INFORMATION
Fuse N° Rating Functions
G36 30 A Driver and passenger heated seats.
G37 5 A Driving position memory unit, lighting rheostat.
G38 30 A Driver’s seat memory unit.
G39 30 A T r a i l e r f u s e b o x s u p p l y .
G40 - Not used.
Fuse N° Rating Functions
F12 15 A Instrument panel, seat belt and passenger's front
airbag warning lamps display, air conditioning,
driver's seat memory unit, 2nd row rear seat
switches, driving school module.
F13 5 A E n g i n e f u s e b o x , a i r b a g s , e l e c t r o n i c g e a r c o n t r o l
g e a r b o x g e a r l e v e r , t r a i l e r f u s e b o x .
F14 15 A M u l t i f u n c t i o n s c r e e n , a m p l i fi e r , B l u e t o o t h s y s t e m ,
rain/brightness sensor, parking sensors control
unit.
F15 30 A Locking and deadlocking.
F17 40 A Rear screen and door mirrors defrosting.
SH - PARC shunt.
Page 245 of 329
232
0 1
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO
8
TUV
7
PQRS 9
WXYZ
0
* #
1
RADIO MEDIA
NAV ESC TRAFFIC
SETUP
ADDR BOOK
1
1 0
2
3
4
6 1 2
9
7
8
1 1 5
TU
PQRS
0
*
1 . CD eject.
2 . R A D I O : a c c e s s t o t h e " R a d i o " M e n u . Display the list of stations in alphabetical order ( F M w a v e b a n d ) o r f r e q u e n c y o r d e r ( A M w a v e b a n d ) .
M E D I A : a c c e s s t o t h e " M e d i a " M e n u ( A u d i o C D , J u k e b o x , E x t e r n a l D e v i c e ) . Display the list of tracks. Change of source.
N A V : a c c e s s t o t h e " N a v i g a t i o n " M e n u a n d d i s p l a y o f t h e last destinations.
E S C : a b a n d o n t h e o p e r a t i o n i n p r o g r e s s . L o n g p r e s s : r e t u r n t o t h e m a i n d i s p l a y .
T R A F F I C : a c c e s s t o t h e " T r a f fi c " M e n u ( f u n c t i o n d e s c r i b e d i n d e t a i l i n s e c t i o n s 0 2 a n d 1 0 ) .
A D D R B O O K : a c c e s s t o t h e " A d d r e s s b o o k " M e n u ( f u n c t i o n d e s c r i b e d i n d e t a i l i n s e c t i o n 1 0 ) .
S E T U P : a c c e s s t o t h e " S E T U P " M e n u ( c o n fi g u r a t i o n ) ( f u n c t i o n d e s c r i b e d i n d e t a i l i n s e c t i o n s 0 2 a n d 1 0 ) . L o n g p r e s s : G P S c o v e r a g e .
3 . A u d i o s e t t i n g s ( B a l a n c e / F a d e r , B a s s / T r e b l e , M u s i c a l A m b i e n c e . . . ) .
4 . Volume adjustment (each source is independent, inc luding m e s s a g e a n d n a v i g a t i o n a l e r t ) L o n g p r e s s : r e i n i t i a l i s a t i o n o f t h e s y s t e m . S h o r t p r e s s : m u t e .
5 . Automatic search for a radio station on a lower frequency. Selection of the previous CD or MP3 track.
FIRST STEPS
Peugeot Connect Media CONTROL PANEL
6 . Automatic search for a radio station on a higher f requency. Selection of the next CD or MP3 track.
7 . Normal display or black screen.
8 . S e l e c t i o n o f t h e s u c c e s s i v e d i s p l a y o n t h e s c r e e n o f " M A P " / " N A V " ( i f n a v i g a t i o n i s i n p r o g r e s s ) / " T E L " ( i f a c o n v e r s a t i o n i s i n p r o g r e s s ) / " R A D I O " o r " M E D I A " c u r r e n t l y b e i n g p l a y e d .
9 . P I C K U P : a c c e s s t o t h e " P h o n e " m e n u . With Bluetooth connection, accept an incoming call .
1 0 . H A N G U P : a c c e s s t o t h e " P h o n e " m e n u . Hang up the current call or refuse an incoming call, with Bluetooth connection.
1 1 . Entering of numbers or letters on the alpha-numeric keypad, pre-selection of 10 radio frequencies.
1 2 . SD card reader.
S h o r t p r e s s : c l e a r s t h e l a s t character.
L o n g p r e s s : a c t i v a t e s v o i c e recognition.
