24
INSTRUMENT PANELS
Panel grouping together the vehicle operation indication dials and warning lights.
Dials
1. Rev counter.
Indicates the speed of rotation of the engine (x 1 000 rpm).
2. Coolant temperature.
Indicates the temperature of the en- gine coolant (° Celsius).
3. Fuel level.
Indicates the quantity of fuel remain- ing in the tank.
4. Vehicle speed.
Indicates the current speed of the moving vehicle (km/h or mph).
5. Display.
6. Display zero reset or service indi-
cator re-display button.
Resets the selected function to zero (trip distance recorder or service
indicator) or displays the service in-
dicator again.
7. Instrument panel lighting rheostat.
Adjusts the brightness of the light- ing of the instruments and controls,
if the lights are on.
For further information, refer
to the paragraph relating to
the button or function and its
associated display.
Page 2 of 290
25

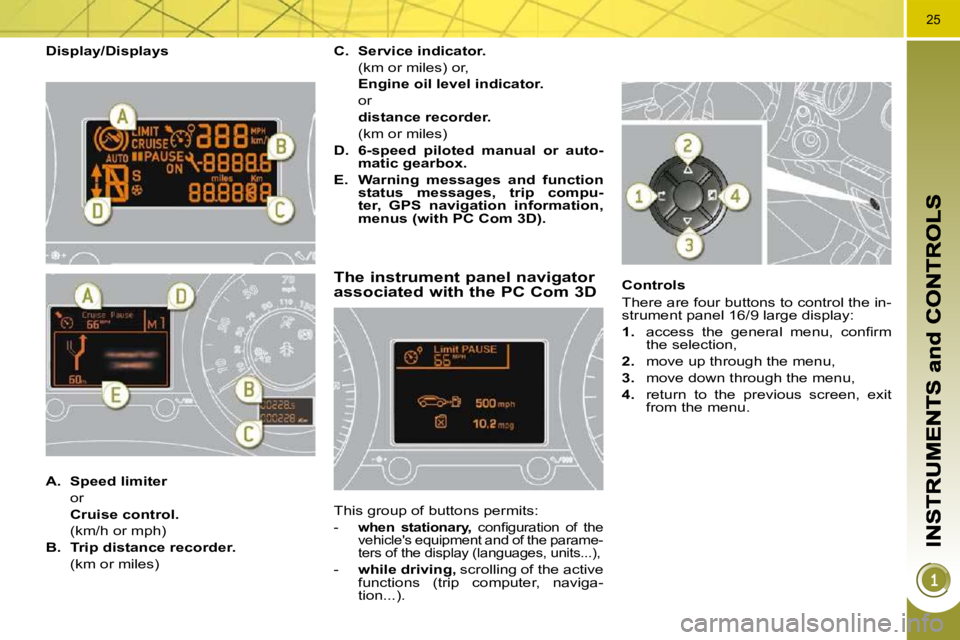

Display/Displays
The instrument panel navigator associated with the PC Com 3D
This group of buttons permits:
- when stationary,aryary c o n fi g u r a t i o n o f t h e
vehicle's equipment and of the parame-
ters of the display (languages, units...),
- while driving, scrolling of the active
functions (trip computer, naviga-
tion...). Controls
There are four buttons to control the in-
strument panel 16/9 large display:
1. a c c e s s t h e g e n e r a l m e n u , c o n fi r m
the selection,
2. move up through the menu,
3. move down through the menu,
4. return to the previous screen, exit
from the menu.
A. Speed limiter
or
Cruise control.
(km/h or mph)
B. Trip distance recorder.
(km or miles)
C. Service indicator.
(km or miles) or,
Engine oil level indicator.
or
distance recorder.
(km or miles)
D. 6-speed piloted manual or auto-
matic gearbox.
E. Warning messages and function
status messages, trip compu-
ter, GPS navigation information,
menus (with PC Com 3D).
Page 3 of 290
26
Vehicle parameters
This menu allows you to activate or
deactivate certain driving and comfort
equipment:
- wiper linked with reverse gear (refer to the "Visibility" section),
- selective unlocking (refer to the "Accesses" section),
- follow-me-home and welcome ligh- ting (refer to the "Visibility" section),
- ambient lighting (refer to the "Visibi- lity" section),
- daytime lights (refer to the "Visibi- lity" section),
- directional headlamps (refer to the "Visibility" section),
- automatic or manual parking brake (refer to the "Driving" section).
Selection of the units
This menu allows you to select the units:
temperature (°Celsius or °Fahrenheit)
and consumption (l/100 km, mpg or km/l).
Selection of the language
This menu allows you to select the
language used by the display: Deutsch,
English, Espanol, Français, Italiano,
Nederlands, Portugues, Türkçe * .
The general menu and its as-
sociated functions can only be
accessed when stationary, via
buttons
1 to 4 .
A message appears on the display,
above a certain speed threshold, in-
dicating that the general menu can-
not be displayed.
The trip computer displays can only
be accessed while driving, via but-
tons 2 and 3 (refer to the "Trip com-
puter" paragraph).

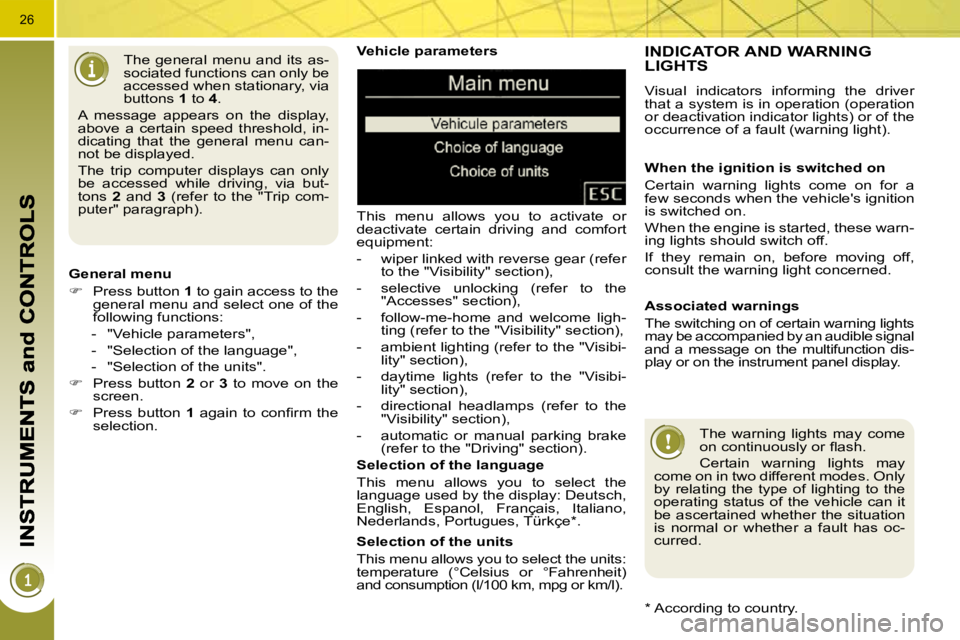

General menu
Press button 1 to gain access to the
general menu and select one of the
following functions:
- "Vehicle parameters",
- "Selection of the language",
- "Selection of the units".
Press button 2 or 3 to move on the
screen.
Press button 1 a g a i n t o c o n fi r m t h e
selection.
* According to country. INDICATOR AND WARNING LIGHTS
Visual indicators informing the driver
that a system is in operation (operation
or deactivation indicator lights) or of the
occurrence of a fault (warning light).
When the ignition is switched on
Certain warning lights come on for a
few seconds when the vehicle's ignition
is switched on.
When the engine is started, these warn-
ing lights should switch off.
If they remain on, before moving off,
consult the warning light concerned.
Associated warnings
The switching on of certain warning lights
may be accompanied by an audible signal
and a message on the multifunction dis-
play or on the instrument panel display. The warning lights may come
o n c o n t i n u o u s l y o r fl a s h .
Certain warning lights may
come on in two different modes. Only
by relating the type of lighting to the
operating status of the vehicle can it
be ascertained whether the situation
is normal or whether a fault has oc-
curred.
Page 4 of 290
26
Vehicle parameters
This menu allows you to activate or
deactivate certain driving and comfort
equipment:
- wiper linked with reverse gear (refer to the "Visibility" section),
- selective unlocking (refer to the "Accesses" section),
- follow-me-home and welcome ligh- ting (refer to the "Visibility" section),
- ambient lighting (refer to the "Visibi- lity" section),
- daytime lights (refer to the "Visibi- lity" section),
- directional headlamps (refer to the "Visibility" section),
- automatic or manual parking brake (refer to the "Driving" section).
Selection of the units
This menu allows you to select the units:
temperature (°Celsius or °Fahrenheit)
and consumption (l/100 km, mpg or km/l).
Selection of the language
This menu allows you to select the
language used by the display: Deutsch,
English, Espanol, Français, Italiano,
Nederlands, Portugues, Türkçe * .
The general menu and its as-
sociated functions can only be
accessed when stationary, via
buttons
1 to 4 .
A message appears on the display,
above a certain speed threshold, in-
dicating that the general menu can-
not be displayed.
The trip computer displays can only
be accessed while driving, via but-
tons 2 and 3 (refer to the "Trip com-
puter" paragraph).
General menu
Press button 1 to gain access to the
general menu and select one of the
following functions:
- "Vehicle parameters",
- "Selection of the language",
- "Selection of the units".
Press button 2 or 3 to move on the
screen.
Press button 1 a g a i n t o c o n fi r m t h e
selection.
* According to country. INDICATOR AND WARNING LIGHTS
Visual indicators informing the driver
that a system is in operation (operation
or deactivation indicator lights) or of the
occurrence of a fault (warning light).
When the ignition is switched on
Certain warning lights come on for a
few seconds when the vehicle's ignition
is switched on.
When the engine is started, these warn-
ing lights should switch off.
If they remain on, before moving off,
consult the warning light concerned.
Associated warnings
The switching on of certain warning lights
may be accompanied by an audible signal
and a message on the multifunction dis-
play or on the instrument panel display. The warning lights may come
o n c o n t i n u o u s l y o r fl a s h .
Certain warning lights may
come on in two different modes. Only
by relating the type of lighting to the
operating status of the vehicle can it
be ascertained whether the situation
is normal or whether a fault has oc-
curred.
Page 6 of 290
28

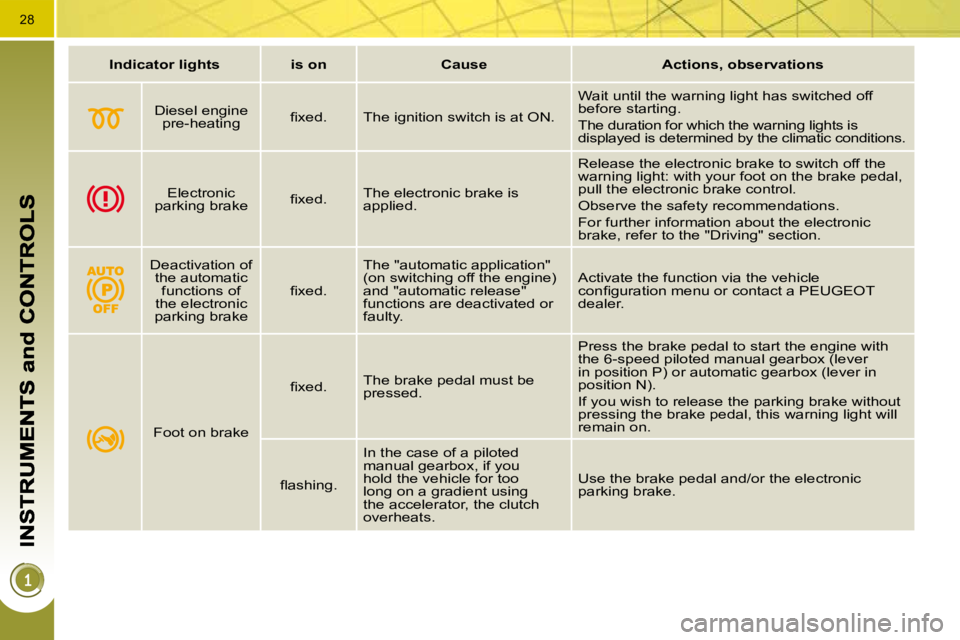

Indicator lightsis onCauseActions, observations
Diesel engine pre-heating fi x e d . The ignition switch is at ON.
Wait until the warning light has switched off before starting.
The duration for which the warning lights is displayed is determined by the climatic conditions.
Electronic parking brake fi x e d . The electronic brake is applied.
Release the electronic brake to switch off the warning light: with your foot on the brake pedal, pull the electronic brake control.
Observe the safety recommendations.
For further information about the electronic brake, refer to the "Driving" section.
Deactivation of the automatic functions of the electronic parking brake
fi x e d .
The "automatic application" (on switching off the engine) and "automatic release" functions are deactivated or faulty.
Activate the function via the vehicle c o n fi g u r a t i o n m e n u o r c o n t a c t a P E U G E O T dealer.
Foot on brake
fi x e d . The brake pedal must be pressed.
Press the brake pedal to start the engine with the 6-speed piloted manual gearbox (lever in position P) or automatic gearbox (lever in position N).
If you wish to release the parking brake without pressing the brake pedal, this warning light will remain on.
fl a s h i n g .
In the case of a piloted manual gearbox, if you hold the vehicle for too long on a gradient using the accelerator, the clutch overheats.
U s e t h e b r a k e p e d a l a n d / o r t h e e l e c t r o n i c parking brake.
Page 8 of 290
30

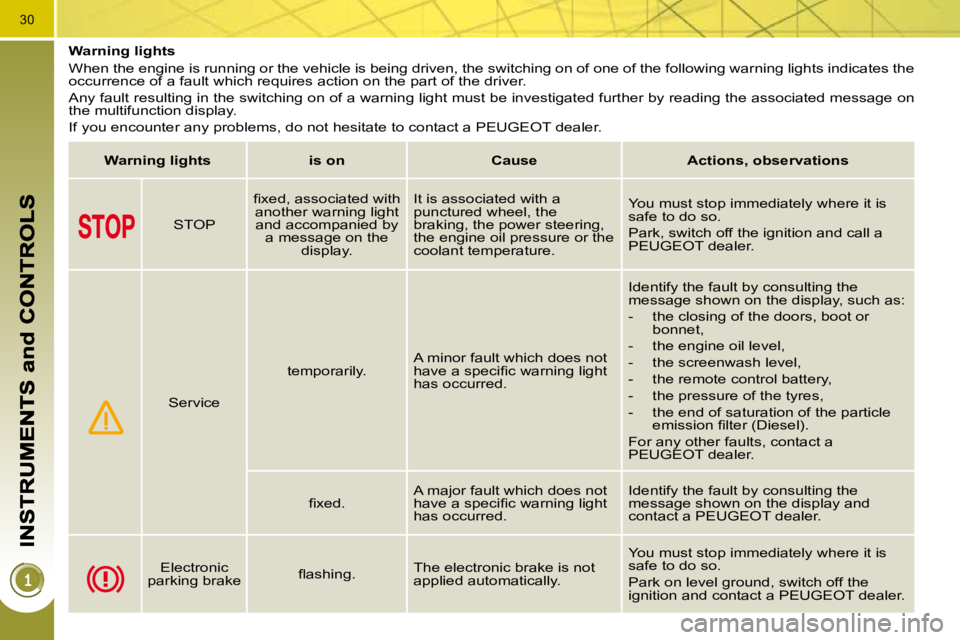

Warning lights
When the engine is running or the vehicle is being driven, the switching on of one of the following warning lights indicates the
occurrence of a fault which requires action on the part of the driver.
Any fault resulting in the switching on of a warning ligh t must be investigated further by reading the associated message on
the multifunction display.
I f y o u e n c o u n t e r a n y p r o b l e m s , d o n o t h e s i t a t e t o c o n t a c t a P E U G E O T d e a l e r .
Warning lightsis onCauseActions, observations
STOP
fi x e d , a s s o c i a t e d w i t h another warning light and accompanied by a message on the display.
It is associated with a punctured wheel, the braking, the power steering, the engine oil pressure or the coolant temperature.
You must stop immediately where it is safe to do so.
Park, switch off the ignition and call a P E U G E O T d e a l e r .
Service
temporarily. A minor fault which does not h a v e a s p e c i fi c w a r n i n g l i g h t has occurred.
Identify the fault by consulting the message shown on the display, such as:
- the closing of the doors, boot or bonnet,
- the engine oil level,
- the screenwash level,
- the remote control battery,
- the pressure of the tyres,
- the end of saturation of the particle e m i s s i o n fi l t e r ( D i e s e l ) .
For any other faults, contact a P E U G E O T d e a l e r .
fi x e d . A major fault which does not h a v e a s p e c i fi c w a r n i n g l i g h t has occurred.
Identify the fault by consulting the message shown on the display and c o n t a c t a P E U G E O T d e a l e r .
Electronic parking brake fl a s h i n g . The electronic brake is not applied automatically.
You must stop immediately where it is safe to do so.
Park on level ground, switch off the i g n i t i o n a n d c o n t a c t a P E U G E O T d e a l e r .
Page 12 of 290
34

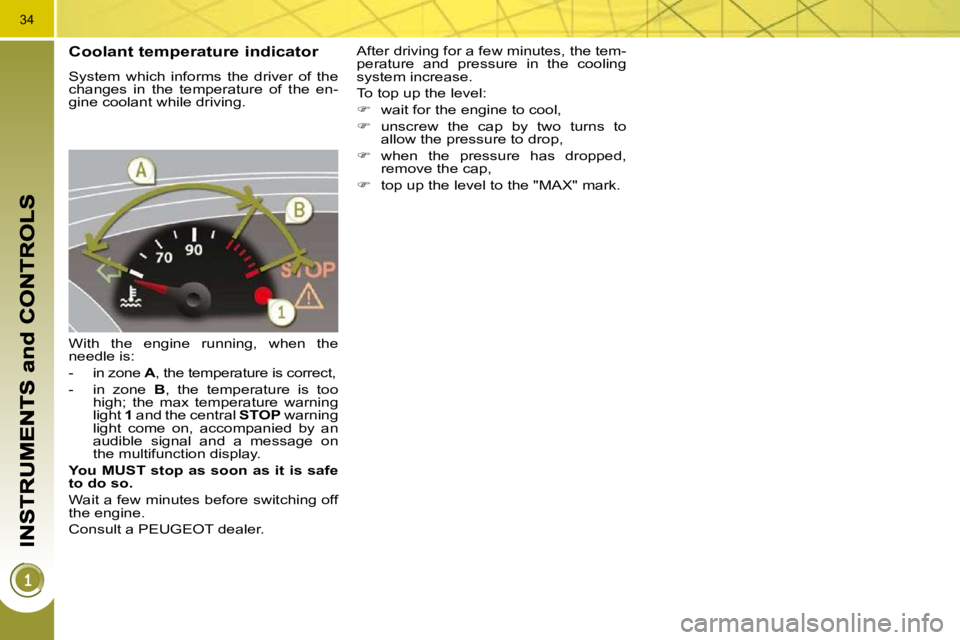

Coolant temperature indicator
System which informs the driver of the
changes in the temperature of the en-
gine coolant while driving.
With the engine running, when the
needle is:
- in zone A , the temperature is correct,
- in zone B , the temperature is too
high; the max temperature warning
light 1 and the central STOP warning
light come on, accompanied by an
audible signal and a message on
the multifunction display.
You MUST stop as soon as it is safe
to do so.
Wait a few minutes before switching off
the engine.
C o n s u l t a P E U G E O T d e a l e r . After driving for a few minutes, the tem-
perature and pressure in the cooling
system increase.
To top up the level:
wait for the engine to cool,
unscrew the cap by two turns to
allow the pressure to drop,
when the pressure has dropped,
remove the cap,
top up the level to the "MAX" mark.
Page 13 of 290

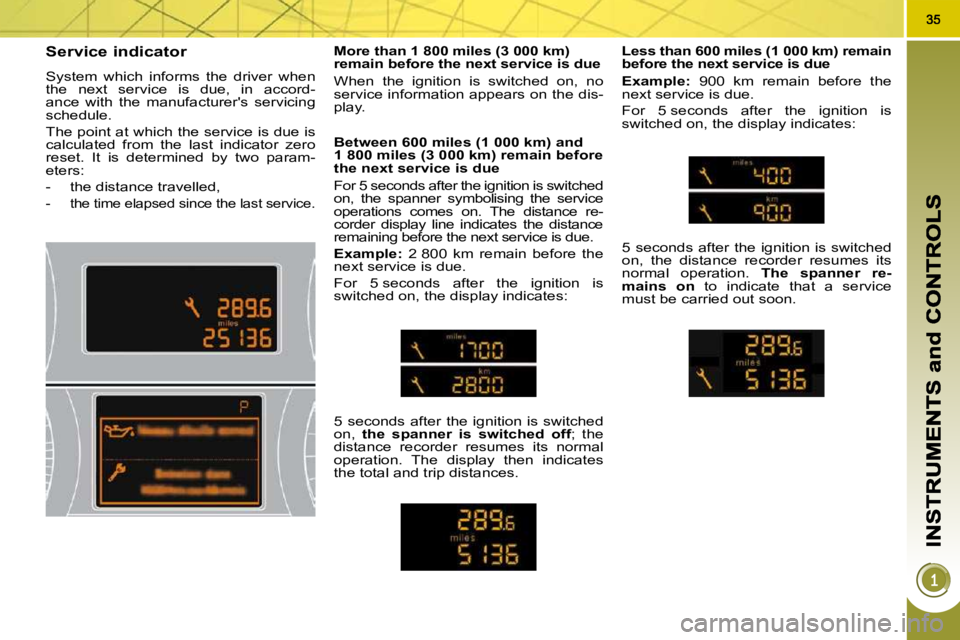

Service indicator
System which informs the driver when
the next service is due, in accord-
ance with the manufacturer's servicing
schedule.
The point at which the service is due is
calculated from the last indicator zero
reset. It is determined by two param-
eters:
- the distance travelled,
- the time elapsed since the last service.
Between 600 miles (1 000 km) and
1 800 miles (3 000 km) remain before
the next service is due
For 5 seconds after the ignition is switched
on, the spanner symbolising the service
operations comes on. The distance re-
corder display line indicates the distance
remaining before the next service is due.
Example: 2 800 km remain before the
next service is due.
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is switched
on, the spanner is switched off ; the
distance recorder resumes its normal
operation. The display then indicates
the total and trip distances. Less than 600 miles (1 000 km) remain
before the next service is due
Example: 900 km remain before the
next service is due.
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is switched
on, the distance recorder resumes its
normal operation. The spanner re-
mains on to indicate that a service
must be carried out soon.
More than 1 800 miles (3 000 km)
remain before the next service is due
When the ignition is switched on, no
service information appears on the dis-
play.
