28
Indicator lightsis onCauseActions, observations
Diesel engine pre-heating fi x e d . The ignition switch is at ON.
Wait until the warning light has switched off before starting.
The duration for which the warning lights is displayed is determined by the climatic conditions.
Electronic parking brake fi x e d . The electronic brake is applied.
Release the electronic brake to switch off the warning light: with your foot on the brake pedal, pull the electronic brake control.
Observe the safety recommendations.
For further information about the electronic brake, refer to the "Driving" section.
Deactivation of the automatic functions of the electronic parking brake
fi x e d .
The "automatic application" (on switching off the engine) and "automatic release" functions are deactivated or faulty.
Activate the function via the vehicle c o n fi g u r a t i o n m e n u o r c o n t a c t a P E U G E O T dealer.
Foot on brake
fi x e d . The brake pedal must be pressed.
Press the brake pedal to start the engine with the 6-speed piloted manual gearbox (lever in position P) or automatic gearbox (lever in position N).
If you wish to release the parking brake without pressing the brake pedal, this warning light will remain on.
fl a s h i n g .
In the case of a piloted manual gearbox, if you hold the vehicle for too long on a gradient using the accelerator, the clutch overheats.
U s e t h e b r a k e p e d a l a n d / o r t h e e l e c t r o n i c parking brake.
Page 145 of 290
143
CRUISE CONTROL
System which automatically maintains
the speed of the vehicle at the value
programmed by the driver, without any
action on the accelerator pedal.
The cruise control is switched on
manually: it requires a minimum vehicle
speed of 25 mph (40 km/h) and the en-
gaging:
- of fourth gear on the manual gear- box,
- of second gear on the piloted manual gearbox or automatic gearbox, in se-
quential driving mode,
- of position A on the piloted manual
gearbox or D on the automatic gear-
box. The controls of this system are grouped
together on lever
A .
1. Cruise control mode selection dial
2. Speed programming/programmed
value decrease button
3. Speed programming/programmed
value increase button
4. Cruise control off/resume button The programmed information is grouped
together on the instrument panel display.
5. Cruise control off/resume indication
6.
Cruise control mode selection indication
7. Programmed speed value
Steering wheel controls Displays on the instrument panel
The cruise control cannot, in
any circumstances, replace
the need to respect speed lim-
its, nor can it replace the need for vigi-
lance and responsibility on the part of
the driver.
The cruise control is
switched off
manually or by pressing the brake or
clutch pedal or on triggering of the ESP
system for safety reasons.
It is possible to exceed the programmed
speed temporarily by pressing the ac-
celerator pedal.
To return to the programmed speed,
simply release the accelerator pedal.
Switching off the ignition cancels any
programmed speed value. This information is also dis-
played on the head up display.
For further details about the head up
display, refer to this "Driving" section.
Page 147 of 290
145
6-SPEED MANUAL GEARBOX
As a safety precaution and to
facilitate starting of the engine:
- always select neutral,
- press the clutch pedal. Only engage reverse gear
when the vehicle is stationary
with the engine at idle.
Engaging reverse gear
Raise the ring under the knob and
push the gear lever to the left then
forwards.
* According to engine.
GEAR CHANGE INDICATOR *
System which reduces fuel consump-
tion by advising the driver to change up
a g e a r o n v e h i c l e s fi t t e d w i t h a m a n u a l
gearbox.
Operation
The system acts solely in the context of
economical driving.
Depending on the driving situation and
your vehicle's equipment, the system
may advise you to skip one or more
gears. You can follow this instruc-
tion without engaging the intermediate
gears.
The gear engagement recommenda-
tions must not be considered compulsory.
I n f a c t , t h e c o n fi g u r a t i o n o f t h e r o a d , t h e
a m o u n t o f t r a f fi c a n d s a f e t y r e m a i n d e -
termining factors when choosing the best
gear. Therefore, the driver remains re-
sponsible for deciding whether or not to
follow the advice given by the system.
This function cannot be deactivated. Example:
- You are in third gear.
In the case of driving which
makes particular demands on the
p e r f o r m a n c e o f t h e e n g i n e ( fi r m
pressure on the accelerator pedal, for
example, when overtaking...), the sys-
tem will not recommend a gear change.
The system never suggests:
- e n g a g i n g o f fi r s t g e a r ,
- engaging of reverse gear,
- engaging of a lower gear. - You press the accelerator pedal
moderately.
- The system may suggest that you engage a higher gear, if appropriate.
The information appears in the form of
an arrow on the instrument panel dis-
play.
Depending on your vehicle's equipment,
this arrow may be accompanied by the
recommended gear.
This equipment will become available
during the year.
Page 184 of 290
PRACTICAL INFORMATION
181

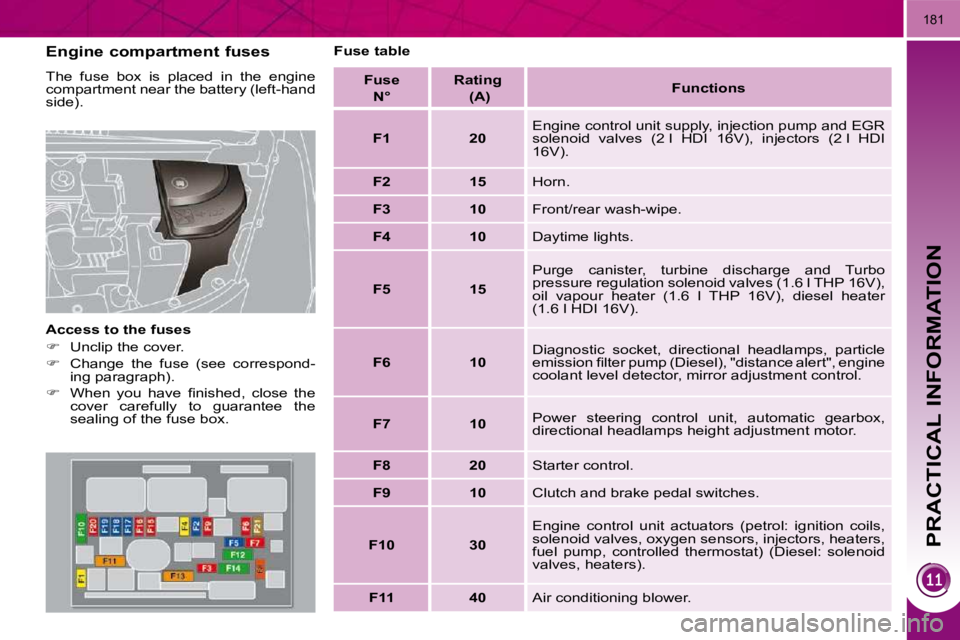

Engine compartment fuses
T h e f u s e b o x i s p l a c e d i n t h e e n g i n e
compartment near the battery (left-hand
side).
Access to the fuses
Unclip the cover.
Change the fuse (see correspond-
ing paragraph).
W h e n y o u h a v e fi n i s h e d , c l o s e t h e
cover carefully to guarantee the
s e a l i n g o f t h e f u s e b o x . Fuse table
Fuse N° Rating
(A) Functions
F1 20 E n g i n e c o n t r o l u n i t s u p p l y , i n j e c t i o n p u m p a n d E G R
s o l e n o i d v a l v e s ( 2 l H D I 1 6 V ) , i n j e c t o r s ( 2 l H D I
16V).
F2 15 Horn.
F3 10 F r o n t / r e a r w a s h - w i p e .
F4 10 Daytime lights.
F5 15 P u r g e c a n i s t e r , t u r b i n e d i s c h a r g e a n d T u r b o
p r e s s u r e r e g u l a t i o n s o l e n o i d v a l v e s ( 1 . 6 l T H P 1 6 V ) ,
o i l v a p o u r h e a t e r ( 1 . 6 l T H P 1 6 V ) , d i e s e l h e a t e r
( 1 . 6 l H D I 1 6 V ) .
F6 10 D i a g n o s t i c s o c k e t , d i r e c t i o n a l h e a d l a m p s , p a r t i c l e
e m i s s i o n fi l t e r p u m p ( D i e s e l ) , " d i s t a n c e a l e r t " , e n g i n e
c o o l a n t l e v e l d e t e c t o r , m i r r o r a d j u s t m e n t c o n t r o l .
F7 10 P o w e r s t e e r i n g c o n t r o l u n i t , a u t o m a t i c g e a r b o x ,
directional headlamps height adjustment motor.
F8 20 Starter control.
F9 10 Clutch and brake pedal switches.
F10 30 E n g i n e c o n t r o l u n i t a c t u a t o r s ( p e t r o l : i g n i t i o n c o i l s ,
s o l e n o i d v a l v e s , o x y g e n s e n s o r s , i n j e c t o r s , h e a t e r s ,
f u e l p u m p , c o n t r o l l e d t h e r m o s t a t ) ( D i e s e l : s o l e n o i d
v a l v e s , h e a t e r s ) .
F11 40 Air conditioning blower.
