2009.5. PEUGEOT 3008 stop start

149
Stopping the vehicle Operating fault
With the ignition on, if this
warning light comes on and

AUTO fl ashes, accompanied
by an audible signal and a
message on the multifunction
display, this indicates a malfunction of
the gearbox.
Have it checked by a PEUGEOT dealer.
It is essential to press the
brake pedal when starting the
engine.
When parking, is it essential to apply
the handbrake to immobilise the ve-
hicle, whatever the circumstances.
When immobilising the vehi-
cle, with the engine running, it
is essential to place the gear
lever in neutral N .
Before carrying out any work in the
engine compartment, check that the
gear lever is in neutral N and that
the handbrake is applied.
Sport function

 Following selection of the sequential
mode or automatic mode, press but-
ton S to activate the Sport function
which offers you a more dynamic
style of driving.

S appears next to the gear en-
gaged on the instrument panel
display.

 Press button S again to deactivate
the function.

S is then cleared from the instrument
panel display.
The gearbox returns to normal
mode automatically each time
the ignition is switched off. Before switching off the engine, you can
choose to:
- move to position
N to engage neutral,
- leave the gear engaged; in this case, it will not be possible to move
the vehicle.
In both cases, it is essential that you
apply the handbrake to immobilise the
vehicle.

212
NAV
5
6
7
1
2
3
4
8

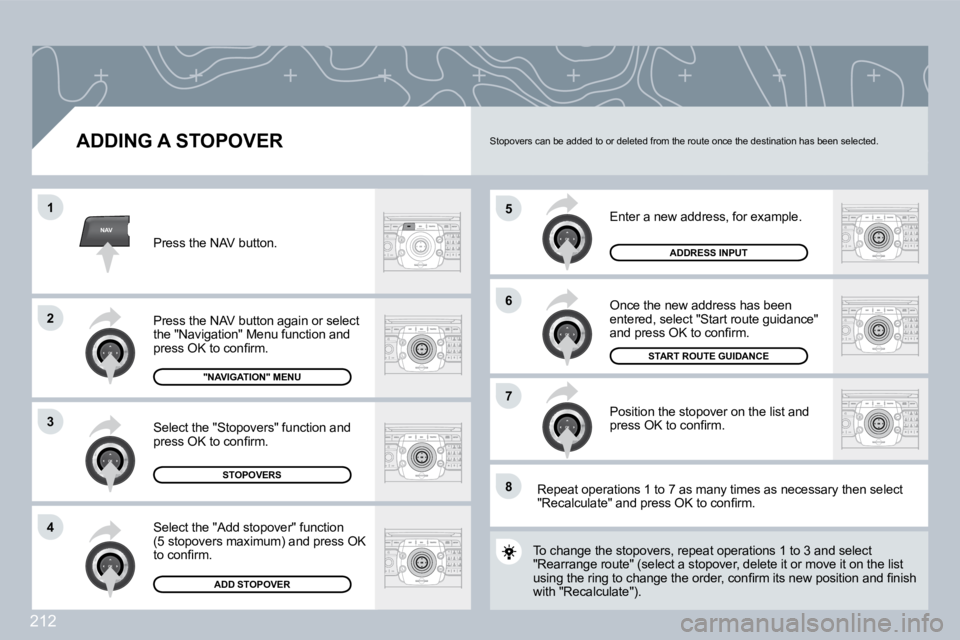

ADDING A STOPOVER
Enter a new address, for example.
Once the new address has been entered, select "Start route guidance" and press OK to confi rm.
Position the stopover on the list and press OK to confi rm.
Press the NAV button.
Press the NAV button again or select the "Navigation" Menu function and press OK to confi rm.
Select the "Add stopover" function (5 stopovers maximum) and press OK to confi rm.
Select the "Stopovers" function and press OK to confi rm.
"NAVIGATION" MENU
STOPOVERS
ADD STOPOVER
ADDRESS INPUT
To change the stopovers, repeat operations 1 to 3 and select To change the stopovers, repeat operations 1 to 3 and select "Rearrange route" (select a stopover, delete it or move it on the list "Rearrange route" (select a stopover, delete it or move it on the list using the ring to change the order, confi rm its new position and fi nish using the ring to change the order, confi rm its new position and fi nish with "Recalculate").
Stopovers can be added to or deleted from the route once the destination has been selected.
Repeat operations 1 to 7 as many times as necessar y then select "Recalculate" and press OK to confi rm.
START ROUTE GUIDANCE

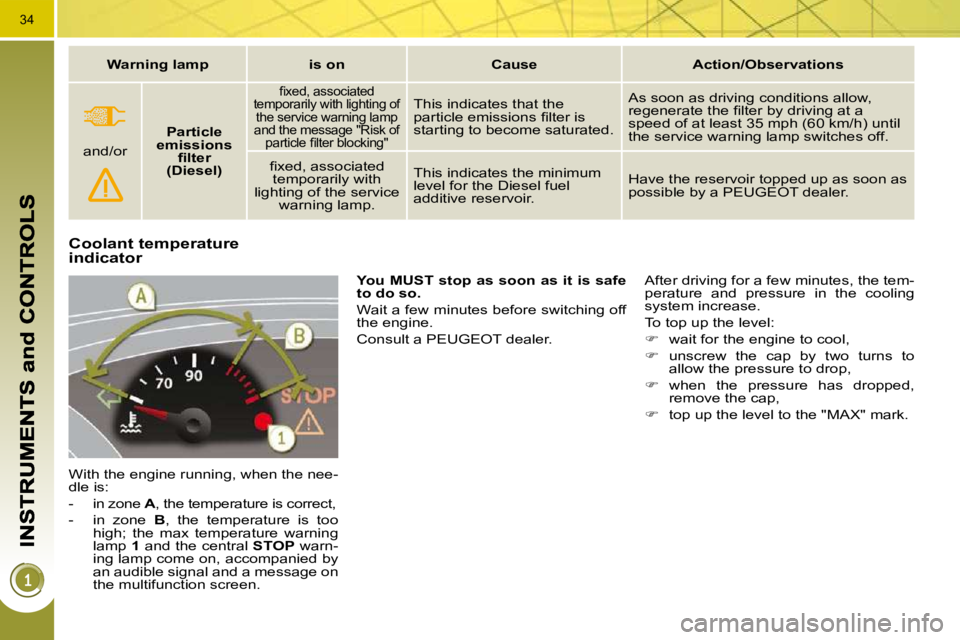

34
Coolant temperature indicator
With the engine running, when the nee-
dle is:
- in zone A , the temperature is correct,
- in zone B , the temperature is too
high; the max temperature warning
lamp 1 and the central STOP warn-
ing lamp come on, accompanied by
an audible signal and a message on
the multifunction screen. After driving for a few minutes, the tem-
perature and pressure in the cooling
system increase.
To top up the level:

 wait for the engine to cool,

 unscrew the cap by two turns to
allow the pressure to drop,

 when the pressure has dropped,
remove the cap,

 top up the level to the "MAX" mark.

You MUST stop as soon as it is safe
to do so.
Wait a few minutes before switching off
the engine.
Consult a PEUGEOT dealer.

Warning lamp is on Cause Action/Observations
and/or
Particle
emissions fi lter
(Diesel)
fi xed, associated
temporarily with lighting of the service warning lamp
and the message "Risk of particle fi lter blocking" This indicates that the
particle emissions fi lter is
starting to become saturated. As soon as driving conditions allow,
regenerate the fi lter by driving at a
speed of at least 35 mph (60 km/h) until
the service warning lamp switches off.
fi xed, associated temporarily with
lighting of the service warning lamp. This indicates the minimum
level for the Diesel fuel
additive reservoir.
Have the reservoir topped up as soon as
possible by a PEUGEOT dealer.
