2009.5 Citroen DS3 sensor

windscreen wipers
The windscreen wipers operate automatically, without any action on the par t of the driver, if rain is detected (sensor behind the rear view mirror), adapting their speed to the intensity of the rainfall.

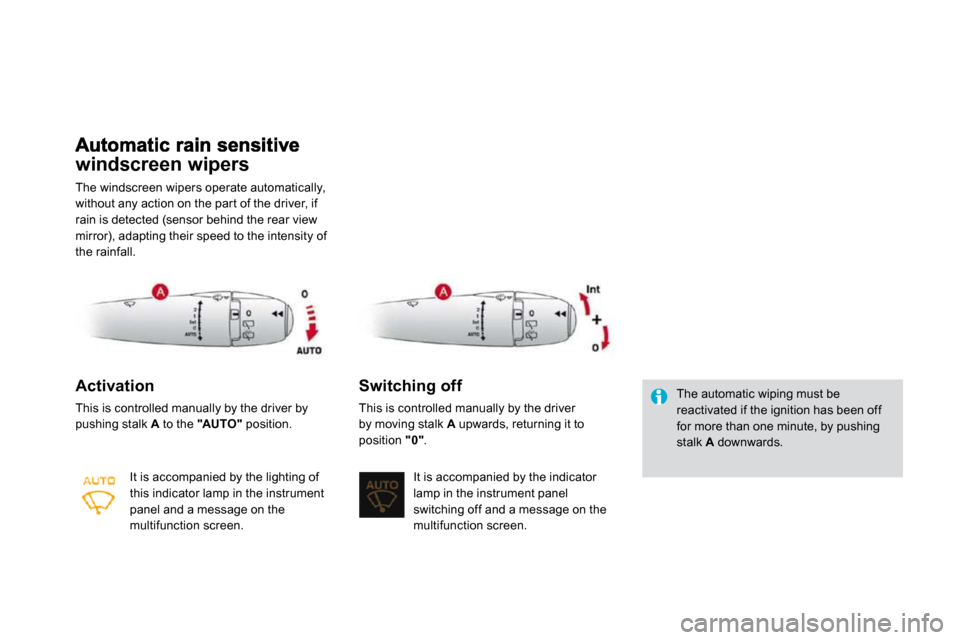

Activation
This is controlled manually by the driver by pushing stalk A to the "AUTO" position.
It is accompanied by the lighting of this indicator lamp in the instrument panel and a message on the multifunction screen.
Switching off
This is controlled manually by the driver by moving stalk A upwards, returning it to
position "0" .
It is accompanied by the indicator lamp in the instrument panel switching off and a message on the multifunction screen.
The automatic wiping must be reactivated if the ignition has been off for more than one minute, by pushing stalk A downwards.

109Visibility
Operating fault
If an automatic wiping malfunction occurs, the wipers will operate in intermittent mode. Have it checked by a CITROËN dealer. To retain the effectiveness of the "flat-blade" wiper blades, it is advisable to: - handle them with care, - clean them regularly using soapy water, - not use them to hold a sheet of cardboard against the windscreen, - replace them at the first signs of wear.
Do not cover the rain sensor, linked with the brightness sensor and located in the centre of the windscreen behind the rear view mirror. Switch off the automatic wiping when using an automatic car wash. In winter, it is advisable to wait until the
windscreen is completely clear of ice before activating the automatic wiping.
This position allows the wiper blades to be lifted for winter parking, cleaning or replacement without damaging the bonnet. In the minute following switching off of the ignition, any action on the wiper stalk positions the wipers ver tically. To park the wipers after this has been done,
switch on the ignition and operate the wiper stalk.
Vertical windscreen wiper
position

windscreen wipers
The windscreen wipers operate automatically, without any action on the par t of the driver, if rain is detected (sensor behind the rear view mirror), adapting their speed to the intensity of the rainfall.
Activation
This is controlled manually by the driver by pushing stalk A to the "AUTO" position.
It is accompanied by the lighting of this indicator lamp in the instrument panel and a message on the multifunction screen.
Switching off
This is controlled manually by the driver by moving stalk A upwards, returning it to
position "0" .
It is accompanied by the indicator lamp in the instrument panel switching off and a message on the multifunction screen.
The automatic wiping must be reactivated if the ignition has been off for more than one minute, by pushing stalk A downwards.

109Visibility
Operating fault
If an automatic wiping malfunction occurs, the wipers will operate in intermittent mode. Have it checked by a CITROËN dealer. To retain the effectiveness of the "flat-blade" wiper blades, it is advisable to: - handle them with care, - clean them regularly using soapy water, - not use them to hold a sheet of cardboard against the windscreen, - replace them at the first signs of wear.
Do not cover the rain sensor, linked with the brightness sensor and located in the centre of the windscreen behind the rear view mirror. Switch off the automatic wiping when using an automatic car wash. In winter, it is advisable to wait until the
windscreen is completely clear of ice before activating the automatic wiping.
This position allows the wiper blades to be lifted for winter parking, cleaning or replacement without damaging the bonnet. In the minute following switching off of the ignition, any action on the wiper stalk positions the wipers ver tically. To park the wipers after this has been done,
switch on the ignition and operate the wiper stalk.
Vertical windscreen wiper
position

159Driving
Rear parking sensors
System consisting of four proximity sensors, located in the rear bumper. This detects any obstacle (person, vehicle, tree, gate, etc.) behind the vehicle, except obstacles located just below the bumper.
An object, such as a stake, a roadworks cone or any other similar object may be detected at the beginning of the manoeuvre, but may no longer be detected when the vehicle comes close to it.
The parking sensor system cannot, in any circumstances, take the place of the vigilance and responsibility of the driver.
The system is activated as soon as reverse gear is engaged, accompanied by an audible signal. The proximity information is given by: - an audible signal, which becomes more
rapid as the vehicle approaches the obstacle. - a graphic on the multifunction screen, with
blocks which become increasingly closer to the vehicle.
Activation
When the distance between the rear of the vehicle and the obstacle is less than thirty centimetres, t he audible signal becomes continuous and the "Danger" symbol appears on the multifunction screen. On completion of the manoeuvre, when you exit reverse gear, the system becomes inactive.

Programming Operating faults
If there is an operating fault, when reverse gear is engaged this warning lamp comes on on the instrument panel, accompanied by an audible signal (shor t beep) and a message on the multifunction screen.
You can activate or deactivate the system by means of the multifunction screen configuration menu. The system state is memorised when switching off the ignition. For more information on access to the parking assistance menu, refer to vehicle configuration in the "Multifunction screens" section corresponding to your screen.
The system will be deactivated automatically when towing a trailer or when a bicycle carrier is fitted (vehicle fitted with a towbar or bicycle carrier recommended by CITROËN).
In bad or wintry weather, ensure that the sensors are not covered with mud, frost or snow.

195Practical information

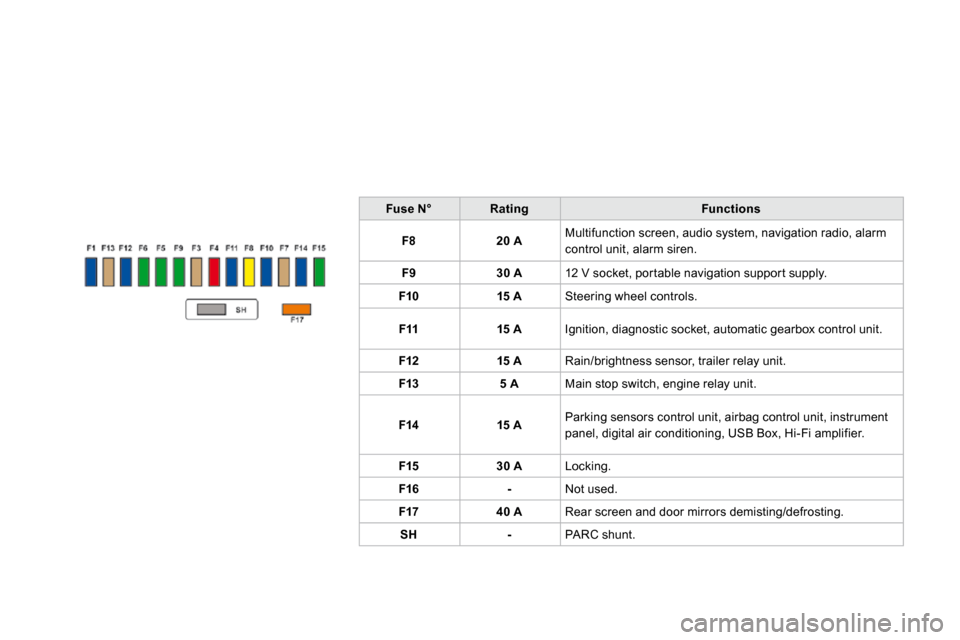

Dashboard fusebox
The fusebox is loacted inside the glove box.
Access to the fuses
 Refer to the paragraph "Access to the tools".
Fuse tables
Fuse N°RatingFunctions
FH365 A Trailer relay unit.
FH37- Not used.
FH3820 A Hi-Fi amplifier.
FH39- Not used.
FH4030 A Trailer relay unit.
RatingFunctions
F115 A Rear wiper.
F2- Not used.
F35 A Airbags and pretensioners control unit.
F410 A
Air conditioning, clutch switch, electrochromatic mirror,
par ticle filter pump (Diesel), diagnostic socket, airflow sensor (Diesel).
F530 A Electric windows panel, passenger’s electric window co ntrol,
front electric window motor.
F630 A Driver’s electric window motor.
F75 A Cour tesy lamp.

Fuse N°RatingFunctions
F820 A Multifunction screen, audio system, navigation radio, alarm control unit, alarm siren.
F930 A 12 V socket, por table navigation suppor t supply.
F1015 A Steering wheel controls.
F1115 A Ignition, diagnostic socket, automatic gearbox contro l unit.
F1215 A Rain/brightness sensor, trailer relay unit.
F135 A Main stop switch, engine relay unit.
F1415 A Parking sensors control unit, airbag control unit, instrument panel, digital air conditioning, USB Box, Hi-Fi ampli fier.
F1530 A Locking.
F16- Not used.
F1740 A Rear screen and door mirrors demisting/defrosting.
SH- PARC shunt.
