C O M F O R T As a safety precaution, these op-
erations must only be carried out
while the vehicle is stationary.
STEERING WHEEL ADJUSTMENT
The steering wheel can be adjusted
for height and reach to adapt the
driving position to the size of the
driver.
Adjustment
First, adjust the driver's seat to
the most suitable position.
When stationary , pull the lever A
to unlock the steering wheel ad-
justment.
Adjust for height and reach.
Push the lever to lock the steer-
ing wheel adjustment.
A f t e r l o c k i n g , i f y o u p r e s s fi r m l y o n
the steering wheel, a slight click may
be heard.
Rear view mirror
Adjustable mirror providing a central
rearward view.
Equipped with an anti-dazzle system,
useful in poor light.
Manual day/night model
Adjustment
Adjust the mirror so that the
glass is directed correctly in the
"day" position.
Day/night position
Pull the lever to change to the
"night" anti-dazzle position.
Push the lever to change to the
normal "day" position.
As a safety precaution, the mirrors
must be adjusted to reduce the
"blind spot". Automatic day/night model
In order to guarantee optimum vis-
ibility during your manoeuvres, the
mirror lightens automatically when
reverse gear is engaged.
By means of a sensor, which mea-
sures the light from the rear of the
vehicle, this system automatically
and progressively changes between
the day and night uses.
It has an anti-dazzle system which
darkens the mirror glass: this reduc-
es any driver discomfort caused by
the light beam of following vehicles,
the sun...
Page 88 of 314
V
85
V I S I B I L I T Y
C. Foglamps selection ring.
The foglamps operate with the side-
lamps and the dipped and main
beam headlamps.
-
1 st turn forwards: rear foglamps on.
- 1 st turn rearwards: rear foglamps off.
- 1 st turn forwards: front foglamps on.
- 2 nd turn forwards: rear foglamps on.
- 1 st turn rearwards: rear foglamps off.
- 2 nd turn rearwards: front foglamps off.
Model with rear foglamps
only
Model with front and rear
foglamps In good or rainy weather, both day
and night, the front foglamps and
the rear foglamps are prohibited. In
these situations, the power of their
beams may dazzle other drivers.
They should only be used in fog or
snow.
In these weather conditions, it is
your responsibility to switch on the
foglamps and dipped headlamps
manually as the brightness sensor
m a y d e t e c t s u f fi c i e n t l i g h t .
Do not forget to switch off the front
foglamps and the rear foglamps
when they are no longer necessary.
Lamps on buzzer
The triggering of an audible signal
when a front door is opened warns
the driver that he has forgotten to
switch off his vehicle's lamps, with
the ignition off and in manual lamps
mode.
In this case, switching off the lamps
stops the audible signal.
With the ignition off, if the dipped
headlamps remain on, they will
switch off automatically after thirty
minutes to prevent discharging of
the battery.
Page 90 of 314
V
87
V I S I B I L I T Y
Linked with the automatic
"Guide-me-home" lighting
Link with the automatic illumination
of headlamps provides the "guide-
me-home" lighting with the following
additional options:
- selection of the duration of light- ing for 15, 30 or 60 seconds in
the vehicle parameters on the in-
s t r u m e n t p a n e l s c r e e n c o n fi g u -
ration menu,
- automatic activation of "guide- me-home" lighting when auto-
matic illumination of headlamps
is in operation.
Operating fault
In the event of a malfunction of the
brightness sensor, the lamps come
on and a message appears on the
instrument panel screen, accompa-
nied by an audible signal.
Consult a CITROËN dealer.
In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lamps will not come
on automatically.
Do not cover the brightness sen-
sor, linked with the rain sensor and
located in the centre of the wind-
screen behind the rear view mirror;
the associated functions would no
longer operate.
MANUAL HEADLAMP ADJUSTMENT
To avoid dazzling other road users,
the height of the halogen bulb head-
lamps must be adjusted according
to the load in the vehicle.
0. 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
-. Intermediate setting.
2. 5 people + maximum authorised
loads.
-. Intermediate setting.
3. Driver + maximum authorised
loads.
Initial setting is position "0".
AUTOMATIC ADJUSTMENT OF DIRECTIONAL HEADLAMPS
Do not touch the xenon bulbs.
Consult a CITROËN dealer.
If a malfunction occurs,
this warning lamp is dis-
played on the instrument
panel, accompanied by
an audible signal and a
message on the instru-
ment panel screen.
The system then places your head-
lamps in the lowest position.
To avoid causing a nuisance to oth-
er road users, this system corrects
the height of the xenon headlamp
beams automatically and when sta-
tionary, depending on the load in the
vehicle.
Page 92 of 314
V
87
V I S I B I L I T Y
Linked with the automatic
"Guide-me-home" lighting
Link with the automatic illumination
of headlamps provides the "guide-
me-home" lighting with the following
additional options:
- selection of the duration of light- ing for 15, 30 or 60 seconds in
the vehicle parameters on the in-
s t r u m e n t p a n e l s c r e e n c o n fi g u -
ration menu,
- automatic activation of "guide- me-home" lighting when auto-
matic illumination of headlamps
is in operation.
Operating fault
In the event of a malfunction of the
brightness sensor, the lamps come
on and a message appears on the
instrument panel screen, accompa-
nied by an audible signal.
Consult a CITROËN dealer.
In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lamps will not come
on automatically.
Do not cover the brightness sen-
sor, linked with the rain sensor and
located in the centre of the wind-
screen behind the rear view mirror;
the associated functions would no
longer operate.
MANUAL HEADLAMP ADJUSTMENT
To avoid dazzling other road users,
the height of the halogen bulb head-
lamps must be adjusted according
to the load in the vehicle.
0. 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
-. Intermediate setting.
2. 5 people + maximum authorised
loads.
-. Intermediate setting.
3. Driver + maximum authorised
loads.
Initial setting is position "0".
AUTOMATIC ADJUSTMENT OF DIRECTIONAL HEADLAMPS
Do not touch the xenon bulbs.
Consult a CITROËN dealer.
If a malfunction occurs,
this warning lamp is dis-
played on the instrument
panel, accompanied by
an audible signal and a
message on the instru-
ment panel screen.
The system then places your head-
lamps in the lowest position.
To avoid causing a nuisance to oth-
er road users, this system corrects
the height of the xenon headlamp
beams automatically and when sta-
tionary, depending on the load in the
vehicle.
Page 93 of 314
V
87
V I S I B I L I T Y
Linked with the automatic
"Guide-me-home" lighting
Link with the automatic illumination
of headlamps provides the "guide-
me-home" lighting with the following
additional options:
- selection of the duration of light- ing for 15, 30 or 60 seconds in
the vehicle parameters on the in-
s t r u m e n t p a n e l s c r e e n c o n fi g u -
ration menu,
- automatic activation of "guide- me-home" lighting when auto-
matic illumination of headlamps
is in operation.
Operating fault
In the event of a malfunction of the
brightness sensor, the lamps come
on and a message appears on the
instrument panel screen, accompa-
nied by an audible signal.
Consult a CITROËN dealer.
In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lamps will not come
on automatically.
Do not cover the brightness sen-
sor, linked with the rain sensor and
located in the centre of the wind-
screen behind the rear view mirror;
the associated functions would no
longer operate.
MANUAL HEADLAMP ADJUSTMENT
To avoid dazzling other road users,
the height of the halogen bulb head-
lamps must be adjusted according
to the load in the vehicle.
0. 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
-. Intermediate setting.
2. 5 people + maximum authorised
loads.
-. Intermediate setting.
3. Driver + maximum authorised
loads.
Initial setting is position "0".
AUTOMATIC ADJUSTMENT OF DIRECTIONAL HEADLAMPS
Do not touch the xenon bulbs.
Consult a CITROËN dealer.
If a malfunction occurs,
this warning lamp is dis-
played on the instrument
panel, accompanied by
an audible signal and a
message on the instru-
ment panel screen.
The system then places your head-
lamps in the lowest position.
To avoid causing a nuisance to oth-
er road users, this system corrects
the height of the xenon headlamp
beams automatically and when sta-
tionary, depending on the load in the
vehicle.
Page 97 of 314
V
91
V I S I B I L I T Y
Reverse gear
When reverse gear is engaged, the
rear wiper operates if the windscreen
wipers are operating.
Programming
The function is activated or deac-
tivated via the instrument panel
s c r e e n c o n fi g u r a t i o n m e n u .
This function is activated by default.
Windscreen and headlamp
wash
Pull the windscreen wiper stalk
towards you. The windscreen
wash then the windscreen wipers
o p e r a t e f o r a fi x e d p e r i o d .
If the dipped headlamps are on ,
the headlamp washers operate at
the same time. Automatic rain sensitive

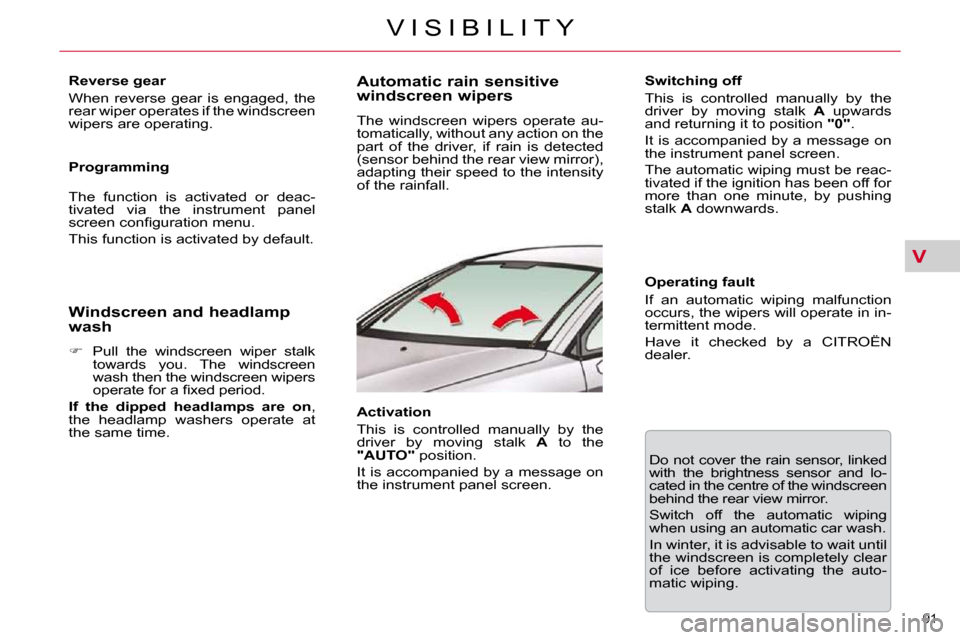

windscreen wipers
The windscreen wipers operate au-
tomatically, without any action on the
part of the driver, if rain is detected
( s e n s o r b e h i n d t h e r e a r v i e w m i r r o r ) ,
adapting their speed to the intensity
of the rainfall.
Activation
This is controlled manually by the
driver by moving stalk
A to the
"AUTO" position.
It is accompanied by a message on
the instrument panel screen. Switching off
This is controlled manually by the
driver by moving stalk
A upwards
and returning it to position "0" .
It is accompanied by a message on
the instrument panel screen.
The automatic wiping must be reac-
tivated if the ignition has been off for
more than one minute, by pushing
stalk A downwards.
Operating fault
If an automatic wiping malfunction
occurs, the wipers will operate in in-
termittent mode.
Have it checked by a CITROËN
dealer.
Do not cover the rain sensor, linked
with the brightness sensor and lo-
cated in the centre of the windscreen
behind the rear view mirror.
Switch off the automatic wiping
when using an automatic car wash.
In winter, it is advisable to wait until
the windscreen is completely clear
of ice before activating the auto-
matic wiping.
Page 99 of 314
V
91
V I S I B I L I T Y
Reverse gear
When reverse gear is engaged, the
rear wiper operates if the windscreen
wipers are operating.
Programming
The function is activated or deac-
tivated via the instrument panel
s c r e e n c o n fi g u r a t i o n m e n u .
This function is activated by default.
Windscreen and headlamp
wash
Pull the windscreen wiper stalk
towards you. The windscreen
wash then the windscreen wipers
o p e r a t e f o r a fi x e d p e r i o d .
If the dipped headlamps are on ,
the headlamp washers operate at
the same time. Automatic rain sensitive
windscreen wipers
The windscreen wipers operate au-
tomatically, without any action on the
part of the driver, if rain is detected
( s e n s o r b e h i n d t h e r e a r v i e w m i r r o r ) ,
adapting their speed to the intensity
of the rainfall.
Activation
This is controlled manually by the
driver by moving stalk
A to the
"AUTO" position.
It is accompanied by a message on
the instrument panel screen. Switching off
This is controlled manually by the
driver by moving stalk
A upwards
and returning it to position "0" .
It is accompanied by a message on
the instrument panel screen.
The automatic wiping must be reac-
tivated if the ignition has been off for
more than one minute, by pushing
stalk A downwards.
Operating fault
If an automatic wiping malfunction
occurs, the wipers will operate in in-
termittent mode.
Have it checked by a CITROËN
dealer.
Do not cover the rain sensor, linked
with the brightness sensor and lo-
cated in the centre of the windscreen
behind the rear view mirror.
Switch off the automatic wiping
when using an automatic car wash.
In winter, it is advisable to wait until
the windscreen is completely clear
of ice before activating the auto-
matic wiping.
Page 162 of 314
IX
144
D R I V I N G
LANE DEPARTURE WARNING SYSTEM
S y s t e m w h i c h d e t e c t s t h e i n v o l u n -
t a r y c r o s s i n g o f l o n g i t u d i n a l t r a f fi c
lane markings on the ground (solid
or broken line).
S e n s o r s , fi t t e d b e l o w t h e f r o n t b u m -
per, trigger a warning if the vehicle
drifts over a lane marking (speed
higher than 50 mph (80 km/h)).
This system is particularly useful on
motorways and main roads.
Activation
Press button A , the indicator
lamp comes on.
Deactivation
Press button A again, the indica-
tor lamp switches off.
The status of the system remains
in the memory when the ignition is
switched off. Detection
You are warned by the vibration of
the driver's seat cushion:
- on the right-hand side, if the
marking on the ground has been
crossed on the right,
- on the left-hand side, if the mark- ing on the ground has been
crossed on the left.
No warning is transmitted while the
direction indicator is active and for
approximately 20 seconds after the
direction indicator is switched off.
A warning may be transmitted if a direc-
tion marking (e.g. arrow) or non-stan-
d a r d m a r k i n g ( e . g . g r a f fi t i ) i s c r o s s e d . Operating fault
In the event of a malfunction, the
service warning lamp comes on,
accompanied by an audible signal
and a message on the multifunction
screen.
Consult a CITROËN dealer.
The lane departure warning sys-
tem cannot, in any circumstances,
replace the need for vigilance and
responsibility on the part of the
driver.
The detection may be impeded:
- if the sensors are dirty (mud, snow...),
- if the markings on the ground are worn,
- if there is little contrast between the markings on the ground and
the road surface.
