2009.5 Citroen C5 key

IV
70
O P E N I N G S
Lost keys
Visit a CITROËN dealer with the vehi-
cle's V5 registration document and your
personal identifi cation documents.
The CITROËN dealer will be able to
retrieve the key code and the trans-
ponder code required to order a re-
placement key.
Remote control
The high frequency remote control is
a sensitive system; do not operate it
while it is in your pocket as there is a
possibility that it may unlock the ve-
hicle, without you being aware of it.
Do not repeatedly press the buttons
of your remote control out of range
and out of sight of your vehicle. You
run the risk of stopping it from work-
ing and the remote control would
have to be reinitialised.
The remote control does not operate
when the key is in the ignition, even
when the ignition is switched off, ex-
cept for reinitialisation.
Locking the vehicle
Driving with the doors locked may
make access to the passenger com-
partment by the emergency services
more diffi cult in an emergency.
As a safety precaution (with children
on board), remove the key from the
ignition when you leave the vehicle,
even for a short time. Anti-theft protection
Do not make any modifi cations to
the electronic engine immobiliser
system; this could cause malfunc-
tions.
When purchasing a second-
hand vehicle
Have the key codes memorised by a
CITROËN dealer, to ensure that the
keys in your possession are the only
ones which can start the vehicle.
Do not throw the remote con-
trol batteries away, they contain
metals which are harmful to the
environment.
Take them to an approved collec-
tion point.

IV
67
O P E N I N G S

 First press button A to fold
the key.
Locating your vehicle

 Press the closed padlock to locate
your locked vehicle in a car park.
This is indicated by switching on of the
interior lighting and fl ashing of the di-
rection indicators for a few seconds.
The vehicle remains locked. Guide-me-home lighting Anti-theft protecti
on
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code
must be recognised in order for
starting to be possible.
This electronic engine immobiliser
locks the engine management sys-
tem a few minutes after the ignition
is switched off and prevents starting
of the engine by anyone who does
not have the key.
In the event of a mal-
function, you are in-
formed by lighting of
this warning lamp, an
audible signal and a message on
the multifunction screen.
In this case, your vehicle does not
start; contact a CITROËN dealer as
soon as possible.
Folding the key
A press on button B oper-
ates the guide-me-home
lighting (lighting of the
sidelamps, dipped beams
and number plate lamps).
A second press before the end of
the timing cancels the guide-me-
home lighting.
The timed duration can be set via the
"Lighting" menu on the "Main Menu"
of the instrument panel screen.

IV
70
O P E N I N G S
Lost keys
Visit a CITROËN dealer with the vehi-
cle's V5 registration document and your
personal identifi cation documents.
The CITROËN dealer will be able to
retrieve the key code and the trans-
ponder code required to order a re-
placement key.
Remote control
The high frequency remote control is
a sensitive system; do not operate it
while it is in your pocket as there is a
possibility that it may unlock the ve-
hicle, without you being aware of it.
Do not repeatedly press the buttons
of your remote control out of range
and out of sight of your vehicle. You
run the risk of stopping it from work-
ing and the remote control would
have to be reinitialised.
The remote control does not operate
when the key is in the ignition, even
when the ignition is switched off, ex-
cept for reinitialisation.
Locking the vehicle
Driving with the doors locked may
make access to the passenger com-
partment by the emergency services
more diffi cult in an emergency.
As a safety precaution (with children
on board), remove the key from the
ignition when you leave the vehicle,
even for a short time. Anti-theft protection
Do not make any modifi cations to
the electronic engine immobiliser
system; this could cause malfunc-
tions.
When purchasing a second-
hand vehicle
Have the key codes memorised by a
CITROËN dealer, to ensure that the
keys in your possession are the only
ones which can start the vehicle.
Do not throw the remote con-
trol batteries away, they contain
metals which are harmful to the
environment.
Take them to an approved collec-
tion point.

IV
68
O P E N I N G S
STOPPING
Do not fl ick the accelerator at
the moment of switching off the
ignition. This could cause serious
damage to the turbocharger(s).
IGNITION SWITCH
1. "S": Steering lock
To unlock the steering, gently move
the steering wheel while turning the
key, without forcing it.
2. "M": Drive position
Depending on the version of your
vehicle, the orange and red warning
lamps should also come on for a short
time.
3. "D": Starter
Release the key as soon the engine
has started.
If the fi rst attempt fails, switch off the
ignition. Wait ten seconds then ope-
rate the starter again. Steering lock

1. "
S": After removing the key, turn
the steering wheel to lock the steer-
ing. The key can only be removed in
position S .

2. "M": Ignition switched on, the
steering is unlocked (by turning the
key to position M , move the steering wheel gently if necessary).

3. "D": Starter position.
Never turn the key to this position
when the engine is running.
Do not run the engine in an enclosed
space or where there is insuffi cient
ventilation.
It is essential always to drive with
the engine running in order to retain
braking and steering assistance.
Never remove the ignition key
before the vehicle has come to a
complete stop.
Avoid attaching a heavy object to
the key which would weigh down
on its shaft in the switch and could
cause a malfunction. Vehicles equipped with a
turbocharger
Never stop the engine without having
allowed it to run for a few seconds at
idle, this being the time required for
the turbocharger to return to a normal
speed.

IV
72
O P E N I N G S
Reactivation of the interior
volumetric and anti-tilt
monitoring

 Press the unlocking button on the
remote control to deactivate the
exterior perimeter monitoring.

 Press the locking button on the
remote control to activate all the
monitoring functions.
The indicator lamp on the button
again fl ashes once per second. Triggering of the alarm
This is indicated by sounding of the
siren and fl ashing of the direction in-
dicators for thirty seconds.
The monitoring functions remain
active until the alarm has been trig-
gered eleven times in succession.
When the vehicle is unlocked using
the remote control, rapid fl ashing
of the indicator lamp on the button
informs you that the alarm was trig-
gered during your absence. When
the ignition is switched on, this fl ash-
ing stops immediately.
Failure of the remote control
To deactivate the monitoring func-
tions:

 Unlock the vehicle using the key
in the driver's door lock.

 Open the door; the alarm is trig-
gered.

 Switch on the ignition; the alarm
stops. The indicator lamp on the
button switches off. Locking the vehicle without
activating the alarm

 Lock or deadlock the vehicle using
the key in the driver's door lock.
Malfunction
When the ignition is switched on,
fi xed lighting of the indicator lamp on
the button indicates a malfunction of
the system. Have it checked by a CITROËN dealer.
* According to country.
Automatic activation *
2 minutes after the last door or the
boot is closed, the system is activated
automatically.

 To avoid triggering the alarm on
entering the vehicle, fi rst press
the unlocking button on the re-
mote control.

IV
74
O P E N I N G S
Reinitialisation
If a window does not rise automati-
cally, its operation must be reini-
tialised:

 pull the control until the window
stops,

 release the control and pull it
again until the window closes
fully,

 continue to hold the control for
approximately one second after
the window has closed,

 press the control to lower the
window automatically to the low
position,

 when the window has reached
the low position, press the con-
trol again for approximately one
second.

The safety anti-pinch function is
not operational during these opera-
tions. Deactivation of the rear
electric window and door
controls

 For the safety of your children,
press control 5 to deactivate the
rear electric window controls re-
gardless of their position.
Indicator lamp on, the rear controls
are deactivated.
Indicator lamp off, the rear controls
are activated. Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
If an obstacle is encountered during operation of the electric windows,
you must reverse the movement of
the window. To do this, press the
control concerned.
When the driver operates the con-
trols for the passengers' electric
windows, he must ensure that no
one is preventing correct closing of
the windows.
The driver must ensure that the
passengers use the electric win-
dows correctly.
Be aware of children when operating
the windows.
A message on the instrument panel
screen informs you of the activation/
deactivation of the control. This control also deactivates the
interior controls for the rear doors
(refer to the section "Child safety - §
Electric child lock").
Any other status of the indicator
lamp indicates a malfunction of the
electric child lock. Have it checked
by a CITROËN dealer.

IV
75
O P E N I N G S

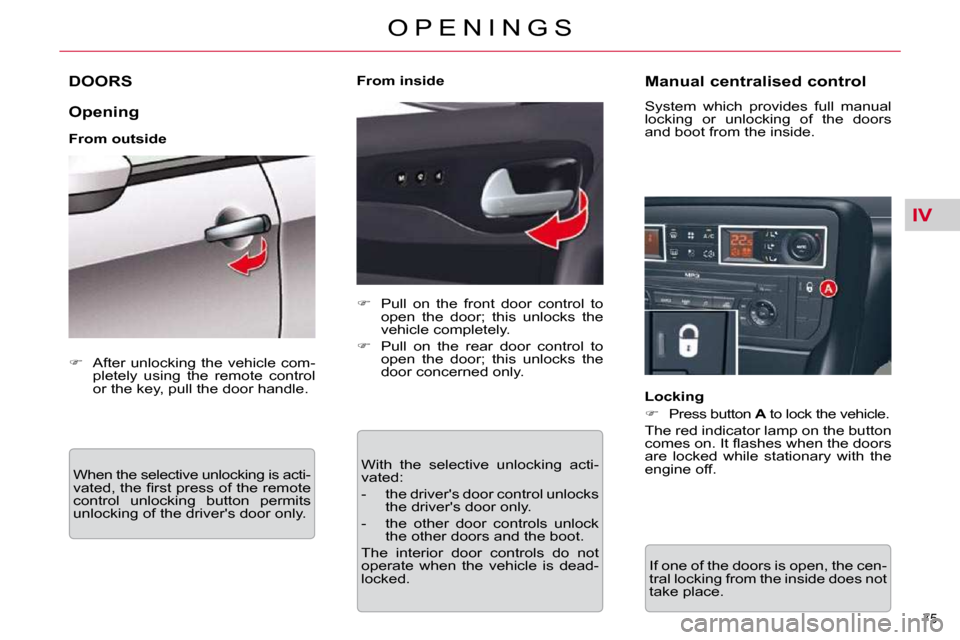

DOORS
Opening
From outside When the selective unlocking is acti-
vated, the fi rst press of the remote
control unlocking button permits
unlocking of the driver's door only.
 Pull on the front door control to
open the door; this unlocks the
vehicle completely.

 Pull on the rear door control to
open the door; this unlocks the
door concerned only.
With the selective unlocking acti-
vated:
- the driver's door control unlocks the driver's door only.
- the other door controls unlock the other doors and the boot.
The interior door controls do not
operate when the vehicle is dead-
locked. Manual centralised control
System which provides full manual
locking or unlocking of the doors
and boot from the inside.
Locking

 Press button A to lock the vehicle.
The red indicator lamp on the button
comes on. It fl ashes when the doors
are locked while stationary with the
engine off.
If one of the doors is open, the cen-
tral locking from the inside does not
take place.

 After unlocking the vehicle com-
pletely using the remote control
or the key, pull the door handle. From inside

IV
76
O P E N I N G S

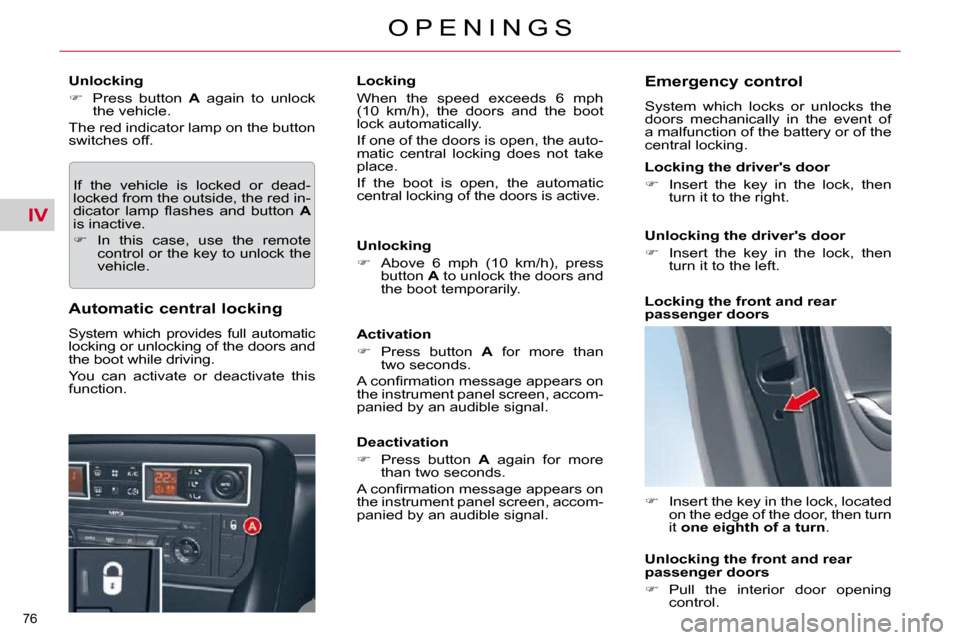

Unlocking

 Press button A again to unlock
the vehicle.
The red indicator lamp on the button
switches off.
If the vehicle is locked or dead-
locked from the outside, the red in-
dicator lamp fl ashes and button A
is inactive.

 In this case, use the remote
control or the key to unlock the
vehicle.
Automatic central locking
System which provides full automatic locking or unlocking of the doors and
the boot while driving.
You can activate or deactivate this
function. Locking
When the speed exceeds 6 mph
(10 km/h), the doors and the boot
lock automatically.
If one of the doors is open, the auto-
matic central locking does not take
place.
If the boot is open, the automatic
central locking of the doors is active.
Unlocking

 Above 6 mph (10 km/h), press
button A to unlock the doors and
the boot temporarily.
Activation

 Press button A for more than
two seconds.
A confi rmation message appears on
the instrument panel screen, accom-
panied by an audible signal.
Deactivation

 Press button A again for more
than two seconds.
A confi rmation message appears on
the instrument panel screen, accom-
panied by an audible signal. Emergency control
System which locks or unlocks the
doors mechanically in the event of
a malfunction of the battery or of the
central locking.
Locking the driver's door

 Insert the key in the lock, then
turn it to the right.
Unlocking the driver's door

 Insert the key in the lock, then
turn it to the left.
Locking the front and rear
passenger doors

 Insert the key in the lock, located
on the edge of the door, then turn
it one eighth of a turn .
Unlocking the front and rear
passenger doors

 Pull the interior door opening
control.
