F I T T I N G S
BOOT FITTINGS (SALOON)

1. Battery location for vehicles with
V6 HDi engine.

2. Boot fl oor (spare wheel storage).
3. Boot lamp.

4. Location for 6 CD changer. Luggage securing rings

 Use the 4 securing rings on the
boot fl oor to secure your lug-
gage.
For safety reasons in the event of
sharp braking, you are advised to
place heavy objects as far forward
in the boot as possible.

VI
100
F I T T I N G S
BOOT FITTINGS (TOURER)

1. Hook
For shopping bags.

2. Torch
To recharge, return it to its stor- age position.

3. Storage net or Battery com-
partment (for vehicles with
3 litre V6 HDi engine).

This provides access to the battery.

1. Luggage-cover blind
(see details on following page)

2. Luggage securing rings
Use the 4 stowing rings provided on the boot fl oor to secure your
loads.
For safety reasons in the event of sharp braking, you are ad-
vised to place heavy objects as
far forwards as possible.

3. Hooks
These allow a cargo net to be fi tted (see details on following
page).
1. Boot lamp

2. 12 V accessories socket (100 W
maximum)
Cigar lighter type 12 volt socket. It is located on the rear right-
hand trim.

3. Loading height control
You can change the height of the vehicle to make loading or un-
loading easier.

4. Hook
For shopping bags.

5. Storage net or closed housing
Location for the 6 CD changer.

VI
101
F I T T I N G S
LUGGAGE COVER (TOURER)
To roll up

 Press the handle (PRESS) gen-
tly. The luggage cover rolls up
automatically.
The moving part A can be folded
along the rear bench seat backrest.
To remove

 Compress the control 1 and lift
the luggage cover on the right
then on the left to remove it. To install

 Position the left-hand end of the
luggage cover roller in its loca-
tion B behind the rear bench
seat.

 Compress the roller control 1
and put the roller in place in its
location C on the right.

 Release the control to secure
the luggage cover.

 Unroll it to its fastening on the
rear pillar. High load retaining net
(Tourer)
Hooked onto the special upper and
lower fi xings, this permits use of the
entire loading volume up to the roof:
- behind the rear seats (row 2),
- behind the front seats (row 1)
when the rear seats are folded.
When positioning the net, check that
the strap loops are visible from the
boot; this will make slackening or
tightening easier.

VI
102
F I T T I N G S
Installation

 fold down the backs of the rear
seats,

 position the high load retaining
net roller above the two rails 1
located behind the rear seats
(2/3 bench seat). The two notch-
es 2 must be placed above the
two rails,

 slide the two rails 1 into the
notches 2 and push the roller
(lengthways) from right to left to
secure it,

 reposition the rear seat backs. Row 1 Row 2
To use it in row 1:

 fold down the
backs of the
rear seats,

 open the cov-
ers 3 of the
corresponding
upper fi xings,

 unroll the high load retaining net
and position one of the ends of
the net's metal bar in the cor-
responding fi xing cover. Check
that the hook is secured in the
rail located inside the cover 3 ,

 pull the high load retaining net's
metal bar to position the other
hook in the second fi xing cover. To use it in row 2:

 open the cov-
ers 4 of the
corresponding
upper fi xings,

 from the rear bench seat, unroll
the high load retaining net, push-
ing it to detach it from the retaining
hooks,

 position one of the ends of the
net's metal bar in the corre-
sponding fi xing cover. Check
that the hook is secured in the
rail located inside the cover,

 position the other hook in the
second fi xing cover and pull the
metal bar towards you.

VII
103
C H I L D S A F E T Y * The rules for carrying children are specifi c to each country. Refer to the
current legislation in your country.
GENERAL POINTS RELATING TO CHILD SEATS
Although one of CITROËN's main criteria when designing your vehicle, the safety of your children also de-
pends on you.
For maximum safety, please observe
the following recommendations:
- in accordance with European regulations, all children under
the age of 12 or less than one
and a half metres tall must
travel in approved child seats
suited to their weight , on seats
fi tted with a seat belt or ISOFIX
mountings * ,
- statistically, the safest seats in
your vehicle for carrying chil-
dren are the rear seats,
-
a child weighing less than 9 kg
must travel in the "rearwards-
facing" position both in the
front and in the rear.

CITROËN recommends that chil-
dren should travel in the rear seats
of your vehicle:
- "rearwards-facing" up to the
age of 2,
- "forwards-facing" over the
age of 2.
CHILD SEAT IN THE FRONT
"Rearwards-facing"
When a "rearwards-facing" child
seat is installed on the front pas-
senger seat , it is essential that the
passenger airbag is deactivated.
Otherwise, the child would risk
being seriously injured or killed if
the airbag were to infl ate . "Forwards-facing"
When a "forwards-facing" child seat
is installed on the
front passenger
seat , adjust the vehicle's seat to the
intermediate longitudinal position
with the seat back upright and leave
the passenger airbag activated.
Intermediate longitudinal position

VII
104
C H I L D S A F E T Y
Passenger air bag OFF

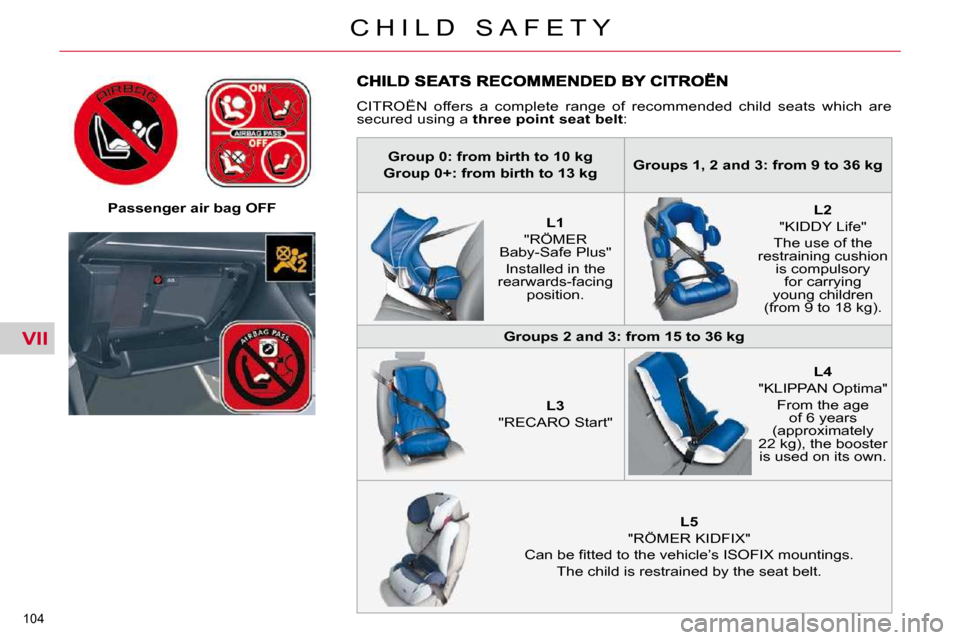

CITROËN offers a complete range of recommended chi ld seats which are
secured using a three point seat belt :

Group 0: from birth to 10 kg

Group 0+: from birth to 13 kg
Groups 1, 2 and 3: from 9 to 36 kg


L1
"RÖMER
Baby-Safe Plus"
Installed in the
rearwards-facing position.


L2
"KIDDY Life"
The use of the
restraining cushion is compulsory for carrying
young children
(from 9 to 18 kg).

Groups 2 and 3: from 15 to 36 kg

L3
"RECARO Start"

L4
"KLIPPAN Optima" From the age of 6 years
(approximately
22 kg), the booster is used on its own.


L5
"RÖMER KIDFIX"
Can be fi tted to the vehicle’s ISOFIX mountings.
The child is restrained by the seat belt.

VII
104
C H I L D S A F E T Y
Passenger air bag OFF
CITROËN offers a complete range of recommended chi ld seats which are
secured using a three point seat belt :

Group 0: from birth to 10 kg

Group 0+: from birth to 13 kg
Groups 1, 2 and 3: from 9 to 36 kg


L1
"RÖMER
Baby-Safe Plus"
Installed in the
rearwards-facing position.


L2
"KIDDY Life"
The use of the
restraining cushion is compulsory for carrying
young children
(from 9 to 18 kg).

Groups 2 and 3: from 15 to 36 kg

L3
"RECARO Start"

L4
"KLIPPAN Optima" From the age of 6 years
(approximately
22 kg), the booster is used on its own.


L5
"RÖMER KIDFIX"
Can be fi tted to the vehicle’s ISOFIX mountings.
The child is restrained by the seat belt.

VII
105
C H I L D S A F E T Y
POSITIONS FOR CHILD SEATS SECURED USING THE SEAT BELT
In conformity with European law, this table shows you the possibilities for the installation of universally approved child
seats (a) using a seat belt, depending on the weight of t he child and the seating position in the vehicle.
(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.
(b) Consult the current legislation for your country before drivi ng with your child in this seat.
(c) Group 0: from birth to 10 kg. Shells and "car cots" cannot be i nstalled on the front passenger seat.

U: seat position suitable for installation of universally appro ved rearwards-facing and/or forwards-facing child seat.

U (R): As U , with the vehicle seat, which must be adjusted to the hi ghest position.

Seat position(s)
Weight of child
Groups 0 (c) and 0+

< 13 kg Group 1

9 to 18 kg Group 2

15 to 25 kg Group 3

22 to 36 kg
Row 1 Front passenger (b)
with height adjustment
U (R )
U (R) U (R) U (R)
Front passenger (b) without height adjustment
U U U U
Row 2 Outer rear

U U U U
Centre rear
U U U U
