O P E N I N G S
Electric opening
BOOT (TOURER)
Manual opening
Press upwards on lever A and lift
up the tailgate.
Press upwards on lever A , or
press button B of the remote
control. Do not attempt to help the opening
of the tailgate manually after press-
ing the control
A .
Manual closing
Lower the tailgate using the inte-
rior handle C .
Electric closing
Press the push-button D to close
the tailgate.
Do not interrupt the closing of the
tailgate; if any obstacle prevents it
closing, the operation will stop and
the tailgate will automatically rise
by a few centimetres.
Locking/unlocking
With the vehicle stationary, this is
carried out using:
- The remote control.
- The key in a door lock.
- The interior central locking/un- locking control. Interrupting the opening/
closing of the tailgate
When the tailgate is being opened or
closed electrically, you can interrupt
its movement at any point by press-
ing push-button
D , the control A or
button B .
You can then open or close the tail-
gate electrically or manually, if nec-
essary moving it in the opposite
direction to release it.
The boot automatically locks when
the vehicle is moving at a speed of
over 6 mph (10 km/h), even if auto-
matic central locking is deactivated.
It is unlocked when a door is opened
or when the central locking button
is pressed (at a speed of less than
6 mph (10 km/h)).
Memorisation of an
intermediate position
You can store an opening angle for
the tailgate:
Manually or automatically move
the tailgate to the required posi-
tion.
Make a long press on push-but-
ton D . The system emits a short
audible beep.
Release the push-button D .
Page 66 of 306
IV
79
O P E N I N G S
Cancelling the memorisation
With the tailgate in the intermediate
position, you can cancel the stored
position:
Make a long press on push-but-
ton D . The system emits a long
audible beep.
Release the push-button D . The
tailgate will return to the fully
open position at the next use.
Electrical protection of the
motor
If the tailgate is repeatedly opened
and closed in quick succession, the
motor can start to overheat and then
cut out, preventing opening and
closing of the tailgate.
Allow the motor to cool down for ten
minutes without opening or closing
the tailgate.
Closing in manual back-up mode re-
mains possible. To avoid risk of injury, make sure
that no one is in the vicinity of the
boot while opening and closing.
If the tailgate is carrying extra
weight (snow, bicycle carrier, etc.)
there is a risk of it closing under
this load. Support the tailgate or
fi r s t u n l o a d t h e b i c y c l e c a r r i e r o r
clear the snow.
When using an automatic car wash, don’t forget to lock the vehicle so
as to avoid any risk of motorised
opening of the tailgate.
Page 97 of 306
VI
99
F I T T I N G S
BOOT FITTINGS (SALOON)
1. B a t t e r y l o c a t i o n f o r v e h i c l e s w i t h
V 6 H D i e n g i n e .
2. B o o t fl o o r ( s p a r e w h e e l s t o r a g e ) .
3. B o o t l a m p .
4. L o c a t i o n f o r 6 C D c h a n g e r . Luggage securing rings
U s e t h e 4 s e c u r i n g r i n g s o n t h e
b o o t fl o o r t o s e c u r e y o u r l u g -
g a g e .
F o r s a f e t y r e a s o n s i n t h e e v e n t o f
s h a r p b r a k i n g , y o u a r e a d v i s e d t o
p l a c e h e a v y o b j e c t s a s f a r f o r w a r d
i n t h e b o o t a s p o s s i b l e .
Page 98 of 306
VI
1 0 0
F I T T I N G S

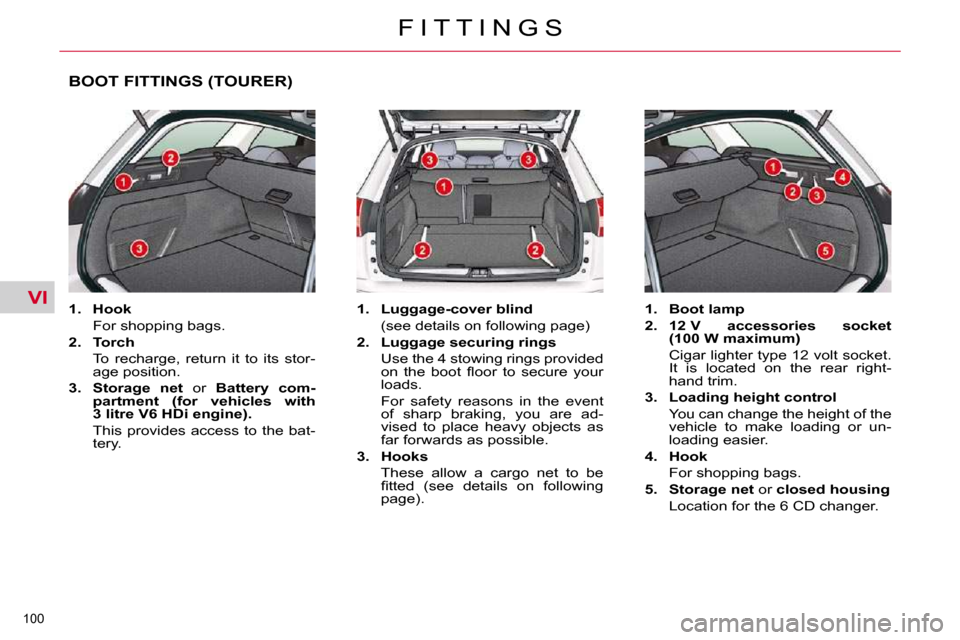

BOOT FITTINGS (TOURER)
