87
V I S I B I L I T Y
V
Linking with the automatic
"Guide-me-home" lighting
Association with the automatic light-
ing provides the "guide-me-home"
lighting with the following additional
options:
- selection of the lighting duration to 15, 30 or 60 seconds in the
vehicle parameters on the mul-
t i f u n c t i o n s c r e e n c o n fi g u r a t i o n
menu (in the case of the mono-
chrome screen A, the duration is
fi x e d ) ,
- automatic activation of "guide- me-home" lighting when auto-
matic lighting is in operation.
Operating fault
In the event of a malfunction of the
brightness sensor, the lamps comes
on, a message appears on the multi-
function screen, accompanied by an
audible signal.
Consult a CITROËN dealer. In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lighting will not
come on automatically.
Do not cover the brightness sen-
sor, linked with the rain sensor and
located in the centre of the wind-
screen behind the interior mirror;
the associated functions would no
longer be controlled. EXTERIOR SIDE SPOTLAMPS
These illuminate:
- the zones facing the driver’s and passenger’s doors,
- the zones forward of the door mirrors and rearward of the front
doors.
Switching on
The side spotlamps come on:
- when you unlock the vehicle or press on the lighting button on
the remote control,
- when you remove the key from the ignition,
- when you open a door,
- when you use the remote control.
Switching off
They are timed to go out automati-
cally.
THE HEADLAMPS
To avoid dazzling other road users,
the height of the halogen bulb head-
lamps must be adjusted according
to the load in the vehicle. To do this,
turn the control, located below the
dashboard to the right of the driver,
to the appropriate position:
0. 1 or 2 people in the front seats.
-. 3 people.
1. 4 to 7 people.
-. Intermediate setting.
2. 4 to 7 people + maximum author-
ised loads.
-. Intermediate setting.
3. Driver + maximum authorised
loads.
Initial setting is position "0".
Page 106 of 338
90
V I S I B I L I T Y
V
Reverse gear
When reverse gear is engaged, the
rear wiper will come into operation if
the windscreen wipers are operating.
Programming The function is activat-
ed or deactivated via
the multifunction screen
c o n fi g u r a t i o n m e n u .
This function is activat-
ed by default.
Windscreen and headlamp
wash
Pull the windscreen wiper stalk
towards you. The windscreen
wash then the windscreen
w i p e r s o p e r a t e f o r a fi x e d p e r i o d .
If the dipped headlamps are on
,
the headlamp washers operate at
the same time. Automatic windscreen wiping
The windscreen wipers operate au-
tomatically, without any action on the
part of the driver, if rain is detected
( s e n s o r b e h i n d t h e i n t e r i o r m i r r o r ) ,
adapting their speed to the intensity
of the rainfall.
This is controlled manually by the
driver by pushing stalk
A to the
"AUTO" position.
It is accompanied by a message on
the multifunction screen. The automatic wiping must be re-
activated if the ignition has been off
for more than one minute, by push-
ing stalk
A downwards.
Operating fault
If an automatic wiping malfunction
occurs, the wipers will operate in in-
termittent mode.
Have it checked by a CITROËN
dealer. Do not cover the rain sensor, linked
with the brightness sensor and
located in the centre of the wind-
screen behind the interior mirror.
Switch off the automatic wip-
ing when using an automatic car
wash.
In winter, it is advisable to wait until
the windscreen is completely clear
of ice before activating the auto-
matic wiping.
Activation
Switching off
This is controlled manually by the
driver by moving stalk
A upwards
and returning it to position "0" .
It is accompanied by a message on
the multifunction screen.
Page 108 of 338
90
V I S I B I L I T Y
V
Reverse gear
When reverse gear is engaged, the
rear wiper will come into operation if
the windscreen wipers are operating.
Programming The function is activat-
ed or deactivated via
the multifunction screen
c o n fi g u r a t i o n m e n u .
This function is activat-
ed by default.
Windscreen and headlamp
wash
Pull the windscreen wiper stalk
towards you. The windscreen
wash then the windscreen
w i p e r s o p e r a t e f o r a fi x e d p e r i o d .
If the dipped headlamps are on
,
the headlamp washers operate at
the same time. Automatic windscreen wiping
The windscreen wipers operate au-
tomatically, without any action on the
part of the driver, if rain is detected
( s e n s o r b e h i n d t h e i n t e r i o r m i r r o r ) ,
adapting their speed to the intensity
of the rainfall.
This is controlled manually by the
driver by pushing stalk
A to the
"AUTO" position.
It is accompanied by a message on
the multifunction screen. The automatic wiping must be re-
activated if the ignition has been off
for more than one minute, by push-
ing stalk
A downwards.
Operating fault
If an automatic wiping malfunction
occurs, the wipers will operate in in-
termittent mode.
Have it checked by a CITROËN
dealer. Do not cover the rain sensor, linked
with the brightness sensor and
located in the centre of the wind-
screen behind the interior mirror.
Switch off the automatic wip-
ing when using an automatic car
wash.
In winter, it is advisable to wait until
the windscreen is completely clear
of ice before activating the auto-
matic wiping.
Activation
Switching off
This is controlled manually by the
driver by moving stalk
A upwards
and returning it to position "0" .
It is accompanied by a message on
the multifunction screen.
Page 146 of 338
114
S A F E T Y

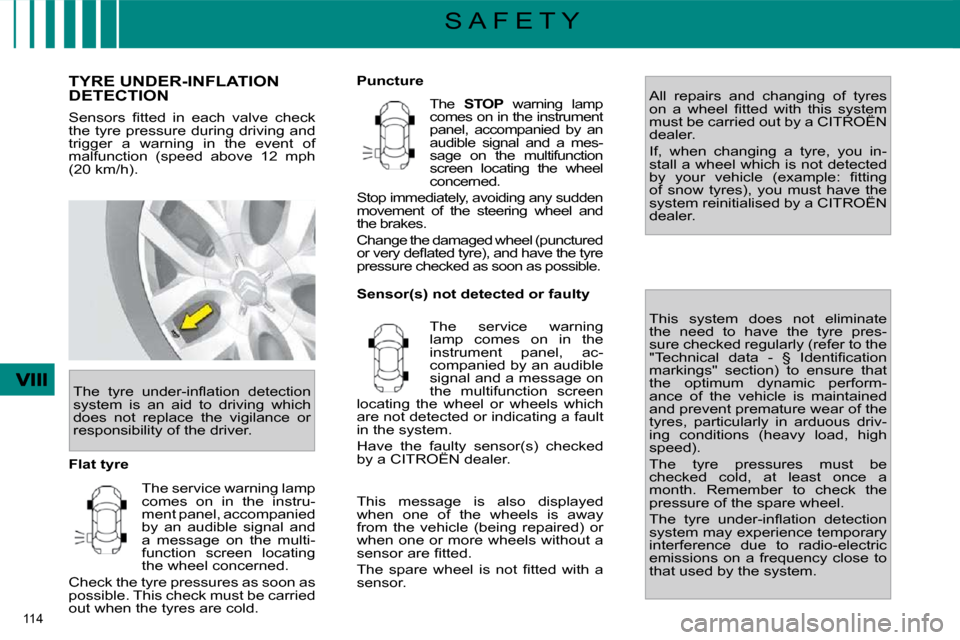

TYRE UNDER-INFLATION DETECTION
S e n s o r s fi t t e d i n e a c h v a l v e c h e c k
the tyre pressure during driving and
trigger a warning in the event of
malfunction (speed above 12 mph
(20 km/h).
Flat tyre T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n
system is an aid to driving which
does not replace the vigilance or
responsibility of the driver. Puncture
The service warning lamp
comes on in the instru-
ment panel, accompanied
by an audible signal and
a message on the multi-
function screen locating
the wheel concerned.
Check the tyre pressures as soon as
possible. This check must be carried
out when the tyres are cold. The
STOP warning lamp
comes on in the instrument
panel, accompanied by an
audible signal and a mes-
sage on the multifunction
screen locating the wheel
concerned.
Stop immediately, avoiding any sudden
movement of the steering wheel and
the brakes.
Change the damaged wheel (punctured
o r v e r y d e fl a t e d t y r e ) , a n d h a v e t h e t y r e
pressure checked as soon as possible.
Sensor(s) not detected or faulty
The service warning
lamp comes on in the
instrument panel, ac-
companied by an audible
signal and a message on
the multifunction screen
locating the wheel or wheels which
are not detected or indicating a fault
in the system.
Have the faulty sensor(s) checked
by a CITROËN dealer. All repairs and changing of tyres
o n a w h e e l fi t t e d w i t h t h i s s y s t e m
must be carried out by a CITROËN
dealer.
If, when changing a tyre, you in-
stall a wheel which is not detected
b y y o u r v e h i c l e ( e x a m p l e : fi t t i n g
of snow tyres), you must have the
system reinitialised by a CITROËN
dealer.
This system does not eliminate
the need to have the tyre pres-
sure checked regularly (refer to the
" T e c h n i c a l d a t a - § I d e n t i fi c a t i o n
markings" section) to ensure that
the optimum dynamic perform-
ance of the vehicle is maintained
and prevent premature wear of the
tyres, particularly in arduous driv-
ing conditions (heavy load, high
speed).
The tyre pressures must be
checked cold, at least once a
month. Remember to check the
pressure of the spare wheel.
T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n
s y s t e m m a y e x p e r i e n c e t e m p o r a r y
interference due to radio-electric
emissions on a frequency close to
that used by the system.
This message is also displayed
when one of the wheels is away
from the vehicle (being repaired) or
when one or more wheels without a
s e n s o r a r e fi t t e d .
T h e s p a r e w h e e l i s n o t fi t t e d w i t h a
sensor.
Page 183 of 338
149
IX
D R I V I N G
PARKING SPACE SENSOR
System which measures the parking
space available between two vehi-
cles or obstacles. It measures the
size of the space and gives you in-
formation on:
- t h e p o s s i b i l i t y o f fi t t i n g i n t o a f r e e space, depending on the dimensions
of your vehicle and the distances
necessary for your manoeuvring,
- t h e l e v e l o f d i f fi c u l t y o f t h e m a -noeuvre to be performed.
The system does not measure spac-
es which are clearly much smaller or
larger than the size of the vehicle. Displays on the instrument
panel
The parking space sensor
function warning lamp can
have three different states:
- off: the function is not selected,
- o n fi x e d : the function is selected
but the conditions for measuring
are not yet met (direction indi-
cator not operating, speed too
high) or the measuring phase is
terminated.
- fl a s h i n g : the measuring is in
progress or the message is be-
ing displayed. You can select the "parking space
sensor" function by pressing button
A.
T h e fi x e d l i g h t i n g o f t h e w a r n i n g l a m p
indicates that the function is selected.
Page 184 of 338
150
IX
D R I V I N G
Operation
Y o u h a v e i d e n t i fi e d a p a r k i n g s p a c e :
Press button A to select the function.
Activate the direction indicator
on the side where the space is to
be measured.
During the measuring, go for-
ward the length of the space, at
a speed less than 12 mph (ap-
prox. 20 km/h), to prepare for
your manoeuvre.
The system then measures the size of the space.
The system informs you of the level
o f d i f fi c u l t y o f t h e m a n o e u v r e v i a
a message on the multifunction
screen accompanied by a gong.
Depending on the message is-
sued by the system, you may or
may not be able to perform the
manoeuvre.

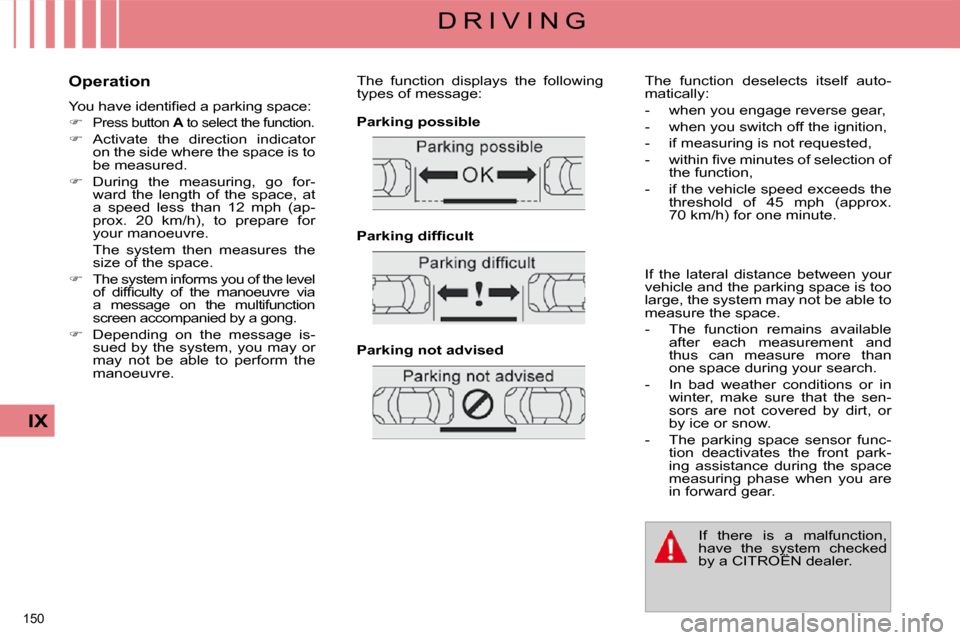

Parking possible
P a r k i n g d i f fi c u l t
Parking not advised
The function displays the following
types of message: The function deselects itself auto-
matically:
- when you engage reverse gear,
- when you switch off the ignition,
- if measuring is not requested,
- w i t h i n fi v e m i n u t e s o f s e l e c t i o n o f
the function,
- if the vehicle speed exceeds the threshold of 45 mph (approx.
70 km/h) for one minute.
If there is a malfunction,
have the system checked
by a CITROËN dealer.
If the lateral distance between your
vehicle and the parking space is too
large, the system may not be able to
measure the space.
- The function remains available
after each measurement and
thus can measure more than
one space during your search.
- In bad weather conditions or in winter, make sure that the sen-
sors are not covered by dirt, or
by ice or snow.
- The parking space sensor func- tion deactivates the front park-
ing assistance during the space
measuring phase when you are
in forward gear.
Page 185 of 338
151
IX
D R I V I N G
LANE DEPARTURE WARNING SYSTEM
System which detects the involun-
t a r y c r o s s i n g o f l o n g i t u d i n a l t r a f fi c
lane markings on the ground (solid
or broken line).
S e n s o r s , fi t t e d b e l o w t h e f r o n t
bumper, trigger a warning if the vehi-
cle drifts over a lane marking (speed
higher than 50 mph (80 km/h)).
This system is particularly useful on
motorways and main roads. Activation
Press button A , the indicator
lamp comes on.
Deactivation
Press button A again, the indicator
lamp switches off.
The status of the system remains
in the memory when the ignition is
switched off.
Detection
You are warned by the vibration of
the driver's seat cushion:
- on the right-hand side, if the marking on the ground has been
crossed on the right,
- on the left-hand side, if the marking on the ground has been crossed on
the left.
No warning is transmitted while the direc-
tion indicator is active and for approxi-
mately 20 seconds after the direction
indicator is switched off.
A warning may be transmitted if a direc-
tion marking (e.g. arrow) or non-standard
m a r k i n g ( e . g . g r a f fi t i ) i s c r o s s e d .
Operating fault
In the event of a malfunction, the
service warning lamp comes on, ac-
companied by an audible signal and a
message on the multifunction screen.
Consult a CITROËN dealer.
The lane departure warning system
cannot, in any circumstances, re-
place the need for vigilance and res-
ponsibility on the part of the driver. The detection may be impeded:
- if the sensors are dirty (mud, snow...),
- if the markings on the ground
are worn,
- if there is little contrast between the markings on the ground and
the road surface.
Page 186 of 338
152
IX
D R I V I N G
AUDIBLE AND/OR VISUAL REAR PARKING ASSISTANCE
System consisting of four proximity
sensors, located in the rear bumper.
This detects any obstacle (person,
vehicle, tree, gate, etc.) behind the
vehicle, except obstacles located
just below the bumper.
An object, such as a stake, a road-
works cone or any other similar ob-
ject may be detected at the begin-
ning of the manoeuvre, but may no
longer be detected when the vehicle
comes close to it.
If there is an operating fault, when reverse gear is en-gaged this warning lamp comes on in the instrument panel, accompanied by an audible signal (short beep) and a message on the multifunction screen.
In bad or wintry weather, ensure that the sensors are not covered with mud, frost or snow.
Programming
You can activate or deactivate the system by means of the multifunc- t i o n s c r e e n c o n fi g u r a t i o n m e n u . T h e system state is memorised when switching off the ignition.
For more information on access to the parking assistance menu, refer to t h e s e c t i o n o n v e h i c l e c o n fi g u r a t i o n for your screen under "Multifunction screens".
The system will be deactivated auto-matically when towing a trailer or w h e n a b i c y c l e c a r r i e r i s fi t t e d ( v e h i - c l e fi t t e d w i t h a t o w b a r o r b i c y c l e c a r -rier recommended by CITROËN). c l e fi t t e d w i t h a t o w b a r o r b i c y c l e c a r - c l e fi t t e d w i t h a t o w b a r o r b i c y c l e c a r -
The parking assistance system cannot, in any circumstances, take the place of the vigilance and res-ponsibility of the driver.
Activation
The system is activated as soon as reverse gear is engaged, accompa-nied by an audible signal. The proxi-mity information is given by:
- an audible signal, which beco-mes more rapid as the vehicle approaches the obstacle,
- a graphic on the multifunction screen, with blocks which be-come increasingly closer to the vehicle.
When the distance between the rear of the vehicle and the obstacle is less than thirty centimetres, the audible signal becomes continuous and the "Danger" symbol appears on the multifunction screen.
On completion of the manoeuvre, when you exit reverse gear, the system becomes inactive.
Operating faults
