56
ACCESS
Locating your vehicle
Press the closed padlock to locate
your locked vehicle in a car park.
This is indicated by lighting of the cour-
t e s y l a m p s a n d fl a s h i n g o f t h e d i r e c t i o n
indicators for a few seconds. Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Anti-theft protection
In the event of a malfunction,
you are informed by lighting
of this warning lamp, an au-
dible signal and a message
on the multifunction screen.
In this case, your vehicle does not start;
contact a CITROËN dealer as soon as
possible.
Folding the key
First press button A to fold the key. Ignition switch
- Position 1:
Stop
- Position 2: Ignition
- Position 3: Starting
Starting the vehicle
Insert the key in the ignition switch.
The system recognises the starting code.
Turn the key fully towards the fascia
to position 3 (Starting) .
When the engine starts, release the
key.
Page 49 of 200
56
ACCESS
Locating your vehicle
Press the closed padlock to locate
your locked vehicle in a car park.
This is indicated by lighting of the cour-
t e s y l a m p s a n d fl a s h i n g o f t h e d i r e c t i o n
indicators for a few seconds. Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Anti-theft protection
In the event of a malfunction,
you are informed by lighting
of this warning lamp, an au-
dible signal and a message
on the multifunction screen.
In this case, your vehicle does not start;
contact a CITROËN dealer as soon as
possible.
Folding the key
First press button A to fold the key. Ignition switch
- Position 1:
Stop
- Position 2: Ignition
- Position 3: Starting
Starting the vehicle
Insert the key in the ignition switch.
The system recognises the starting code.
Turn the key fully towards the fascia
to position 3 (Starting) .
When the engine starts, release the
key.
Page 53 of 200
ACCESS
DOORS
After unlocking the vehicle using the
remote control or the key, pull the
door handle. From inside
Pull on the front door control to open
the door; this unlocks the vehicle
completely.
Pull on the rear door control to open
the door; this unlocks the door con-
cerned only. Closing
When a door is not closed correctly:
- when the engine is run-
ning , this warning lamp
comes on, accompanied
by a message on the mul-
tifunction screen for a few
seconds,
- when the vehicle is moving (speed
higher than 6 mph (10 km/h)), this
warning lamp comes on, accompa-
nied by an audible signal and a mes-
sage on the multifunction screen for
a few seconds.
Opening
From outside
Page 55 of 200
63
ACCESS
Emergency control
System which locks or unlocks the
doors mechanically in the event of a
malfunction of the battery or of the
central locking.
Insert the key in the lock, located on
the edge of the door, then turn it one
eighth of a turn . Opening
After unlocking the vehicle using the
remote control or the key, pull the
handle and raise the tailgate.
BOOT
- when the engine is running ,
this warning lamp comes on,
accompanied by a message
on the multifunction screen
for a few seconds,
- when the vehicle is moving (speed
above 6 mph (10 km/h)), this warn-
ing lamp comes on, accompanied
by an audible signal and a message
on the multifunction screen for a
few seconds. Tailgate release
System for mechanical unlocking of the
boot in the event of a battery or central
locking malfunction.
Unlocking
Fold back the rear benchseat to
gain access to the lock from inside
the boot.
Insert a small screwdriver into
hole A of the lock to unlock the
tailgate.
Locking the driver's door
Insert the key in the lock, then turn it
to the right.
Unlocking the driver's door
Insert the key in the lock, then turn it
to the left.
Locking the front and rear
passenger doors
Unlocking the front and rear
passenger doors
Pull the interior door opening control. Closing
Lower the tailgate using the interior
grab handle.
If the tailgate is not closed correctly:
Page 56 of 200
63
ACCESS
Emergency control
System which locks or unlocks the
doors mechanically in the event of a
malfunction of the battery or of the
central locking.
Insert the key in the lock, located on
the edge of the door, then turn it one
eighth of a turn . Opening
After unlocking the vehicle using the
remote control or the key, pull the
handle and raise the tailgate.
BOOT
- when the engine is running ,
this warning lamp comes on,
accompanied by a message
on the multifunction screen
for a few seconds,
- when the vehicle is moving (speed
above 6 mph (10 km/h)), this warn-
ing lamp comes on, accompanied
by an audible signal and a message
on the multifunction screen for a
few seconds. Tailgate release
System for mechanical unlocking of the
boot in the event of a battery or central
locking malfunction.
Unlocking
Fold back the rear benchseat to
gain access to the lock from inside
the boot.
Insert a small screwdriver into
hole A of the lock to unlock the
tailgate.
Locking the driver's door
Insert the key in the lock, then turn it
to the right.
Unlocking the driver's door
Insert the key in the lock, then turn it
to the left.
Locking the front and rear
passenger doors
Unlocking the front and rear
passenger doors
Pull the interior door opening control. Closing
Lower the tailgate using the interior
grab handle.
If the tailgate is not closed correctly:
Page 58 of 200
i
65
ACCESS
Additions of fuel must be of at least
5 litres, in order to be taken into
account by the fuel gauge.
The key cannot be removed from
t h e l o c k u n t i l t h e c a p i s r e fi t t e d .
O p e n i n g t h e fi l l e r c a p m a y c r e a t e a
noise a caused by an inrush of air.
This vacuum is entirely normal, re-
sulting from the sealing of the fuel
system.
FUEL TANK
Fuel tank capacity: approximately
50 litres (petrol) or 48 litres (Diesel).
Low fuel level Filling
A l a b e l a f fi x e d t o t h e i n s i d e o f t h e fl a p
reminds you of the type of fuel to be
used depending on your engine.
When the fuel tank minimum
level is reached this warning
lamp comes on on the instru-
m e n t p a n e l . W h e n i t fi r s t c o m e s
on there remains approximately
5 litres of fuel in the tank.
You must refuel as soon as possible to
avoid running out of fuel.
If you run out of fuel (Diesel), refer also
to the "Checks" section. T o fi l l t h e t a n k i n c o m p l e t e s a f e t y :
the engine must be switched off,
o p e n t h e f u e l fi l l e r fl a p ,
insert the key in the cap, then turn it
to the left,
remove the cap and hook it onto
the clip located on the inside of the
fl a p ,
fi l l t h e t a n k , but do not continue
after the 3rd cut-off of the pump ;
this could cause malfunctions.
W h e n y o u h a v e fi l l e d t h e t a n k :
put the cap back in place,
turn the key to the right, then remove
it from the cap,
c l o s e t h e fl a p .
Page 59 of 200
i
66
ACCESS

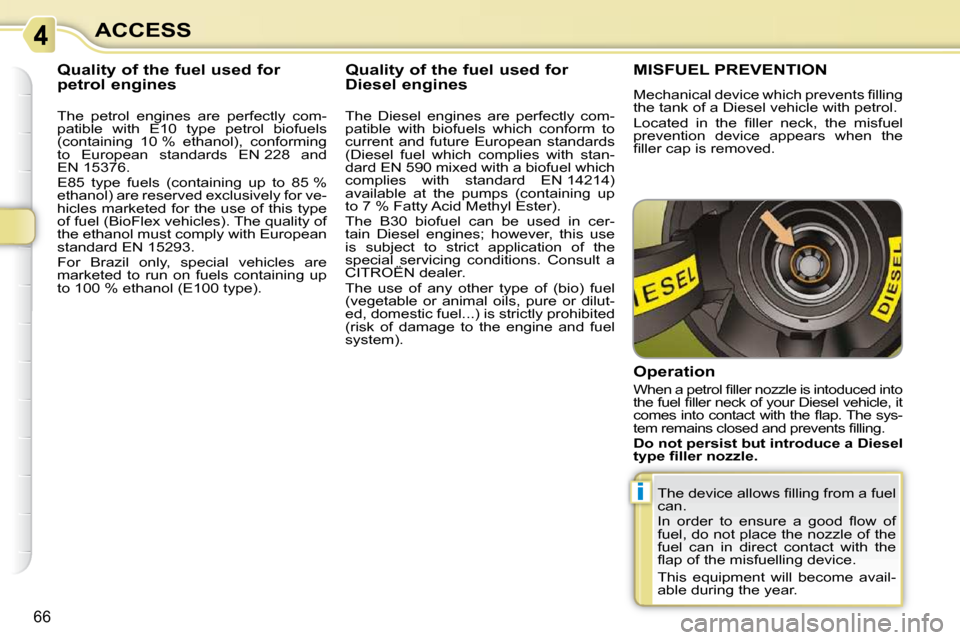

Quality of the fuel used for
petrol engines
The petrol engines are perfectly com-
patible with E10 type petrol biofuels
(containing 10 % ethanol), conforming
to European standards EN 228 and
EN 15376.
E85 type fuels (containing up to 85 %
ethanol) are reserved exclusively for ve-
hicles marketed for the use of this type
of fuel (BioFlex vehicles). The quality of
the ethanol must comply with European
standard EN 15293.
For Brazil only, special vehicles are
marketed to run on fuels containing up
to 100 % ethanol (E100 type). Quality of the fuel used for
Diesel engines
The Diesel engines are perfectly com-
patible with biofuels which conform to
current and future European standards
(Diesel fuel which complies with stan-
dard EN 590 mixed with a biofuel which
complies with standard EN 14214)
available at the pumps (containing up
to 7 % Fatty Acid Methyl Ester).
The B30 biofuel can be used in cer-
tain Diesel engines; however, this use
is subject to strict application of the
special servicing conditions. Consult a
CITROËN dealer.
The use of any other type of (bio) fuel
(vegetable or animal oils, pure or dilut-
ed, domestic fuel...) is strictly prohibited
(risk of damage to the engine and fuel
system).
MISFUEL PREVENTION
M e c h a n i c a l d e v i c e w h i c h p r e v e n t s fi l l i n g
the tank of a Diesel vehicle with petrol.
L o c a t e d i n t h e fi l l e r n e c k , t h e m i s f u e l
prevention device appears when the
fi l l e r c a p i s r e m o v e d .
Operation
W h e n a p e t r o l fi l l e r n o z z l e i s i n t o d u c e d i n t o
t h e f u e l fi l l e r n e c k o f y o u r D i e s e l v e h i c l e , i t
c o m e s i n t o c o n t a c t w i t h t h e fl a p . T h e s y s -
t e m r e m a i n s c l o s e d a n d p r e v e n t s fi l l i n g .
Do not persist but introduce a Diesel
t y p e fi l l e r n o z z l e .
T h e d e v i c e a l l o w s fi l l i n g f r o m a f u e l
can.
I n o r d e r t o e n s u r e a g o o d fl o w o f
fuel, do not place the nozzle of the
fuel can in direct contact with the
fl a p o f t h e m i s f u e l l i n g d e v i c e .
This equipment will become avail-
able during the year.
Page 60 of 200
i
66
ACCESS
Quality of the fuel used for
petrol engines
The petrol engines are perfectly com-
patible with E10 type petrol biofuels
(containing 10 % ethanol), conforming
to European standards EN 228 and
EN 15376.
E85 type fuels (containing up to 85 %
ethanol) are reserved exclusively for ve-
hicles marketed for the use of this type
of fuel (BioFlex vehicles). The quality of
the ethanol must comply with European
standard EN 15293.
For Brazil only, special vehicles are
marketed to run on fuels containing up
to 100 % ethanol (E100 type). Quality of the fuel used for
Diesel engines
The Diesel engines are perfectly com-
patible with biofuels which conform to
current and future European standards
(Diesel fuel which complies with stan-
dard EN 590 mixed with a biofuel which
complies with standard EN 14214)
available at the pumps (containing up
to 7 % Fatty Acid Methyl Ester).
The B30 biofuel can be used in cer-
tain Diesel engines; however, this use
is subject to strict application of the
special servicing conditions. Consult a
CITROËN dealer.
The use of any other type of (bio) fuel
(vegetable or animal oils, pure or dilut-
ed, domestic fuel...) is strictly prohibited
(risk of damage to the engine and fuel
system).
MISFUEL PREVENTION
M e c h a n i c a l d e v i c e w h i c h p r e v e n t s fi l l i n g
the tank of a Diesel vehicle with petrol.
L o c a t e d i n t h e fi l l e r n e c k , t h e m i s f u e l
prevention device appears when the
fi l l e r c a p i s r e m o v e d .
Operation
W h e n a p e t r o l fi l l e r n o z z l e i s i n t o d u c e d i n t o
t h e f u e l fi l l e r n e c k o f y o u r D i e s e l v e h i c l e , i t
c o m e s i n t o c o n t a c t w i t h t h e fl a p . T h e s y s -
t e m r e m a i n s c l o s e d a n d p r e v e n t s fi l l i n g .
Do not persist but introduce a Diesel
t y p e fi l l e r n o z z l e .
T h e d e v i c e a l l o w s fi l l i n g f r o m a f u e l
can.
I n o r d e r t o e n s u r e a g o o d fl o w o f
fuel, do not place the nozzle of the
fuel can in direct contact with the
fl a p o f t h e m i s f u e l l i n g d e v i c e .
This equipment will become avail-
able during the year.
