11
PRACTICAL INFORMATION
Engine compartment fusebox
The fusebox is placed in the engine
compartment near the battery (left-hand
s i d e ) .
Access to the fuses
Unclip the cover.
Change the fuse (see correspond-
i n g p a r a g r a p h ) .
W h e n y o u h a v e fi n i s h e d , c l o s e t h e
cover carefully to ensure the sealing
of the fuse box. Fuse table
Fuse N° Rating Functions
F1 20 A Engine control unit supply, cooling fan unit control
relay, multifunction engine control main relay,
i n j e c t i o n p u m p ( D i e s e l ) .
F2 15 A Horn.
F3 10 A Front/rear wash-wipe.
F4 20 A Daytime running lamps.
F5 15 A D i e s e l h e a t e r ( D i e s e l ) , p a r t i c l e fi l t e r a d d i t i v e p u m p
( D i e s e l ) , a i r fl o w s e n s o r ( D i e s e l ) ,
EGR electrovalve ( D i e s e l ) , f u e l p u m p ( 1 . 1 i a n d 1 . 4 i ) , b l o w - b y h e a t e r
a n d e l e c t r o v a l v e s ( V T i ) .
F6 10 A ABS/ESP control unit, secondary stop switch.
F7 10 A Electric power steering, automatic gearbox.
F8 25 A Starter control.
F9 10 A S w i t c h i n g a n d p r o t e c t i o n u n i t ( D i e s e l ) .
F10 30 A F u e l h e a t e r ( D i e s e l ) , b l o w - b y h e a t e r ( 1 . 1 i , 1 . 4 i a n d
D i e s e l ) , f u e l p u m p ( V T i ) , i n j e c t o r s a n d i g n i t i o n c o i l s
( p e t r o l ) , e l e c t r o n i c t h e r m o s t a t a n d c a n i s t e r p u r g e
e l e c t r o v a l v e ( 1 . 1 i a n d 1 . 4 i ) .
F11 40 A Heater blower.
Page 146 of 209
11
PRACTICAL INFORMATION
Fuse N° Rating Functions
F12 30 A Windscreen wipers slow/fast speed.
F13 40 A B u i l t - i n s y s t e m s i n t e r f a c e s u p p l y ( i g n i t i o n p o s i t i v e ) .
F14 30 A V a l v e t r o n i c s u p p l y ( V T i ) .
F15 10 A Right-hand main beam headlamps.
F16 10 A Left-hand main beam headlamps.
F17 15 A Left-hand dipped beam headlamps.
F18 15 A Right-hand dipped beam headlamps.
F19 15 A O x y g e n s e n s o r s a n d e l e c t r o v a l v e s ( V T i ) ,
e l e c t r o v a l v e s ( D i e s e l ) , E G R e l e c t r o v a l v e ( D i e s e l ) .
F20 10 A P u m p s , e l e c t r o n i c t h e r m o s t a t ( V T i ) w a t e r i n f u e l
s e n s o r ( D i e s e l ) .
F21 5 A Fan assembly control supply, ABS/ESP.
Page 147 of 209
11
PRACTICAL INFORMATION
Table of maxi-fuses
Fuse N° Rating
Functions
MF1 * 60 A Fan assembly.
MF2 * 30 A ABS/ESP pump.
MF3 * 30 A ABS/ESP electrovalves.
MF4 * 60 A B u i l t - i n S y s t e m s I n t e r f a c e ( B S I ) s u p p l y .
MF5 * 60 A B u i l t - i n S y s t e m s I n t e r f a c e ( B S I ) s u p p l y .
MF6 * - Not used.
MF7 * - Passenger compartment fusebox.
MF8 * - Not used.
* The maxi-fuses provide additional protection for the e lectrical systems. All work on the maxi-fuses must be carried out by a
CITROËN dealer.
Page 149 of 209
11
PRACTICAL INFORMATION
Charging the battery using a
battery charger
Disconnect the battery from the ve-
hicle.
Follow the instructions for use pro-
vided by the manufacturer of the
charger.
Reconnect starting with the nega-
t i v e t e r m i n a l ( - ) .
Check that the terminals and connec-
tors are clean. If they are covered with
s u l p h a t e ( w h i t i s h o r g r e e n i s h d e p o s i t ) ,
remove them and clean them.
It is advisable to disconnect
the battery if the vehicle is to
be left unused for more than
one month. Do not disconnect the terminals
while the engine is running.
Do not charge the batteries with-
out disconnecting the terminals
fi r s t .
Batteries contain harmful sub-
stances such as sulphuric acid and
lead. They must be disposed of in
accordance with regulations and
must not, in any circumstances, be
discarded with household waste.
Take used remote control bat-
teries and vehicle batteries to a
special collection point.
Before disconnecting the battery
Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows and the
doors before disconnecting the
battery.
Following reconnection of the
battery
Following reconnection of the
battery, switch on the ignition
and wait 1 minute before start-
ing to permit initialisation of the
electronic systems. However,
if minor problems persist fol-
lowing this operation, contact a
CITROËN dealer.
Referring to the correspond-
ing section, you should yourself
r e i n i t i a l i s e :
- the remote control key,
- the GPS satellite navigation system.
LOAD REDUCTION MODE
System which manages the use of cer-
tain functions according to the level of
charge remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates
certain functions, such as the air condi-
tioning, the heated rear screen...
The deactivated functions are reactivat-
ed automatically as soon as conditions
permit.
Page 150 of 209
11
PRACTICAL INFORMATION
Charging the battery using a
battery charger
Disconnect the battery from the ve-
hicle.
Follow the instructions for use pro-
vided by the manufacturer of the
charger.
Reconnect starting with the nega-
t i v e t e r m i n a l ( - ) .
Check that the terminals and connec-
tors are clean. If they are covered with
s u l p h a t e ( w h i t i s h o r g r e e n i s h d e p o s i t ) ,
remove them and clean them.
It is advisable to disconnect
the battery if the vehicle is to
be left unused for more than
one month. Do not disconnect the terminals
while the engine is running.
Do not charge the batteries with-
out disconnecting the terminals
fi r s t .
Batteries contain harmful sub-
stances such as sulphuric acid and
lead. They must be disposed of in
accordance with regulations and
must not, in any circumstances, be
discarded with household waste.
Take used remote control bat-
teries and vehicle batteries to a
special collection point.
Before disconnecting the battery
Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows and the
doors before disconnecting the
battery.
Following reconnection of the
battery
Following reconnection of the
battery, switch on the ignition
and wait 1 minute before start-
ing to permit initialisation of the
electronic systems. However,
if minor problems persist fol-
lowing this operation, contact a
CITROËN dealer.
Referring to the correspond-
ing section, you should yourself
r e i n i t i a l i s e :
- the remote control key,
- the GPS satellite navigation system.
LOAD REDUCTION MODE
System which manages the use of cer-
tain functions according to the level of
charge remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates
certain functions, such as the air condi-
tioning, the heated rear screen...
The deactivated functions are reactivat-
ed automatically as soon as conditions
permit.
Page 151 of 209
11
PRACTICAL INFORMATION
If the telephone is being used
at the same time on the MyWay
audio navigation system, it will
be interrupted after 10 minutes. A fl a t b a t t e r y p r e v e n t s t h e e n g i n e
from starting (refer to the corre-
s p o n d i n g p a r a g r a p h ) .
ENERGY ECONOMY MODE
System which manages the period of
use of certain functions to conserve a
s u f fi c i e n t l e v e l o f c h a r g e i n t h e b a t t e r y .
After the engine has stopped, you can
still use functions such as the audio
equipment, windscreen wipers, dipped
headlamps, courtesy lamps, etc. for a maxi-
mum combined period ofthirty minutes.
Switching to economy mode
Once this period has elapsed, a message ap-
pears on the multifunction screen indicating
that the vehicle has switched to economy mode
and the active functions are put on standby.
Exiting economy mode
These functions are reactivated auto-
matically the next time the vehicle is
driven.
In order to resume the use of these
functions immediately, start the en-
gine and let it run for a few minutes.
The time available to you will then be dou-
ble the period for which the engine is left
running. However, this period will always
b e b e t w e e n fi v e a n d t h i r t y m i n u t e s .
CHANGING A WIPER BLADE
Procedure for replacing a worn wiper
blade with a new one without the use
of tools.
Before removing a front wiper
blade
Within one minute after switching off
the ignition, operate the wipers stalk
to position the wiper blades in the
centre of the windscreen.
Removing a front or rear wiper
blade
Raise the corresponding wiper arm.
Unclip the wiper blade and remove it.
Fitting a front or rear wiper blade
At the front, check the size of the
wiper blade as the shorter blade is
fi t t e d o n t h e r i g h t - h a n d s i d e o f t h e
vehicle.
Put the corresponding new wiper
blade in place and clip it.
Fold down the wiper arm carefully.
After fitting a front wiper blade
Switch on the ignition.
Operate the wipers stalk again to
park the wiper blades.
This period may be greatly re-
duced if the battery is not fully
charged.
Page 205 of 209
192
1
2
2
2
2
1
2
2
1
2
3
3
1
2
2
2
2
2
2
1
2
2
2
2
2
2
2
2
1
2
2
123
23
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0 8

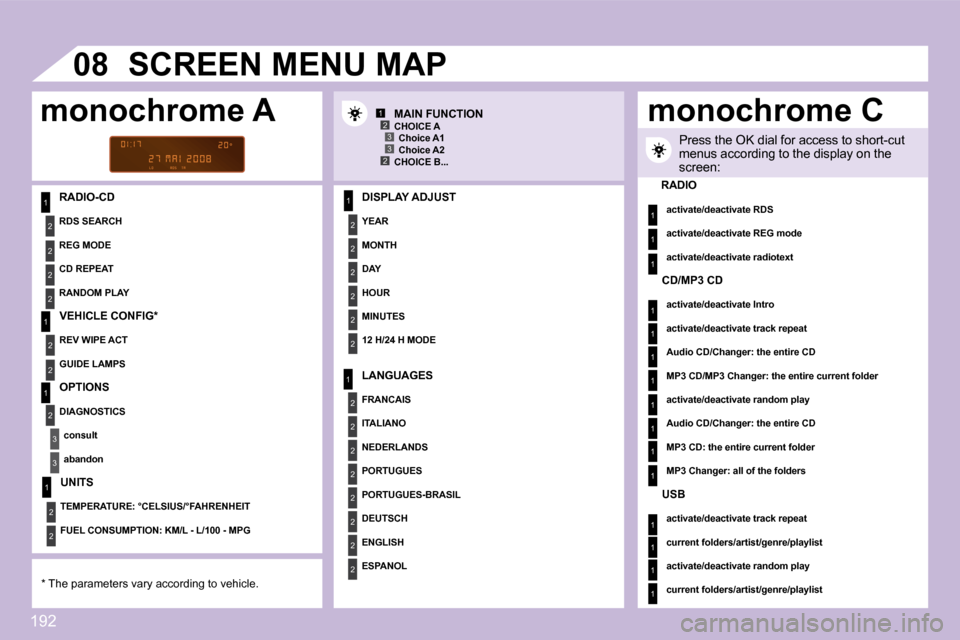

R A D I O - C D D I S P L A Y A D J U S T
Y E A R Y E A R Y E A R
M O N T H
D A Y D A Y D A Y
H O U R H O U R H O U R
MINUTES
1 2 H / 2 4 H M O D E
S C R E E N M E N U M A P
M A I N F U N C T I O N
* T h e p a r a m e t e r s v a r y a c c o r d i n g t o v e h i c l e .
C H O I C E A C h o i c e A 1 C h o i c e A 2 C H O I C E B . . .
L A N G U A G E S
F R A N C A I S
ITALIANO
N E D E R L A N D S
P O R T U G U E S
P O R T U G U E S - B R A S I L
D E U T S C H
E N G L I S H
ESPANOL
P r e s s t h e O K d i a l f o r a c c e s s t o s h o r t - c u t m e n u s a c c o r d i n g t o t h e d i s p l a y o n t h e screen:
m o n o c h r o m e A m o n o c h r o m e C
R A D I O
a c t i v a t e / d e a c t i v a t e R D S
a c t i v a t e / d e a c t i v a t e R E G m o d e
a c t i v a t e / d e a c t i v a t e r a d i o t e x t
R D S S E A R C H
R E G M O D E
C D R E P E A T
R A N D O M P L A Y
V E H I C L E C O N F I G *
R E V W I P E A C T
G U I D E L A M P S
OPTIONS
D I A G N O S T I C S
c o n s u l t
a b a n d o n
UNITS
T E M P E R A T U R E : ° C E L S I U S / ° F A H R E N H E I T
F U E L C O N S U M P T I O N : K M / L - L / 1 0 0 - M P G
C D / M P 3 C D
a c t i v a t e / d e a c t i v a t e I n t r o
a c t i v a t e / d e a c t i v a t e t r a c k r e p e a t
A u d i o C D / C h a n g e r : t h e e n t i r e C D
M P 3 C D / M P 3 C h a n g e r : t h e e n t i r e c u r r e n t f o l d e r M P 3 C D / M P 3 C h a n g e r : t h e e n t i r e c u r r e n t f o l d e r M P 3 C D / M P 3 C h a n g e r : t h e e n t i r e c u r r e n t f o l d e r
a c t i v a t e / d e a c t i v a t e r a n d o m p l a y
A u d i o C D / C h a n g e r : t h e e n t i r e C D
M P 3 C D : t h e e n t i r e c u r r e n t f o l d e r M P 3 C D : t h e e n t i r e c u r r e n t f o l d e r M P 3 C D : t h e e n t i r e c u r r e n t f o l d e r
M P 3 C h a n g e r : a l l o f t h e f o l d e r s
U S B
a c t i v a t e / d e a c t i v a t e t r a c k r e p e a t
c u r r e n t f o l d e r s / a r t i s t / g e n r e / p l a y l i s t
a c t i v a t e / d e a c t i v a t e r a n d o m p l a y
c u r r e n t f o l d e r s / a r t i s t / g e n r e / p l a y l i s t
Page 206 of 209
192
1
2
2
2
2
1
2
2
1
2
3
3
1
2
2
2
2
2
2
1
2
2
2
2
2
2
2
2
1
2
2
123
23
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0 8
R A D I O - C D D I S P L A Y A D J U S T
Y E A R Y E A R Y E A R
M O N T H
D A Y D A Y D A Y
H O U R H O U R H O U R
MINUTES
1 2 H / 2 4 H M O D E
S C R E E N M E N U M A P
M A I N F U N C T I O N
* T h e p a r a m e t e r s v a r y a c c o r d i n g t o v e h i c l e .
C H O I C E A C h o i c e A 1 C h o i c e A 2 C H O I C E B . . .
L A N G U A G E S
F R A N C A I S
ITALIANO
N E D E R L A N D S
P O R T U G U E S
P O R T U G U E S - B R A S I L
D E U T S C H
E N G L I S H
ESPANOL
P r e s s t h e O K d i a l f o r a c c e s s t o s h o r t - c u t m e n u s a c c o r d i n g t o t h e d i s p l a y o n t h e screen:
m o n o c h r o m e A m o n o c h r o m e C
R A D I O
a c t i v a t e / d e a c t i v a t e R D S
a c t i v a t e / d e a c t i v a t e R E G m o d e
a c t i v a t e / d e a c t i v a t e r a d i o t e x t
R D S S E A R C H
R E G M O D E
C D R E P E A T
R A N D O M P L A Y
V E H I C L E C O N F I G *
R E V W I P E A C T
G U I D E L A M P S
OPTIONS
D I A G N O S T I C S
c o n s u l t
a b a n d o n
UNITS
T E M P E R A T U R E : ° C E L S I U S / ° F A H R E N H E I T
F U E L C O N S U M P T I O N : K M / L - L / 1 0 0 - M P G
C D / M P 3 C D
a c t i v a t e / d e a c t i v a t e I n t r o
a c t i v a t e / d e a c t i v a t e t r a c k r e p e a t
A u d i o C D / C h a n g e r : t h e e n t i r e C D
M P 3 C D / M P 3 C h a n g e r : t h e e n t i r e c u r r e n t f o l d e r M P 3 C D / M P 3 C h a n g e r : t h e e n t i r e c u r r e n t f o l d e r M P 3 C D / M P 3 C h a n g e r : t h e e n t i r e c u r r e n t f o l d e r
a c t i v a t e / d e a c t i v a t e r a n d o m p l a y
A u d i o C D / C h a n g e r : t h e e n t i r e C D
M P 3 C D : t h e e n t i r e c u r r e n t f o l d e r M P 3 C D : t h e e n t i r e c u r r e n t f o l d e r M P 3 C D : t h e e n t i r e c u r r e n t f o l d e r
M P 3 C h a n g e r : a l l o f t h e f o l d e r s
U S B
a c t i v a t e / d e a c t i v a t e t r a c k r e p e a t
c u r r e n t f o l d e r s / a r t i s t / g e n r e / p l a y l i s t
a c t i v a t e / d e a c t i v a t e r a n d o m p l a y
c u r r e n t f o l d e r s / a r t i s t / g e n r e / p l a y l i s t
