2
MULTIFUNCTION SCREENS
MONOCHROME SCREEN C
Displays on the screen
This displays the following information:
- time,
- date,
- a m b i e n t t e m p e r a t u r e ( t h i s fl a s h e s i f there is a risk of ice),
- status of doors and boot,
- audio sources (radio, CD, USB port, jack socket etc.),
- trip computer (refer to the "Instruments and controls" section).
Warning messages (E.g. "Emisions
control system faulty") or information
messages (E.g.: Automatic headlamps
active") may appear temporarily. These
can be cleared by pressing the "ESC"
button. Controls
From your Audio system control panel,
you can:
press the "MENU" button to gain
access to the general menu ,
press the " " or " " buttons to scroll
through the items on the screen,
press the "MODE" button to change
the permanent application (trip com-
puter, audio source...),
press the " " or " " buttons to
change a setting value,
press the "OK" b u t t o n t o c o n fi r m ,
or
press the "ESC" button to abandon
the operation in progress. General menu
Press the "MENU" button to gain
access to the general menu :
- audio functions,
- the trip computer,
- p e r s o n a l i s a t i o n - c o n fi g u r a t i o n ,
- telephone (hands-free kit).
Press the " " or " " buttons to se-
l e c t t h e m e n u r e q u i r e d , t h e n c o n fi r m
by pressing the "OK" button.
"Audio functions" menu
With the Audio system switched on,
once this menu has been selected you
can activate or deactivate the functions
linked with use of the radio (RDS, REG,
R a d i o T e x t ) , t h e C D ( i n t r o s c a n , s h u f fl e ,
CD repeat) or the MP3 player (USB
port/jack socket).
For further details on the "Audio functions"
application, refer to the Audio system part
of the "Audio and Telematics" section.
Page 82 of 207
6
FITTINGS

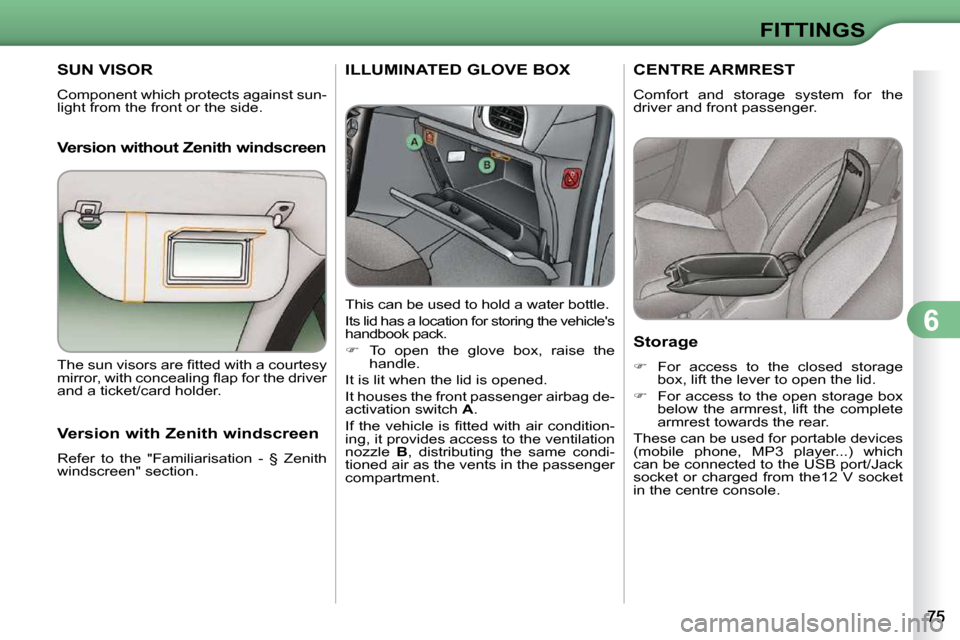

SUN VISOR
Component which protects against sun-
light from the front or the side.
Version without Zenith windscreen
ILLUMINATED GLOVE BOX
This can be used to hold a water bottle.
Its lid has a location for storing the vehicle's
handbook pack.
To open the glove box, raise the
handle.
It is lit when the lid is opened.
It houses the front passenger airbag de-
activation switch A .
I f t h e v e h i c l e i s fi t t e d w i t h a i r c o n d i t i o n -
ing, it provides access to the ventilation
nozzle B , distributing the same condi-
tioned air as the vents in the passenger
compartment.
CENTRE ARMREST
Comfort and storage system for the
driver and front passenger.
Storage
For access to the closed storage
box, lift the lever to open the lid.
For access to the open storage box
below the armrest, lift the complete
armrest towards the rear.
These can be used for portable devices
(mobile phone, MP3 player...) which
can be connected to the USB port/Jack
socket or charged from the12 V socket
in the centre console.
Version with Zenith windscreen
Refer to the "Familiarisation - § Zenith
windscreen" section.
T h e s u n v i s o r s a r e fi t t e d w i t h a c o u r t e s y
m i r r o r , w i t h c o n c e a l i n g fl a p f o r t h e d r i v e r
and a ticket/card holder.
Page 83 of 207
6
FITTINGS
USB READER
This connection box, consisting of a
JACK socket and a USB port, is located
on the centre console.
It permits the connection of portable
equipment, such as a digital audio player
of the iPod ®
or USB stick type.
I t r e a d s t h e a u d i o fi l e f o r m a t s ( m p 3 , o g g ,
wma, wav...) which are transmitted to
your audio equipment and played via the
vehicle's speakers.
Y o u c a n m a n a g e t h e s e fi l e s u s i n g t h e
steering wheel controls or the audio
equipment control panel and display
them on the multifunction screen.
When it is in use, the portable
equipment charges automatically.
For further details concerning the use of
this equipment, refer to the Audio sys-
tem part of the "Audio and Telematics"
section.
12 V ACCESSORIES SOCKET
To connect a 12 V accessory (max
power: 120 Watts), remove the cover
and connect a suitable adaptor.
JACK SOCKET
This connection box, consisting of a
JACK socket is located on the centre
console.
It permits the connection of portable
equipment, such as a digital audio player
of the iPod ®
type.
I t r e a d s t h e a u d i o fi l e f o r m a t s ( m p 3 ,
ogg, wma, wav, ...) which are transmit-
ted to your audio equipment and played
via the vehicle's speakers.
Y o u c a n m a n a g e t h e s e fi l e s u s i n g t h e
steering wheel controls or the audio
equipment control panel and display
them on the multifunction screen.
When it is in use, the portable
equipment charges automatically.
For further details concerning the use
of this equipment, refer to MyWay
Audio system part of the "Audio and
Telematics" section.
Page 85 of 207
6
FITTINGS
SUN VISOR
Component which protects against sun-
light from the front or the side.
Version without Zenith windscreen
ILLUMINATED GLOVE BOX
This can be used to hold a water bottle.
Its lid has a location for storing the vehicle's
handbook pack.
To open the glove box, raise the
handle.
It is lit when the lid is opened.
It houses the front passenger airbag de-
activation switch A .
I f t h e v e h i c l e i s fi t t e d w i t h a i r c o n d i t i o n -
ing, it provides access to the ventilation
nozzle B , distributing the same condi-
tioned air as the vents in the passenger
compartment.
CENTRE ARMREST
Comfort and storage system for the
driver and front passenger.
Storage
For access to the closed storage
box, lift the lever to open the lid.
For access to the open storage box
below the armrest, lift the complete
armrest towards the rear.
These can be used for portable devices
(mobile phone, MP3 player...) which
can be connected to the USB port/Jack
socket or charged from the12 V socket
in the centre console.
Version with Zenith windscreen
Refer to the "Familiarisation - § Zenith
windscreen" section.
T h e s u n v i s o r s a r e fi t t e d w i t h a c o u r t e s y
m i r r o r , w i t h c o n c e a l i n g fl a p f o r t h e d r i v e r
and a ticket/card holder.
Page 86 of 207
6
FITTINGS
USB READER
This connection box, consisting of a
JACK socket and a USB port, is located
on the centre console.
It permits the connection of portable
equipment, such as a digital audio player
of the iPod ®
or USB stick type.
I t r e a d s t h e a u d i o fi l e f o r m a t s ( m p 3 , o g g ,
wma, wav...) which are transmitted to
your audio equipment and played via the
vehicle's speakers.
Y o u c a n m a n a g e t h e s e fi l e s u s i n g t h e
steering wheel controls or the audio
equipment control panel and display
them on the multifunction screen.
When it is in use, the portable
equipment charges automatically.
For further details concerning the use of
this equipment, refer to the Audio sys-
tem part of the "Audio and Telematics"
section.
12 V ACCESSORIES SOCKET
To connect a 12 V accessory (max
power: 120 Watts), remove the cover
and connect a suitable adaptor.
JACK SOCKET
This connection box, consisting of a
JACK socket is located on the centre
console.
It permits the connection of portable
equipment, such as a digital audio player
of the iPod ®
type.
I t r e a d s t h e a u d i o fi l e f o r m a t s ( m p 3 ,
ogg, wma, wav, ...) which are transmit-
ted to your audio equipment and played
via the vehicle's speakers.
Y o u c a n m a n a g e t h e s e fi l e s u s i n g t h e
steering wheel controls or the audio
equipment control panel and display
them on the multifunction screen.
When it is in use, the portable
equipment charges automatically.
For further details concerning the use
of this equipment, refer to MyWay
Audio system part of the "Audio and
Telematics" section.
Page 153 of 207
11
PRACTICAL INFORMATION
* To avoid any risk of jamming of the p e d a l s :
- ensure that the mat is positioned and secured correctly,
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r .
ACCESSORIES
They are all adapted to your vehicle and
b e n e fi t f r o m C I T R O Ë N ' s r e c o m m e n d a -
tion and warranty.
"Protection": anti-theft alarm, wheel
anti-theft devices, stolen vehicle track-
i n g s y s t e m , b r e a t h a l y s e r , fi r s t a i d k i t ,
warning triangle, high visibility safety
jacket, dog guard, snow chains, non-
skid covers, foglamps kit, parking assis-
tance, transluscent bumper protection
strips...
"Comfort and leisure": mats * , boot
t r a y , b o o t c a r p e t , b o o t n e t , m u d fl a p s ,
s u n b l i n d s , d o o r d e fl e c t o r s , i s o t h e r m
module, fragrance cartridges, set of
r o o f fi n i s h e r s , t r a n s v e r s e r o o f b a r s , b i -
cycle carrier, ski carrier, roof boxes,
towbars, wiring harnesses, front centre
armrest, child seats and booster cush-
ions, moveable mirror...
"Navigation and communication":
Bluetooth ®
hands-free kit, audio equip-
ment, portable satellite navigation sys-
tem, semi-integral portable navigation
system carrier, speed camera warning,
DVD player, auxiliary cable for connec-
ting a portable MP3 player, USB Box,
speakers...
Installation of radio
communication transmitters
Before instaliing on your vehicle
any after-market radio commu-
nication transmitter with external
aerial, we recommend that you
contact a CITROËN dealer.
The CITROËN dealer network
w i l l g i v e y o u t h e s p e c i fi c a t i o n
for transmitters which can be
fi t t e d ( f r e q u e n c y , m a x i m u m
p o w e r , a e r i a l p o s i t i o n , s p e c i fi c
i n s t a l l a t i o n r e q u i r e m e n t s ) , i n
line with the Vehicle Electro-
magnetic Compatibility Directive
( 2 0 0 4 / 1 0 4 / E C ) .
A wide range of accessories and gen-
uine parts is offered by the CITROËN
dealer network.
These accessories and parts have been
tested and approved for reliability and
safety.
This product range is structured around
5 c a t e g o r i e s :
Page 166 of 207
153
02GENERAL OPERATION
F o r a d e t a i l e d g l o b a l v i e w o f t h e m e n u s a v a i l a b l e , r e f e r t o s e c t i o n 1 0 .
P r e s s t h e M O D E b u t t o n s e v e r a l t i m e s i n s u c c e s s i o n f o r a c c e s s t o t h e f o l l o w i n g m e n u s :
F o r c l e a n i n g t h e s c r e e n , t h e u s e o f a s o f t , n o n - a b r a s i v e c l o t h ( s p e c t a c l e s c l o t h ) i s r e c o m m e n d e d , w i t h n o a d d i t i o n a l p r o d u c t .
RADIO /MUSIC MEDIA PLAYERSDIO DIO
TELEPHONE ( I f a c o n v e r s a t i o n i s i n p r o g r e s s )
FULL SCREEN MAP
NAVIGATION ( I f g u i d a n c e i s i n p r o g r e s s )
SETUP: s y s t e m l a n g u a g e , d a t e a n d t i m e , d i s p l a y , v e h i c l e s e t t i n g s , u n i t a n d s y s t e m s e t t i n g s , " D e m o m o d e " .
TRAFFIC: T M C i n f o r m a t i o n a n d m e s s a g e s .
Page 167 of 207
154
02
1
2
3
3
2
1
1
1
3
2
1
1
1
1
1
1
1
1
1
1
2
2
2
2
1
1
2
1
2
2
2
2
2
2
2
1
1
1
1
1
1
GENERAL OPERATION
A p r e s s o n t h e O K d i a l g i v e s a c c e s s t o s h o r t - c u t m e n u s a c c o r d i n g t o t h e d i s p l a y on the screen.
MUSIC MEDIA PLAYERS:
NAVIGATION (IF GUIDANCE IS IN PROGRESS):
ABORT GUIDANCE
REPEAT ADVICE
BLOCK ROAD
ROUTE INFO
SHOW DESTINATION
TRIP INFO
Route type
Avoid
Satellites
ZOOM/SCROLL
VOICE ADVICE
ROUTE OPTIONS
RADIO:
IN FM MODE
TRAFFIC INFO (TA)
RDS
RADIOTEXT
REGIONAL PROG.
AM
IN AM MODE
TA
REFRESH AM LIST
FM
FULL SCREEN MAP:
DISPLAY ACCORDING TO THE CONTEXT
TRAFFIC INFO (TA)
PLAY OPTIONS
NORMAL ORDER
RANDOM TRACK
REPEAT FOLDER
SCAN
SELECT MUSIC
TELEPHONE:
END CALL
HOLD CALL
DIAL
DTMF-TONES
PRIVATE MODE
MICRO OFF
ABORT GUIDANCE /RESUME GUIDANCECE CE
SET DESTINATION
POIS NEARBY
POSITION INFO
MAP SETTINGS
ZOOM/SCROLL
