Manual operation
Select position M for sequential
changing of the four gears.
Push the lever towards the + sign to
change up a gear.
Pull the lever towards the - sign to
change down a gear.
It is only possible to change from one
gear to another if the vehicle speed and
engine speed permit; otherwise, the
g e a r b o x w i l l o p e r a t e t e m p o r a r i l y i n a u t o -
matic mode.
D disappears and the gears
engaged appear in succession
on the instrument panel.
In the event of the engine la-
bouring or over-revving, the
g e a r s e l e c t e d fl a s h e s f o r a f e w s e c -
onds, then the actual gear engaged is
displayed.
It is possible to change from position D
( a u t o m a t i c ) t o p o s i t i o n M ( m a n u a l ) a t
any time.
When the vehicle is stationary or moving
v e r y s l o w l y , t h e g e a r b o x s e l e c t s g e a r M1
automatically.
The sport and snow programmes do not
operate in manual mode. Invalid value during manual
operation
This symbol is displayed if a
gear is not engaged correctly
(selector between two posi-
t i o n s ) .
Stopping the vehicle
Before switching off the engine, you
can engage position P or N to place the
g e a r b o x i n n e u t r a l .
In both cases, apply the parking brake
to immobilise the vehicle.
If the lever is not in position P ,
when the driver's door is opened
o r a p p r o x i m a t e l y 4 5 s e c o n d s a f t e r
the ignition is switched off, a mes-
sage appears in the multifunction
screen.
Return the lever to position P ;
the message disappears. There is a risk of damage to the
g e a r b o x :
- if you press the accelerator
and brake pedals at the same
time,
- if you force the movement of the gear lever from the P
position to another position
w h e n t h e b a t t e r y i s fl a t .
Operating fault
When the ignition is on,
the lighting of this warn-
ing lamp, accompanied
by an audible signal and
a message on the multifunction screen,
i n d i c a t e s a g e a r b o x m a l f u n c t i o n .
I n t h i s c a s e , t h e g e a r b o x s w i t c h e s t o
emergency mode and is locked in 3rd
gear. You may feel a substantial knock
when changing from P to R and from N
to R . This will not cause any damage to
t h e g e a r b o x .
D o n o t e x c e e d 6 0 m p h ( 1 0 0 k m / h ) , l o c a l
speed restrictions permitting.
Contact a CITROËN dealer as soon as
possible.
Page 114 of 207
9
DRIVING
SPEED LIMITER
System which prevents the vehicle from
e x c e e d i n g t h e s p e e d p r o g r a m m e d b y
the driver.
When the programmed speed limit is
reached, pressing the accelerator pedal
in the normal manner no longer has any
effect.
The speed limiter is switched on man-
ually: it requires a programmed speed
o f a t l e a s t 2 0 m p h ( 3 0 k m / h ) .
The speed limiter is switched off by
manual operation of the control.
T h e p r o g r a m m e d s p e e d c a n b e e x c e e d e d
temporarily by pressing the accelerator
fi r m l y .
To return to the programmed speed,
simply slow down to a speed below the
programmed speed.
The programmed speed remains in the
memory when the ignition is switched
off.
The speed limiter cannot, in any
circumstances, replace the need
to respect speed limits, nor can
it replace the need for vigilance
and responsibility on the part of
the driver. Steering wheel controls
The controls of this system are grouped
together on stalk
A .
1. Speed limiter mode selection thumb
wheel
2. Value decrease button
3. Value increase button
4. S p e e d l i m i t e r o n / o f f b u t t o n Displays on the instrument panel
The programmed information is grouped
together on the instrument panel display.
5. S p e e d l i m i t e r o n / o f f i n d i c a t i o n
6. Speed limiter mode selection indication
7. Programmed speed value
Page 115 of 207
9
DRIVING
On a steep descent or in the
event of sharp acceleration, the
speed limiter will not be able to
p r e v e n t t h e v e h i c l e f r o m e x c e e d i n g
the programmed speed.
To avoid any risk of jamming of
the pedals:
- ensure that the mat is posi- tioned correctly,
- d o n o t fi t o n e m a t o n t o p o f another.
Programming
Turn thumb wheel 1 to the "LIMIT" position: the speed limiter mode
is selected but is not switched on
( P A U S E ) .
You do not have to switch the speed
limiter on in order to set the speed.
Set the speed value by pressing button 2 or 3 (e.g.:
5 5 m p h ( 9 0 k m / h ) ) .
You can then change the programmed speed using but-
tons 2 and 3 :
- b y + o r - 1 m p h ( k m / h ) = s h o r t p r e s s ,
- b y + o r - 5 m p h ( k m / h ) = l o n g p r e s s ,
- i n s t e p s o f + o r - 5 m p h ( k m / h ) = m a i n t a i n e d p r e s s .
Switch the speed limiter on by pressing button 4 .
Switch the speed limiter off by pressing button 4 : the
d i s p l a y c o n fi r m s t h a t i t h a s b e e n s w i t c h e d o f f ( P A U S E ) .
Switch the speed limiter back on by pressing button 4
again.
Exceeding the programmed speed
P r e s s i n g t h e a c c e l e r a t o r p e d a l t o e x c e e d t h e p r o g r a m m e d
speed will not have any effect unless you press the pedal
fi r m l y past the point of resistance .
The speed limiter is deactivated temporarily and the pro-
g r a m m e d s p e e d , w h i c h i s s t i l l d i s p l a y e d , fl a s h e s .
Returning to the programmed speed, by means of int ention-
al or unintentional deceleration of the vehicle, au tomatically
c a n c e l s t h e fl a s h i n g o f t h e p r o g r a m m e d s p e e d .
Leaving limiter mode
Turn thumb wheel 1 to the "0" position: the speed limiter
mode is deselected. The display returns to the distance
recorder. Operating fault
In the event of a speed limiter malfunc-
tion, the speed is cleared resulting in
fl a s h i n g o f t h e d a s h e s .
Have the system checked by a
CITROËN dealer.
Page 116 of 207
9
DRIVING
The cruise control cannot, in any
circumstances, replace the need
to respect speed limits, nor can
it replace the need for vigilance
and responsibility on the part of
the driver.

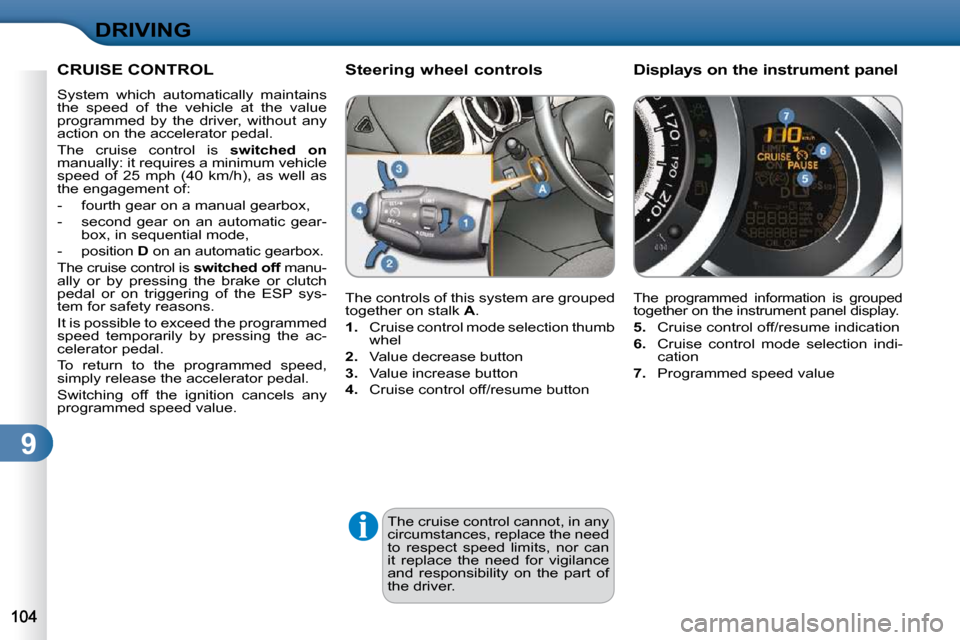

CRUISE CONTROL
System which automatically maintains
the speed of the vehicle at the value
programmed by the driver, without any
action on the accelerator pedal.
The cruise control is switched on
manually: it requires a minimum vehicle
s p e e d o f 2 5 m p h ( 4 0 k m / h ) , a s w e l l a s
the engagement of:
- f o u r t h g e a r o n a m a n u a l g e a r b o x ,
- second gear on an automatic gear- b o x , i n s e q u e n t i a l m o d e ,
- position D o n a n a u t o m a t i c g e a r b o x .
The cruise control is switched off manu-
ally or by pressing the brake or clutch
pedal or on triggering of the ESP sys-
tem for safety reasons.
I t i s p o s s i b l e t o e x c e e d t h e p r o g r a m m e d
speed temporarily by pressing the ac-
celerator pedal.
To return to the programmed speed,
simply release the accelerator pedal.
Switching off the ignition cancels any
programmed speed value. The controls of this system are grouped
together on stalk
A .
1. Cruise control mode selection thumb
whel
2. Value decrease button
3. Value increase button
4. C r u i s e c o n t r o l o f f / r e s u m e b u t t o n
Steering wheel controls Displays on the instrument
panel
The programmed information is grouped together on the instrument panel display.
5. C r u i s e c o n t r o l o f f / r e s u m e i n d i c a t i o n
6. Cruise control mode selection indi-
cation
7. Programmed speed value
Page 117 of 207
9
DRIVING
When the cruise control is
switched on, be careful if you
maintain the pressure on one of
the programmed speed chang-
ing buttons: this may result in a
very rapid change in the speed
of your vehicle.
Do not use the cruise control on
s l i p p e r y r o a d s o r i n h e a v y t r a f fi c .
On a steep descent, the cruise
control will not be able to prevent
t h e v e h i c l e f r o m e x c e e d i n g t h e
programmed speed.
To avoid any risk of jamming of
the pedals:
- ensure that the mat is posi-tioned correctly,
- n e v e r fi t o n e m a t o n t o p o f another.

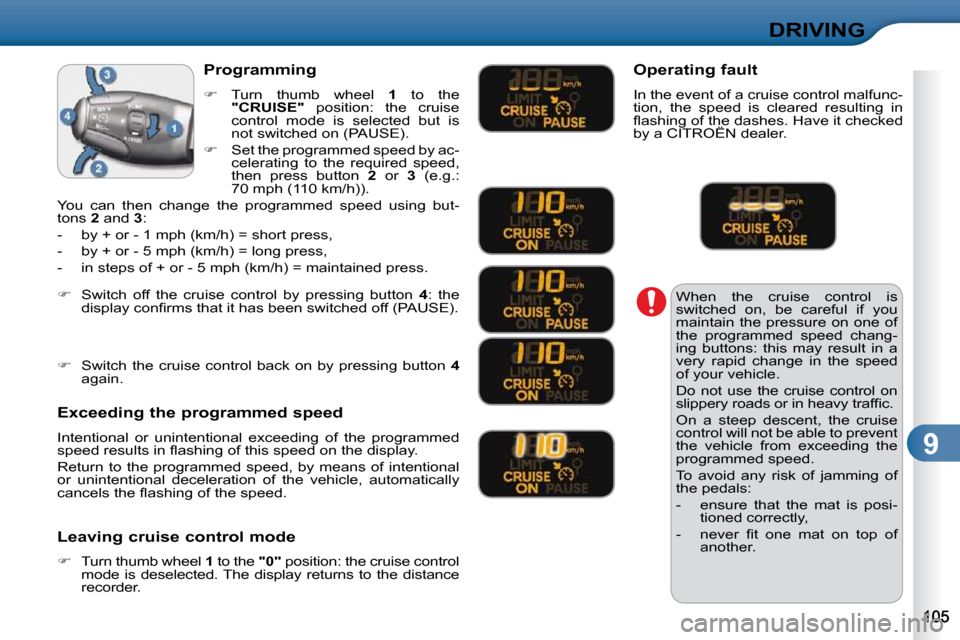

Programming
Turn thumb wheel 1 to the
"CRUISE" position: the cruise
control mode is selected but is
n o t s w i t c h e d o n ( P A U S E ) .
Set the programmed speed by ac-
celerating to the required speed,
then press button 2 or 3 (e.g.:
7 0 m p h ( 1 1 0 k m / h ) ) .
You can then change the programmed speed using but-
tons 2 and 3 :
- b y + o r - 1 m p h ( k m / h ) = s h o r t p r e s s ,
- b y + o r - 5 m p h ( k m / h ) = l o n g p r e s s ,
- i n s t e p s o f + o r - 5 m p h ( k m / h ) = m a i n t a i n e d p r e s s .
Exceeding the programmed speed
I n t e n t i o n a l o r u n i n t e n t i o n a l e x c e e d i n g o f t h e p r o g r a m m e d
s p e e d r e s u l t s i n fl a s h i n g o f t h i s s p e e d o n t h e d i s p l a y .
Return to the programmed speed, by means of intentional
or unintentional deceleration of the vehicle, automaticall y
c a n c e l s t h e fl a s h i n g o f t h e s p e e d .
Leaving cruise control mode
Turn thumb wheel 1 to the "0" position: the cruise control
mode is deselected. The display returns to the dist ance
recorder.
Switch off the cruise control by pressing button 4 : the
d i s p l a y c o n fi r m s t h a t i t h a s b e e n s w i t c h e d o f f ( P A U S E ) .
Switch the cruise control back on by pressing button 4
again. Operating fault
In the event of a cruise control malfunc-
tion, the speed is cleared resulting in
fl a s h i n g o f t h e d a s h e s . H a v e i t c h e c k e d
by a CITROËN dealer.
Page 165 of 207
152
1
5
10
01
2
346
13
11
9
1415
781216
1. E n g i n e n o t r u n n i n g - Short press: on/off. - L o n g p r e s s : C D p a u s e , m u t e f o r t h e r a d i o . E n g i n e r u n n i n g - S h o r t p r e s s : C D p a u s e , m u t e f o r t h e r a d i o . - L o n g p r e s s : r e i n i t i a l i s a t i o n o f t h e s y s t e m .
2. Volume adjustment.
3. A c c e s s t o t h e " R a d i o " M e n u . D i s p l a y t h e l i s t o f s
t a t i o n s .
4. A c c e s s t o t h e " M u s i c " M e n u . D i s p l a y t h e t r a c k s .
6. A c c e s s t o t h e " P h o n e " M e n u . D i s p l a y t h e c a l l l i s t .
7. A c c e s s t o t h e " M O D E " M e n u . Selection of the successive display of: R a d i o , M a p , N A V ( i f n a v i g a t i o n i s i n p r o g r e s s ) , T e l e p h o n e ( i f a c o n v e r s a t i o n i s i n p r o g r e s s ) . L o n g p r e s s : d i s p l a y o f a b l a c k s c r e e n ( D A R K ) .
8. A c c e s s t o t h e " N a v i g a t i o n " M e n u . D i s p l a y t h e l a s t d e s t i n a t i o n s .
9 . A c c e s s t o t h e " T r a f fi c " M e n u . D i s p l a y t h e c u r r e n t t r a f fi c a l e r t s .
10. E S C : a b a n d o n t h e o p e r a t i o n i n p r o g r e s s .
11. C D e j e c t .
12. Selection of the previous/next radio station from the list. Selection of the previous/next MP3 directory. S e l e c t i o n o f t h e p r e v i o u s / n e x t p a g e o f a l i s t .
13. Selection of the previous/next radio station. S e l e c t i o n o f t h e p r e v i o u s / n e x t C D o r M P 3 t r a c k . Selection of the previous/next line of a list.
14. Buttons 1 to 6: Selection of the stored radio station. L o n g p r e s s : s t o r e t h e c u r r e n t r a d i o s t a t i o n .
15. S D c a r d r e a d e r .
16. D i a l f o r s e l e c t i o n o f t h e s c r e e n d i s p l a y a n d a c c o r d i n g t o t h e context of the menu. S h o r t p r e s s : c o n fi r m a t i o n .
FIRST STEPS
MyWay CONTROL PANEL
3 - 4. L o n g p r e s s : a c c e s s t o t h e a u d i o s e t t i n g s : f r o n t / r e a r a n d l e f t / r i g h t b a l a n c e , b a s s / t r e b l e , e q u a l i z e r , l o u d n e s s , a u t o m a t i c v o l u m e a d j u s t m e n t , i n i t i a l i s e t h e s e t t i n g s .
5. A c c e s s t o t h e " S E T U P " M e n u . L o n g p r e s s : a c c e s s t o t h e G P S c o v e r a g e a n d t h e demonstration mode.
Page 167 of 207
154
02
1
2
3
3
2
1
1
1
3
2
1
1
1
1
1
1
1
1
1
1
2
2
2
2
1
1
2
1
2
2
2
2
2
2
2
1
1
1
1
1
1
GENERAL OPERATION
A p r e s s o n t h e O K d i a l g i v e s a c c e s s t o s h o r t - c u t m e n u s a c c o r d i n g t o t h e d i s p l a y on the screen.
MUSIC MEDIA PLAYERS:
NAVIGATION (IF GUIDANCE IS IN PROGRESS):
ABORT GUIDANCE
REPEAT ADVICE
BLOCK ROAD
ROUTE INFO
SHOW DESTINATION
TRIP INFO
Route type
Avoid
Satellites
ZOOM/SCROLL
VOICE ADVICE
ROUTE OPTIONS
RADIO:
IN FM MODE
TRAFFIC INFO (TA)
RDS
RADIOTEXT
REGIONAL PROG.
AM
IN AM MODE
TA
REFRESH AM LIST
FM
FULL SCREEN MAP:
DISPLAY ACCORDING TO THE CONTEXT
TRAFFIC INFO (TA)
PLAY OPTIONS
NORMAL ORDER
RANDOM TRACK
REPEAT FOLDER
SCAN
SELECT MUSIC
TELEPHONE:
END CALL
HOLD CALL
DIAL
DTMF-TONES
PRIVATE MODE
MICRO OFF
ABORT GUIDANCE /RESUME GUIDANCECE CE
SET DESTINATION
POIS NEARBY
POSITION INFO
MAP SETTINGS
ZOOM/SCROLL
Page 174 of 207
161
03
5
4
6
3
2
1
Select the "Navi volume" function and turn the dial to set the volume of each v o i c e s y n t h e s i s e r ( t r a f fi c i n f o r m a t i o n , a l e r t m e s s a g e s … ) .
Select "Set parameters for risk areas" t o g a i n a c c e s s t o t h e " D i s p l a y o n m a p " , "Visual alert" and "Sound alert" functions.
S e l e c t t h e " P O I c a t e g o r i e s o n M a p " function to select the POIs to be displayed on the map by default.
NAVI VOLUME
Press the NAV button.
P r e s s t h e N A V b u t t o n a g a i n o r s e l e c t t h e " N a v i g a t i o n " M e n u f u n c t i o n a n d p r e s s t h e d i a l t o c o n fi r m .
S e l e c t t h e " S e t t i n g s " f u n c t i o n a n d p r e s s t h e d i a l t o c o n fi r m .
POI CATEGORIES ON MAP
SETTINGS SET PARAMETERS FOR RISK AREAS
"NAVIGATION" MENU
NAVIGATION - GUIDANCE
C o n t a c t a C I T R O Ë N d e a l e r f o r d e t a i l s o f t h e p r o c e d
u r e f o r o b t a i n i n g t h e H A Z A R D O U S L O C A T I O N P O I s . U p d a t i n g o f t h e H A Z A R D O U S L O C A T I O N P O I s r e q u i r e s a n S D H C ( H i g h C a p a c i t y ) c o m p a t i b l e r e a d e r .
