SPECIFICATIONS
8-3
8
Electrical system:Ignition system:
Transistorized coil ignition (digital)
Charging system:
AC magnetoBattery:Model:
YTZ10S
Voltage, capacity:
12 V, 8.6 AhHeadlight:Bulb type:
Halogen bulbBulb voltage, wattage × quantity:Headlight:
12 V, 55.0 W × 2
Tail/brake light:
LED
Front turn signal light:
12 V, 10.0 W × 2
Rear turn signal light:
12 V, 10.0 W × 2
Auxiliary light:
LED
License plate light:
12 V, 5.0 W × 1
Meter lighting:
LED
Neutral indicator light:
LED
High beam indicator light:
LED
Oil level warning light:
LEDTurn signal indicator light:
LED
Fuel level warning light:
LED
Coolant temperature warning light:
LED
Engine trouble warning light:
LED
Immobilizer system indicator light:
LED
Shift timing indicator light:
LED
Fuses:Main fuse:
50.0 A
Headlight fuse:
15.0 A
Taillight fuse:
7.5 A
Signaling system fuse:
10.0 A
Ignition fuse:
15.0 A
Radiator fan fuse:
15.0 A × 2
Fuel injection system fuse:
15.0 A
Backup fuse:
7.5 A
Electronic throttle valve fuse:
7.5 A
U13SE0E0.book Page 3 Monday, August 27, 2007 4:53 PM

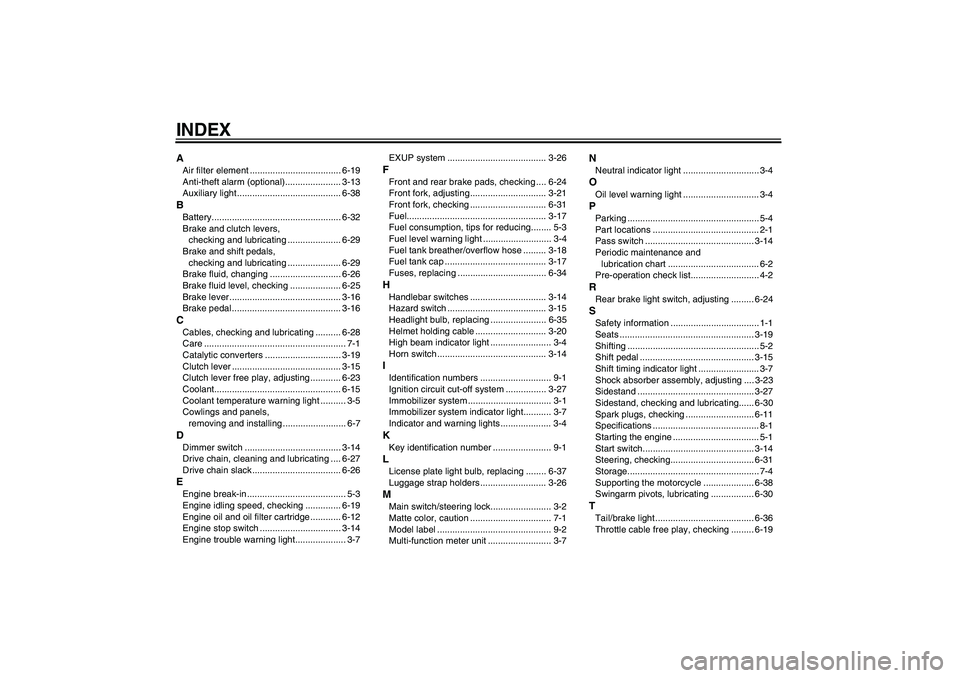

INDEXAAir filter element .................................... 6-19
Anti-theft alarm (optional)...................... 3-13
Auxiliary light ......................................... 6-38BBattery................................................... 6-32
Brake and clutch levers,
checking and lubricating ..................... 6-29
Brake and shift pedals,
checking and lubricating ..................... 6-29
Brake fluid, changing ............................ 6-26
Brake fluid level, checking .................... 6-25
Brake lever ............................................ 3-16
Brake pedal ........................................... 3-16CCables, checking and lubricating .......... 6-28
Care ........................................................ 7-1
Catalytic converters .............................. 3-19
Clutch lever ........................................... 3-15
Clutch lever free play, adjusting ............ 6-23
Coolant.................................................. 6-15
Coolant temperature warning light .......... 3-5
Cowlings and panels,
removing and installing ......................... 6-7DDimmer switch ...................................... 3-14
Drive chain, cleaning and lubricating .... 6-27
Drive chain slack ................................... 6-26EEngine break-in ....................................... 5-3
Engine idling speed, checking .............. 6-19
Engine oil and oil filter cartridge ............ 6-12
Engine stop switch ................................ 3-14
Engine trouble warning light.................... 3-7EXUP system ....................................... 3-26
FFront and rear brake pads, checking .... 6-24
Front fork, adjusting .............................. 3-21
Front fork, checking .............................. 6-31
Fuel....................................................... 3-17
Fuel consumption, tips for reducing........ 5-3
Fuel level warning light ........................... 3-4
Fuel tank breather/overflow hose ......... 3-18
Fuel tank cap ........................................ 3-17
Fuses, replacing ................................... 6-34HHandlebar switches .............................. 3-14
Hazard switch ....................................... 3-15
Headlight bulb, replacing ...................... 6-35
Helmet holding cable ............................ 3-20
High beam indicator light ........................ 3-4
Horn switch ........................................... 3-14IIdentification numbers ............................ 9-1
Ignition circuit cut-off system ................ 3-27
Immobilizer system ................................. 3-1
Immobilizer system indicator light........... 3-7
Indicator and warning lights .................... 3-4KKey identification number ....................... 9-1LLicense plate light bulb, replacing ........ 6-37
Luggage strap holders .......................... 3-26MMain switch/steering lock........................ 3-2
Matte color, caution ................................ 7-1
Model label ............................................. 9-2
Multi-function meter unit ......................... 3-7
NNeutral indicator light .............................. 3-4OOil level warning light .............................. 3-4PParking .................................................... 5-4
Part locations .......................................... 2-1
Pass switch ........................................... 3-14
Periodic maintenance and
lubrication chart .................................... 6-2
Pre-operation check list........................... 4-2RRear brake light switch, adjusting ......... 6-24SSafety information ................................... 1-1
Seats ..................................................... 3-19
Shifting .................................................... 5-2
Shift pedal ............................................. 3-15
Shift timing indicator light ........................ 3-7
Shock absorber assembly, adjusting .... 3-23
Sidestand .............................................. 3-27
Sidestand, checking and lubricating...... 6-30
Spark plugs, checking ........................... 6-11
Specifications .......................................... 8-1
Starting the engine .................................. 5-1
Start switch............................................ 3-14
Steering, checking................................. 6-31
Storage.................................................... 7-4
Supporting the motorcycle .................... 6-38
Swingarm pivots, lubricating ................. 6-30TTail/brake light ....................................... 6-36
Throttle cable free play, checking ......... 6-19
