INSTRUMENT AND CONTROL FUNCTIONS
3-3
3 To lock the steering
1. Turn the handlebars all the way to
the left.
2. Push the key in from the “OFF” po-
sition, and then turn it to “LOCK”
while still pushing it.
3. Remove the key.To unlock the steering
Push the key in, and then turn it to
“OFF” while still pushing it.
WARNING
EWA10060
Never turn the key to “OFF” or
“LOCK” while the vehicle is moving,
otherwise the electrical systems will
be switched off, which may result in
loss of control or an accident. Make
sure that the vehicle is stopped be-
fore turning the key to “OFF” or“LOCK”.
EAU10941
(Parking)
The steering is locked, and the taillight,
license plate light and auxiliary lights
are on. The hazard lights and turn sig-
nal lights can be turned on, but all other
electrical systems are off. The key can
be removed.
The steering must be locked before the
key can be turned to “”.
CAUTION:
ECA11020
Do not use the parking position for
an extended length of time, other-wise the battery may discharge.
1. Push.
2. Turn.
1. Push.
2. Turn.
U4C8E1E0.book Page 3 Wednesday, June 13, 2007 9:24 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-4
3

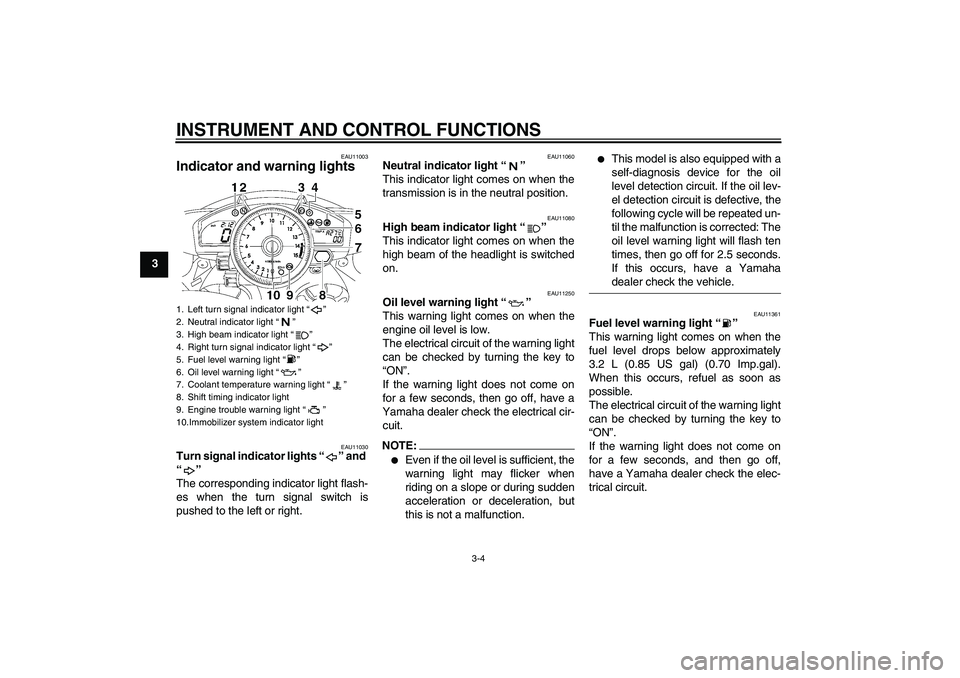

EAU11003
Indicator and warning lights
EAU11030
Turn signal indicator lights “” and
“”
The corresponding indicator light flash-
es when the turn signal switch is
pushed to the left or right.
EAU11060
Neutral indicator light “”
This indicator light comes on when the
transmission is in the neutral position.
EAU11080
High beam indicator light “”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU11250
Oil level warning light “”
This warning light comes on when the
engine oil level is low.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.NOTE:

Even if the oil level is sufficient, the
warning light may flicker when
riding on a slope or during sudden
acceleration or deceleration, but
this is not a malfunction.


This model is also equipped with a
self-diagnosis device for the oil
level detection circuit. If the oil lev-
el detection circuit is defective, the
following cycle will be repeated un-
til the malfunction is corrected: The
oil level warning light will flash ten
times, then go off for 2.5 seconds.
If this occurs, have a Yamahadealer check the vehicle.
EAU11361
Fuel level warning light “”
This warning light comes on when the
fuel level drops below approximately
3.2 L (0.85 US gal) (0.70 Imp.gal).
When this occurs, refuel as soon as
possible.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on
for a few seconds, and then go off,
have a Yamaha dealer check the elec-
trical circuit.
1. Left turn signal indicator light “”
2. Neutral indicator light “”
3. High beam indicator light “”
4. Right turn signal indicator light “”
5. Fuel level warning light “”
6. Oil level warning light “”
7. Coolant temperature warning light “”
8. Shift timing indicator light
9. Engine trouble warning light “”
10.Immobilizer system indicator lightU4C8E1E0.book Page 4 Wednesday, June 13, 2007 9:24 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-5
3
NOTE:This model is also equipped with a self-
diagnosis device for the fuel level de-
tection circuit. If the fuel level detection
circuit is defective, the following cycle
will be repeated until the malfunction is
corrected: The fuel level warning light
will flash eight times, and then go off for
3.0 seconds. If this occurs, have aYamaha dealer check the vehicle.
EAU11423
Coolant temperature warning light
“”
This warning light comes on when the
engine overheats. When this occurs,
stop the engine immediately and allow
the engine to cool.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
CAUTION:
ECA10020
Do not operate the engine if it isoverheated.
U4C8E1E0.book Page 5 Wednesday, June 13, 2007 9:24 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-6
3
Coolant
temperatureDisplay Conditions What to do
Under 39 °C
(Under 103 °F)Message “Lo” is displayed. OK. Go ahead with riding.
40–116 °C
(104–242 °F)Temperature is displayed. OK. Go ahead with riding.
117–139 °C
(243–283 °F)Temperature display flashes.
Warning light comes on.Stop the vehicle and allow it to idle until
the coolant temperature goes down.
If the temperature does not go down,
stop the engine. (See page 6-44.)
Above 140 °C
(Above 284 °F)Message “HI” flashes.
Warning light comes on.Stop the engine and allow it to cool.
(See page 6-44.)
U4C8E1E0.book Page 6 Wednesday, June 13, 2007 9:24 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-7
3
EAU11530
Engine trouble warning light “”
This warning light comes on or flashes
when an electrical circuit monitoring the
engine is defective. When this occurs,
have a Yamaha dealer check the self-
diagnosis system. (See page 3-7 for an
explanation of the self-diagnosis de-
vice.)
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. If the warning light does not come
on for a few seconds, then go off, have
a Yamaha dealer check the electrical
circuit.
EAU11571
Shift timing indicator light
This indicator light can be set to come
on and go off at the desired engine
speeds and is used to inform the rider
when it is time to shift to the next higher
gear.
The electrical circuit of the indicator
light can be checked by turning the key
to “ON”.
If the indicator light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-cuit. (See page 3-7 for a detailed expla-
nation of the function of this indicator
light and on how to set it.)
EAU38620
Immobilizer system indicator light
The electrical circuit of the indicator
light can be checked by turning the key
to “ON”.
If the indicator light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
When the key is turned to “OFF” and 30
seconds have passed, the indicator
light will start flashing indicating the im-
mobilizer system is enabled. After 24
hours have passed, the indicator light
will stop flashing, however the immobi-
lizer system is still enabled.
This model is also equipped with a self-
diagnosis device for the immobilizer
system. (See page 3-7 for an explana-
tion of the self-diagnosis device.)
EAU33968
Multi-function meter unit
WARNING
EWA12421
Be sure to stop the vehicle before
making any setting changes to themulti-function meter unit.
The multi-function meter unit is
equipped with the following:1. Clock
2. Speedometer
3.“SELECT” button
4.“RESET” button
5. Tachometer
6. Coolant temperature display/air intake tem-
perature display
7. Odometer/tripmeters/fuel reserve tripme-
ter/stopwatch
8. Shift timing indicator light
U4C8E1E0.book Page 7 Wednesday, June 13, 2007 9:24 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-8
3


a speedometer (which shows the
riding speed)


a tachometer (which shows engine
speed)


an odometer (which shows the to-
tal distance traveled)


two tripmeters (which show the
distance traveled since they were
last set to zero)


a fuel reserve tripmeter (which
shows the distance traveled since
the fuel level warning light came
on)


a stopwatch


a clock


a coolant temperature display


an air intake temperature display


a self-diagnosis device


a display brightness and shift tim-
ing indicator light control mode
NOTE:

Be sure to turn the key to “ON” be-
fore using the “SELECT” and “RE-
SET” buttons.


For the U.K. only: To switch the
speedometer and odometer/trip-
meter displays between kilometers
and miles, press the “SELECT”button for at least one second.
Tachometer
The electric tachometer allows the rider
to monitor the engine speed and keep it
within the ideal power range.
When the key is turned to “ON”, the ta-
chometer needle will sweep once
across the r/min range and then return
to zero r/min in order to test the electri-
cal circuit.
CAUTION:
ECA10031
Do not operate the engine in the ta-
chometer red zone.Red zone: 13750 r/min and above
Clock mode
Turn the key to “ON”.
To set the clock1. Push the “SELECT” button and
“RESET” button together for at
least two seconds.
2. When the hour digits start flashing,
push the “RESET” button to set the
hours.
1. Tachometer
2. Tachometer red zone
1. Clock
2. Speedometer
U4C8E1E0.book Page 8 Wednesday, June 13, 2007 9:24 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-9
3 3. Push the “SELECT” button, and
the minute digits will start flashing.
4. Push the “RESET” button to set
the minutes.
5. Push the “SELECT” button and
then release it to start the clock.
Odometer, tripmeter, and stopwatch
modes
Push the “SELECT” button to switch
the display between the odometer
mode “ODO”, the tripmeter modes
“TRIP A” and “TRIP B” and the stop-
watch mode in the following order:
TRIP A → TRIP B → ODO → Stop-
watch → TRIP AIf the fuel level warning light comes on
(see page 3-4), the odometer display
will automatically change to the fuel re-
serve tripmeter mode “F-TRIP” and
start counting the distance traveled
from that point. In that case, push the
“SELECT” button to switch the display
between the various tripmeter, odome-
ter, and stopwatch modes in the follow-
ing order:
F-TRIP → Stopwatch → TRIP A →
TRIP B → ODO → F-TRIP
To reset a tripmeter, select it by push-
ing the “SELECT” button, and then
push the “RESET” button for at least
one second. If you do not reset the fuel
reserve tripmeter manually, it will reset
itself automatically and the display will
return to the prior mode after refueling
and traveling 5 km (3 mi).
Stopwatch mode
To change the display to the stopwatch
mode, select it by pushing the “SE-
LECT” button. (The stopwatch digits
will start flashing.) Release the “SE-
LECT” button, and then push it again
for a few seconds until the stopwatch
digits stop flashing.Standard measurement
1. Push the “RESET” button to start
the stopwatch.
2. Push the “SELECT” button to stop
the stopwatch.
3. Push the “SELECT” button again
to reset the stopwatch.
Split-time measurement1. Push the “RESET” button to start
the stopwatch.
2. Push the “RESET” button or start
switch “” to measure split-times.
(The colon “:” will start flashing.)
3. Push the “RESET” button or start
switch “” to display the final split-
time or push the “SELECT” button
to stop the stopwatch and display
total elapsed time.
4. Push the “SELECT” button to reset
the stopwatch.NOTE:To change the display back to the prior
mode, push the “SELECT” button for a
few seconds until the stopwatch digitsflash.
1. Odometer/tripmeters/fuel reserve tripme-
ter/stopwatch
U4C8E1E0.book Page 9 Wednesday, June 13, 2007 9:24 AM
